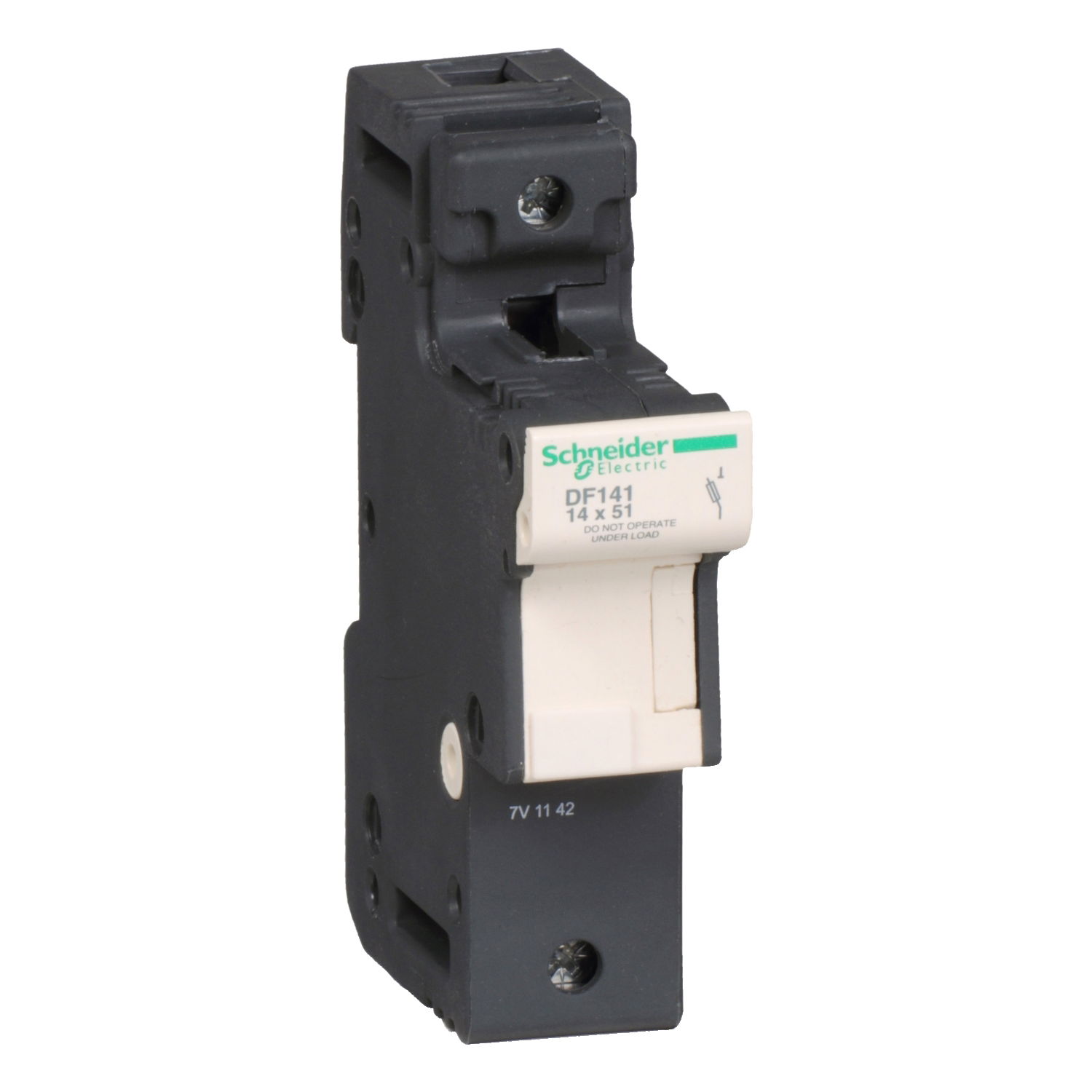

Fuse carrier TeSys DF, 1P 50A, fuse size 14x51 mm

Link copied
SKU
EAN
GTIN
MPN

Fuse carrier TeSys DF, 1P 50A, fuse size 14x51 mm by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 2 more. It is currently in stock at 4 of them. Trade prices range from £8.17 to £14.21 excl. VAT. Voltimum+ members earn 2 points per unit.

TeSys DF modular fuse carrier, 1 pole (1P), for protection of control circuits up to 50A/690V. To be used with 14x51mm fuse links up to 50A and short circuit current up to 120kA@400V. Compact (26.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links (14x51mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (IEC, UL recognized, CSA, EAC).

Voltimum+ Loyalty Programme Loyalty points: 2

Price range: £ 8.17 - £ 14.21 Excl. VAT

Categories

Switchgear Low Voltage Switchgear Switchgear & Circuit Protection

ETIM group

Circuit breakers and fuses

Specifications

Lockable no
For fuse size 14x51 mm
Built-in depth 70 mm
Mounting method DIN rail
Nominal voltage 690 V
Number of poles 1
Degree of protection (IP) IP20
With optical defect indication no
Concurrently switching neutral conductor no
