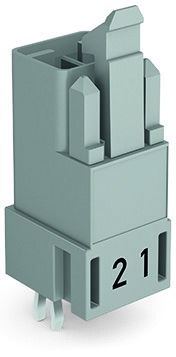

Plug for PCBs straight 2-pole gray

Name: Plug for PCBs straight 2-pole gray
Brand: Wago
SKU: 890-852
Availability: InStock

Plug for PCBs; straight; 2-pole; Cod. B; gray

Product identifiers

SKU: 890-852

EAN: 4050821695837

GTIN: 4050821695837

MPN: 890-852

Price: £ 1.47 Excl. VAT

Connectors

Specifications

EFNA0008	V0
Length pin	3.5
Contact type	Pin
Rated voltage	250
Housing colour	Grey
Connector model	Free connector
Number of poles	2
Type of banding	None
Pollution degree	3
Rated current In	16
Angle PCB/contact	90° (upwards vertical)
Type of fastening	Solder
Type of connection	-
Rated surge voltage	4
Operating temperature	-35 - 85
Over voltage category	-
Type of PCB fastening	Connecting contact
Diameter connection pin	1.28
Material insulation body	Polyamide (PA)
Modular spacing contacts	4.4
Suitable for PCB thickness	-
Material of contact surface	Tin
Modular spacing connections	4.4
Type of electric connection	Soldering connection
RAL-number (similar) housing	7042
Number of plug-in contact rows	1
