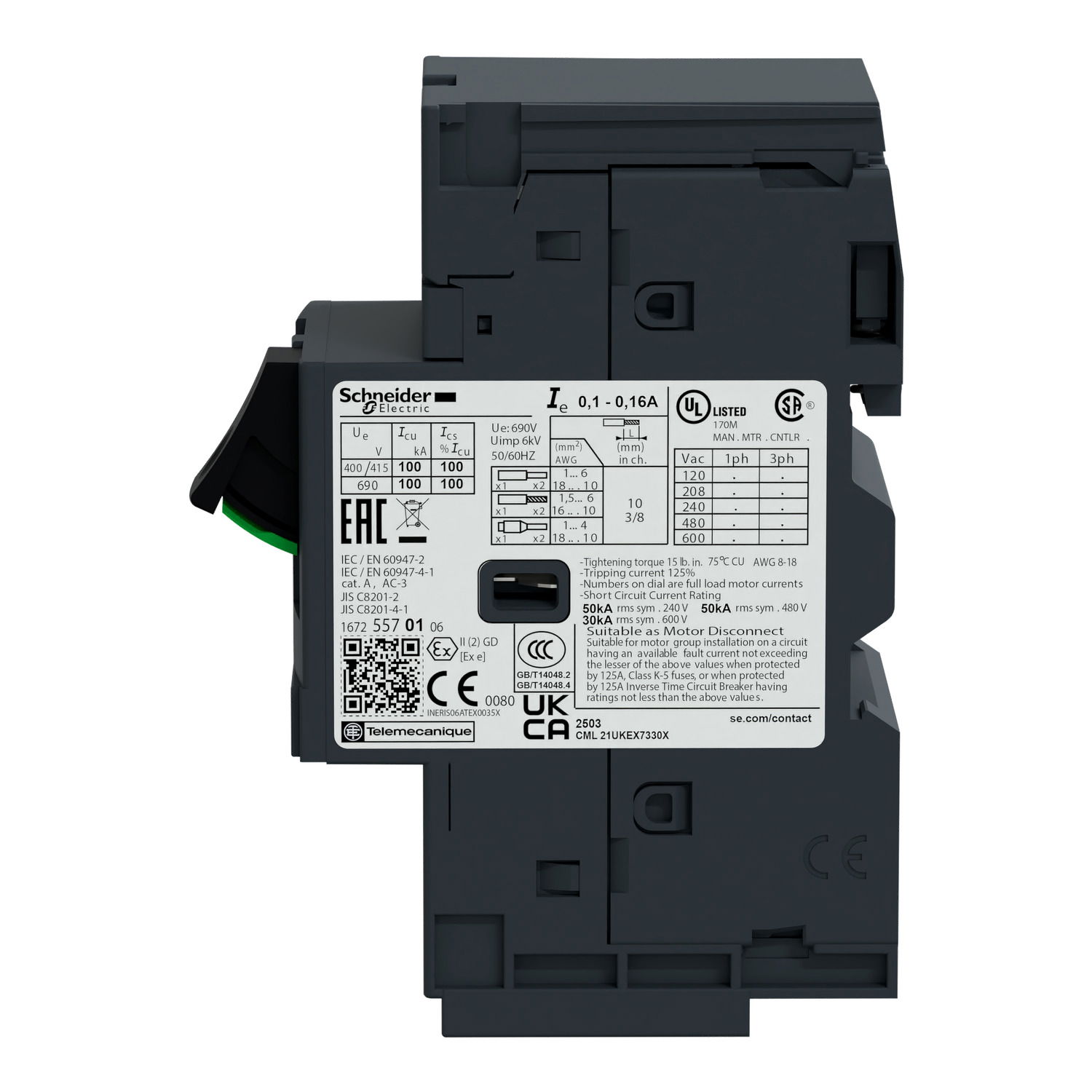

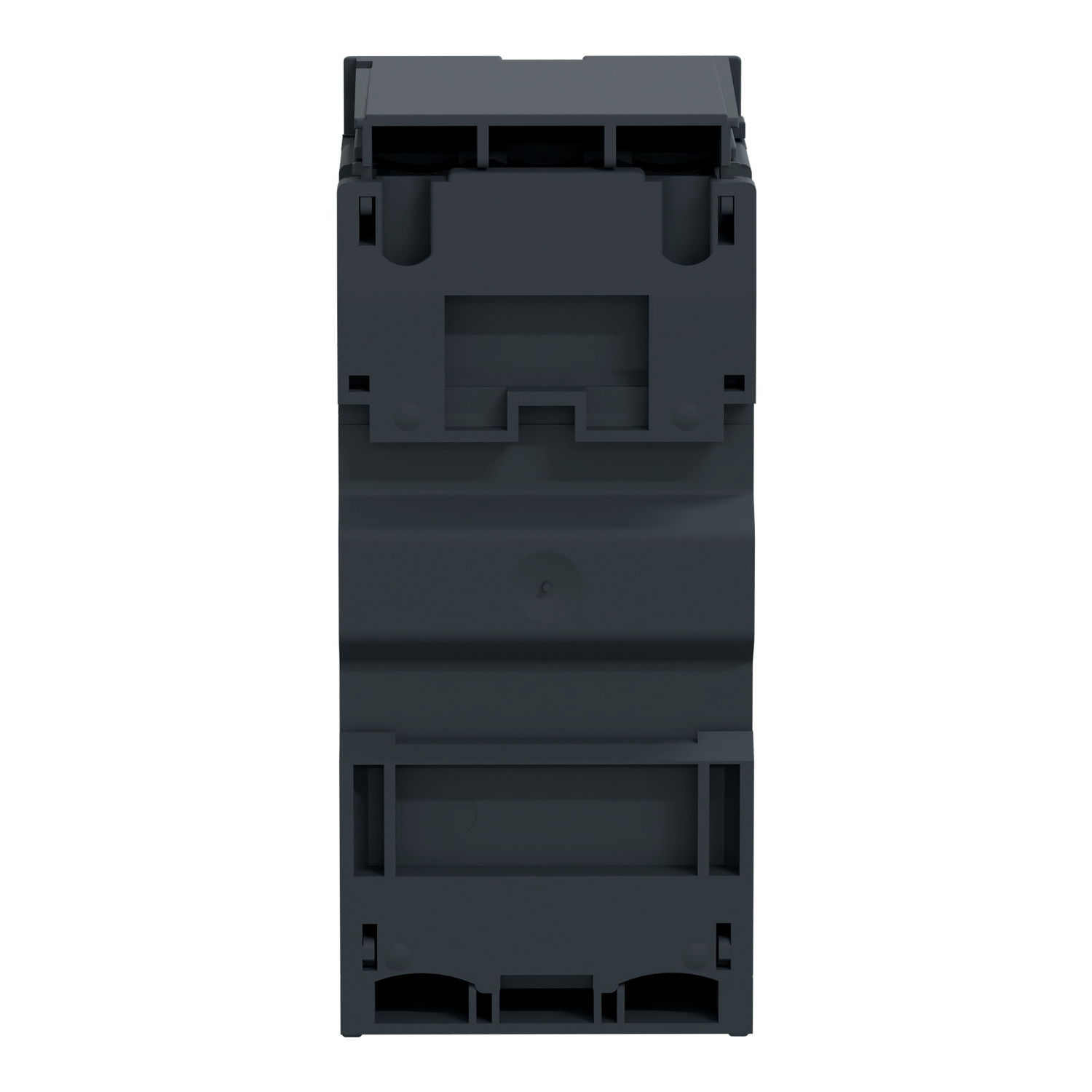

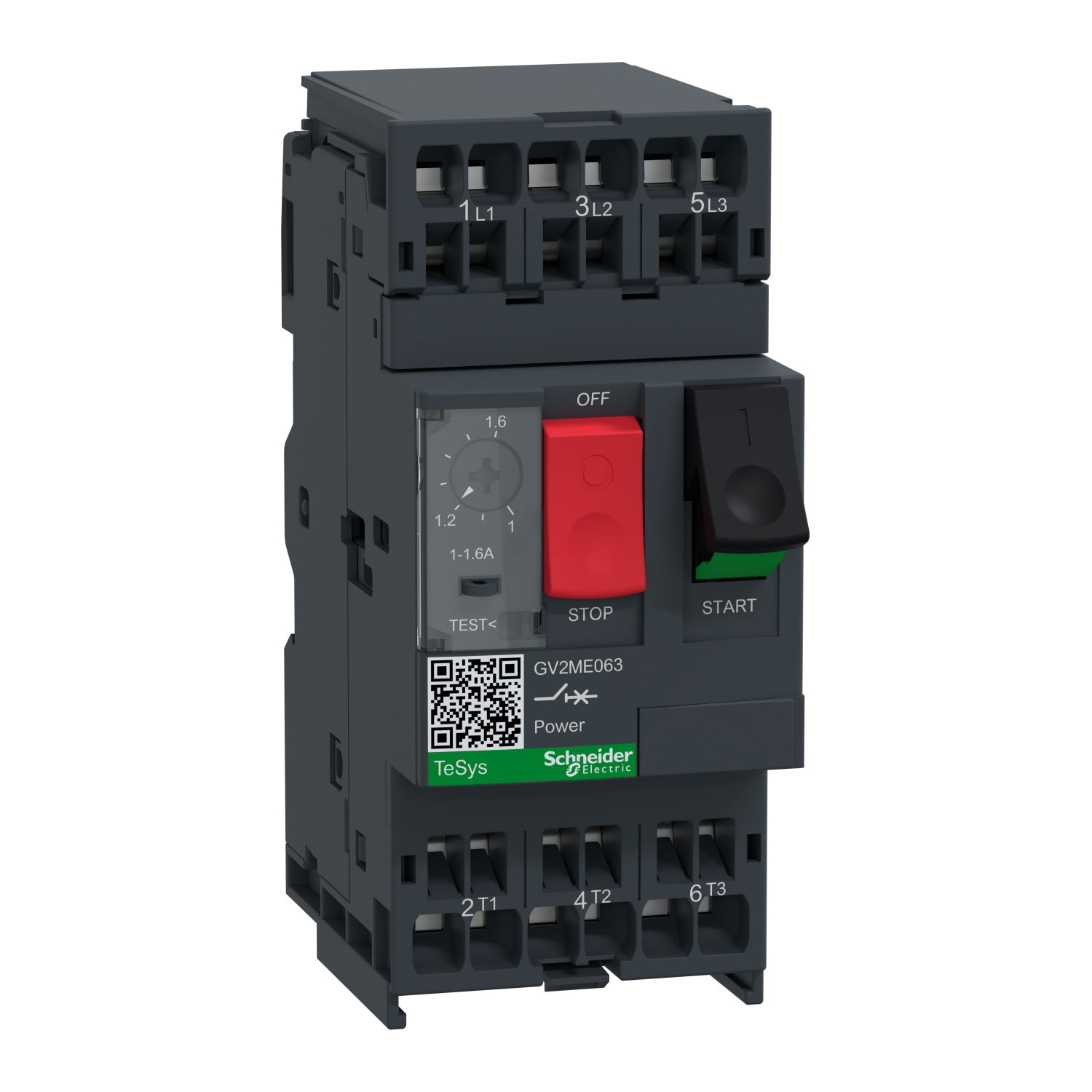

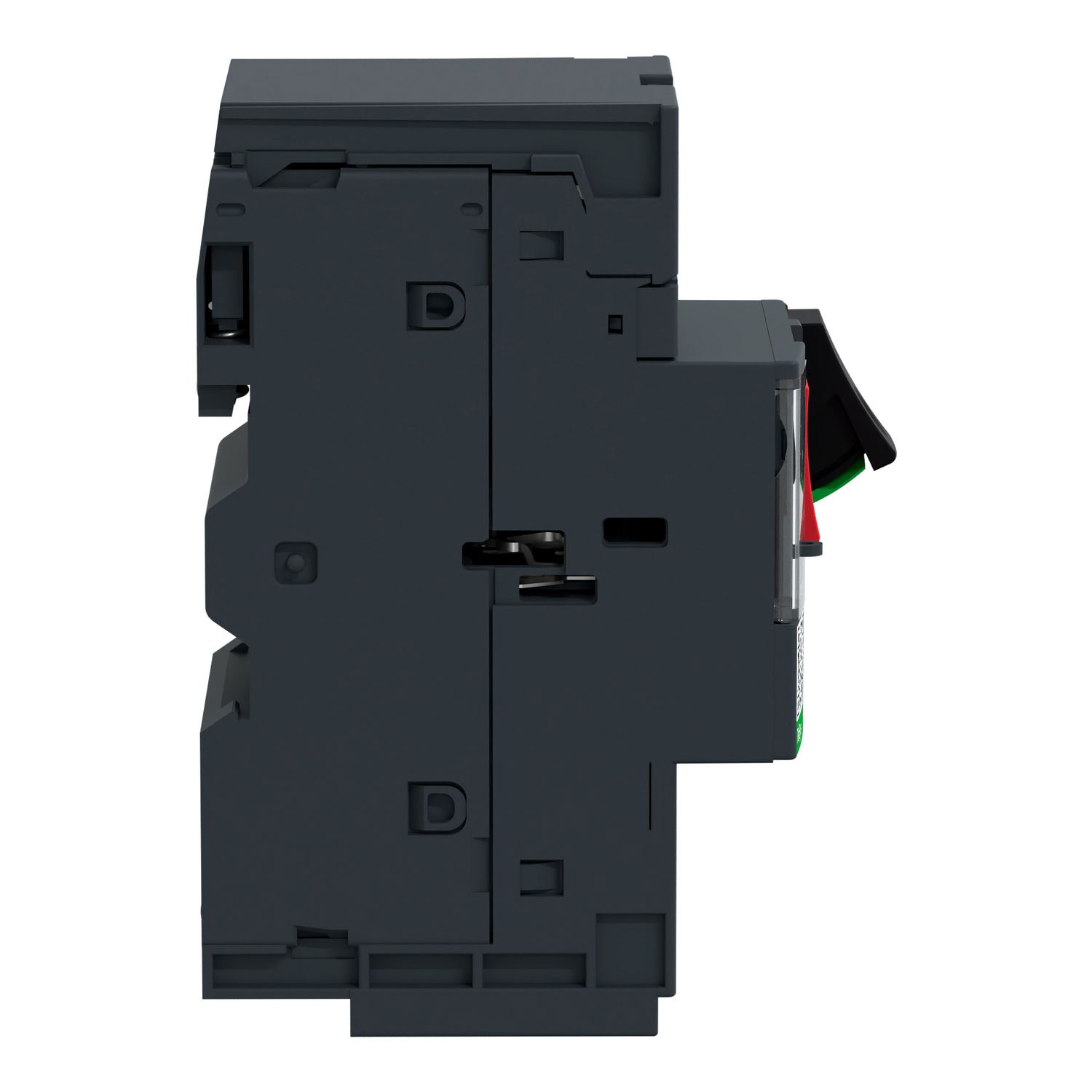

Motor circuit breaker, TeSys GV2, 3P, 1-1.6 A, thermal magnetic, spring terminals
1 / 5
Motor circuit breaker, TeSys GV2, 3P, 1-1.6 A, thermal magnetic, spring terminals
Motor circuit breaker, TeSys GV2, 3P, 1-1.6 A, thermal magnetic, spring terminals by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 1 more. It is currently in stock at 2 of them. Trade prices range from £51.33 to £83.62 excl. VAT. Voltimum+ members earn 10 points per unit.
TeSys GV motor circuit breaker, 3 poles (3P), 1.6A/690V, for 3-phase motor applications 0.37-0.55kW@400V. It provides a thermal-magnetic protection with a thermal setting range 1-1.6A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by spring terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX),
Product identifiers
SKU: GV2ME063
EAN: 3389110346411
GTIN: 3389110346411
MPN: GV2ME063
Loyalty points:
10
Price range: £ 51.33 - £ 83.62 Excl. VAT
ETIM group
Specifications
| Depth | 78.2 mm |
| Width | 44.5 mm |
| Height | 101 mm |
| Power loss | 2.5 W |
| Number of poles | 3 |
| Device construction | Complete device in housing |
| Switch off technique | Thermomagnetic |
| Phase failure sensitive | yes |
