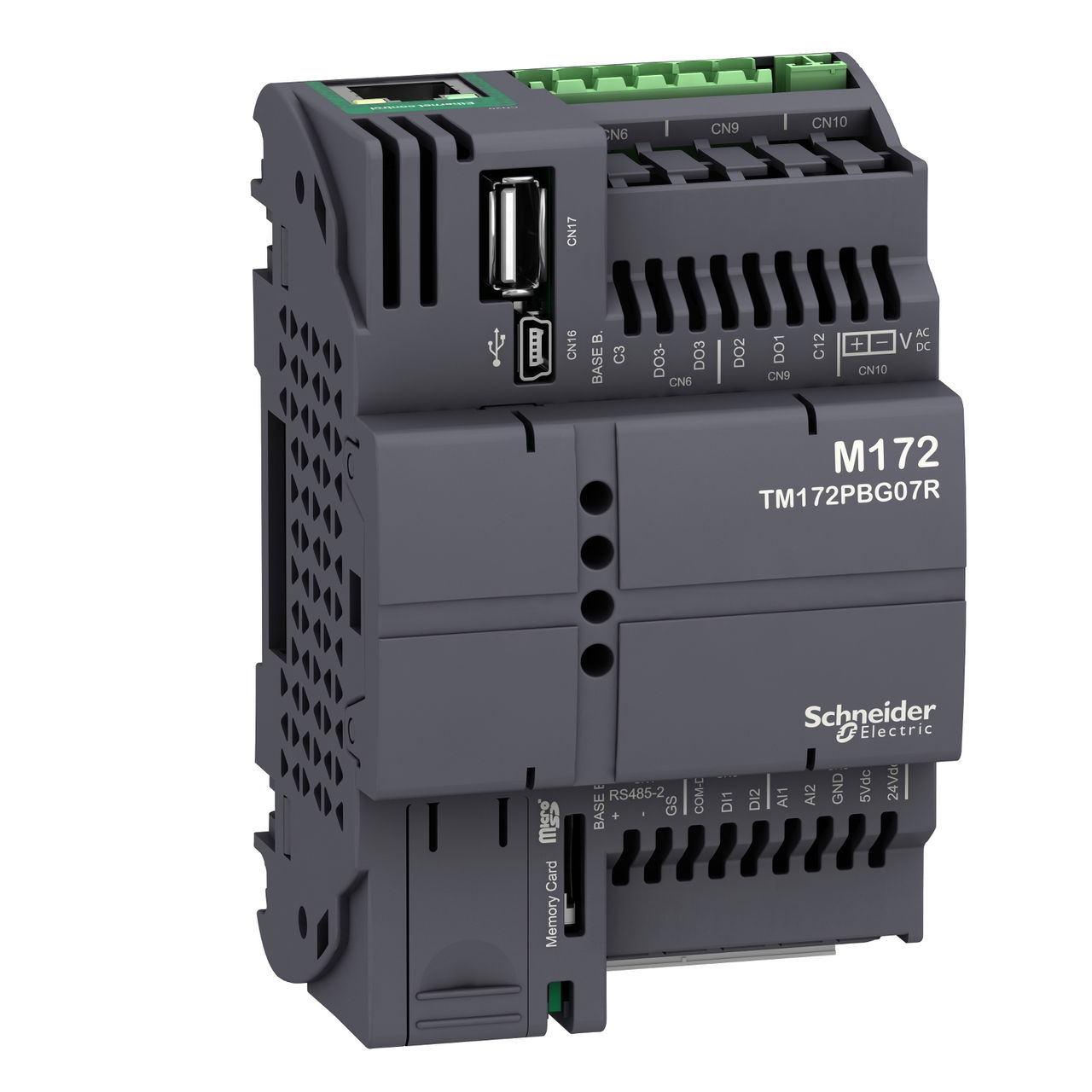

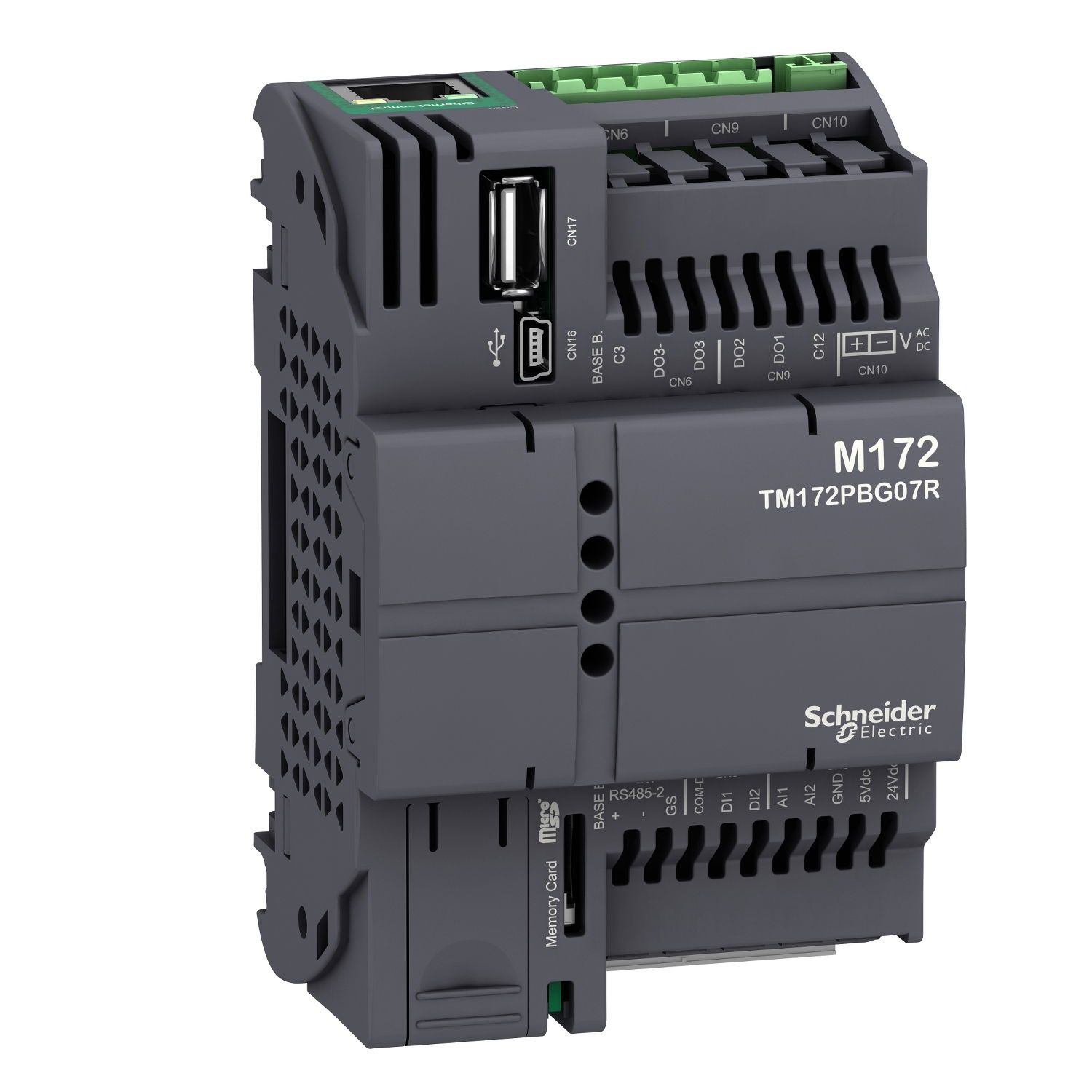

Modicon M172 Performance Blind 7 I/Os, Ethernet, Modbus

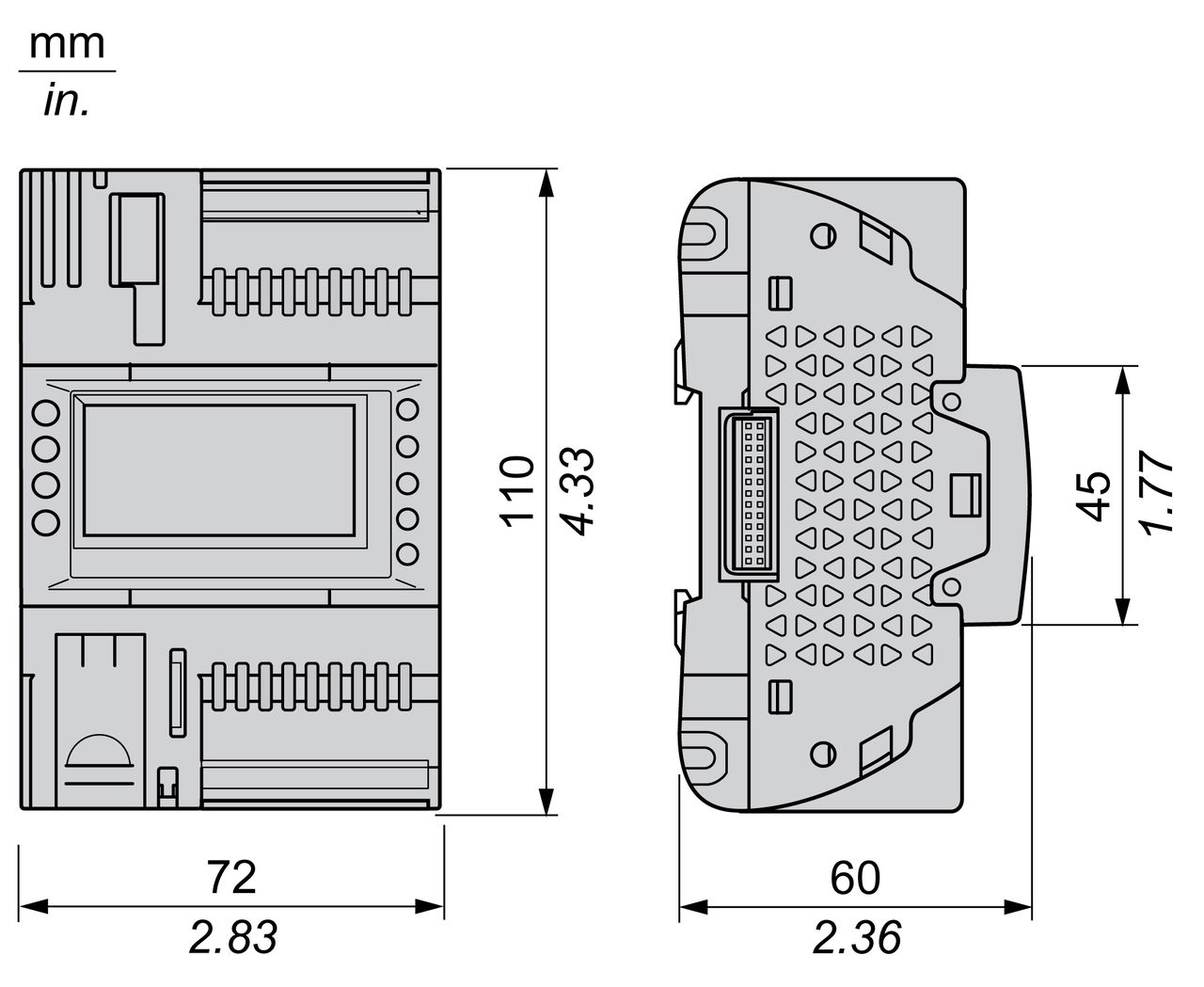

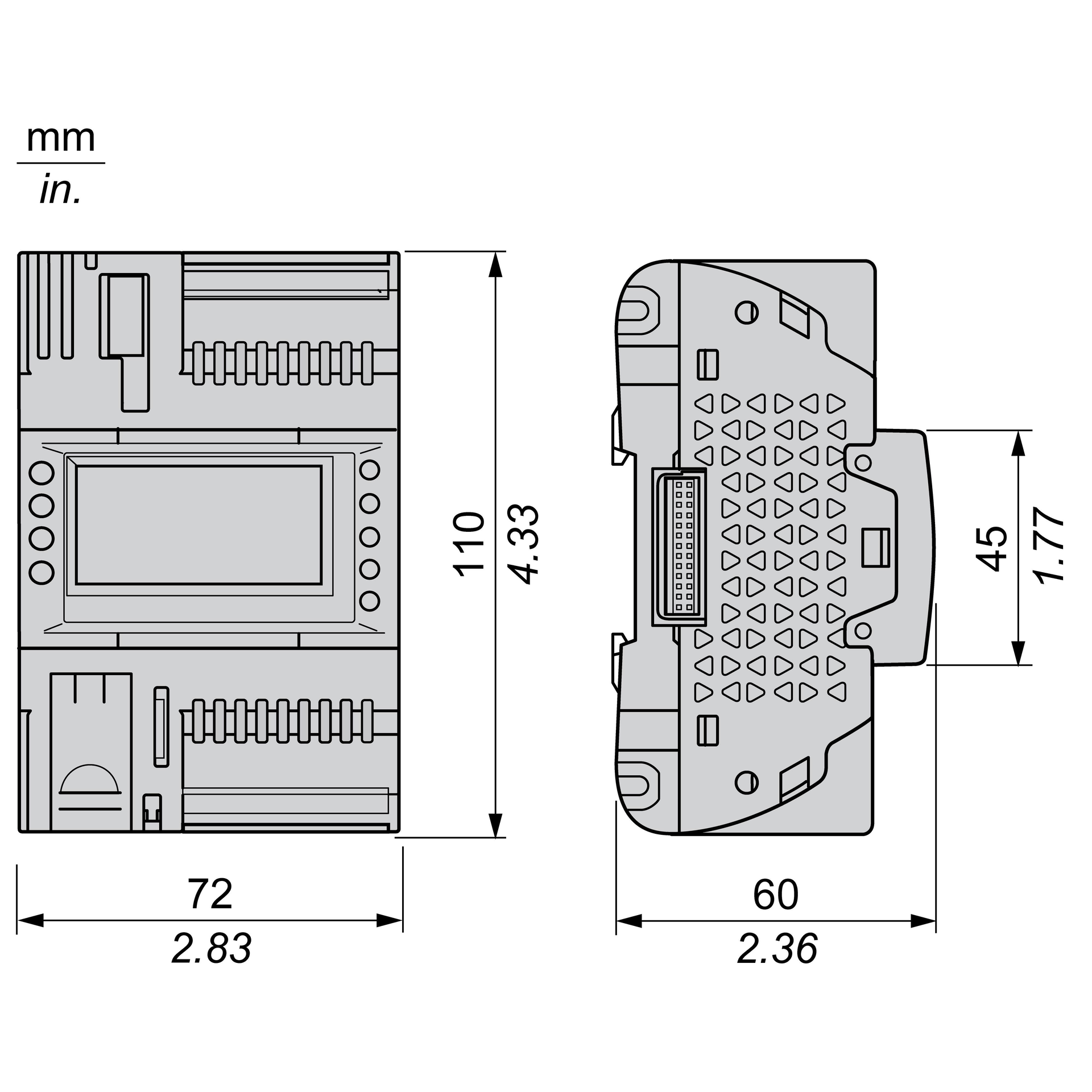

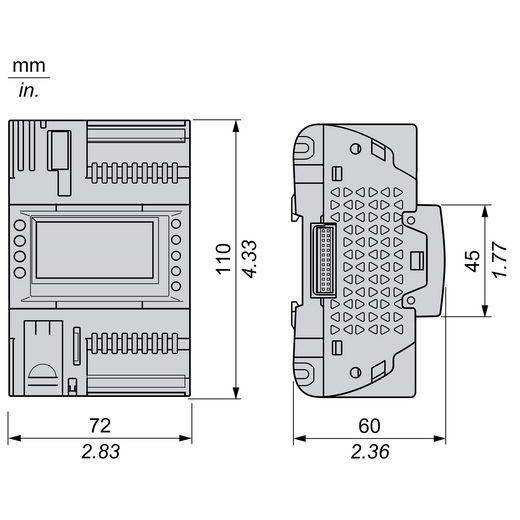

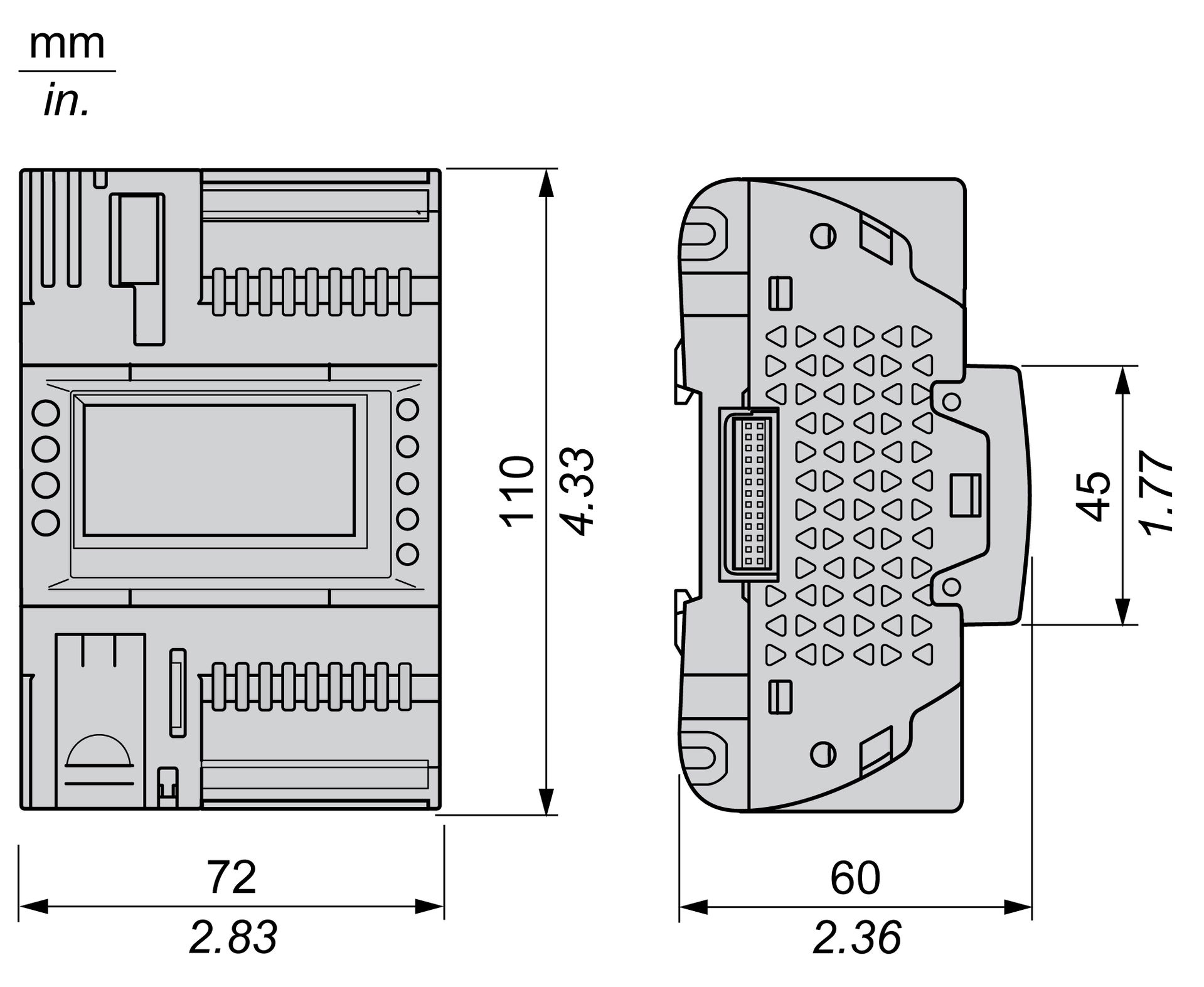

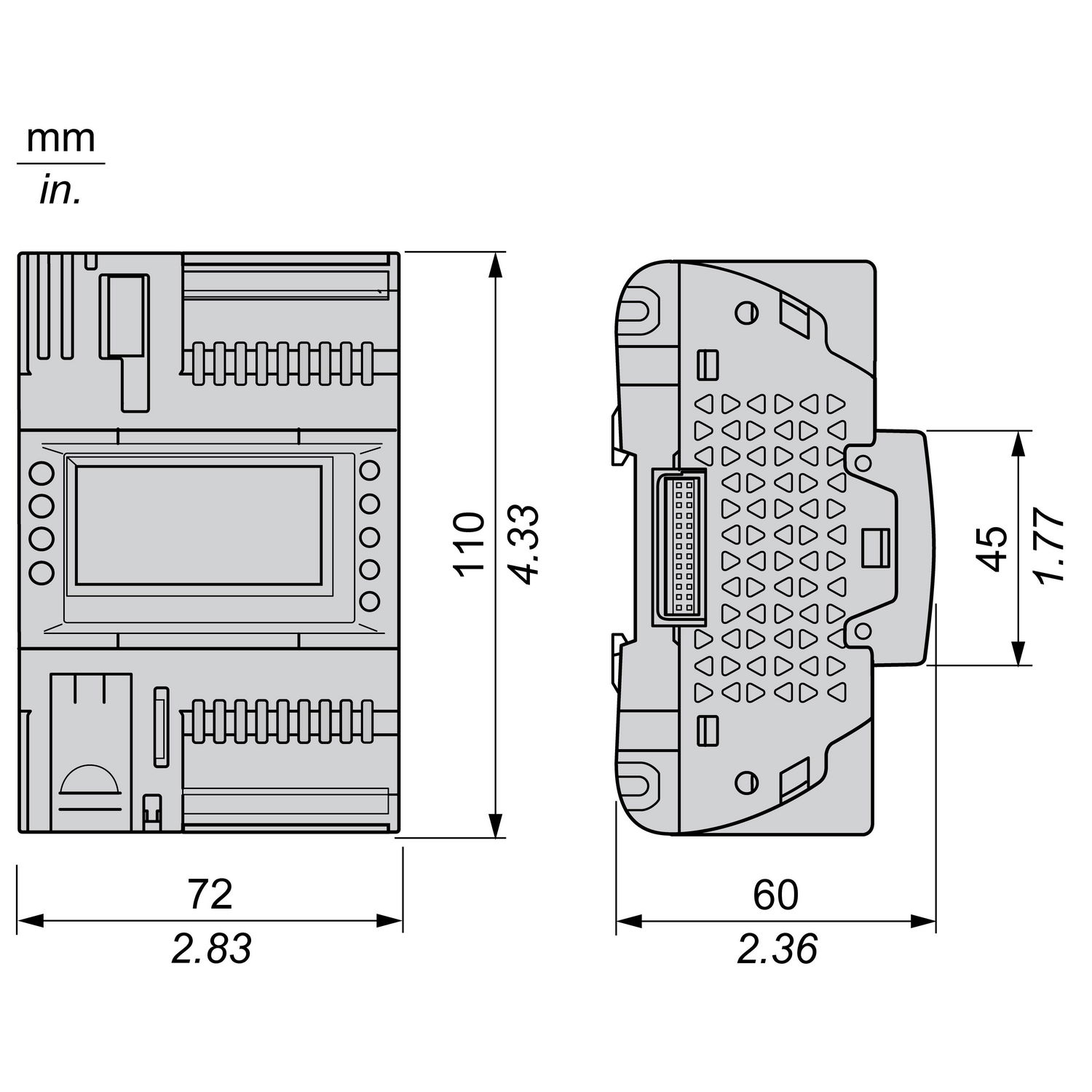

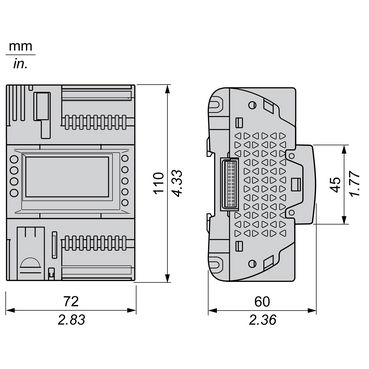

This product is part of the Modicon M171/M172 range, an offer of programmable controllers for HVAC solutions. This programmable controller offers 2 discrete inputs with sink or source (positive/negative) up to 2kHz discrete logic. It is a module with discrete input voltage of 24V AC/DC, 5mA. It features 3 LEDs for programmable and 1 LED for power signaling. It is an IP20 rated product. Its dimensions are 72mm (width) x 60.5mm (depth) x 110mm (height). It weighs 0.175kg. The main application of this module is HVAC control. This product is certified by CE, RCM, EAC, CSA and CURus. It meets IEC 61000-4-2, EN 60068-2-6 Fc, IEC 61000-4-3, IEC 61000-4-5, EN 60730-1 and EN 60730-2-9 standards. It is suitable for DIN rail mount and panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
Product identifiers
SKU: TM172PBG07R
EAN: 3606481390059
GTIN: 3606481390059
MPN: TM172PBG07R
Loyalty points:
94
Price: £ 241.71 Excl. VAT
Categories
Features
|
Depth
|
60.5 mm
|
|
Model
|
Compact
|
|
Width
|
72 mm
|
|
Height
|
110 mm
|
|
Redundancy
|
no
|
|
Memory size
|
512 kByte
|
|
With display
|
no
|
|
IO link master
|
no
|
|
Type of memory
|
RAM
|
|
System accessory
|
no
|
|
Supply voltage DC
|
|
|
Radio standard GSM
|
no
|
|
Radio standard GPRS
|
no
|
|
Radio standard UMTS
|
no
|
|
Rack-assembly possible
|
no
|
|
With optical interface
|
no
|
|
Front built-in possible
|
no
|
|
Number of relay outputs
|
3
|
|
Supply voltage AC 50 Hz
|
|
|
Supply voltage AC 60 Hz
|
|
|
Number of digital inputs
|
2
|
|
Radio standard Bluetooth
|
no
|
|
Long-Term Evolution (LTE)
|
no
|
|
Number of analogue inputs
|
2
|
|
Number of digital outputs
|
3
|
|
Number of analogue outputs
|
0
|
|
Radio standard WLAN 802.11
|
no
|
|
SIL according to IEC 61508
|
None
|
|
Suitable for rail mounting
|
yes
|
|
Number of HW-interfaces USB
|
2
|
|
Supporting protocol for ASI
|
no
|
|
Supporting protocol for CAN
|
yes
|
|
Supporting protocol for KNX
|
no
|
|
Supporting protocol for LON
|
no
|
|
Max. number of time switches
|
0
|
|
Supporting protocol for DNP3
|
no
|
|
Number of HW-interfaces other
|
1
|
|
Number of interfaces PROFINET
|
0
|
|
Suitable for safety functions
|
no
|
|
Voltage type (supply voltage)
|
AC/DC
|
|
Wall mounting/direct mounting
|
yes
|
|
Number of HW-interfaces RS-232
|
0
|
|
Number of HW-interfaces RS-422
|
0
|
|
Number of HW-interfaces RS-485
|
2
|
|
Supporting protocol for Modbus
|
yes
|
|
Supporting protocol for SERCOS
|
no
|
|
Supporting protocol for TCP/IP
|
yes
|
|
Supporting protocol for SUCONET
|
no
|
|
Number of HW-interfaces parallel
|
0
|
|
Number of HW-interfaces wireless
|
0
|
|
Supporting protocol for EtherCAT
|
no
|
|
Supporting protocol for INTERBUS
|
no
|
|
Supporting protocol for PROFIBUS
|
no
|
|
Appendant operation agent (Ex ia)
|
no
|
|
Appendant operation agent (Ex ib)
|
no
|
|
Explosion safety category for gas
|
None
|
|
Supporting protocol for DeviceNet
|
no
|
|
Supporting protocol for IEC 60870
|
no
|
|
Supporting protocol for PROFIsafe
|
no
|
|
Additional program memory possible
|
no
|
|
Explosion safety category for dust
|
None
|
|
Supporting protocol for EtherNet/IP
|
no
|
|
Supporting protocol for PROFINET IO
|
no
|
|
Supporting protocol for SafetyBUS p
|
no
|
|
Supporting protocol for Data-Highway
|
no
|
|
Supporting protocol for PROFINET CBA
|
no
|
|
Processing time (1K, binary operation)
|
100 ms
|
|
Supporting protocol for INTERBUS-Safety
|
no
|
|
Supporting protocol for DeviceNet Safety
|
no
|
|
Supporting protocol for other bus systems
|
no
|
|
Supporting protocol for IEC 61850 Ethernet
|
no
|
|
Certified for UL hazardous location class I
|
no
|
|
Number of HW-interfaces industrial Ethernet
|
1
|
|
Supporting protocol for Foundation Fieldbus
|
no
|
|
Certified for UL hazardous location class II
|
no
|
|
Certified for UL hazardous location class III
|
no
|
|
Performance level according to EN ISO 13849-1
|
None
|
|
Certified for UL hazardous location division 1
|
no
|
|
Certified for UL hazardous location division 2
|
no
|
|
Supporting protocol for AS-Interface Safety at Work
|
no
|
|
Certified for UL hazardous location group D (propane)
|
no
|
|
Certified for UL hazardous location group B (hydrogen)
|
no
|
|
Certified for UL hazardous location group C (ethylene)
|
no
|
|
Certified for UL hazardous location group A (acetylene)
|
no
|
|
Certified for UL hazardous location group E (metal dusts)
|
no
|
|
Certified for UL hazardous location group F (carbonaceous dusts)
|
no
|
|
Certified for UL hazardous location group G (non-conductive dusts)
|
no
|
