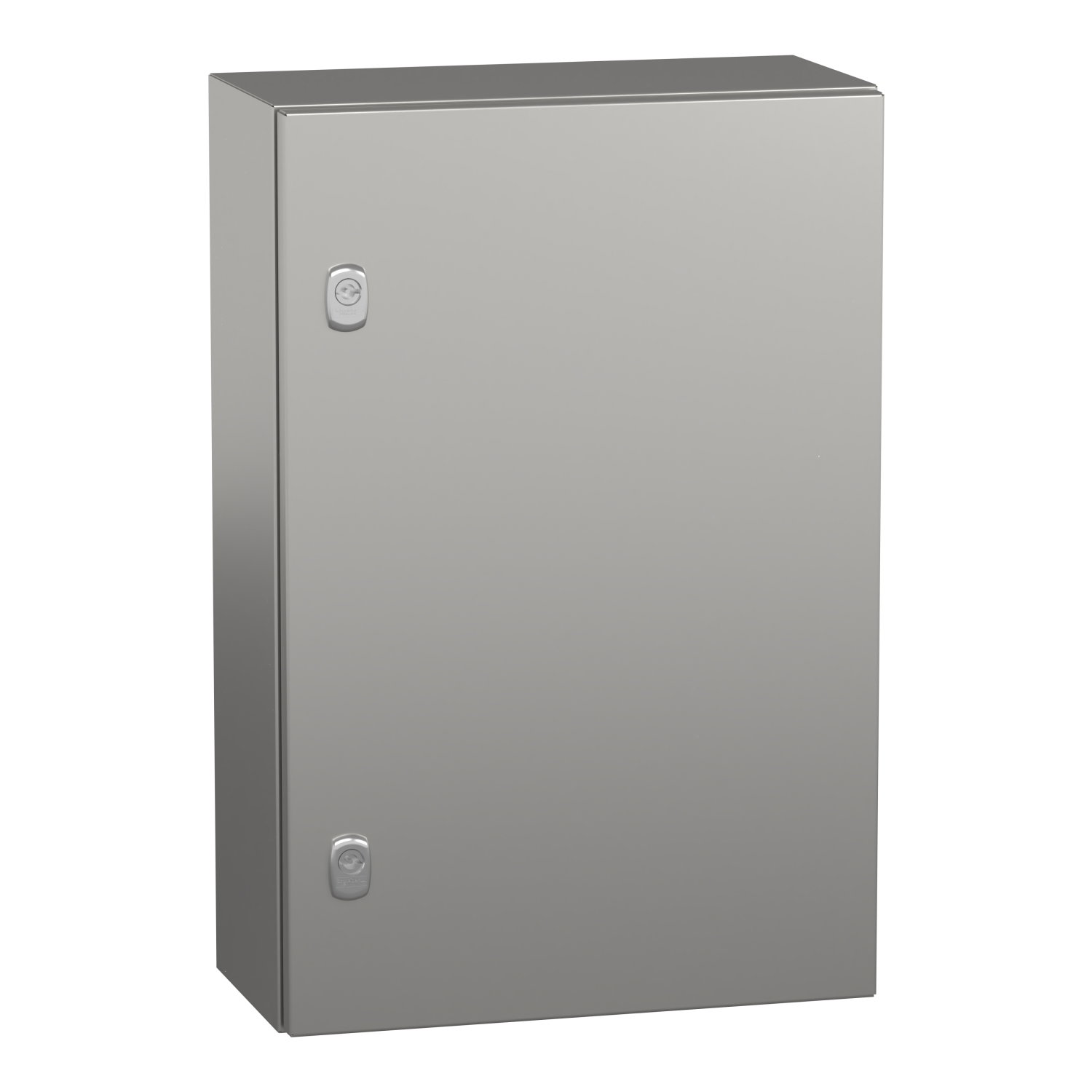

"PanelSet S3X stainless 304L, Scotch Brite® finish, H600xW400xD200 mm."

"PanelSet S3X stainless 304L, Scotch Brite® finish, H600xW400xD200 mm." by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 2 more. It is currently in stock at 4 of them. Trade prices range from £390.13 to £433.00 excl. VAT. Voltimum+ members earn 54 points per unit.

"PanelSet S3X stainless steel 304L wall-mounting enclosure for a multi-purpose application and resistance to corrosion" "It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529)" "This enclosure has a nominal height, width and depth of 600mm, 400mm and 200mm respectively" "The enclosure is made with Scotch-Brite® brushed surface finish" "The enclosure consists of a body, a plain door and two locks" "The door can be opened up to 120°, allowing easy access to the equipment inside" "It is possible to change the opening side of the door (reversible)" "The door has a two lock points lock with a 3mm double-bar insert" "The door can be removed for maintenance purposes" "The net weight of the enclosure is 9,446kg" "It is UL 508 type A and CAN/CSA 22 certified"

Product identifiers

SKU: NSYS3X6420
EAN: 3606480155215
GTIN: 3606480155215
MPN: NSYS3X6420

Voltimum+ Loyalty Programme Loyalty points: 54

Price range: £ 390.13 - £ 433.00 Excl. VAT

Categories

Enclosures & Panels Electrical Enclosures

ETIM group

Control cabinet systems

Specifications

Depth 200 mm
Width 400 mm
Colour Stainless steel
Height 600 mm
Material Stainless steel
Couplable no
With door yes
RAL-number 7035
EMC-version no
Freestanding no
Pre-stamping no
With rear door no
Number of doors 1
Material quality Stainless steel 304 (V2A)
Surface finishing Other
With mounting plate no
With ventilation door no
Floor standing wall model no
Suitable for wall built-in no
Degree of protection (NEMA) 12
Suitable for metrical mounting yes
Max. permissible load of the door(s) according to IEC 62208 50 N
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 -
