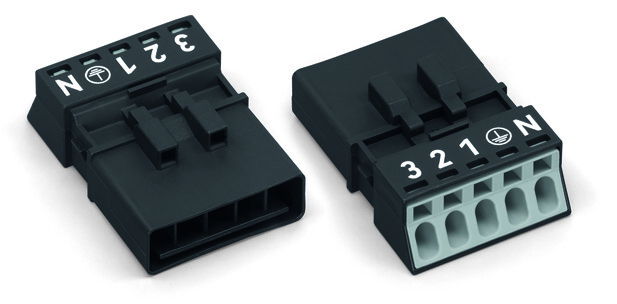

Plug 5-pole Cod. A black

Name: Plug 5-pole Cod. A black
Brand: Wago
SKU: 890-215
Availability: InStock

Plug; 5-pole; Cod. A; 1,50 mm²; black

Product identifiers

SKU: 890-215

EAN: 4055143548595

GTIN: 4055143548595

MPN: 890-215

Price: £ 2.93 Excl. VAT

Specifications

Model	Plug
Width	23.6
Height	11.7
Length	34.1
Fire load	0.03361
Halogen free	yes
Rated current	13
Rated voltage	400
Cable diameter
Connection type	Spring clamp connection
Number of poles	5
Type of locking	Separate
Contact material	CuSn
Housing material	Polyamide (PA)
Pollution degree	3
Mechanical coding	yes
Pole codification	3, N, PE, 2, 1
With strain relief	no
Rated surge voltage	6
Continuity resistance	1
Degree of protection (IP)	IP20
Surface treatment contacts	Tinned
Colour coding/contact insert	Black
Number of connections per pole	1
RAL-number coding/contact insert	9004
Connection cross section (solid-core)	0.25 - 1.5
Connection cross section (fine-strand)	0.25 - 1.5
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
