Schneider Electric

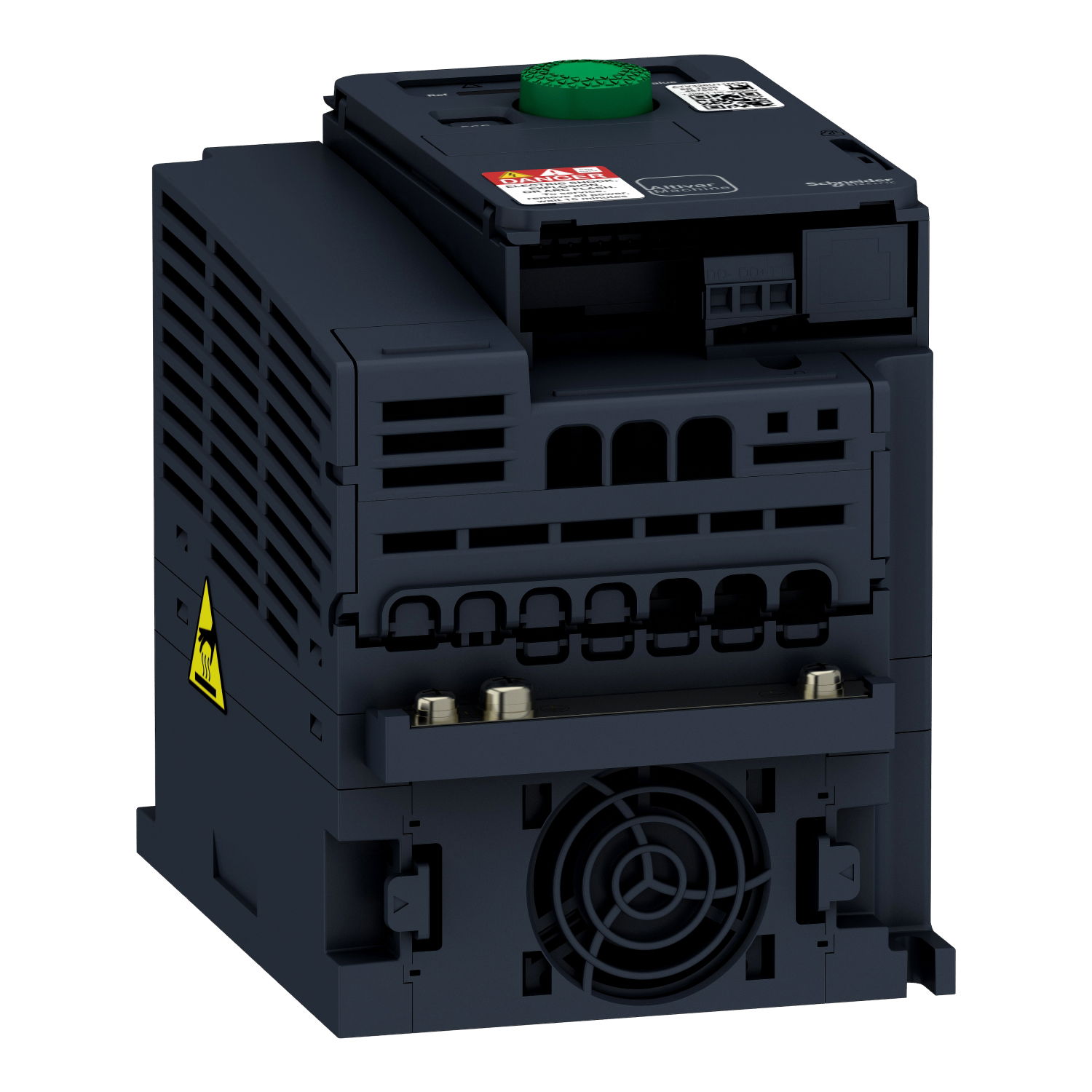

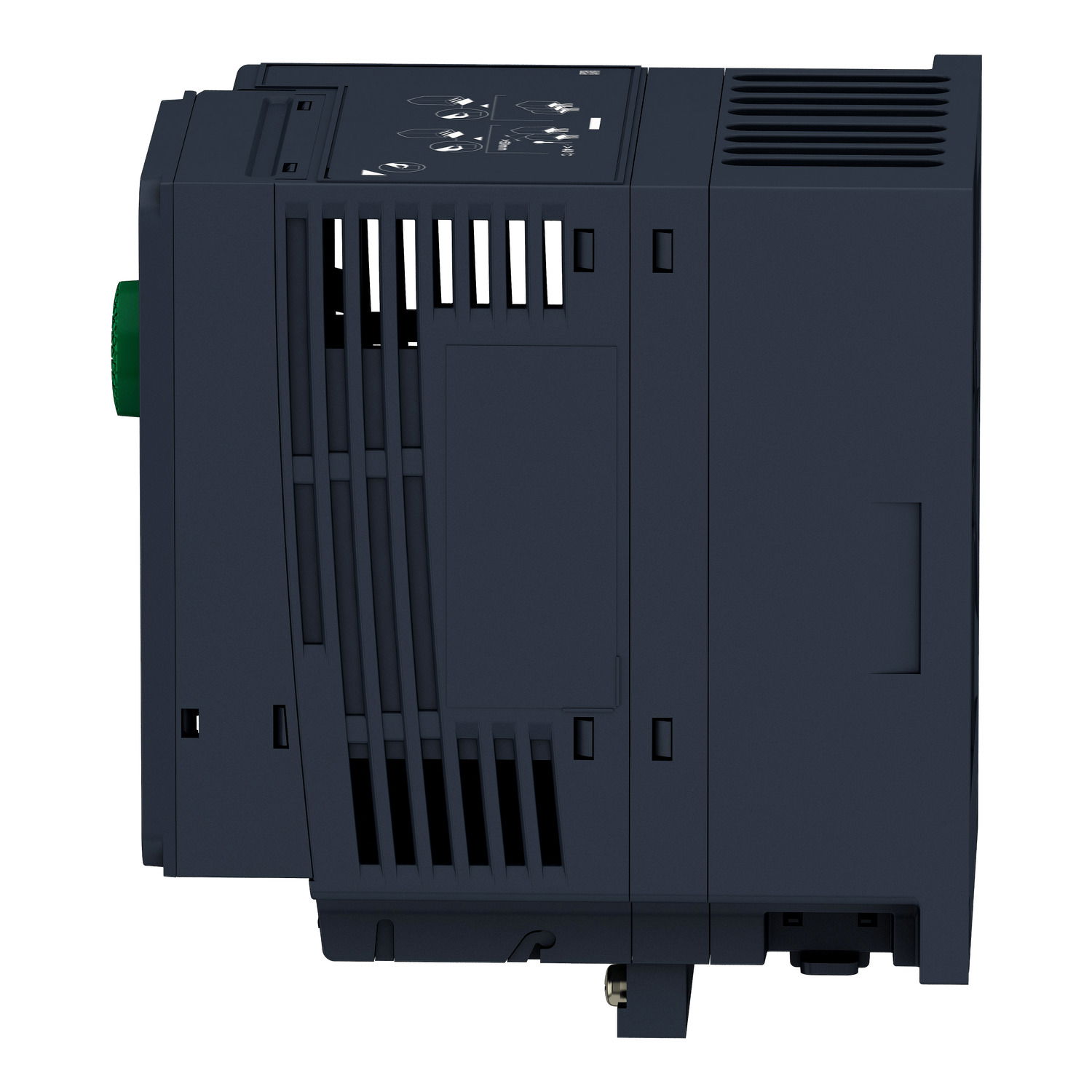

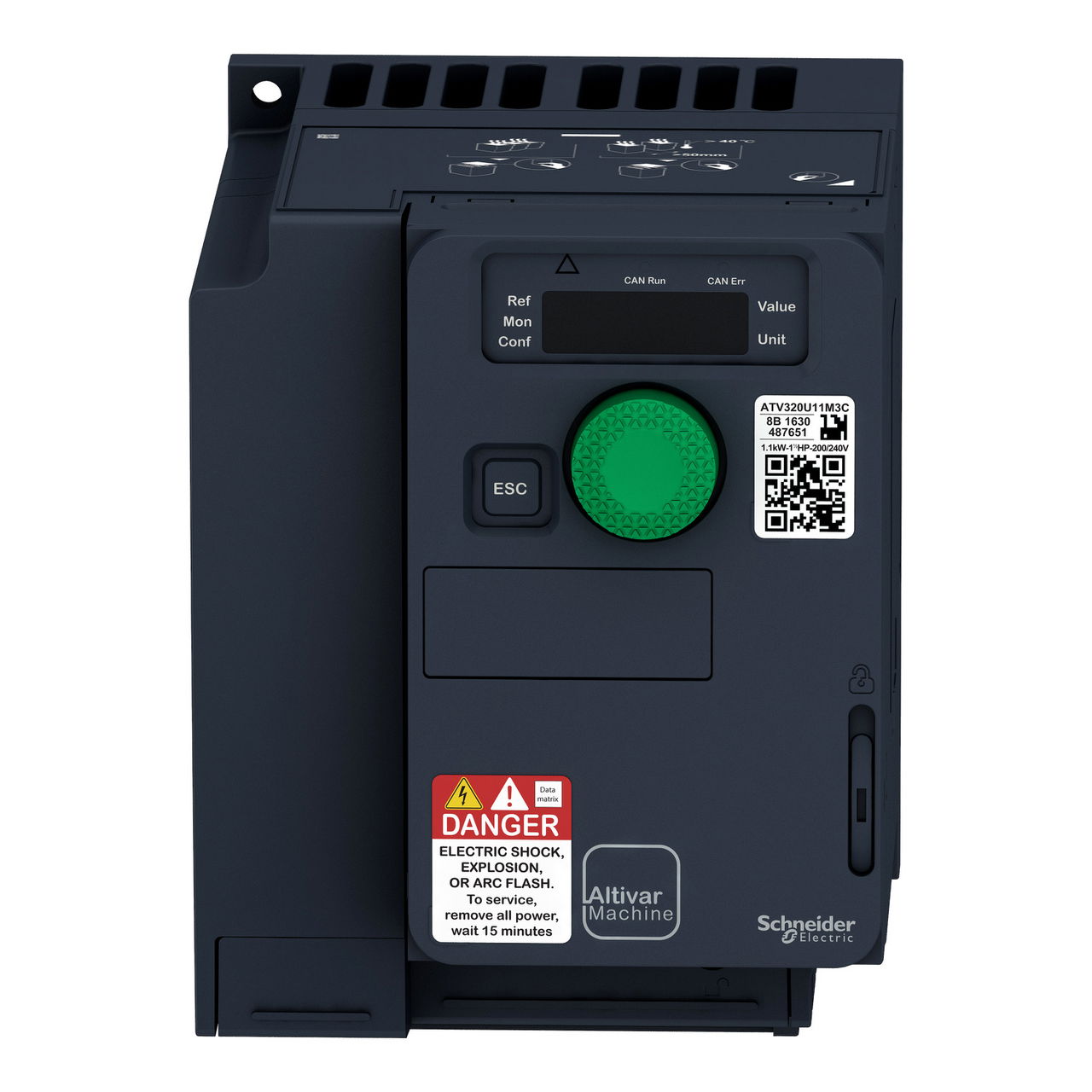

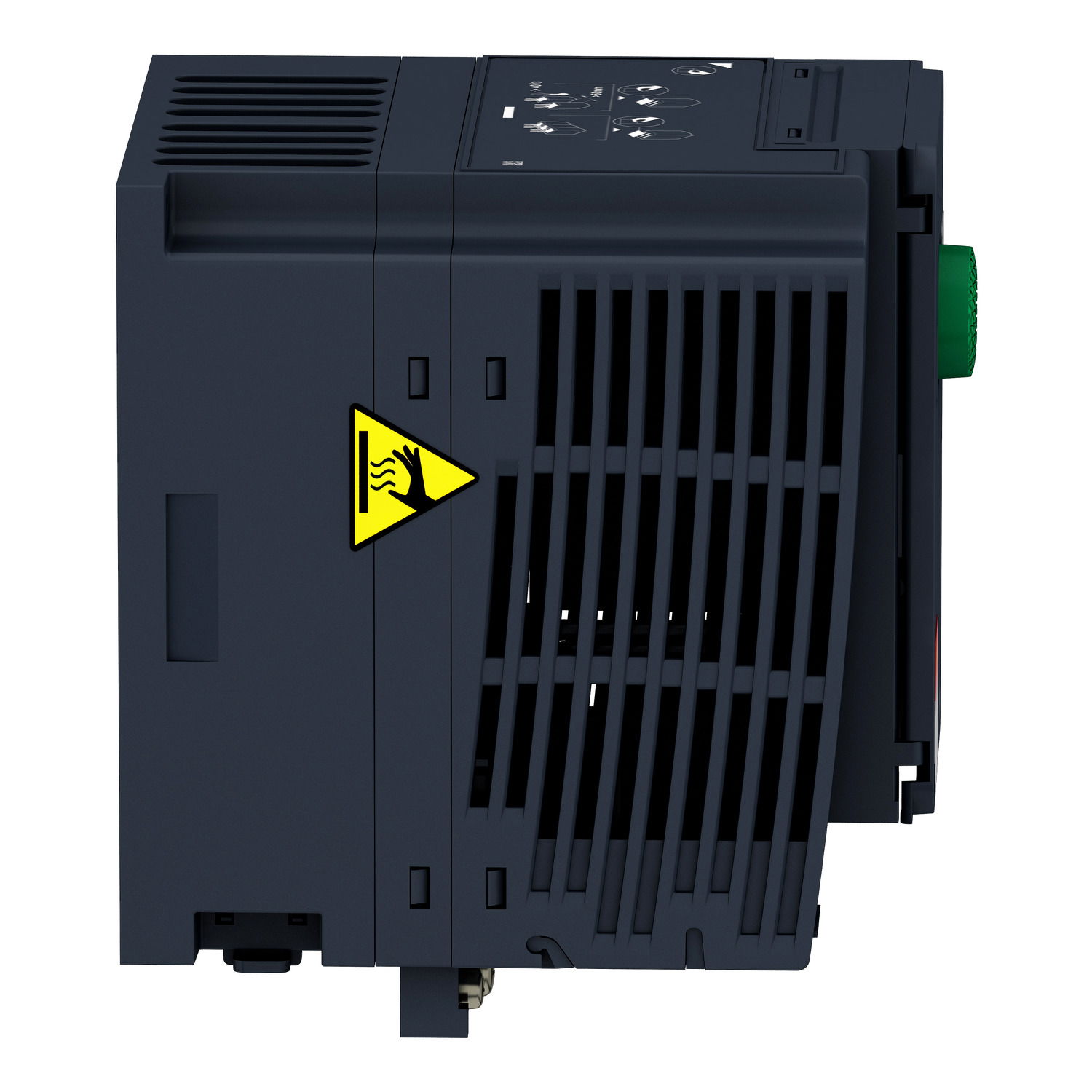

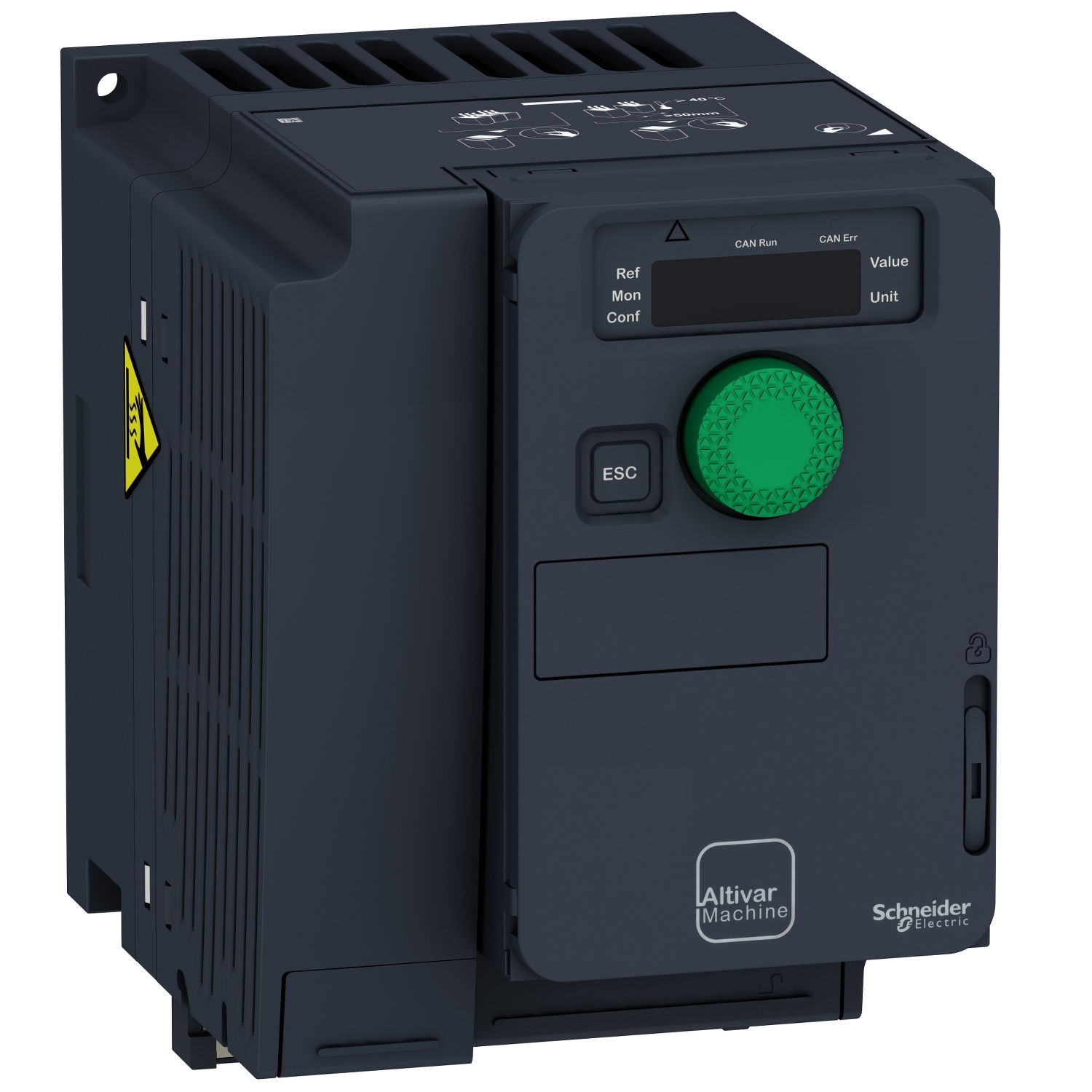

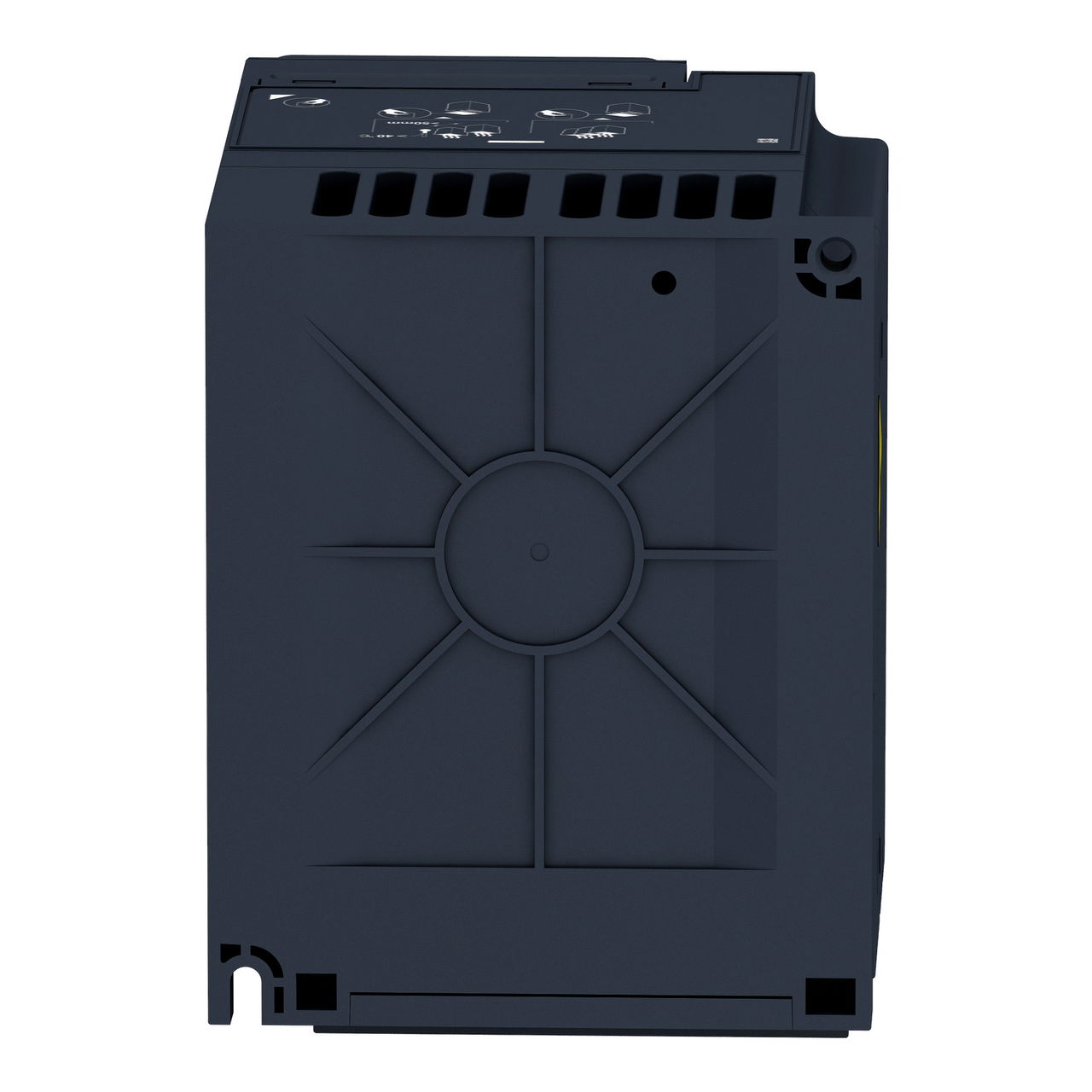

Variable speed drive, ATV320, 1.1 kW, 200…240 V, 3 phases, compact

Variable speed drive, ATV320, 1.1 kW, 200…240 V, 3 phases, compact by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £463.80 excl. VAT. Voltimum+ members earn 61 points per unit.

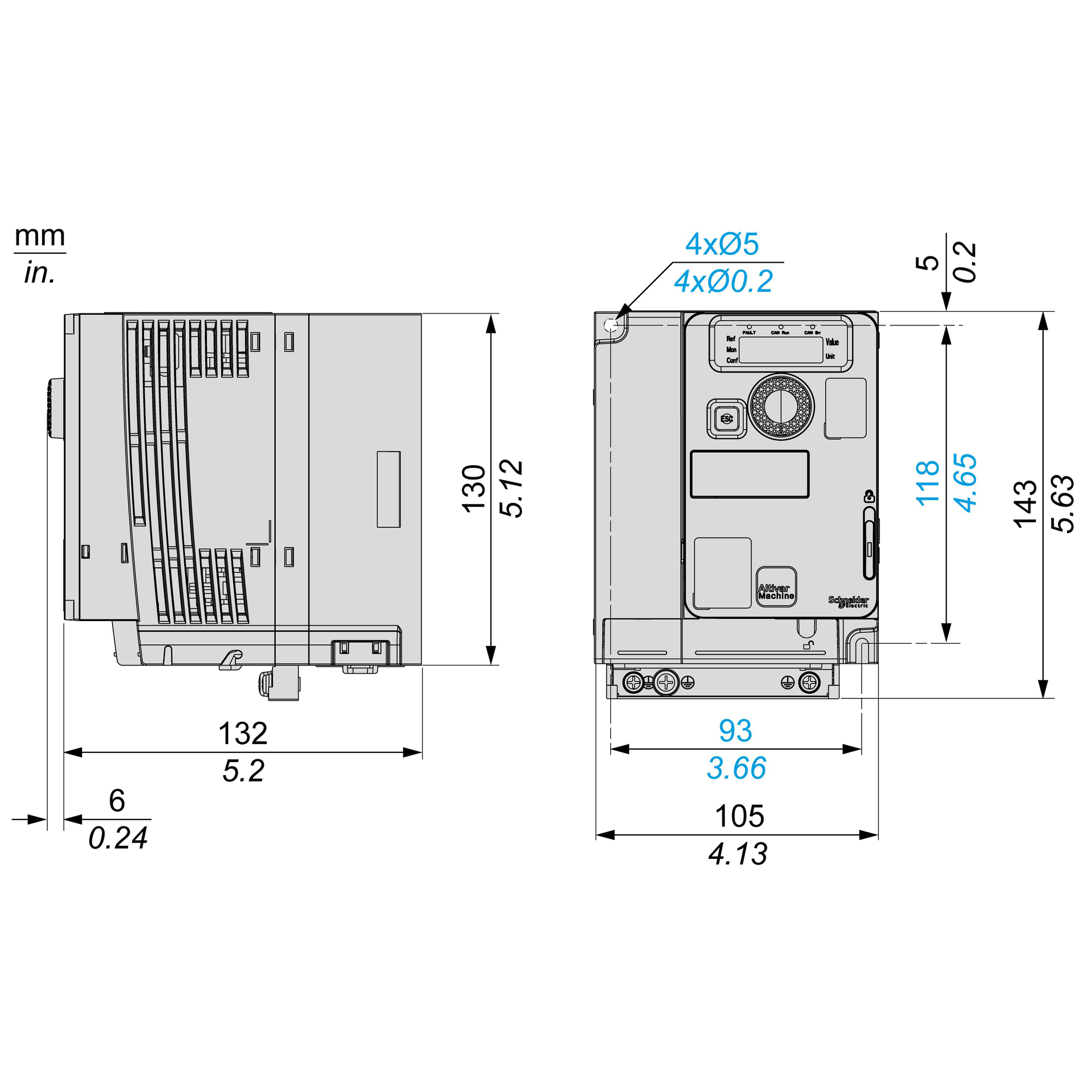

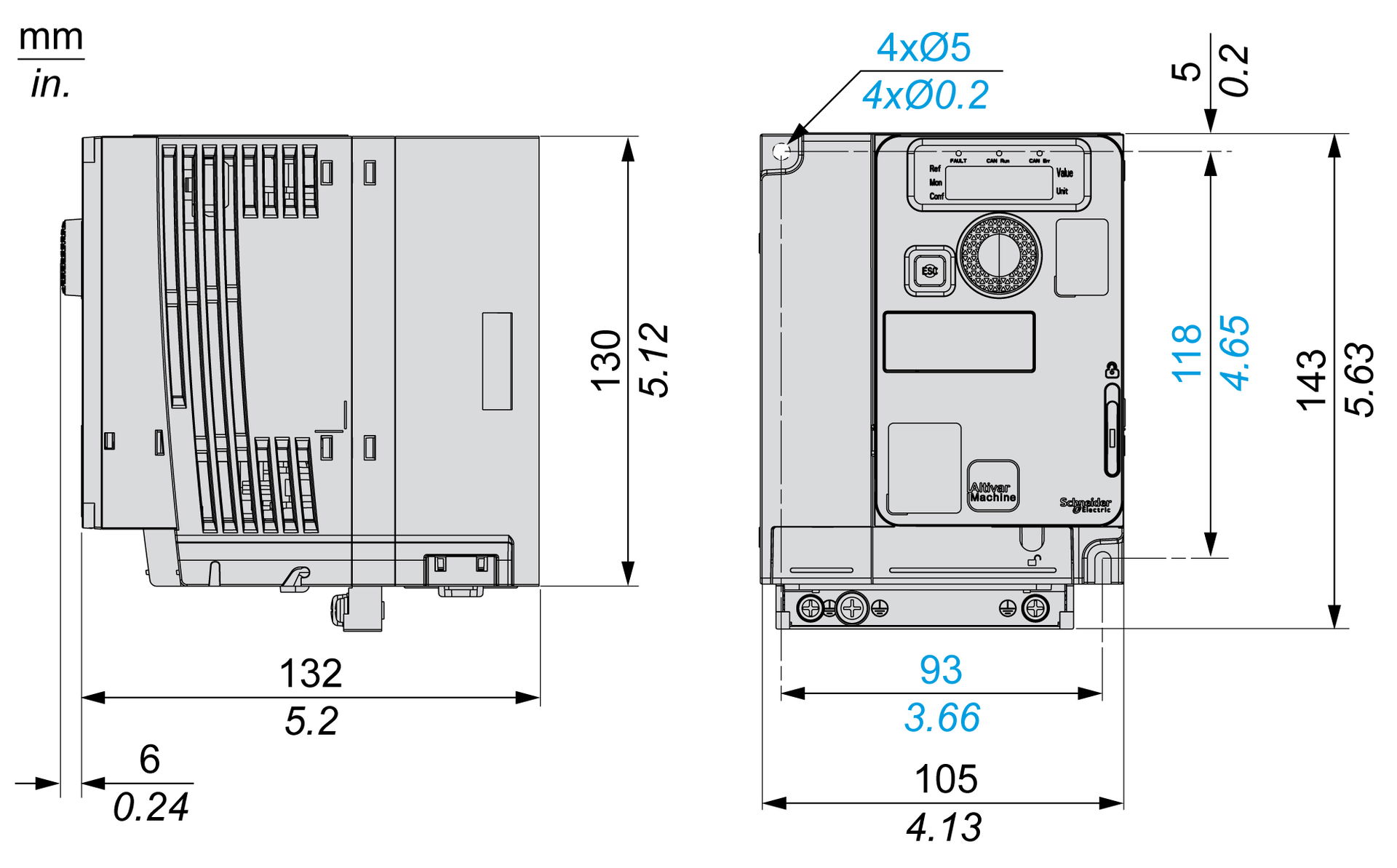

Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 1.1kW / 1.5hp and a rated voltage from 200V to 240V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. It weighs 1.4kg and its dimensions are 105mm wide, 143mm high, 138mm deep. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to IEC, UL, TUV, KC and other international standards. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. The product is delivered in one package. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).

Product identifiers

SKU: ATV320U11M3C
EAN: 3606480966620
GTIN: 3606480966620
MPN: ATV320U11M3C

Voltimum+ Loyalty Programme Loyalty points: 61

Price: £ 463.80 Excl. VAT

Categories

Transformers & Power Supplies Power Supplies

ETIM group

Low-voltage industrial components

Specifications

Depth 138 mm
Width 105 mm
Height 143 mm
Mains voltage
Mains frequency 50/60 Hz
Power consumption -
Type of converter U converter
With PC connection yes
With control element yes
Number of phases input 3
Number of phases output 3
Degree of protection (IP) IP20
Number of digital outputs 1
Number of analogue outputs 1
Number of HW-interfaces USB 0
Supporting protocol for CAN yes
Supporting protocol for LON no
Number of HW-interfaces other 1
Integrated breaking resistance yes
Number of HW-interfaces RS-422 0
Supporting protocol for BACnet no
Supporting protocol for SERCOS no
Supporting protocol for SUCONET no
Supporting protocol for INTERBUS no
Supporting protocol for DeviceNet yes
Number of HW-interfaces serial TTY 0
Supporting protocol for PROFINET IO yes
Supporting protocol for Data-Highway no
Supporting protocol for INTERBUS-Safety no
Relative symmetric net voltage tolerance 10 %
Supporting protocol for other bus systems yes
Number of HW-interfaces industrial Ethernet 0
Max. output at linear load at rated output voltage 1.1 kW
Max. output at quadratic load at rated output voltage 1.1 kW

Documents

Declaration of Conformity (Sustainability)

ATV320U11M3C REACh Regulation

Open

User guide

ATV320 Programming Manual

Open

Instruction sheet

Remote Keypad for Altivar 312 and 320 Drives Installation Instructions

Open

Product data sheet

Open

Catalog

Discover the catalog for Altivar Machine ATV320 variable speed drive

Open

Declaration of Conformity (Sustainability)

ATV320U11M3C EU RoHS Directive

Open

Declaration of conformity

ATV320C EU DECLARATION

Open

Environmental Disclosure

Variable speed drive, Altivar Machine ATV320, 2.2 kW, 200...240 V, 3 phases, compact - Product Environmental Profile - EN - V1

Open
