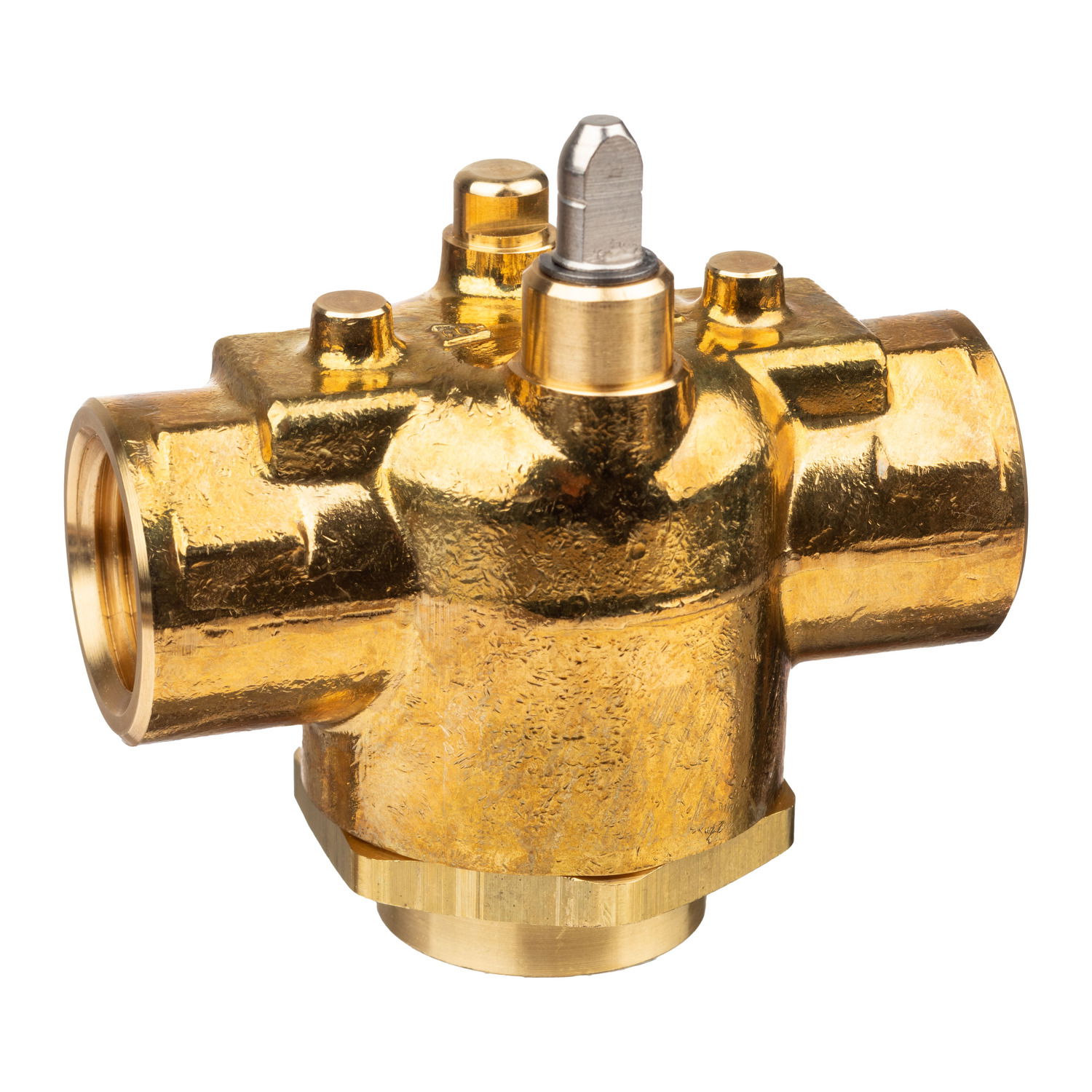

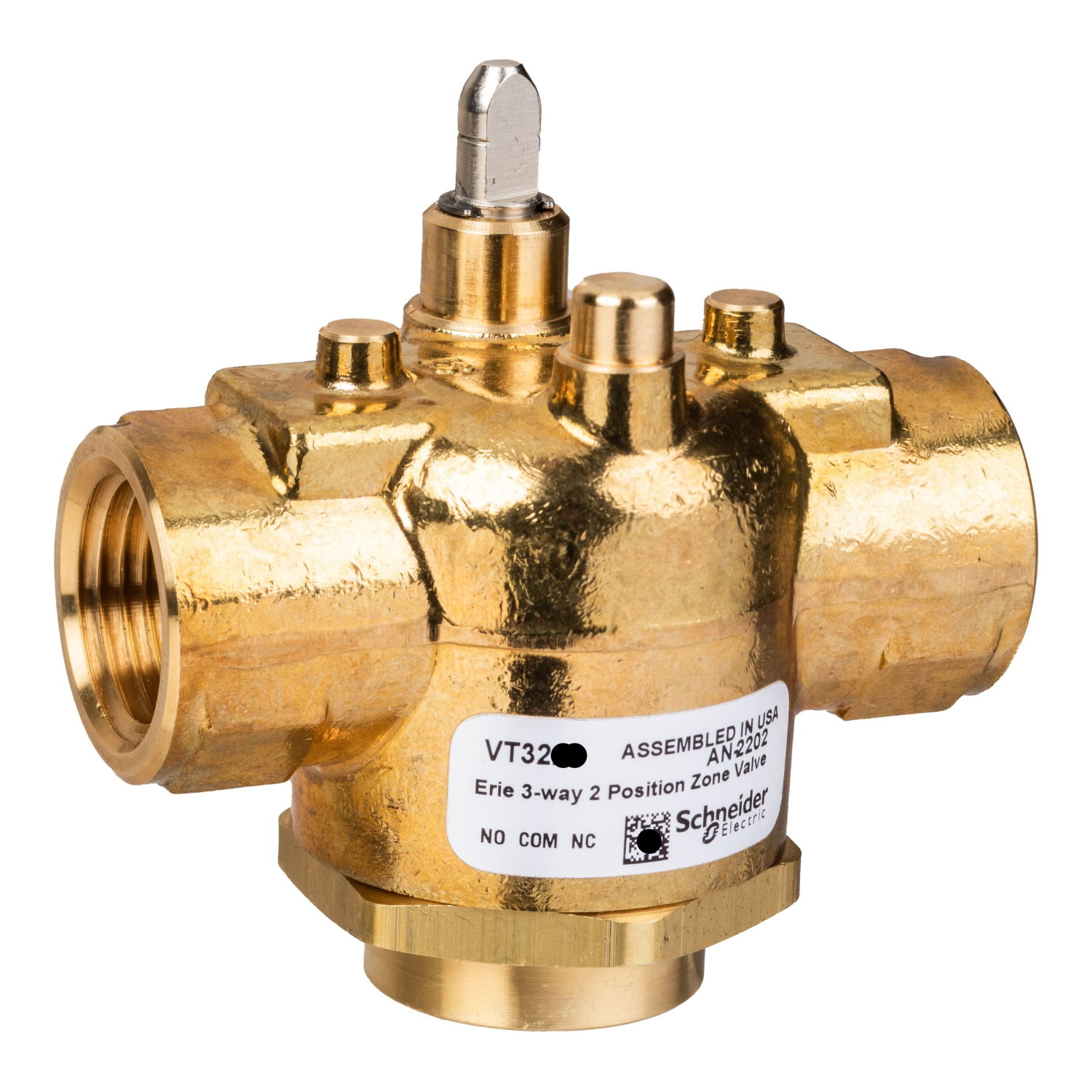

"The industry leading Erie Zone valve is suitable for on/off control of hot and chilled water in terminal unit applications." "High flow capacity paddle design and the unique ‘pop-top’ actuator connection allows for a quick and simple installation." "Valve size: DN15, Rp 1/2 thread, Flow capacity, Kvs: 2.6 m³/h." "Pressure class PN20." "The valve provide a working temperature range of 0 °C to 93 °C."
Product identifiers
SKU: VT3232
EAN: 711426633382
GTIN: 711426633382
MPN: VT3232
Loyalty points:
19
Price: £ 113.00 Excl. VAT
Categories
ETIM group
Specifications
| Kvs value | 2.6 |
| Axle height | - |
| Connections | Internal thread |
| Stroke length | - |
| Housing material | Brass |
| Material quality | Other |
| Nominal diameter | DN 15 |
| Surface protection | Untreated |
