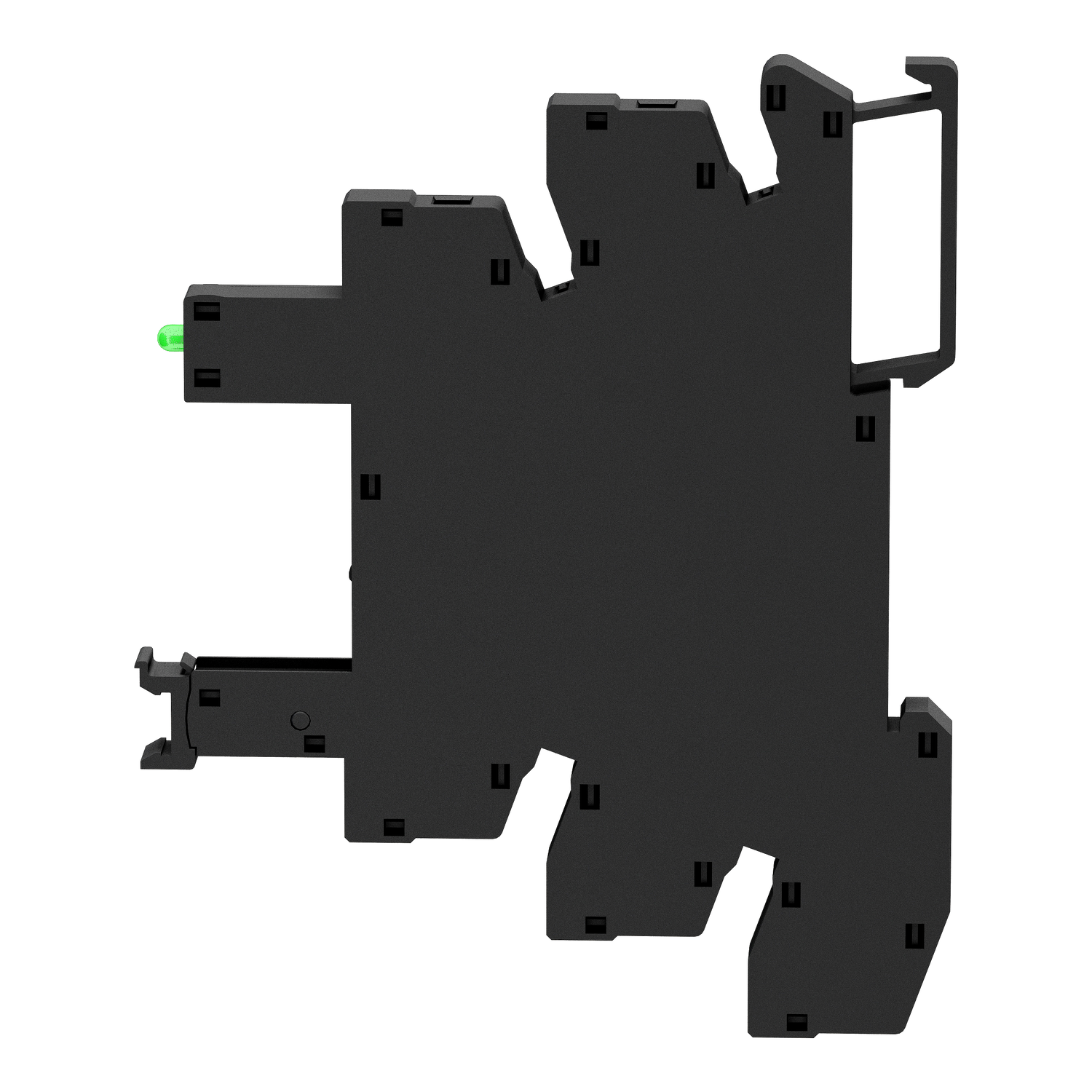

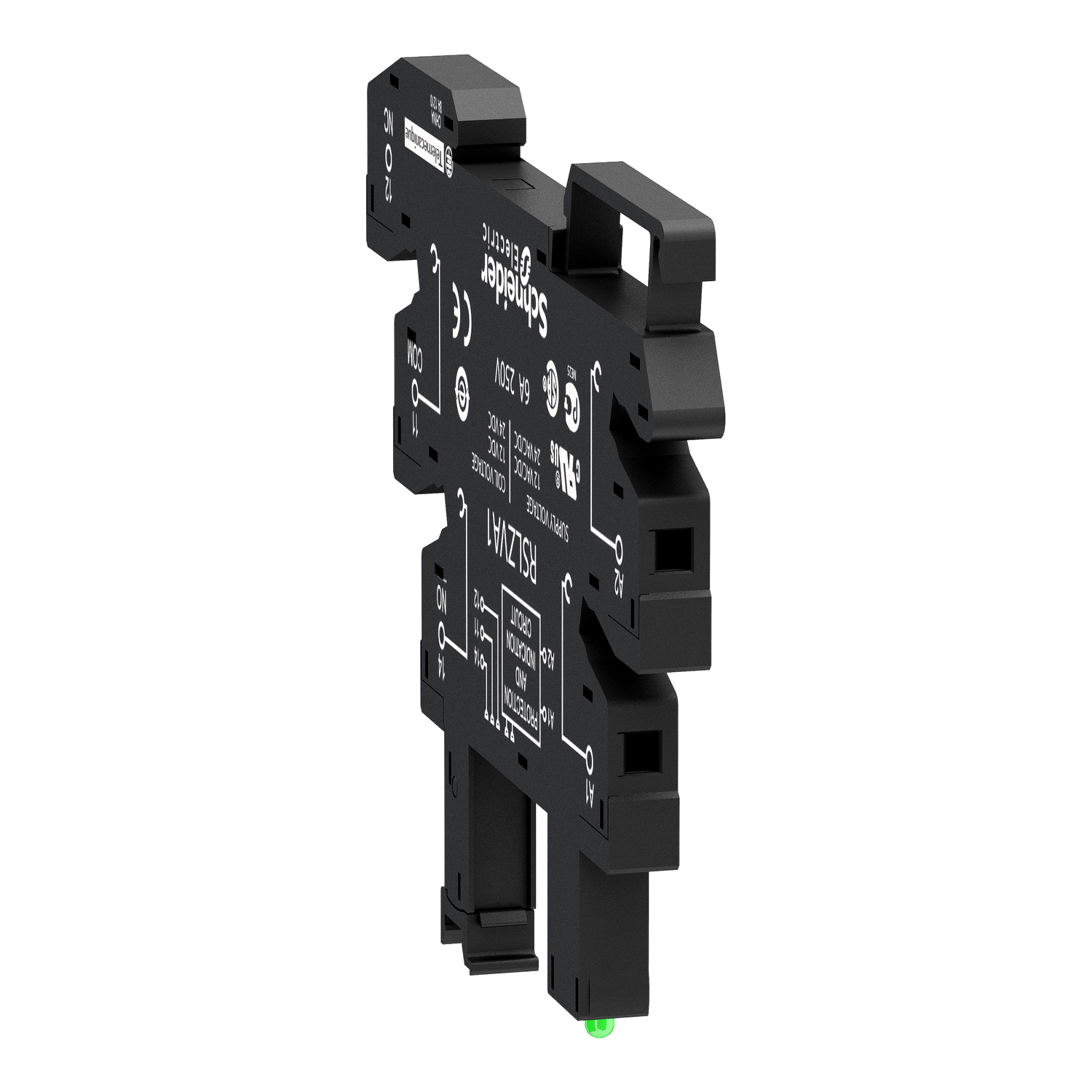

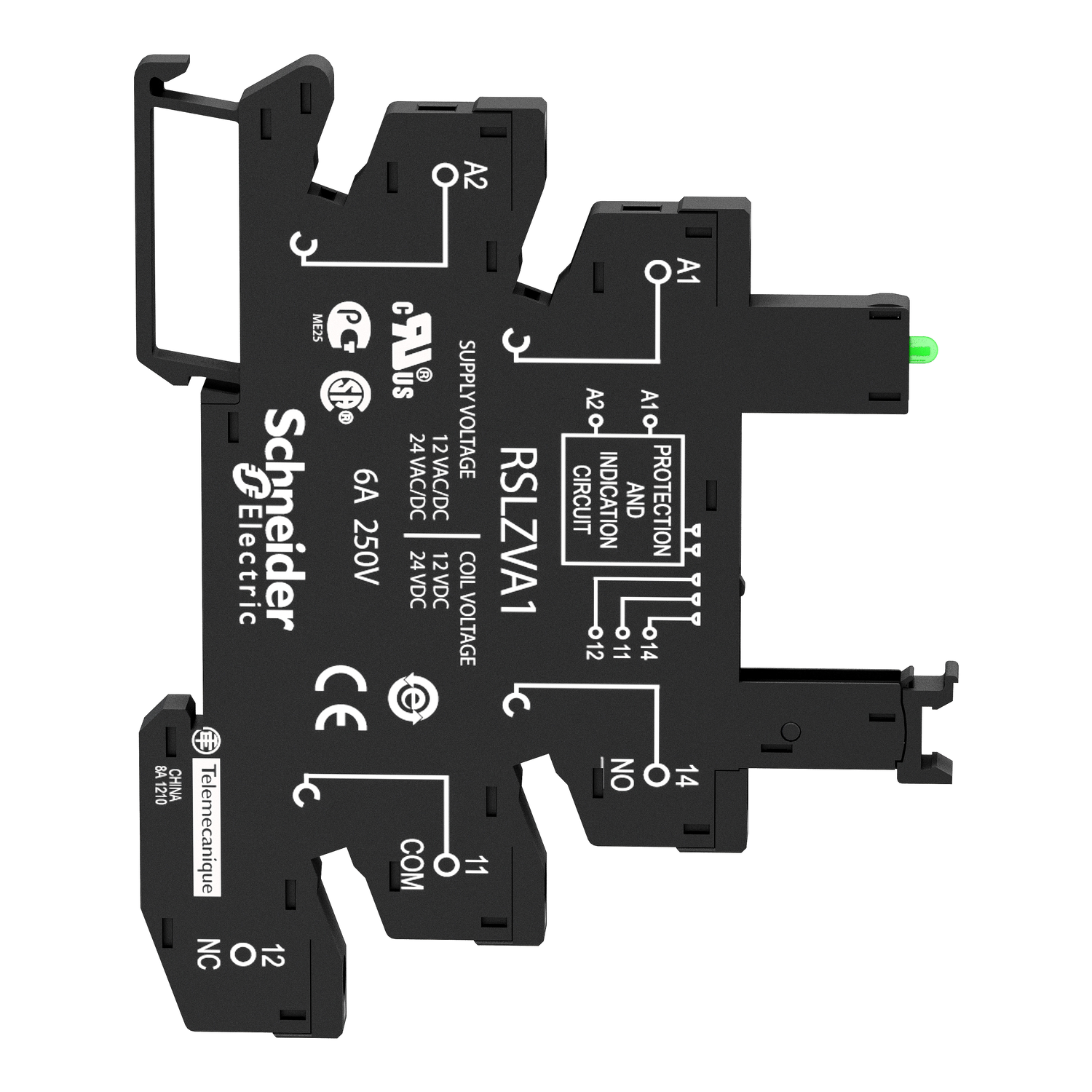

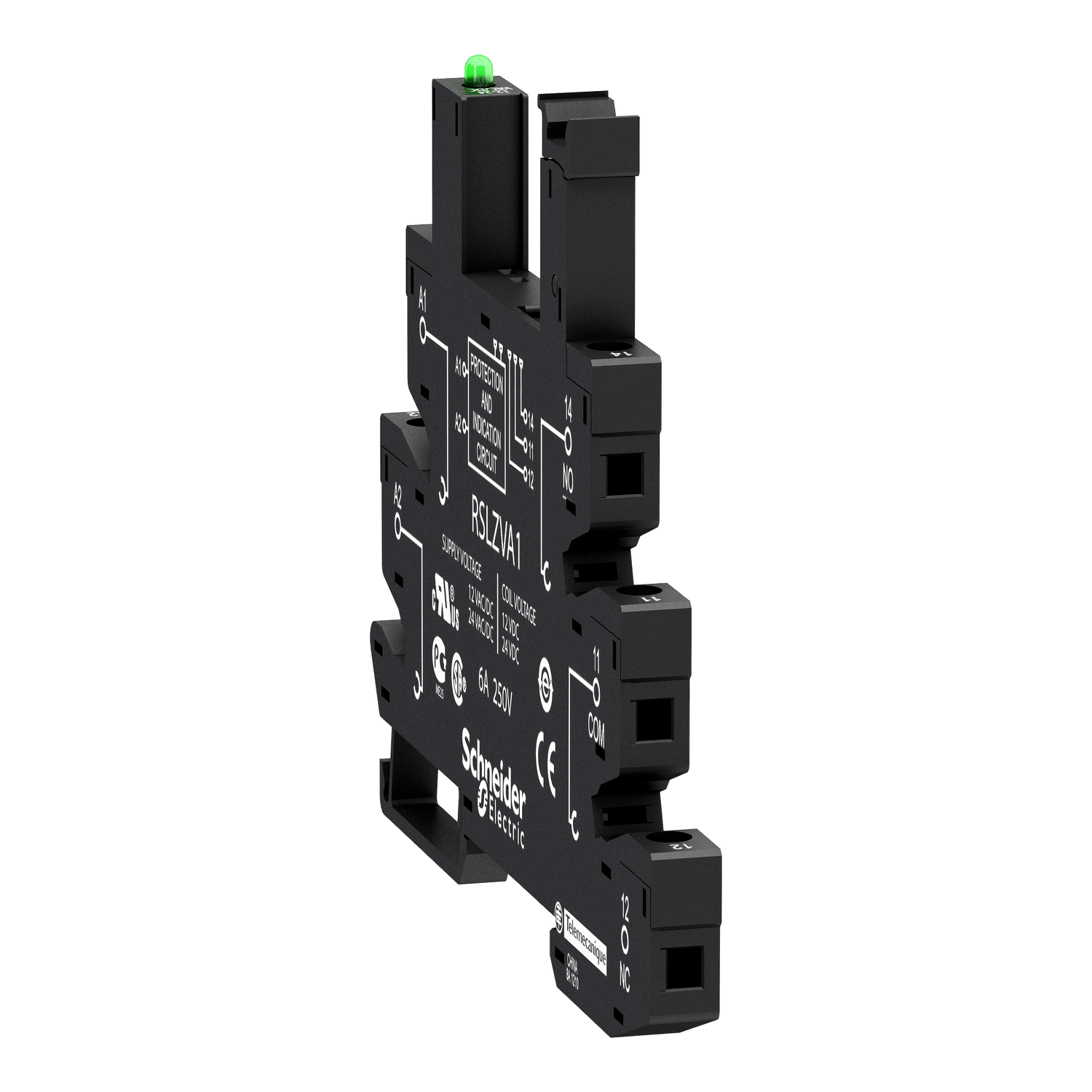

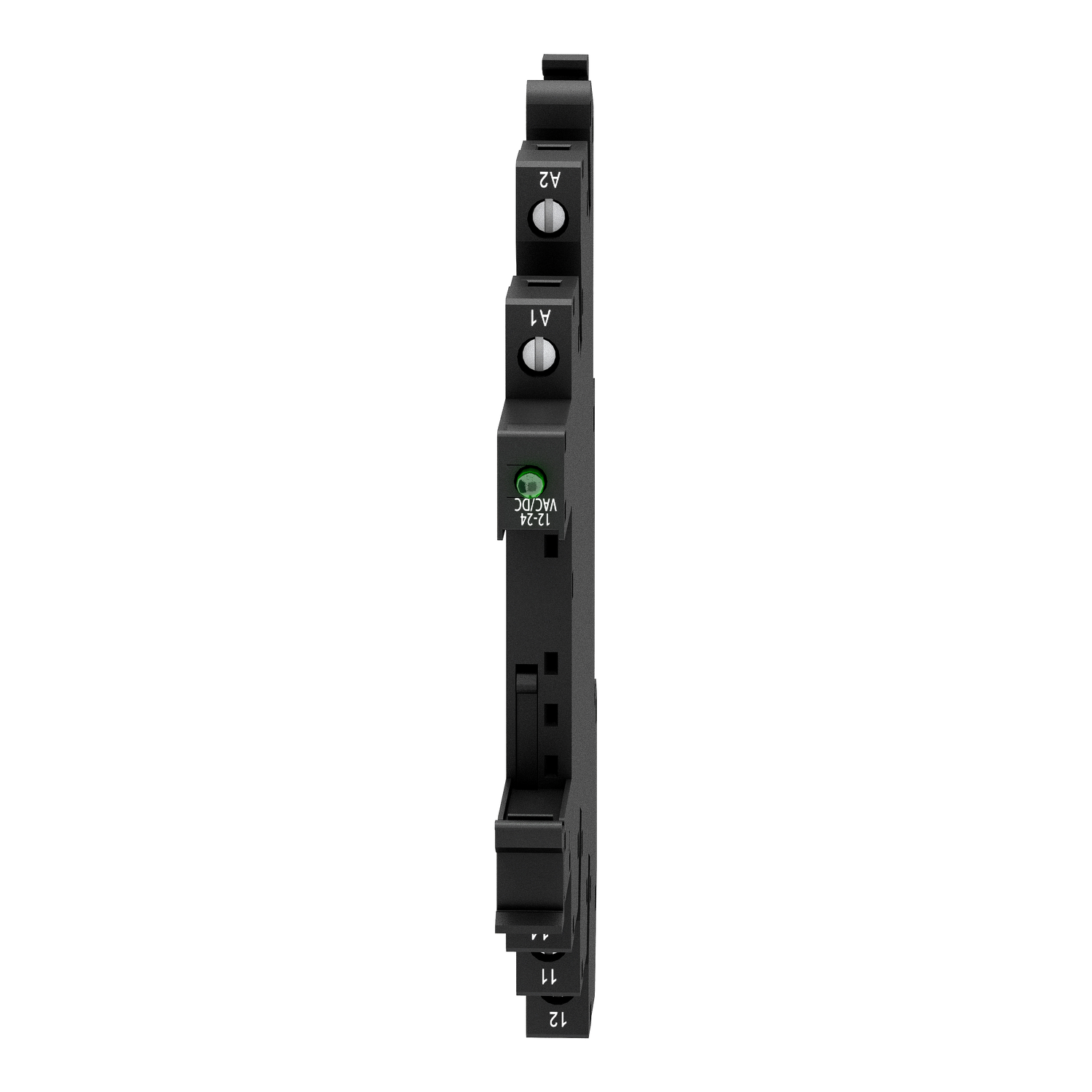

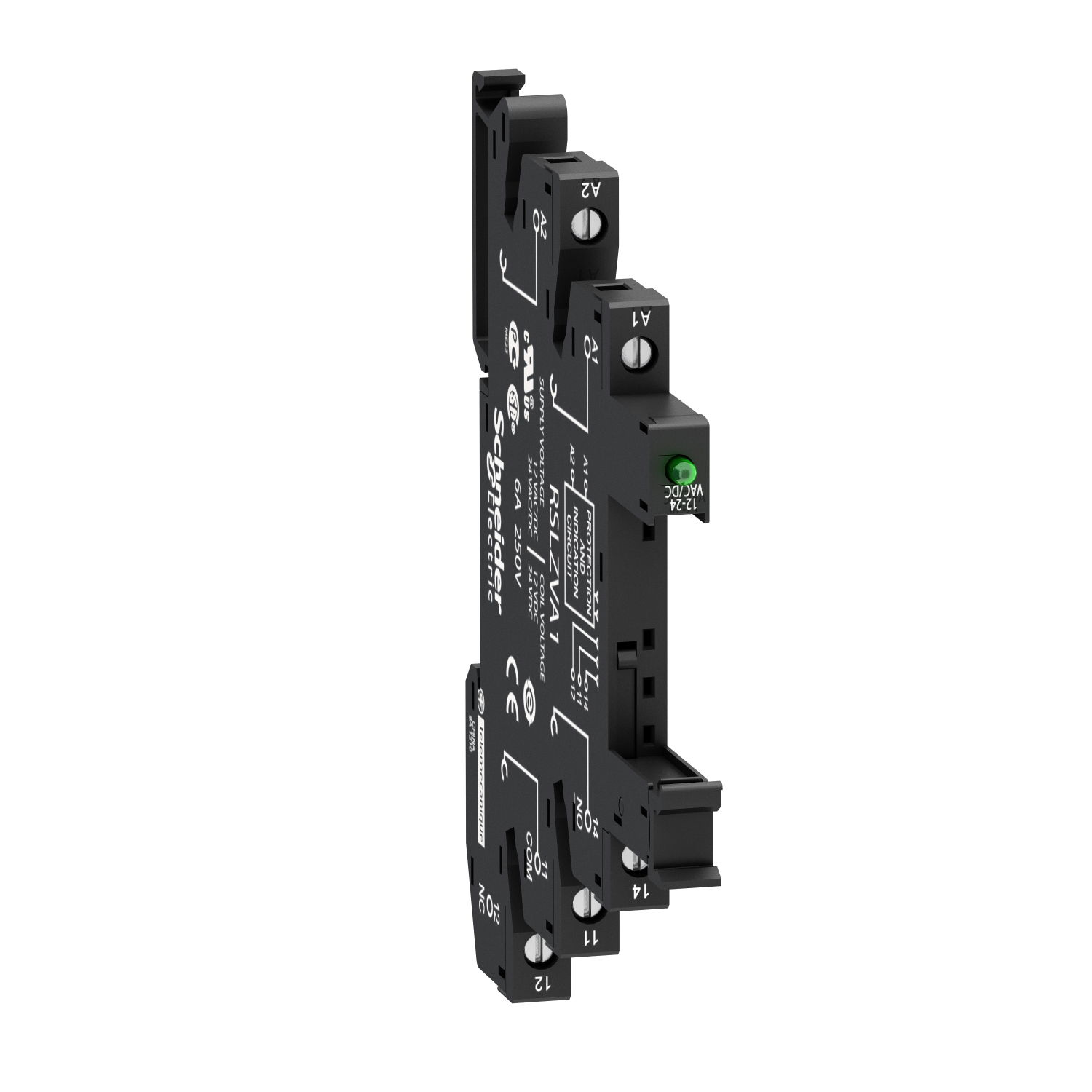

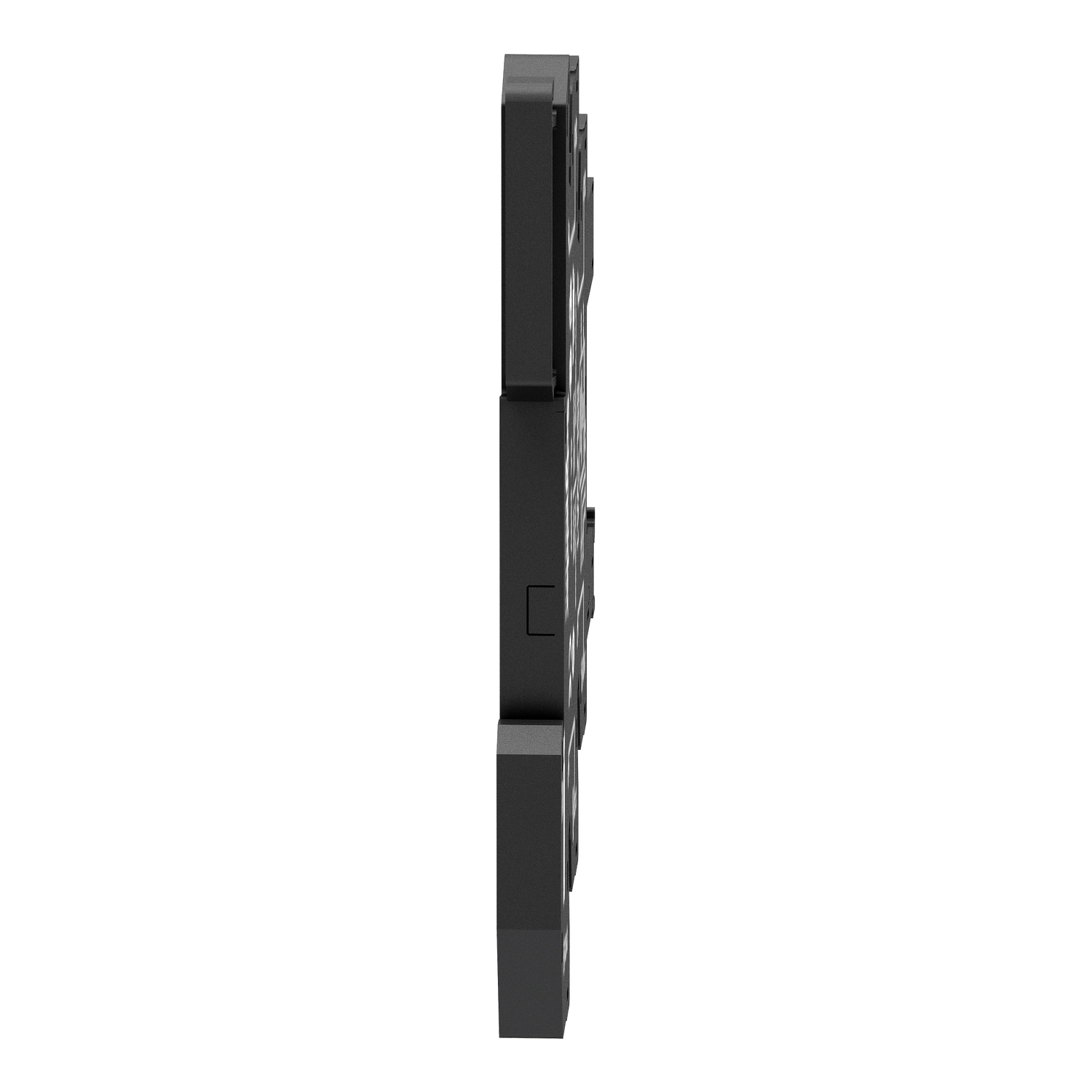

Screw socket equipped with LED and protection circuit, 12...24 V AC/DC

Link copied
SKU
EAN
GTIN
MPN

Screw socket equipped with LED and protection circuit, 12...24 V AC/DC by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 2 more. It is currently in stock at 4 of them. Trade prices range from £9.64 to £14.98 excl. VAT. Voltimum+ members earn 2 points per unit.

"This Harmony RSLZ plug-in relay socket has a coil control voltage of 12 - 24V AC/DC." "It has large choice of number of contacts for high rated current use." "It also offers LED indicator and protection circuit." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "One of the slimiest socket on the market, with 6.2mm width, it can be installed nearly anywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0

Voltimum+ Loyalty Programme Loyalty points: 2

Price range: £ 9.64 - £ 14.98 Excl. VAT

Specifications

Depth 95 mm
Width 6.2 mm
Height 78.6 mm
Number of pins 5
Mounting method DIN rail (top hat rail) 35 mm
With detachable clamps no
Function extension possible no
Type of electric connection Screw connection
