Schneider Electric

FLUSH MOUNTED BLACK FLUSH CAPS PUSHBUTTON WHITE MARKED ARROW 1NO SCREW CLAMP

FLUSH MOUNTED BLACK FLUSH CAPS PUSHBUTTON WHITE MARKED ARROW 1NO SCREW CLAMP by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £17.69 excl. VAT. Voltimum+ members earn 2 points per unit.

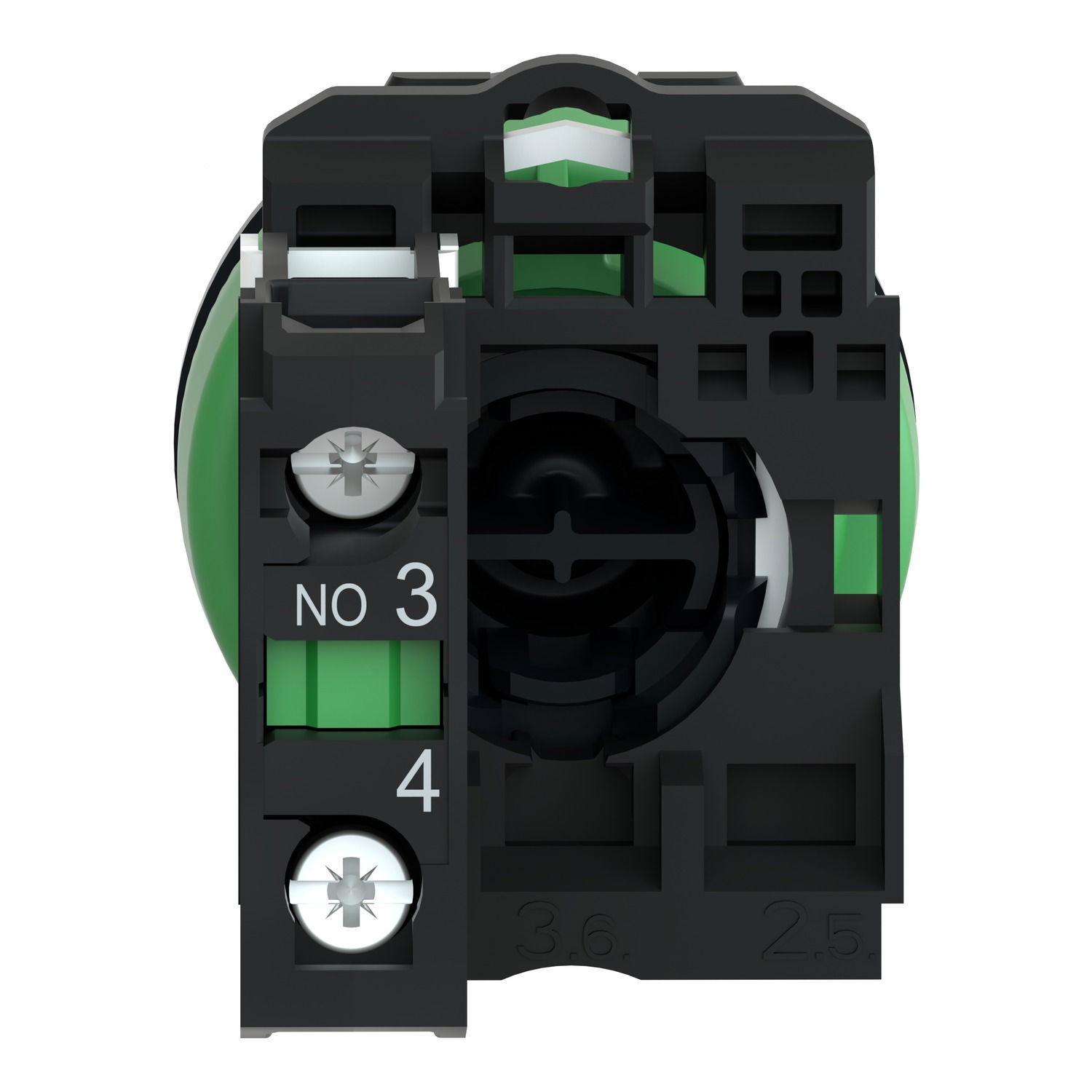

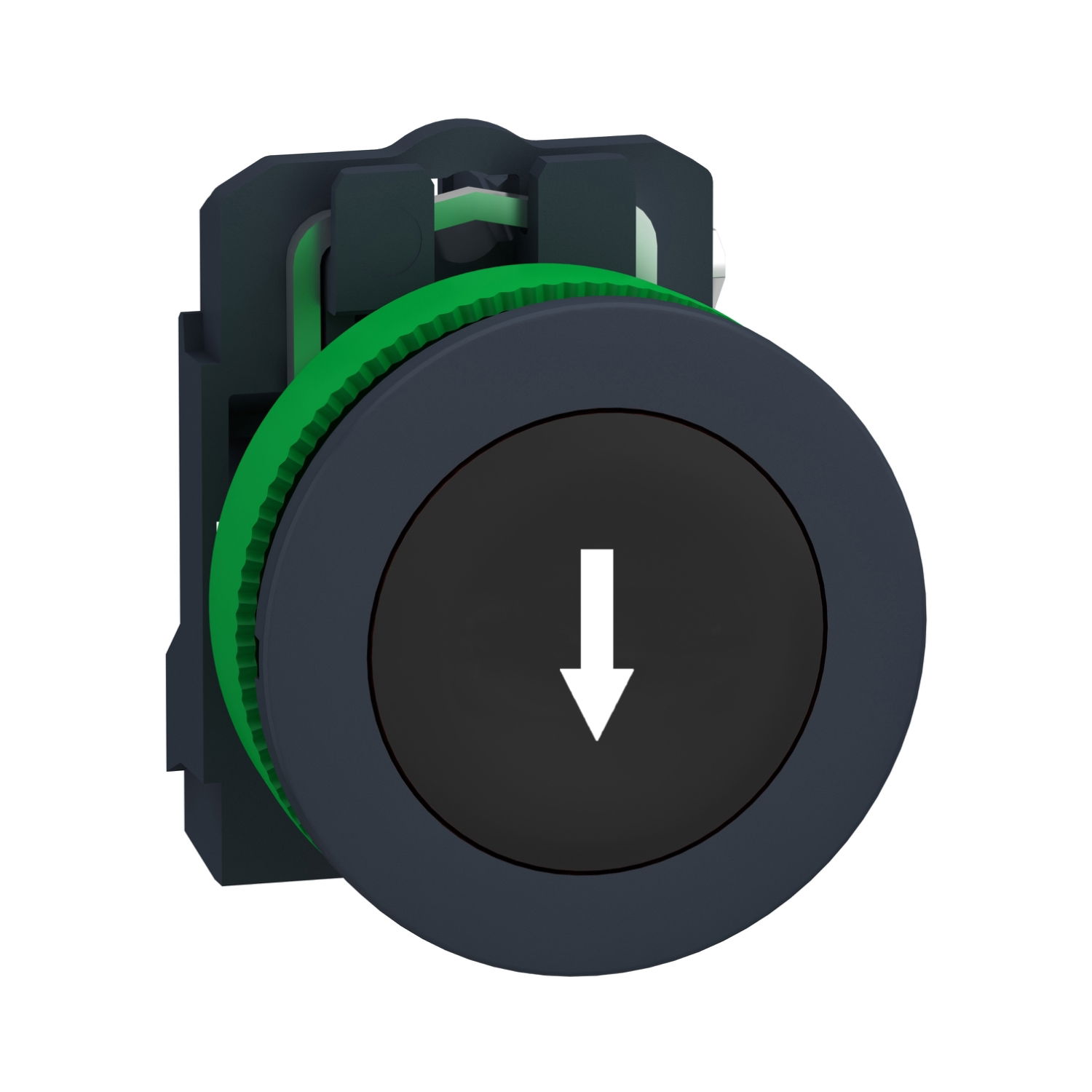

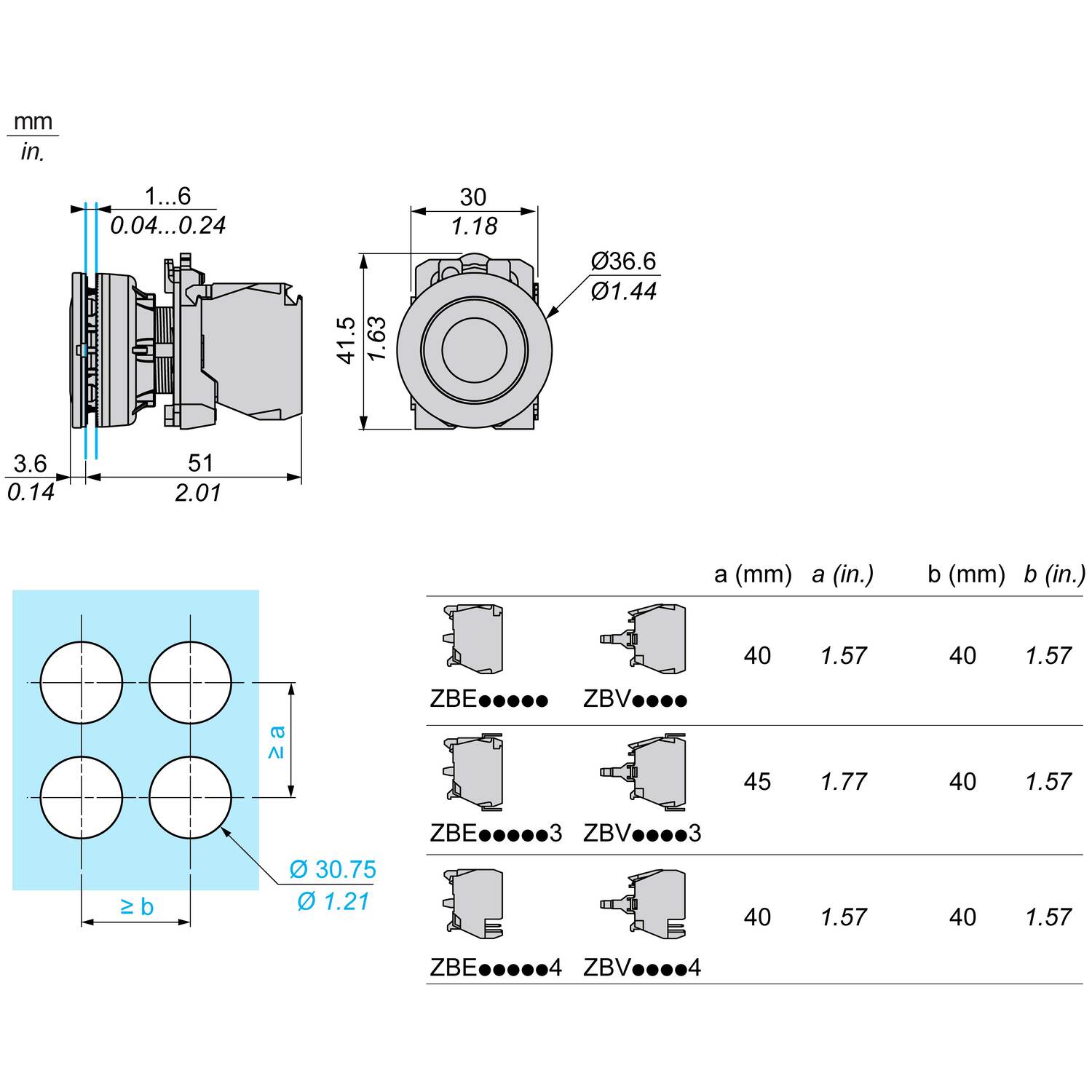

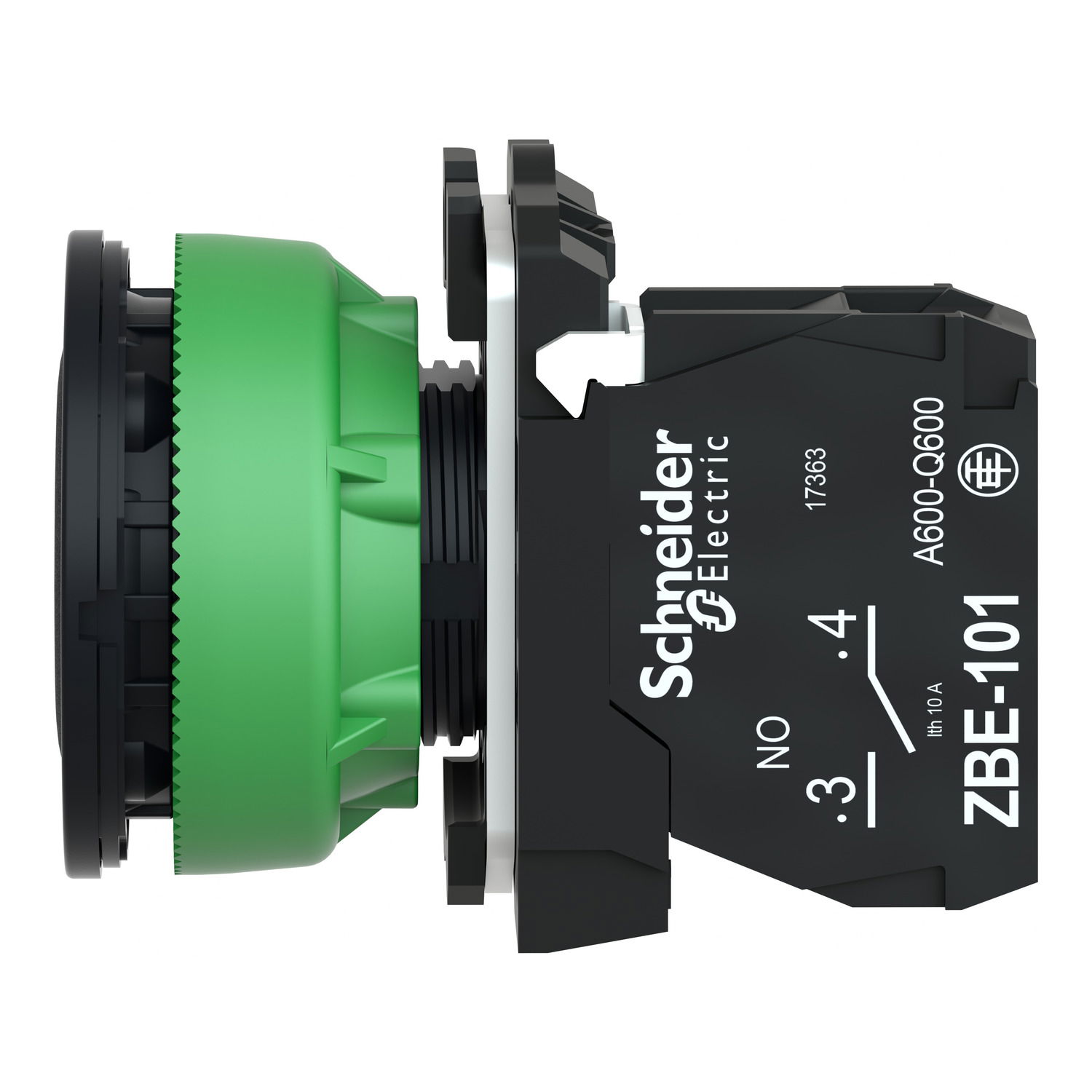

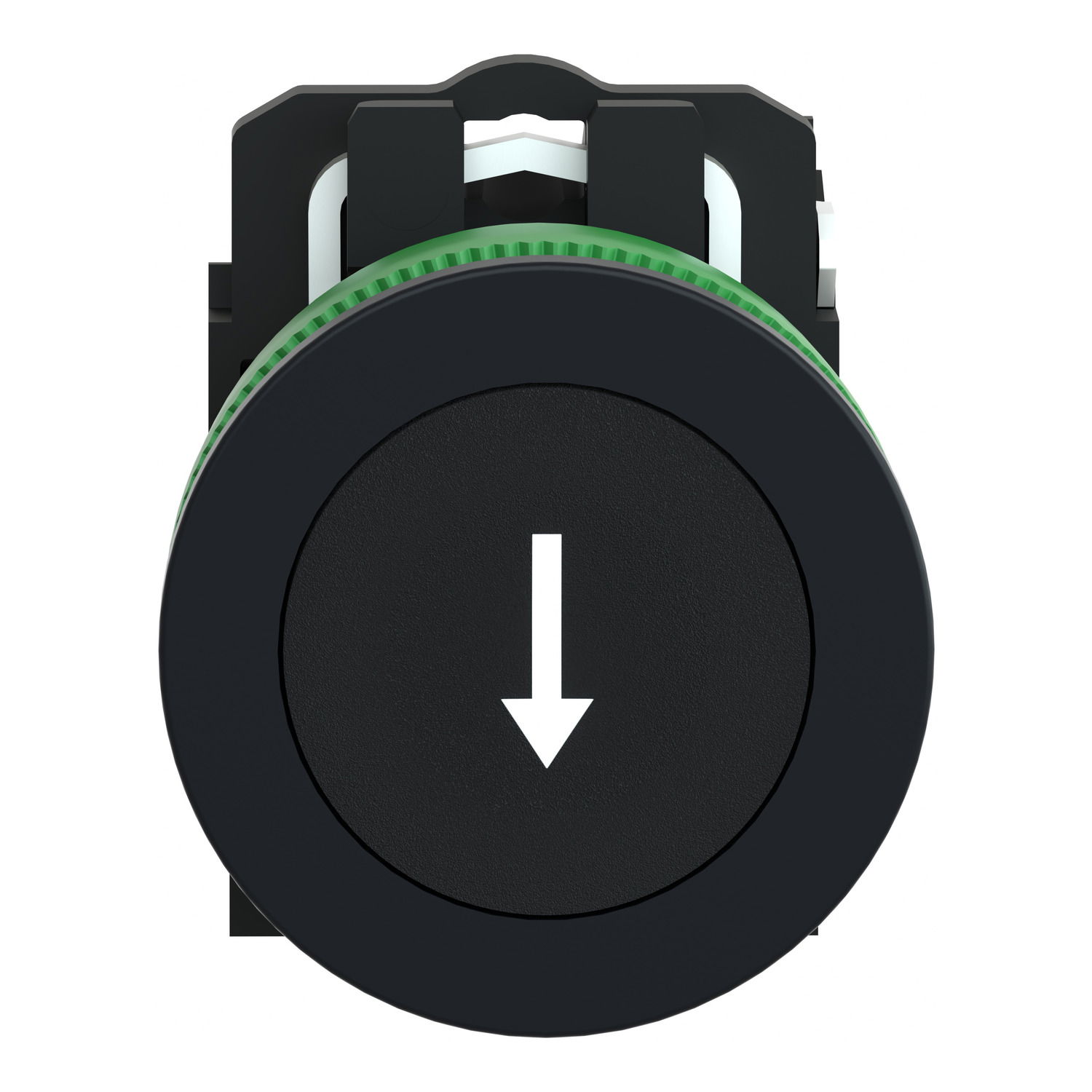

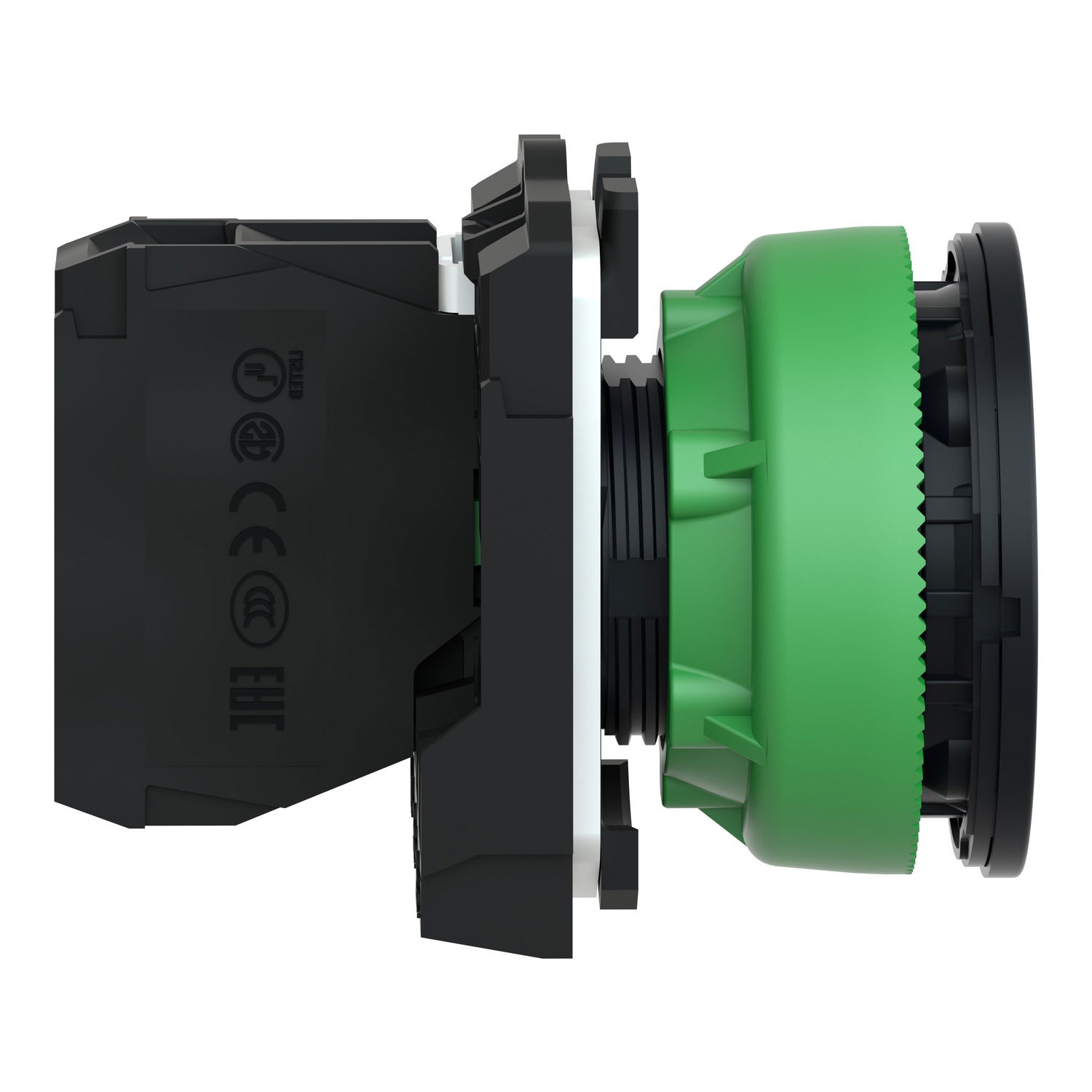

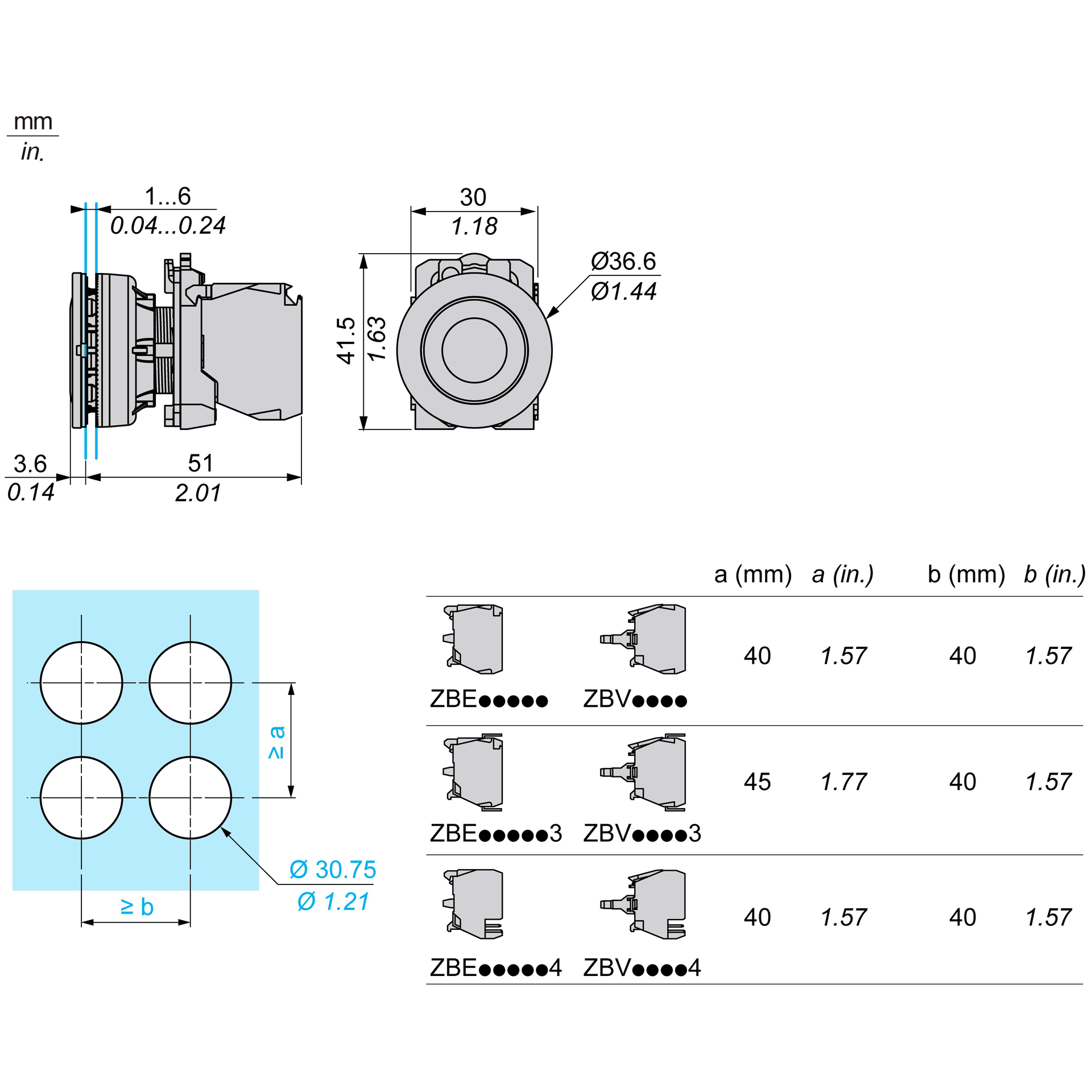

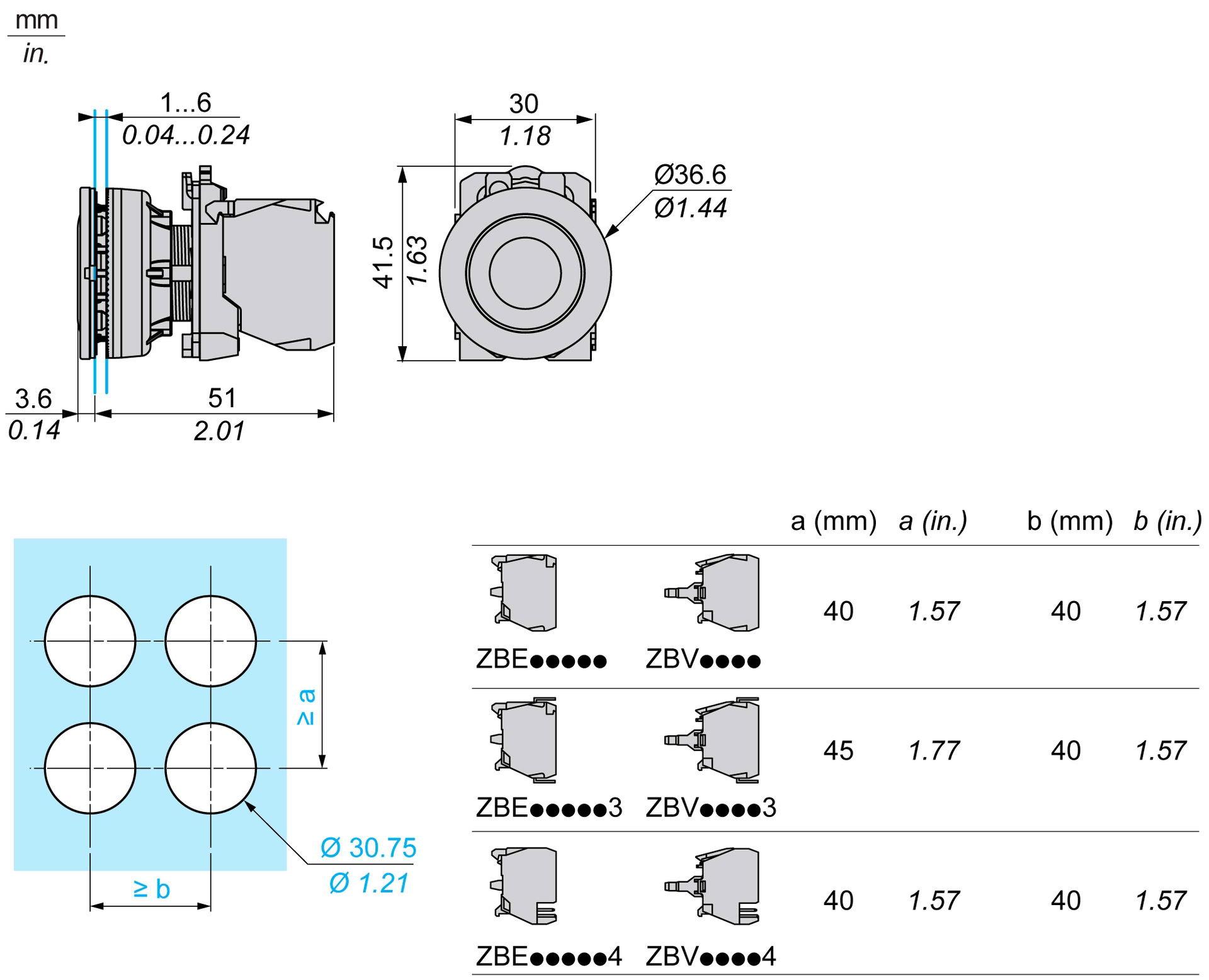

This flush mounted pushbutton is a part of the Harmony XB5 platic range and is a complete product. The mounting diameter is 30.5 mm. It has a DOWN ARROW marking in white. Customized marking option is also available through web customization tool in Schneider Electric website. Improved ergonomics and aesthetics due to flush mount design. It comes with antimicrobial characteristics. The contact type is 1NO slow break and the connection terminal is screw clamp. The operator mechanism is spring return, and the push mechanism is flush push. The shape of the head is round and black. The bezel and the fixing collar is plastic. The weight of this pushbutton is 37 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. Accessories to be ordered separately are available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.

Product identifiers

SKU: XB5FA3351
EAN: 3606481360496
GTIN: 3606481360496
MPN: XB5FA3351

Voltimum+ Loyalty Programme Loyalty points: 2

Price: £ 17.69 Excl. VAT

Categories

Wiring Accessories & Installation Light Switches Sockets & Switches

ETIM group

Low-voltage industrial components

Specifications

Transparent no
Colour button Black
Hole diameter 30.5 mm
Spring-return yes
Width opening -
Height opening -
Type of button Flat
With front ring yes
Material front ring Plastic
Suitable for lighting no
Degree of protection (IP) IP66
Number of command positions 1
Type of electric connection Screw connection
Number of contacts as normally open contact 1

Documents

Declaration of Conformity (Sustainability)

XB5FA3351 REACh Regulation

Open

Instruction sheet

XB4-XB5 - Mounting, Instruction Sheet

Open

Product data sheet

Open

Catalog

Discover the Harmony XB5 plastic Control and signaling units catalog

Open

Declaration of Conformity (Sustainability)

XB5FA3351 EU RoHS Directive

Open

Declaration of conformity

XB4B, XB5A/D/E/K, Control and signaling units, XD4P, XD5P Joystick Controllers

Open

Environmental Disclosure

XB5 Plastic Non Illuminated Push Button - Product Environmental Profile

Open

Circularity Profile

XB5 Plastic Non Illuminated Push Button - EnD Of Life Instructions

Open
