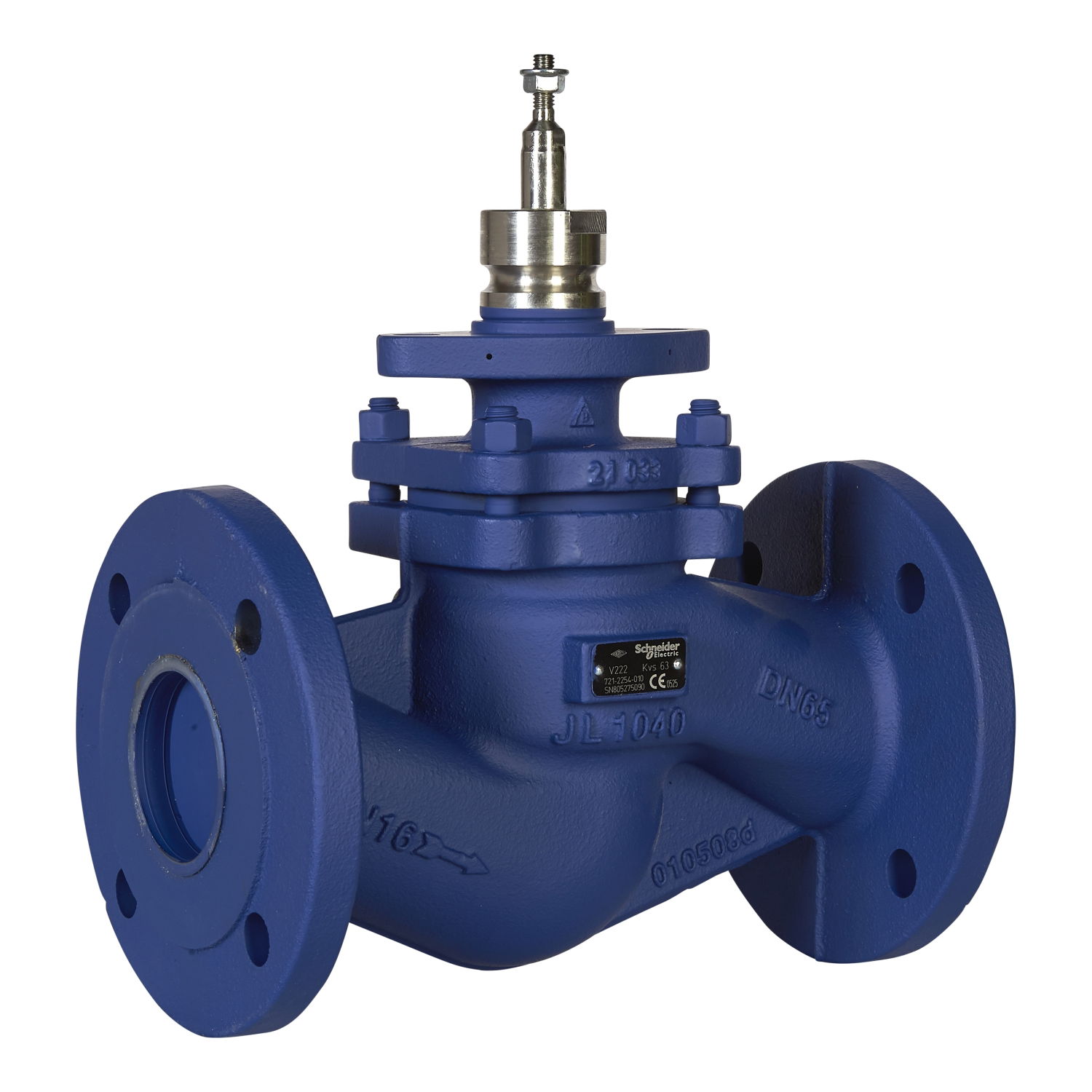

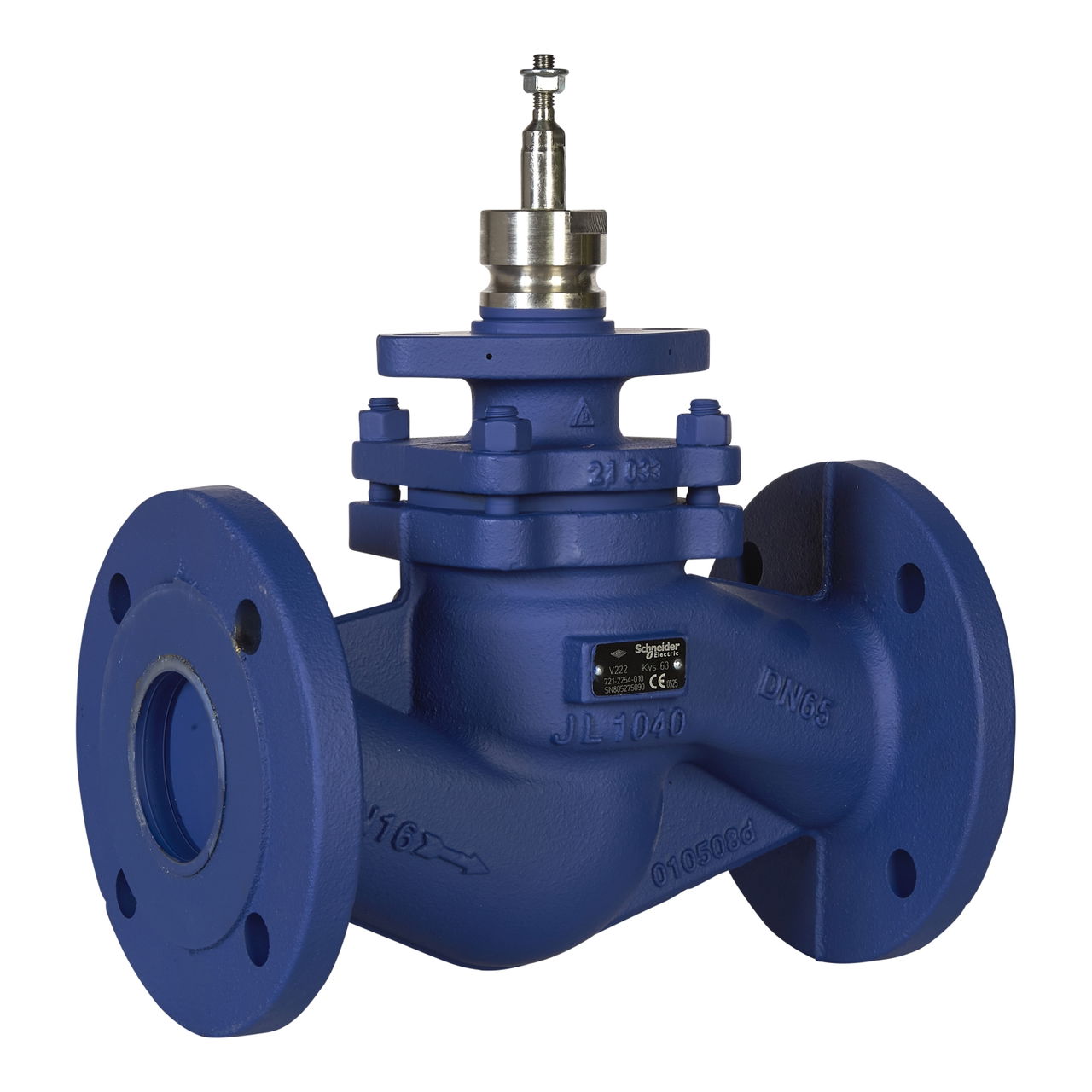

V222 Globe Valve, 2-Way, PN16, Flanged, Balanced plug, DN65, Kvs 63, Cast Iron Body, Stainless plug and seat

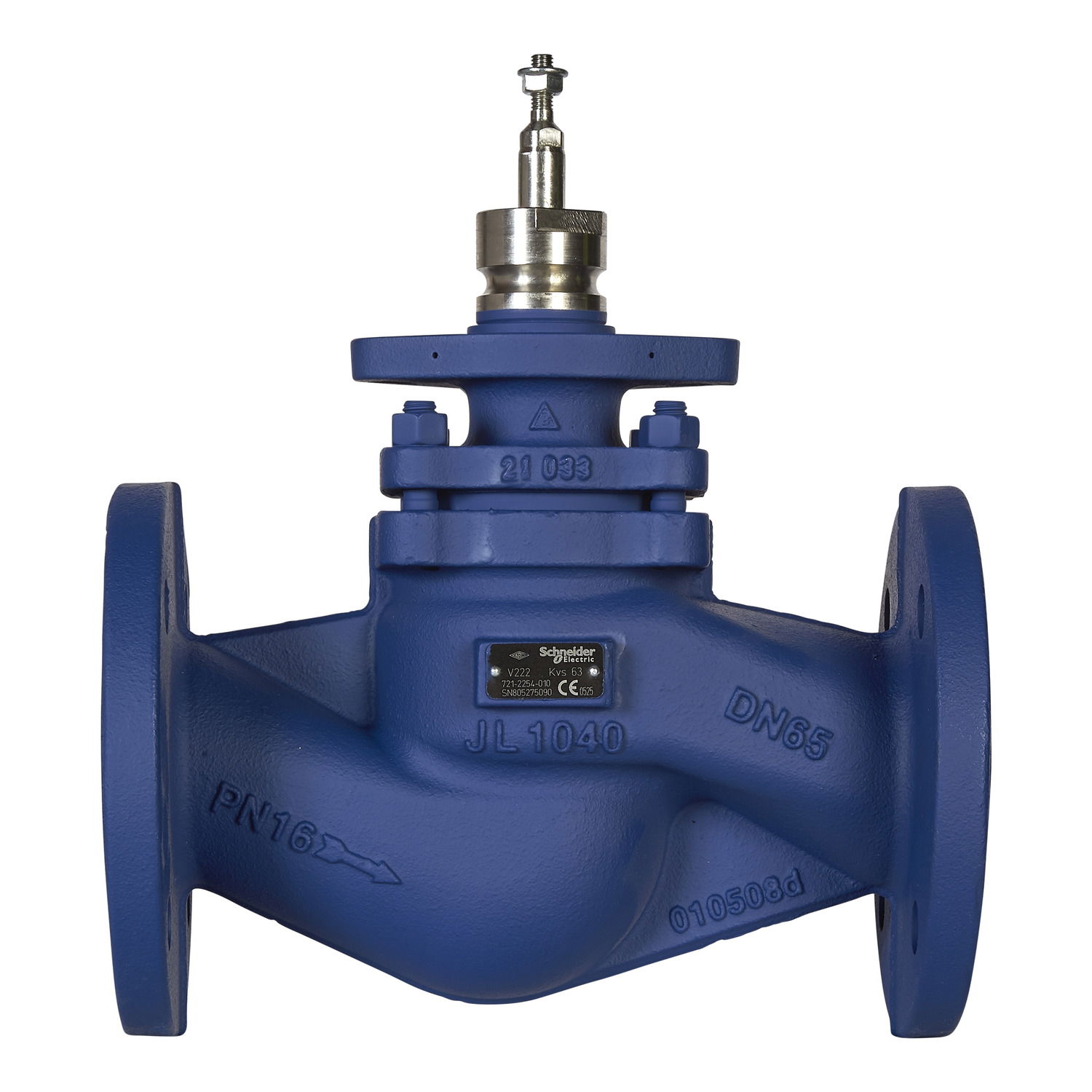

V222 Globe Valve, 2-Way, PN16, Flanged, Balanced plug, DN65, Kvs 63, Cast Iron Body, Stainless plug and seat – Image 2 of 2

1 / 2

V222 Globe Valve, 2-Way, PN16, Flanged, Balanced plug, DN65, Kvs 63, Cast Iron Body, Stainless plug and seat

Name: V222 Globe Valve, 2-Way, PN16, Flanged, Balanced plug, DN65, Kvs 63, Cast Iron Body, Stainless plug and seat
Brand: Schneider Electric
SKU: 7212254010
Price: 1298.00 GBP
Availability: OutOfStock

Product identifiers

SKU: 7212254010

EAN: 3606481076908

GTIN: 3606481076908

MPN: 7212254010

Loyalty points: 216

Price: £ 1,298.00 Excl. VAT

Specifications

EFDE0006	no
EFDE0007	no
EFDE0048	no
EFDE0049	yes
Kv value
Kvs value	63
Axle height	-
Connection 1	Flange
Connection 2	Flange
Stroke length	30 mm
Housing material	Cast iron
Material quality	Cast iron EN-GJL-250 (GG 25)
Surface protection	Other
Control ratio (Svo)	-
Characteristic curve	Equal percentage
Suitable for cooling	no
Suitable for heating	no
Automatic flow control	no
Length of connection 1	-
Length of connection 2	-
Suitable for tap water	yes
Flange compression class	PN 16
Min. pressure difference	8 bar
Article compression class	PN 16
Contour code connection 1	V
Contour code connection 2	V
Leakage loss of Kvs value	0.05 %
With flow measuring point	no
Suitable for process water	yes
With coupling connection 1	yes
With coupling connection 2	yes
Working length connection 1	-
Working length connection 2	-
Nominal diameter connection 1	2 1/2 inch (65)
Nominal diameter connection 2	2 1/2 inch (65)
Medium temperature (continuous)
Outer pipe diameter connection 1	65 mm
Outer pipe diameter connection 2	65 mm
Max. pressure difference in opened position	8 bar
