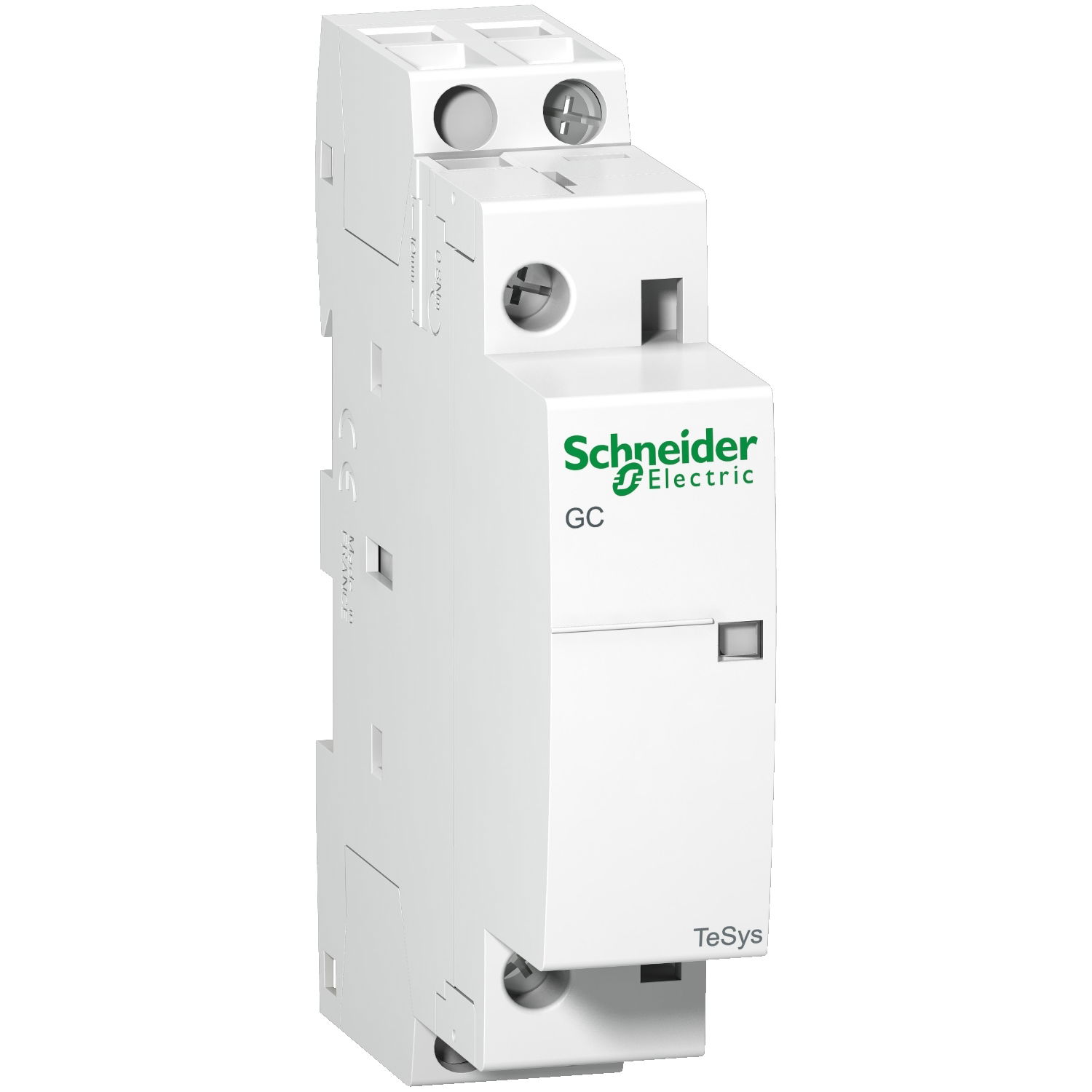

TeSys GC - modular contactor - 16 A - 1 NO - coil 220...240 V AC

Link copied
SKU
EAN
GTIN
MPN

TeSys GC - modular contactor - 16 A - 1 NO - coil 220...240 V AC by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 2 more. It is currently in stock at 4 of them. Trade prices range from £31.80 to £50.18 excl. VAT. Voltimum+ members earn 6 points per unit.

TeSys GC modular contactor, 1 pole (1NO), 16A/250V AC-7a (heating) and 5A/250V AC-7b (motor control), for household applications. Control voltage 220-240V AC 50Hz, state indicator on front. For use in modular panels, compact (18mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 12 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE).

Voltimum+ Loyalty Programme Loyalty points: 6

Price range: £ 31.80 - £ 50.18 Excl. VAT

Categories

Contactors & Motor Starters Switchgear & Circuit Protection

ETIM group

Devices for distribution board-/surface mounting

Specifications

Hum-free yes
Built-in depth 62.5 mm
Slider for hand switch no
Rated operating voltage
Rated operation current 16 A
With day/night function yes
Rated excitation voltage
Degree of protection (IP) IP20
Max. incandescent lamp load 1800 W
Voltage type (operating voltage) AC
Width in number of modular spacings 1
Number of contacts as normally open contact 1
Max. load fluorescent lamp (parallel compensated) 600 VA

Documents

Declaration of Conformity (Sustainability)

GC1610M5 REACh Regulation

Open

Product data sheet

Open

Catalog

TeSys - Catalog 2026 - Innovative and connected solutions for motor starters

Open

Declaration of Conformity (Sustainability)

GC1610M5 EU RoHS Directive

Open

Environmental Disclosure

Modular contactor, TeSys GC, AC-7a, 25A, 2NO, 12VAC coil - Product Environmental Profile

Open

CAD

Open

CAD

Open

CAD

Open
