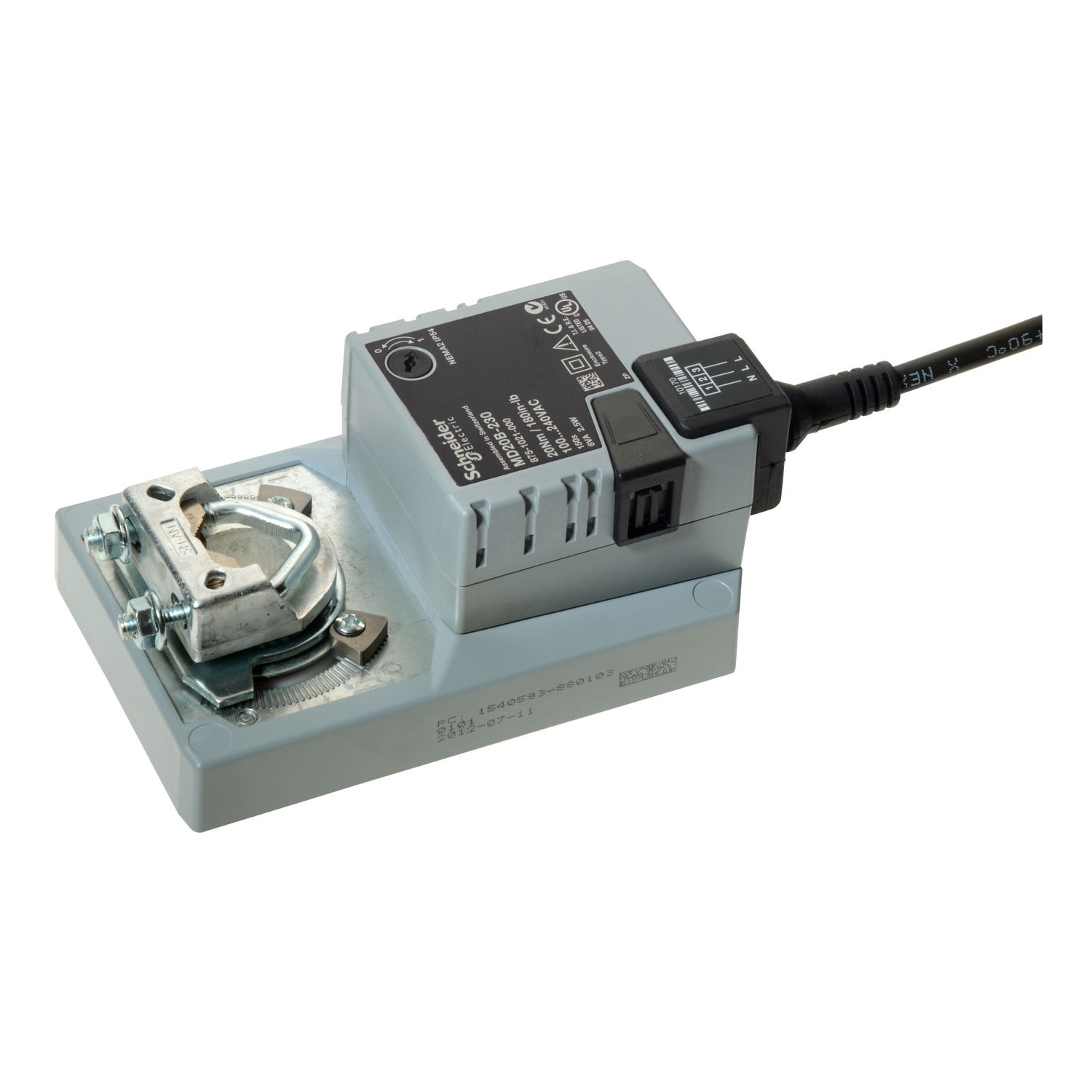

Act: Elec, 2Pos, NSR, 230 VAC, 1 m Leads, 20 Nm, IP54, Opt SPDT

Link copied
SKU
EAN
GTIN
MPN

Act: Elec, 2Pos, NSR, 230 VAC, 1 m Leads, 20 Nm, IP54, Opt SPDT by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £441.58 excl. VAT. Voltimum+ members earn 51 points per unit.

The MD2B is on/off damper actuator designed for operating air control dampers in ventillation and air conditioning systems for building services installations. The damper actuator can be used with mounting kits to drive selected Butterfly and Shoe valves. The actuator is maintenance free, with mechanical position indication. Supply voltage: 230 Vac +15%, -6%. Control signal: on/off. Torque: 2 Nm, IP 54 Protection class. Angle of rotation: Max. 95°, adjustable by mechanical stops. Connection cable 1 m, 3 x .75 mm² (AW 18).

Voltimum+ Loyalty Programme Loyalty points: 51

Price: £ 441.58 Excl. VAT

Specifications

Depth 65 mm
Model Rotating
Width 130 mm
Height 79 mm
Torque 20 Nm
End contacts None
Transmission -
Stroke length -
Operating time 150 s
Adjusting force -
Housing material Other
Auxiliary contacts yes
Ambient temperature
Max. angle of rotation 95 °
Communications protocol -
Deactivated when closed no
Connection to stop valve None
Max. electric power input 6 VA
Adjustable operating range yes
Regulation type modulating no
Suitable for air accessory yes
Auxiliary contacts optional no
Automatic stroke recognition yes
Potential free switch contact yes
Suitable for manual operation yes
With mechanical setting indicator yes
Principle of operation safety function NO/NC (depends on mounting)
