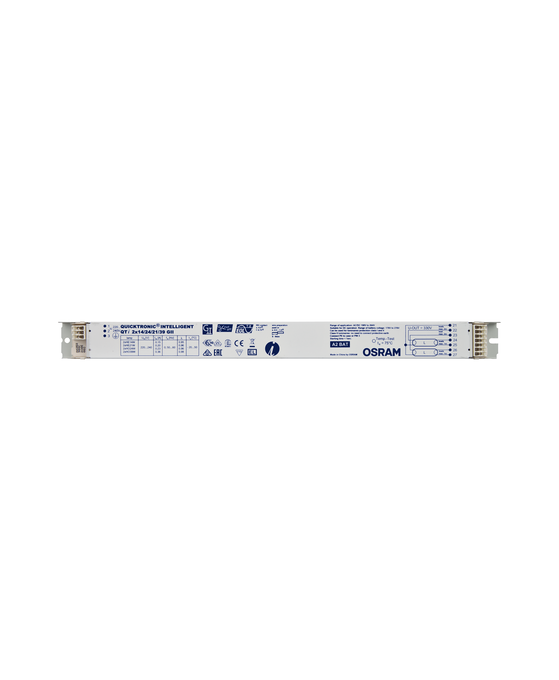

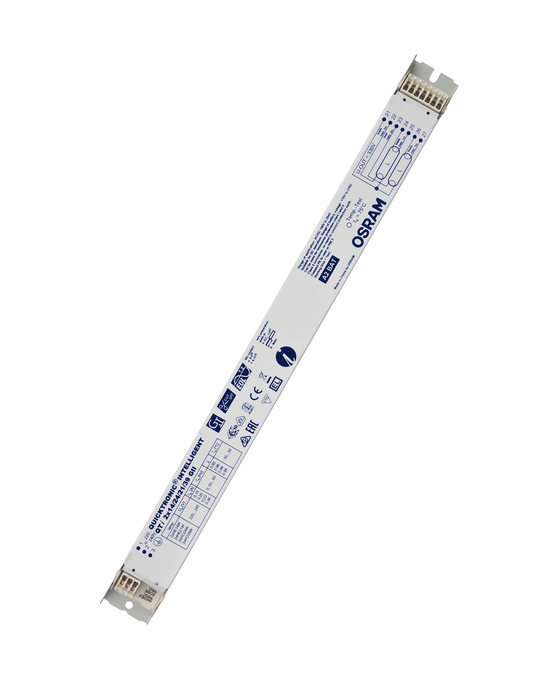

QTi 2X14/24/21/39 GII
Product benefits
- Long lamp life
- No adverse effect from frequent on/off switching
- Automatic restart after lamp replacement
- Perfect lamp start for applications with motion sensors
- VDE/VDE EMC certified system
- Very high energy efficiency due to cut-off technology
Areas of application
- Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
- Industry
- Open-plan offices, corridors and storage rooms
- Public buildings
- Sports halls and factories
- Strip lighting
- Suitable for emergency lighting (DC operation)
- Modernization of existing systems
- Suitable for luminaires of protection classes I and II
Product features
- Supply voltage: 220 240 V
- Line voltage: 198 264 V
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Lamp start with optimum filament preheating
- Lifetime: > 100,000 h (for T = 65 °C at Tc)
- Energy Efficiency Index EEI: A2 BAT
- Automatic shutdown of defective lamps and at end of life (EoL T.2)
- Safety: to EN 61347-2-3
- Lamp operation: to EN 60929
Product identifiers
SKU: 4008321383396
EAN: 4008321383396
GTIN: 4008321383396
MPN: 4008321383396
Price: £ 0.00 Excl. VAT
Categories
Specifications
Lifespan
| ECG lifetime | 100000 h 1) |
Capabilities
| Dimmable | No |
| Max. cable length to lamp/LED module | 2.0 m / 1.0 m |
| Suitable for fixtures with prot. class | I; II |
| Suitable for emergency lighting | Yes |
| End of lamp life safety shutdown | EOL T.2 |
Electrical data
| Nominal wattage | 88.00 W |
| Nominal voltage | 220…240 V |
