PLS box, polyester rear, polyester cover IP65 27x27x18cm

Name: PLS box, polyester rear, polyester cover IP65 27x27x18cm
Brand: Schneider Electric
SKU: NSYPLSP2727G
Availability: InStock

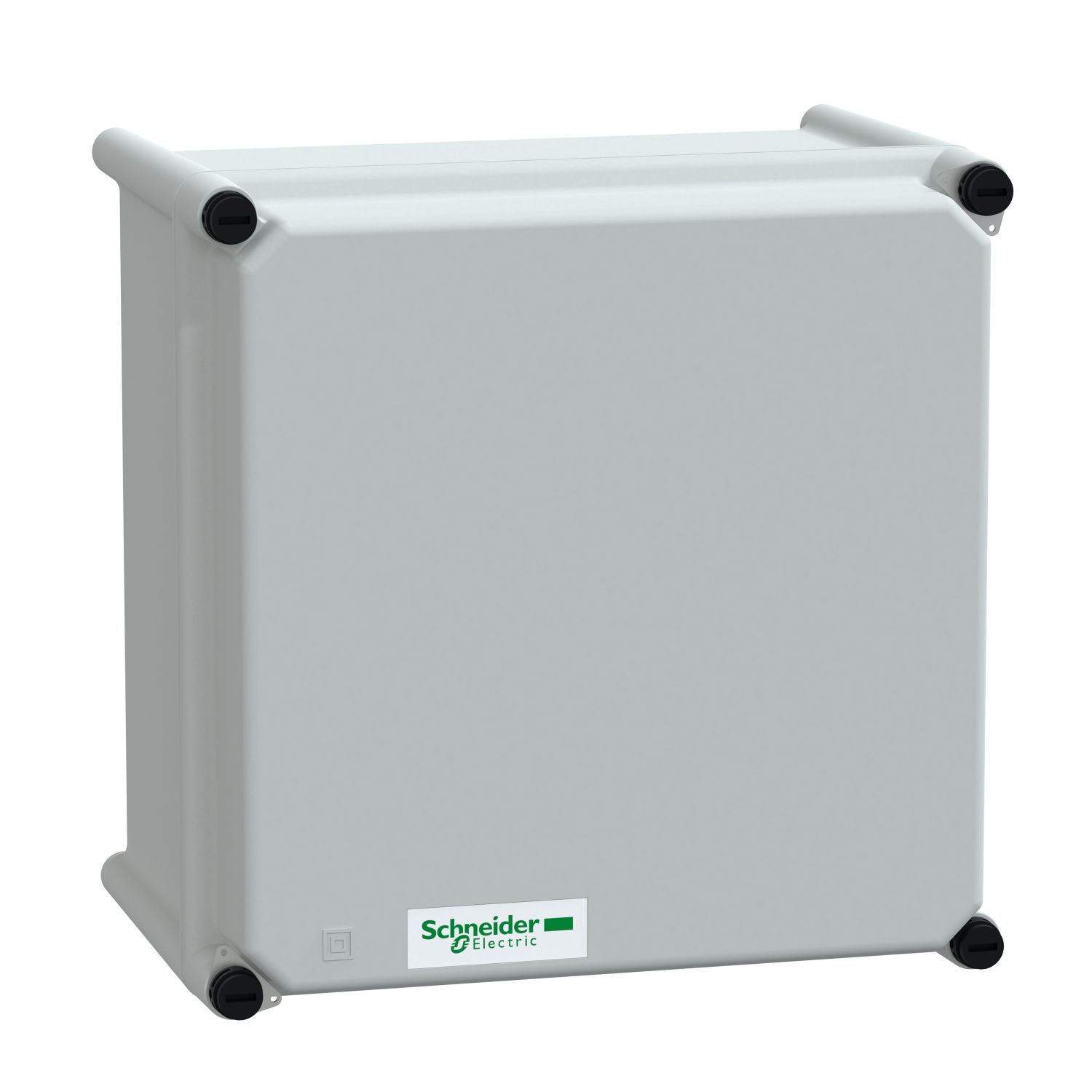

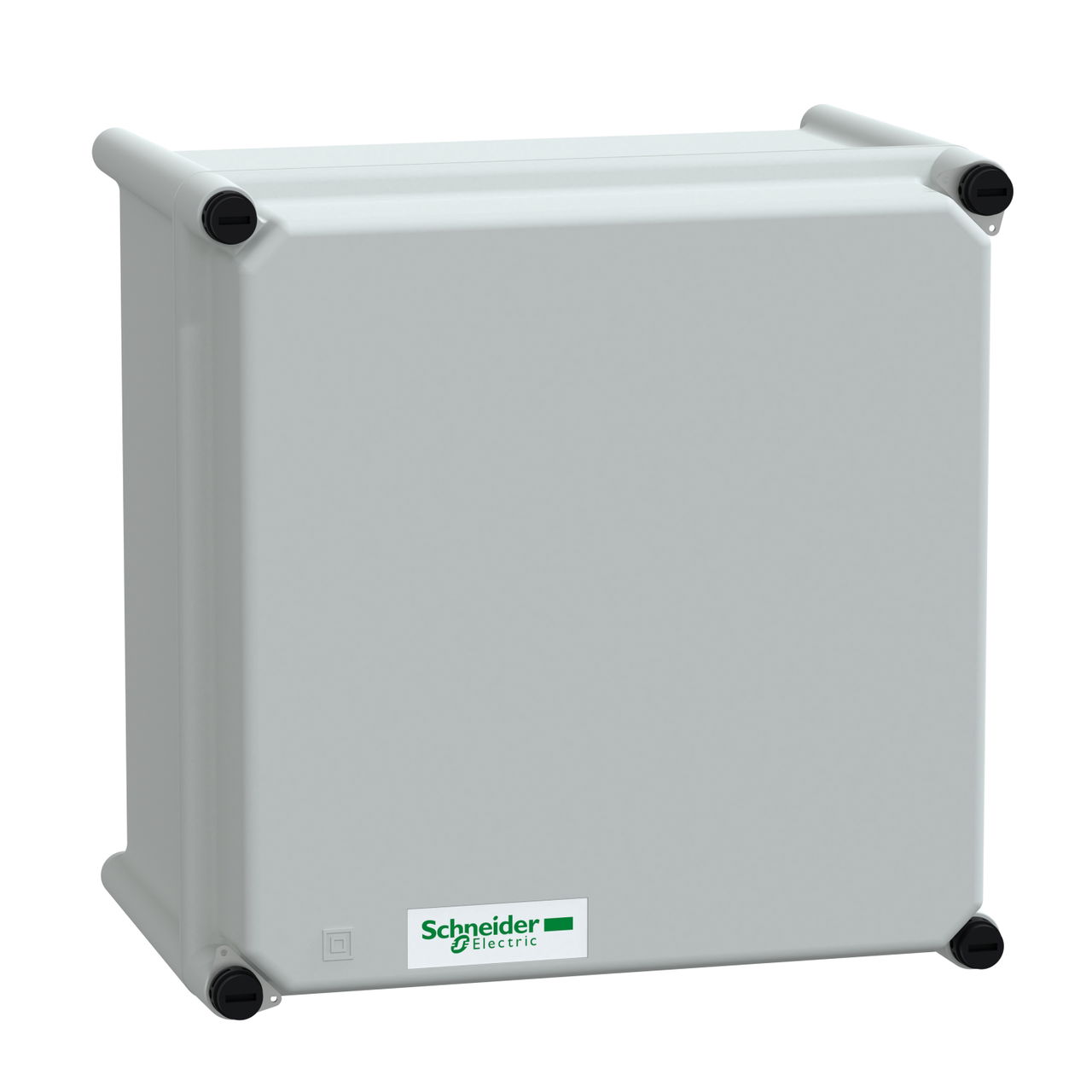

Thalassa PLS box polyester rear with opaque polyester cover. 270 x 270 x 180 mm. Insulating modular box. One piece moulded body. Wall mounted. Low plain cover, cover locking screw removable. Polyester reinforced with fibreglass rear and cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.

Product identifiers

SKU: NSYPLSP2727G

EAN: 3606480777240

GTIN: 3606480777240

MPN: NSYPLSP2727G

Loyalty points:
27

Price: £ 53.00 Excl. VAT

ETIM Group

Distribution boards

Videos

Promotional video

Specifications

Depth	180 mm
Width	270 mm
Colour	Grey
Height	270 mm
With lock	no
RAL-number	7035
Cover model	Closed
Inner depth	164 mm
Type of door	None
Built-in depth	-
Number of rows	-
Impact strength	IK09
Mounting method	Surface mounted
Housing material	Plastic
Type of covering	Cover
Circuit integrity	None
Number of modules	-
Extension possible	yes
Surface protection	Untreated
With mounting plate	no
Nominal current (In)	-
Transparent cover/door	no
Number of conduit inlets	-
Suitable for outdoor use	yes
Degree of protection (IP)	IP66
Degree of protection (NEMA)	4X
Cover with overpressure release	no
Material plate thickness cabinet	2 mm
Suitable for lightning protection	no
Material plate thickness door/cover	3 mm
Width in number of modular spacings	-
Number of openings for flange plates	-
Protection class according to IEC 61140	II
