Model
|
Plug
|
|

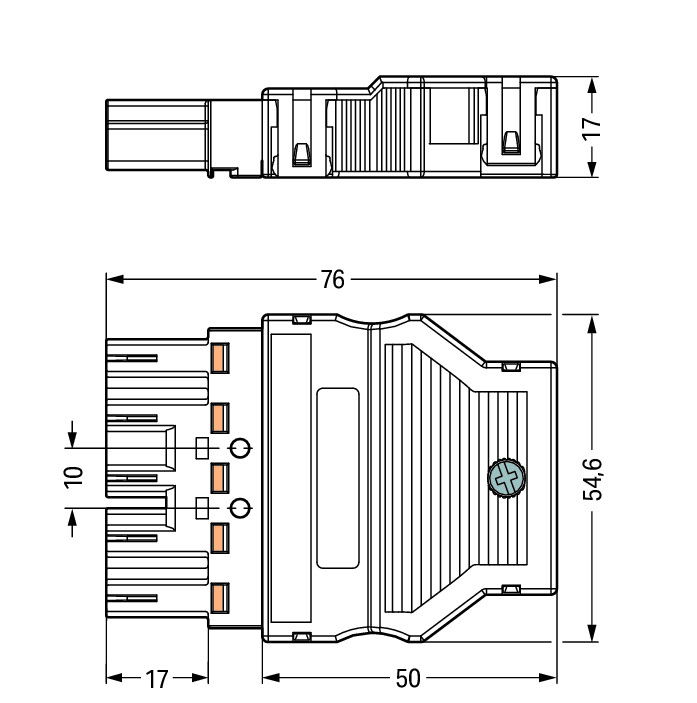

Width
|
54.6 mm
|
|
Height
|
17 mm
|
|
Length
|
76 mm
|
|
Fire load
|
0.18778 kWh
|
|
Halogen free
|
no
|
|
Rated current
|
25 A
|
|
Rated voltage
|
400 V
|
|
Cable diameter
|
9 - 13 mm
|
|
Connection type
|
Spring clamp connection
|
|
Number of poles
|
5
|
|
Type of locking
|
Separate
|
|
Contact material
|
CuSn
|
|
Housing material
|
Polyamide (PA)
|
|
Pollution degree
|
3
|
|
Mechanical coding
|
yes
|
|
Pole codification
|
-
|
|
With strain relief
|
yes
|
|
Rated surge voltage
|
6 kV
|
|
Continuity resistance
|
1 mOhm
|
|
Degree of protection (IP)
|
IP20
|
|
Surface treatment contacts
|
Tinned
|
|
Colour coding/contact insert
|
-
|
|
Number of connections per pole
|
2
|
|
RAL-number coding/contact insert
|
-
|
|
Connection cross section (solid-core)
|
0.5 - 4 mm²
|
|
Connection cross section (fine-strand)
|
0.5 - 4 mm²
|
|
Max. continuous temperature resistance contact part
|
85 °C
|
|
Max. continuous temperature resistance strain relief
|
105 °C
|
