6 way Metal Easy9 Consumer Unit
Popularity
Top 30%
More about Popularity
Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales.
Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.
6 way Metal Easy9 Consumer Unit
6 way Metal Easy9 Consumer Unit by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, RS Components and Rexel Group. It is currently in stock at all of them. Trade prices range from £83.75 to £90.61 excl. VAT. Voltimum+ members earn 23 points per unit.

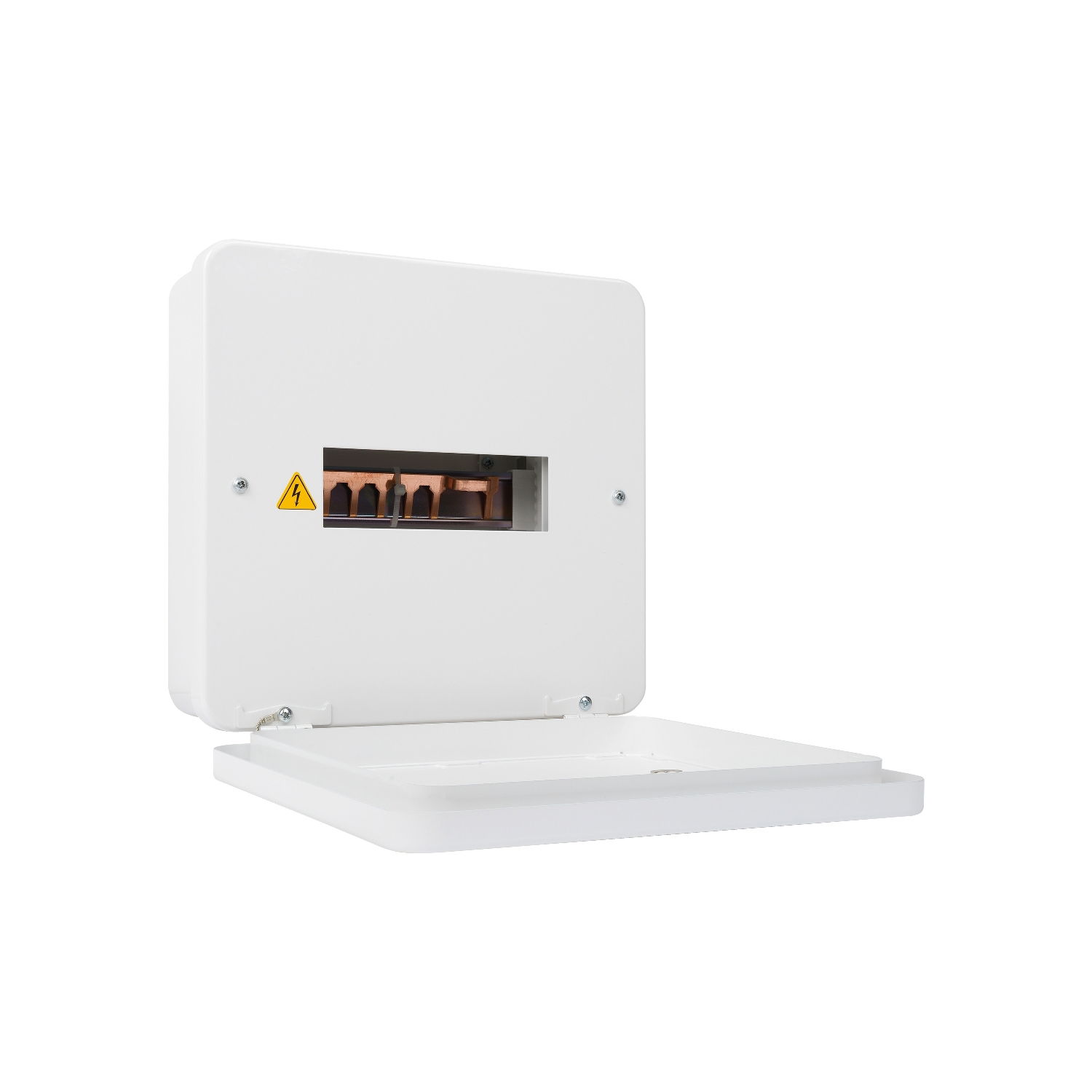

This Easy9 product is an empty consumer unit. It can be surface mounted. Rigid metal DIN rail: solid to avoid flexing and raised for cabling flexibility Secure busbar guard: requires tool for removal, ensuring more safety for you New MCB style blanking module: additional end user safety feature, requiring enclosure cover to be removed first The dimensions are (W) 284.8mm x (H) 276.8mm x (D) 119.55mm. The product weight is 4.295 kg. The color of the consumer unit is white (RAL 9003). The enclosure is made of metal The degree of protection is IPXX D on top and IP3X with cover. According to IEC 62262 standard, the degree of protection is IK05. This consumer unit complies with BS 7671 amendment 3 and BS EN 61439-3 standards.
Product identifiers
SKU: EZ9E6MCU
EAN: 5018934980973
GTIN: 5018934980973
MPN: EZ9E6MCU
Loyalty points:
23
Price range: £ 83.75 - £ 90.61 Excl. VAT
ETIM group
Specifications
| Depth | 119.55 mm |
| Model | Surface mounting |
| Width | 284.8 mm |
| Height | 276.8 mm |
| Housing material | Steel |
| With transparent cover | no |
| Degree of protection (IP) | IP3X |
| Degree of protection (NEMA) | - |
