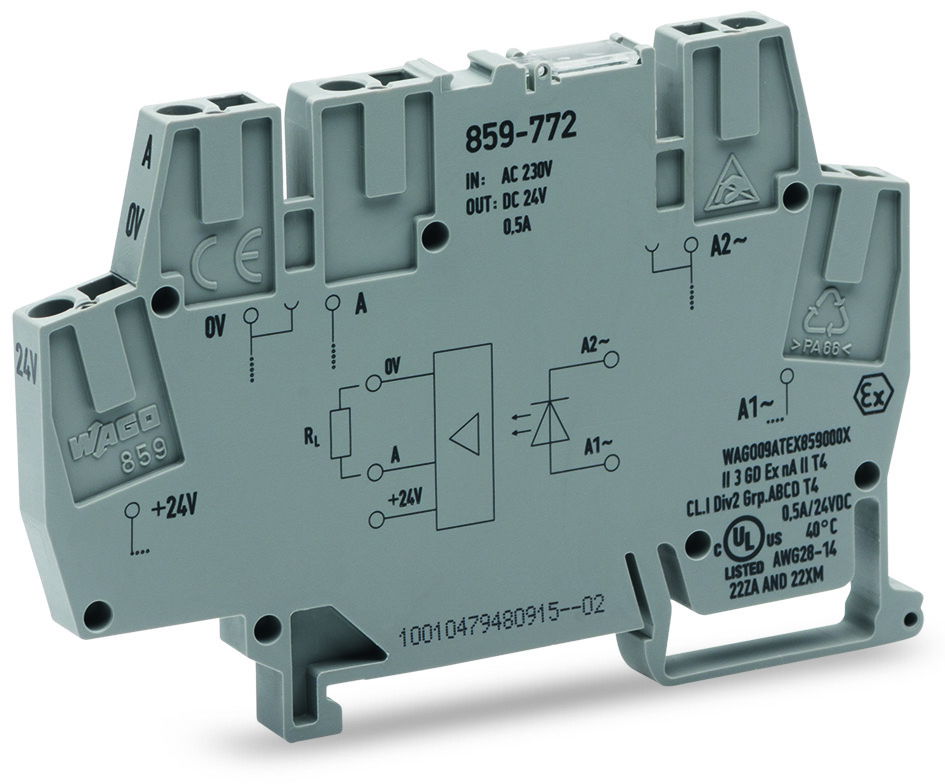

Optocoupler module Nominal input voltage: 230 VAC Output voltage range: 20 … 30 VDC gray
Optocoupler module; Nominal input voltage: 230 VAC; Output voltage range: 20 … 30 VDC; Limiting continuous current: 0.5 A; 3-wire connection/high-side switching; Red status indicator; Module width: 6 mm; gray
Product identifiers
SKU: 859-772
EAN: 4066966181906
GTIN: 4066966181906
MPN: 859-772
Loyalty points:
1
Price: £ 30.93 Excl. VAT
Categories
ETIM Group
Specifications
| Input voltage | 175 - 270 |
| Output voltage | 20 - 30 |
| With LED indication | yes |
| Type of digital output | Electronic |
| Type of output voltage | DC |
| Rated operation current Ie | 0.5 |
| Type of voltage (input voltage) | AC |
