Schneider Electric

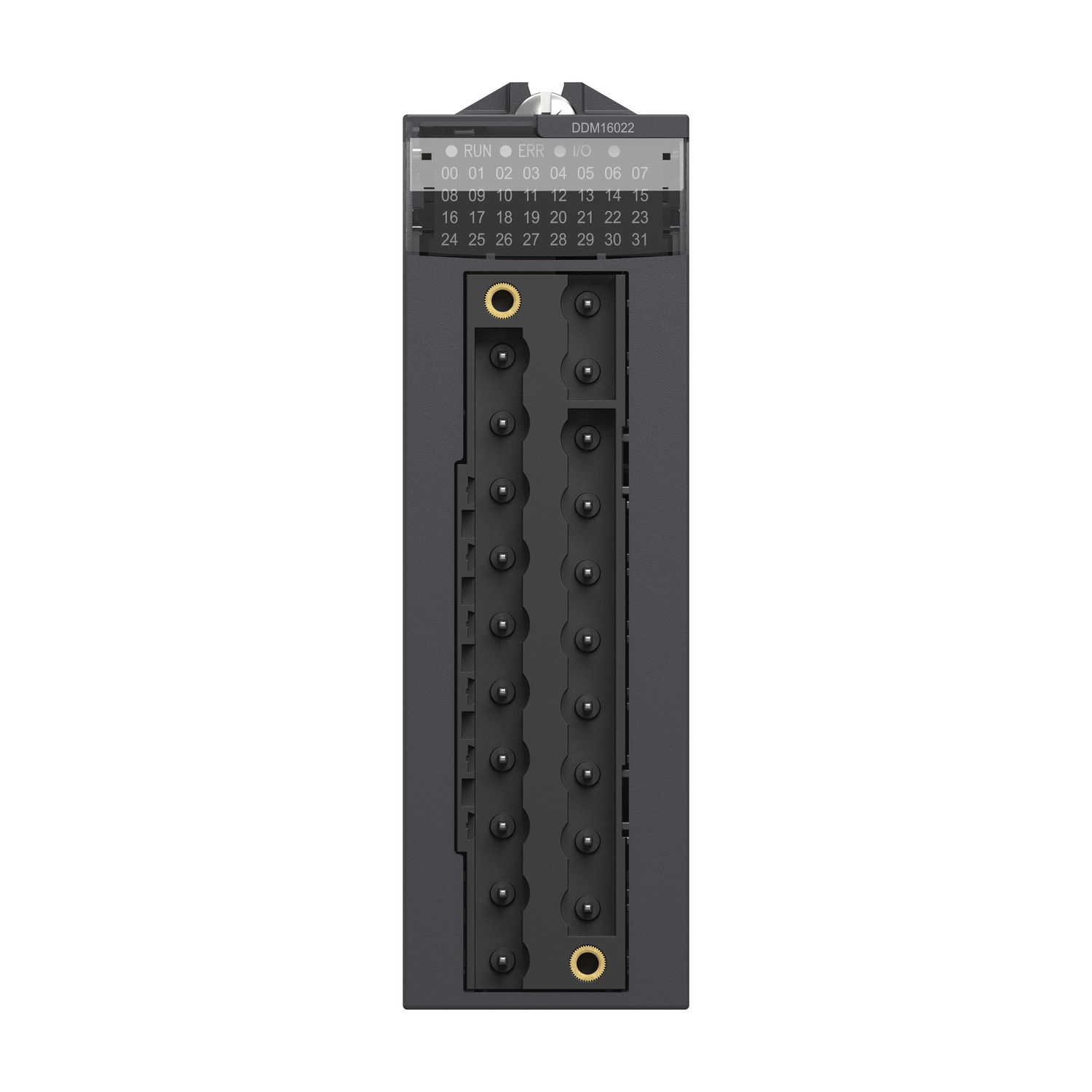

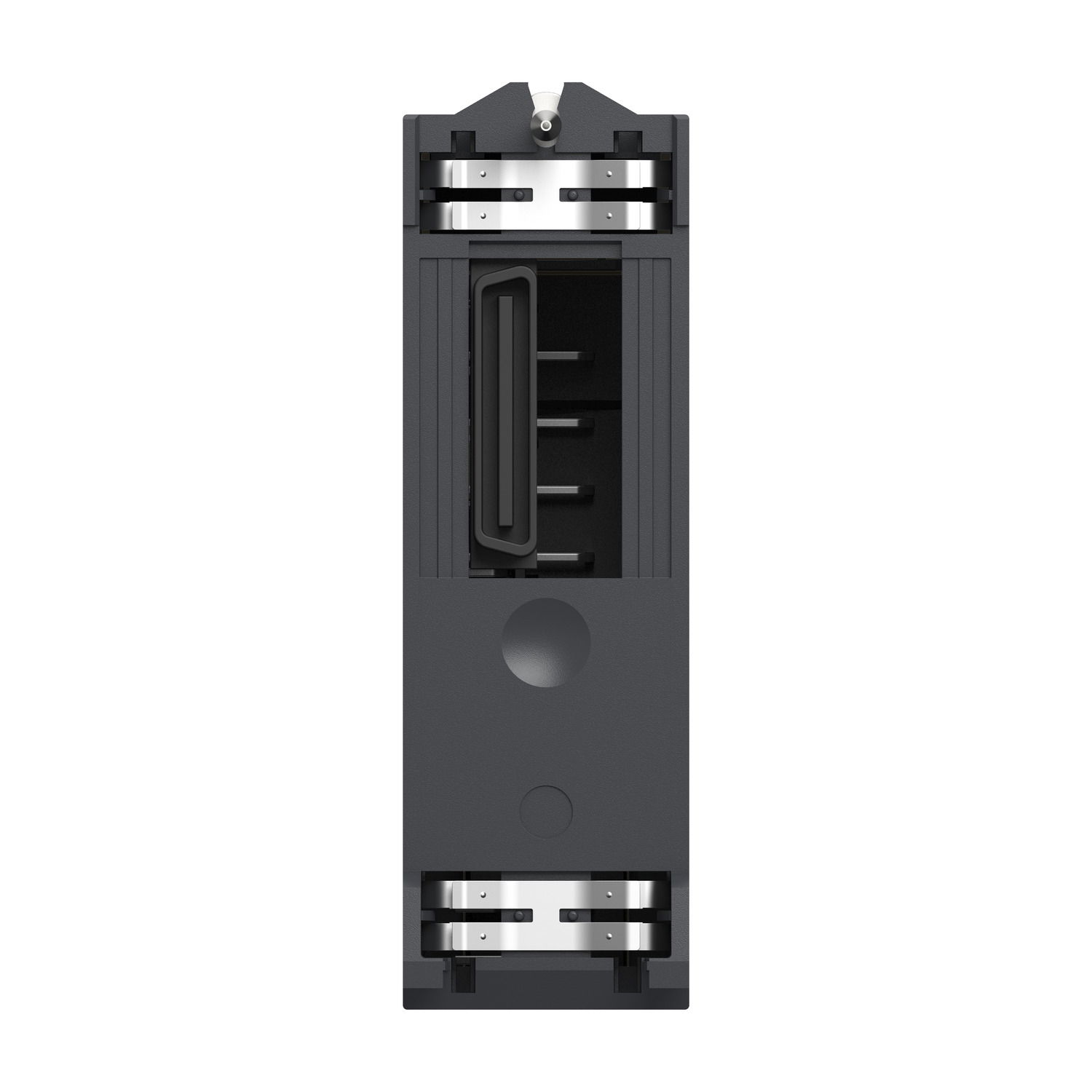

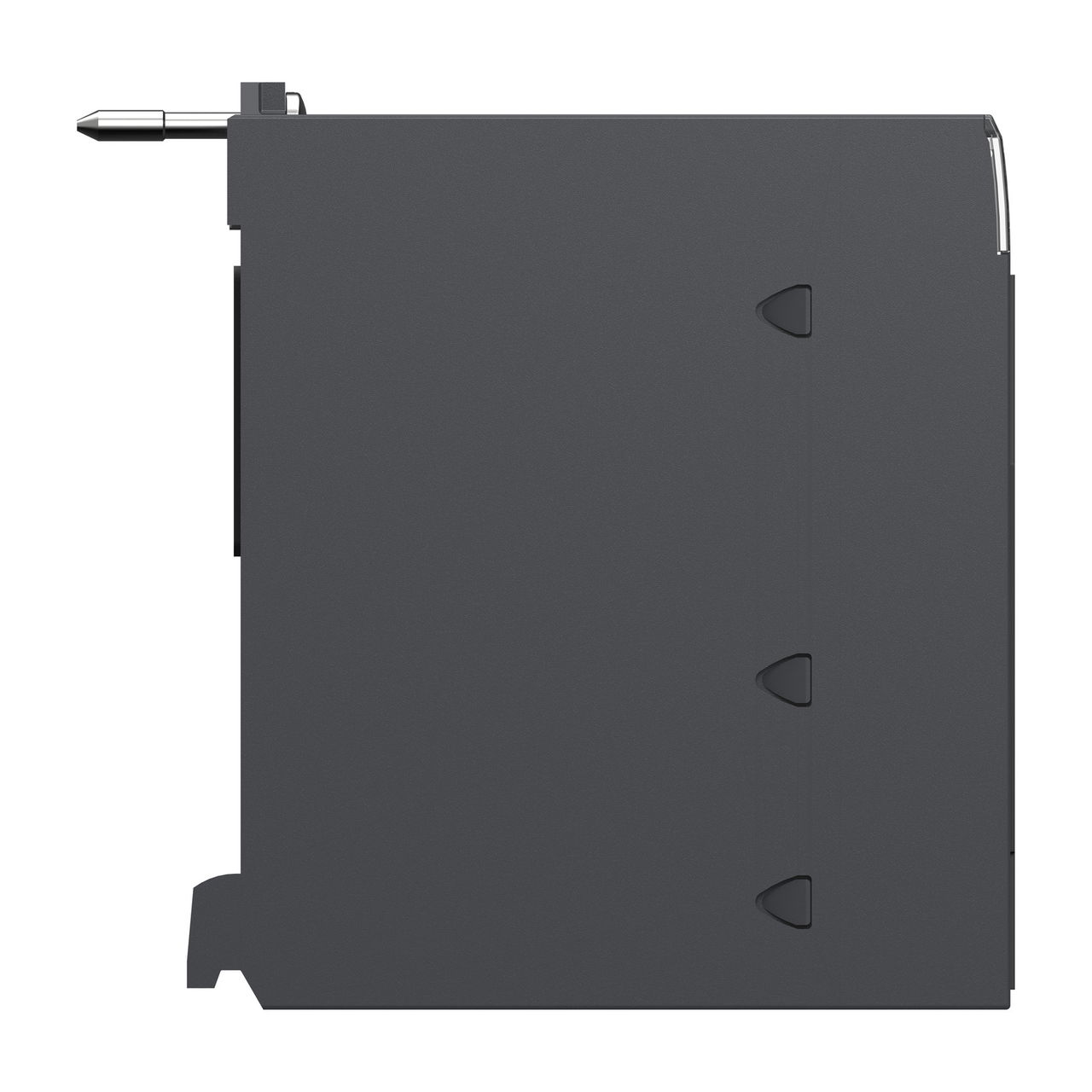

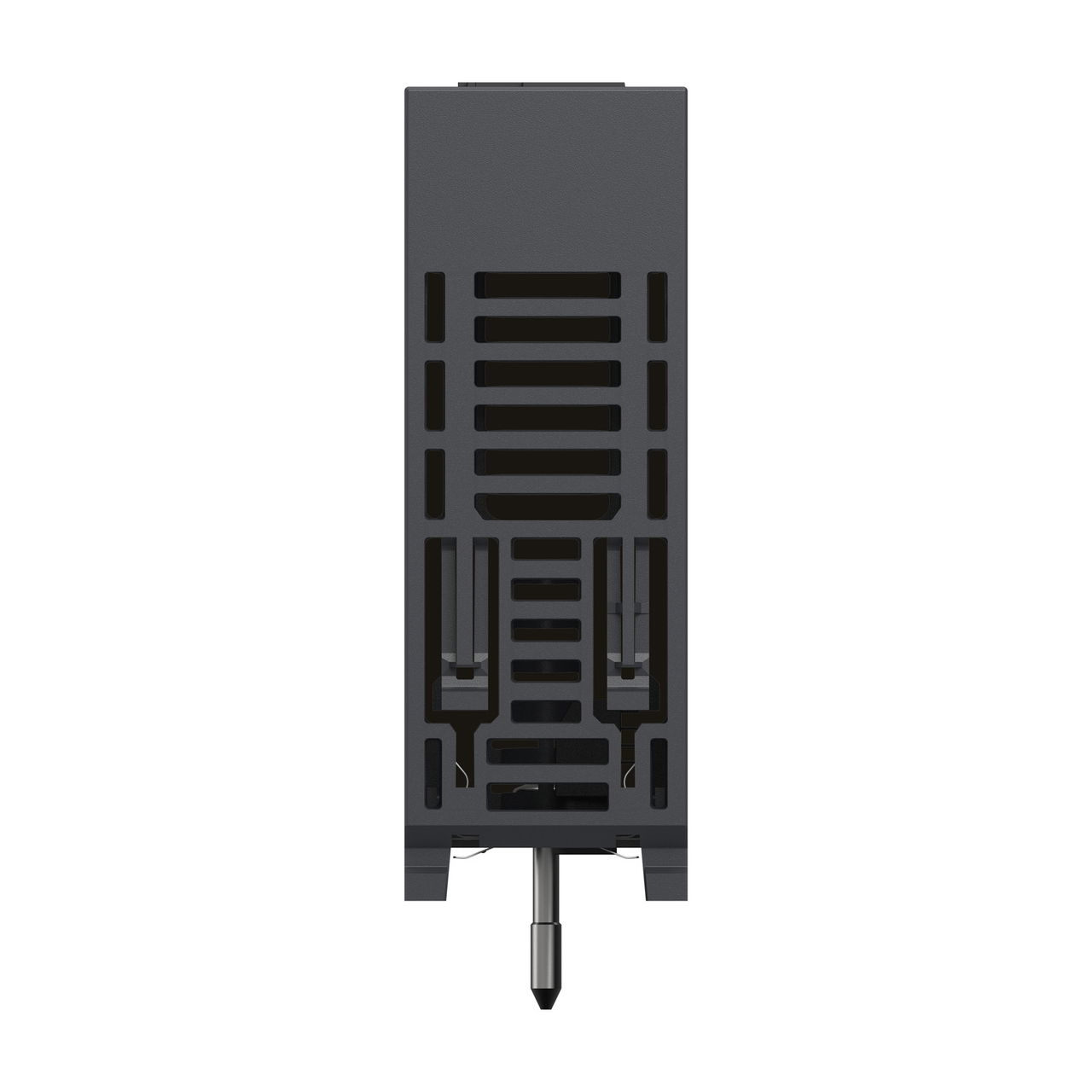

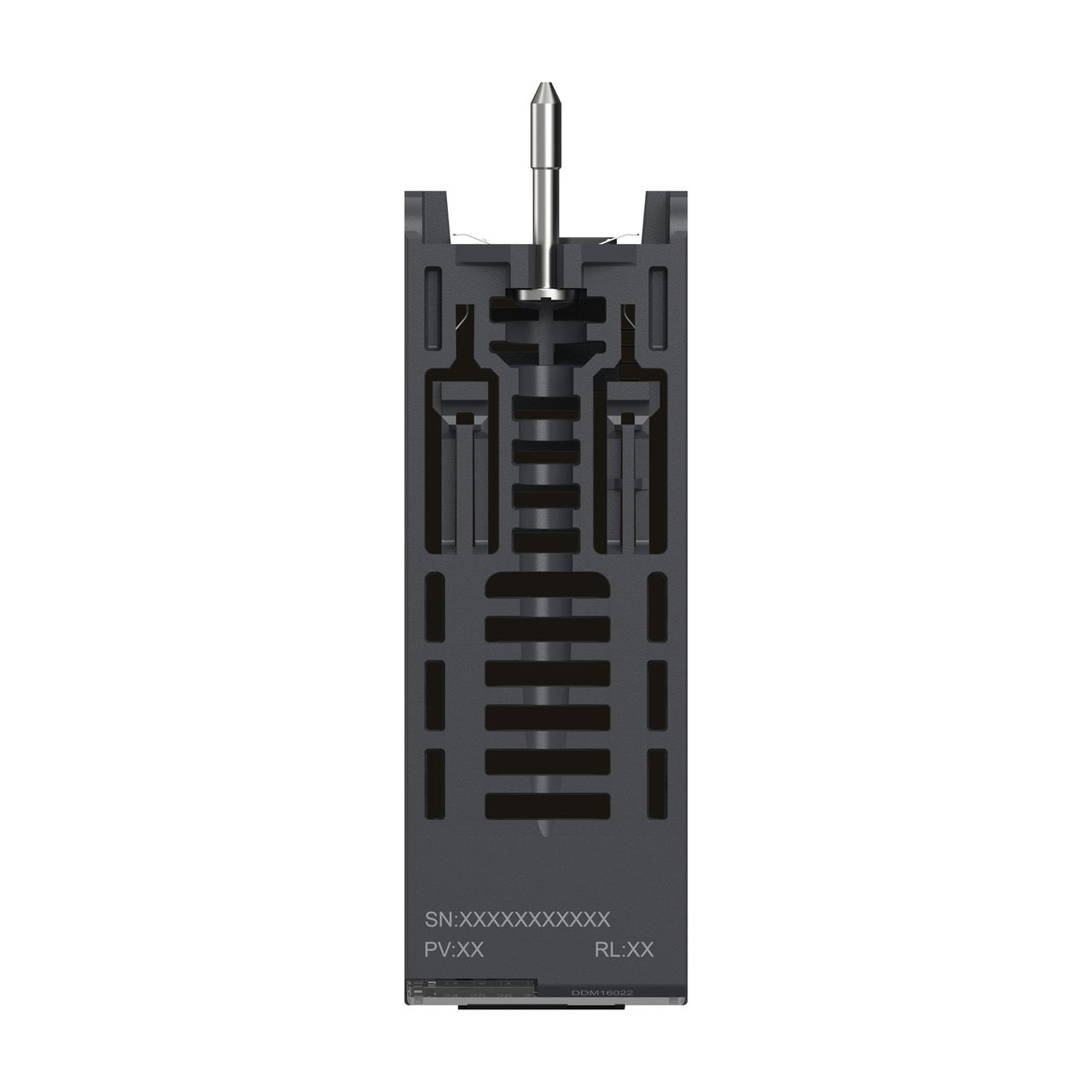

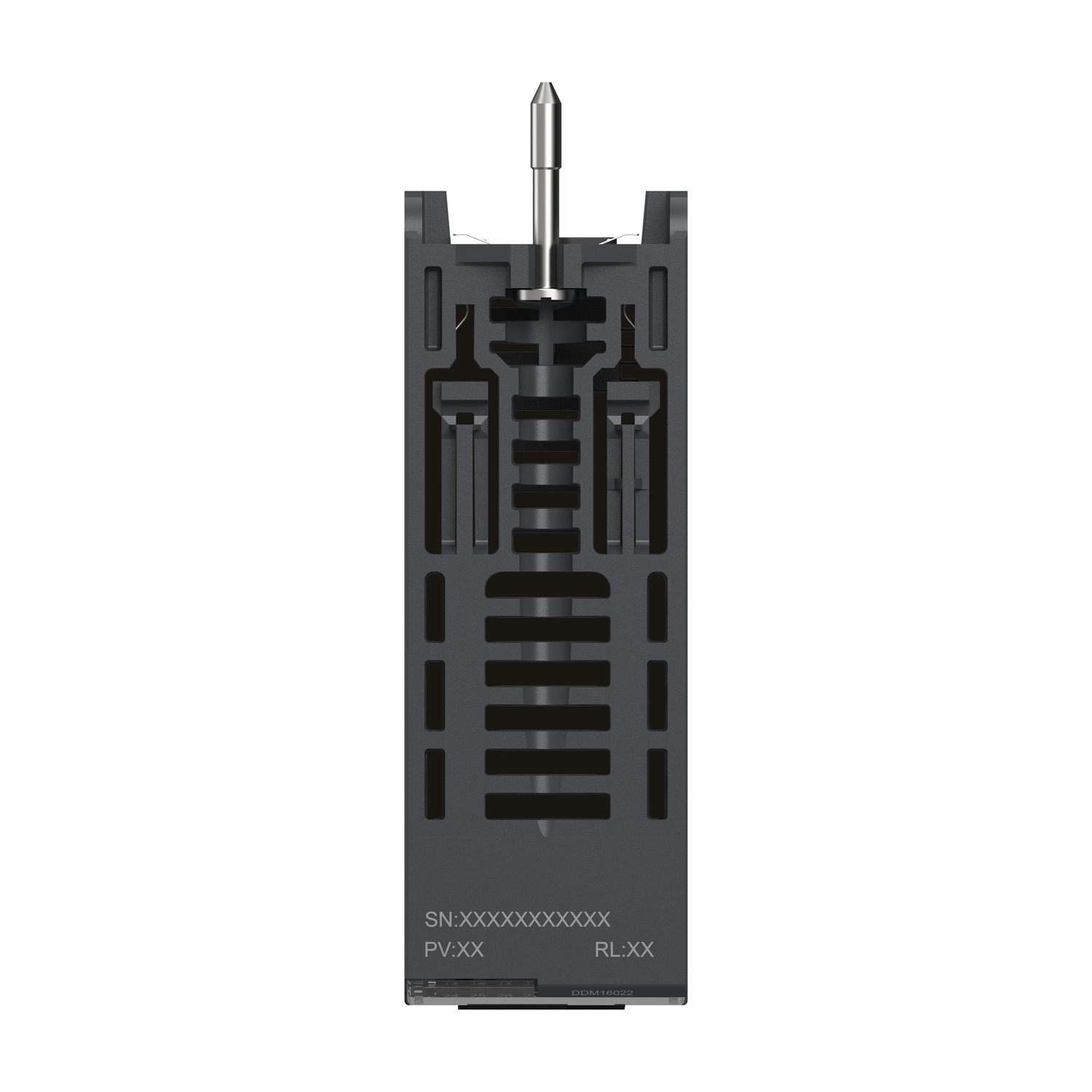

Discrete I/O module X80 - 8 inputs - 24 V DC - 8 outputs - solid state

Discrete I/O module X80 - 8 inputs - 24 V DC - 8 outputs - solid state by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £245.01 to £263.73 excl. VAT. Voltimum+ members earn 31 points per unit.

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete I/O module has 8 input channels, 8 solid state output channels. It is a discrete I/O module with a discrete input/output voltage of 24V DC, an output current of 0.5A, a maximum power dissipation of 3.7W and current consumption of 67mA at 24V DC, 111mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It offers 447581 hours of MTBF. It is an IP20 rated product. It weighs 0.115kg. It is suitable for medium to large process applications. This product is certified by Merchant Navy, RCM, CSA, EAC, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Product identifiers

SKU: BMXDDM16022
EAN: 3595863910506
GTIN: 3595863910506
MPN: BMXDDM16022

Voltimum+ Loyalty Programme Loyalty points: 31

Price range: £ 245.01 - £ 263.73 Excl. VAT

Categories

Building Controls & Automation PLCs

ETIM group

Programmable logic controllers PLC

Specifications

Depth 150 mm
Width 33 mm
Height 100 mm
Redundancy no
Output current 0.5 A
Power consumption 3.7 W
Supply voltage DC
Type of digital output Transistor
Supply voltage AC 50 Hz
Number of digital inputs 8
Number of digital outputs 8
SIL according to IEC 61508 None
Permitted voltage at output
Type of electric connection Plug-in connection
Suitable for safety functions no
Type of voltage (input voltage) DC
Appendant operation agent (Ex ib) no
Explosion safety category for dust None
Performance level according to EN ISO 13849-1 None
