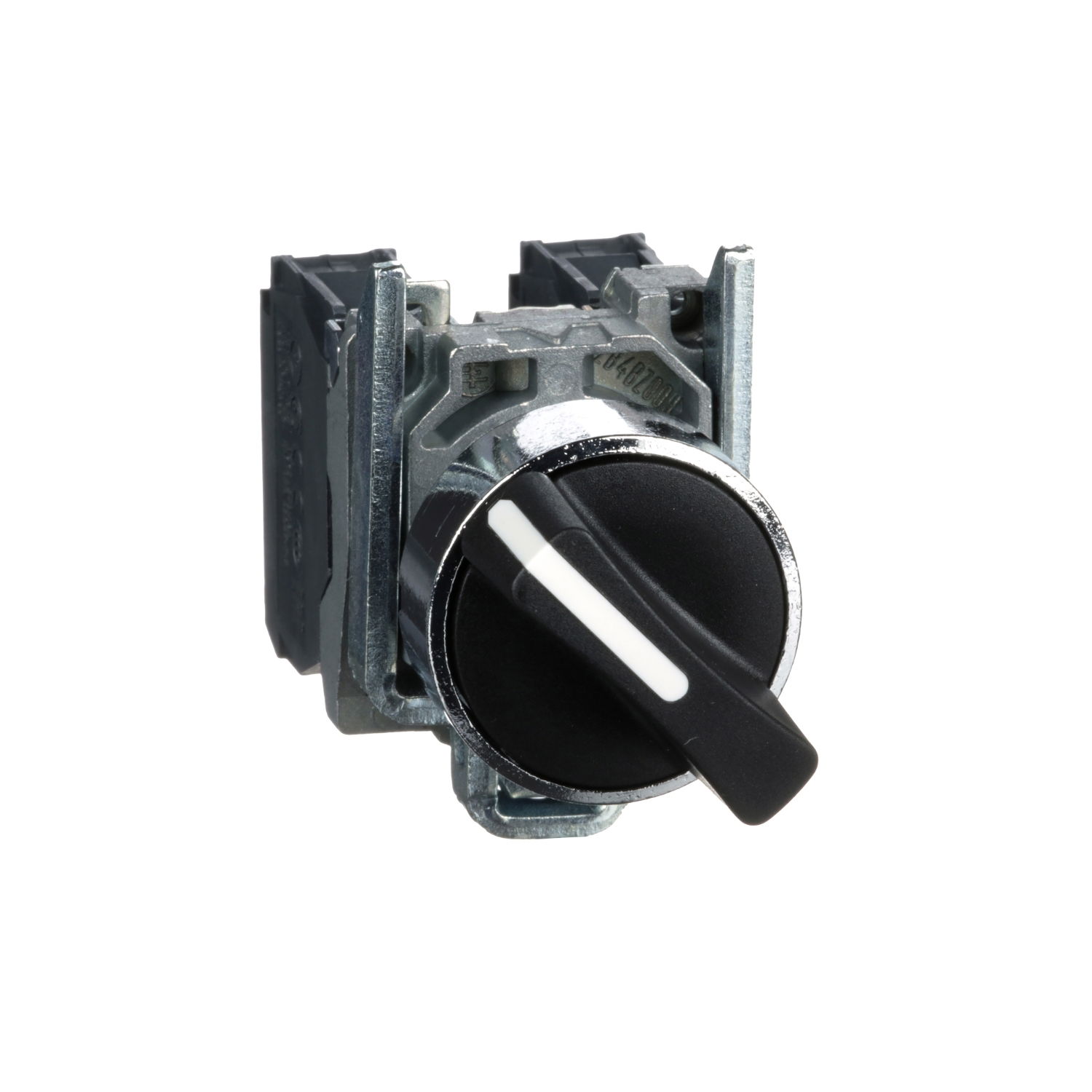

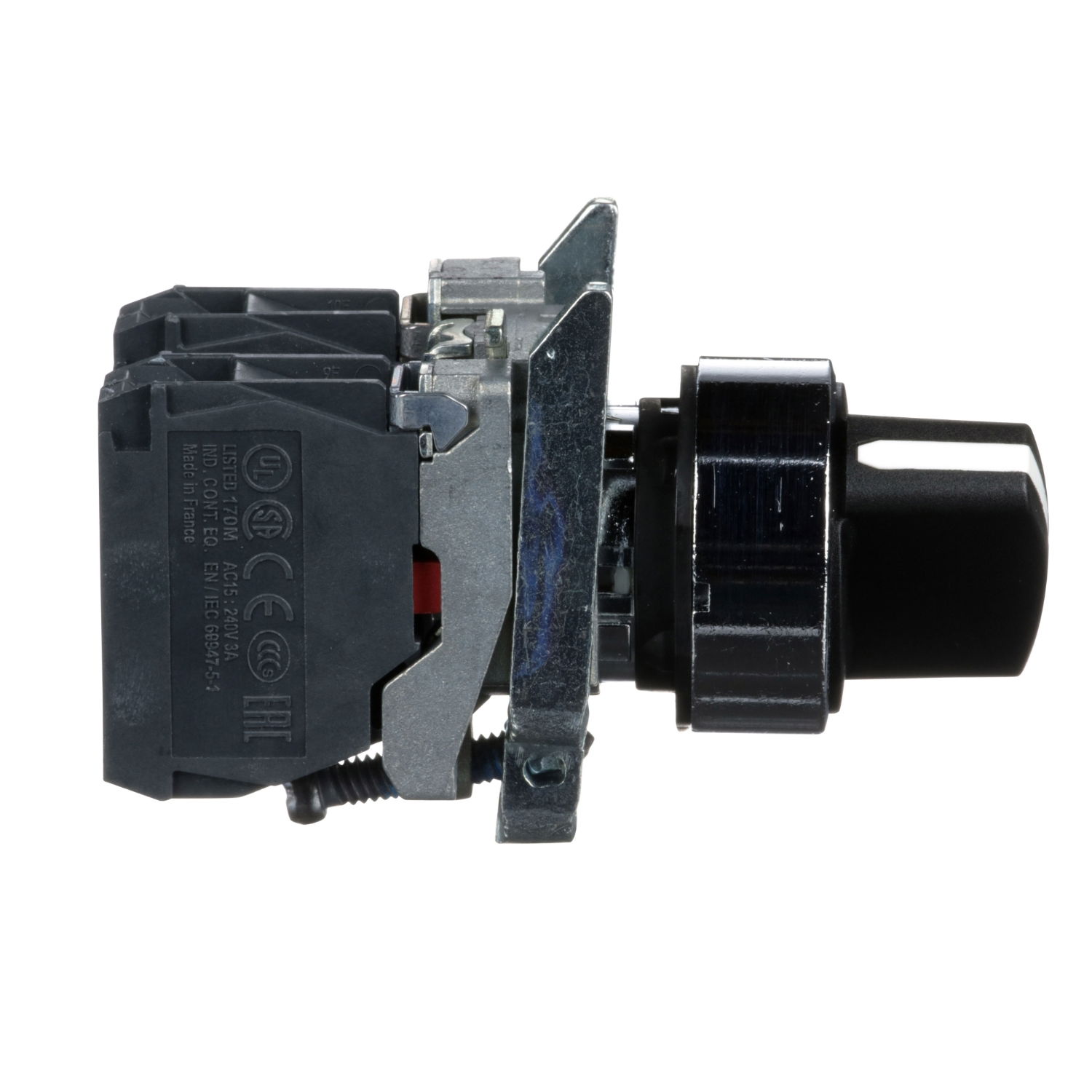

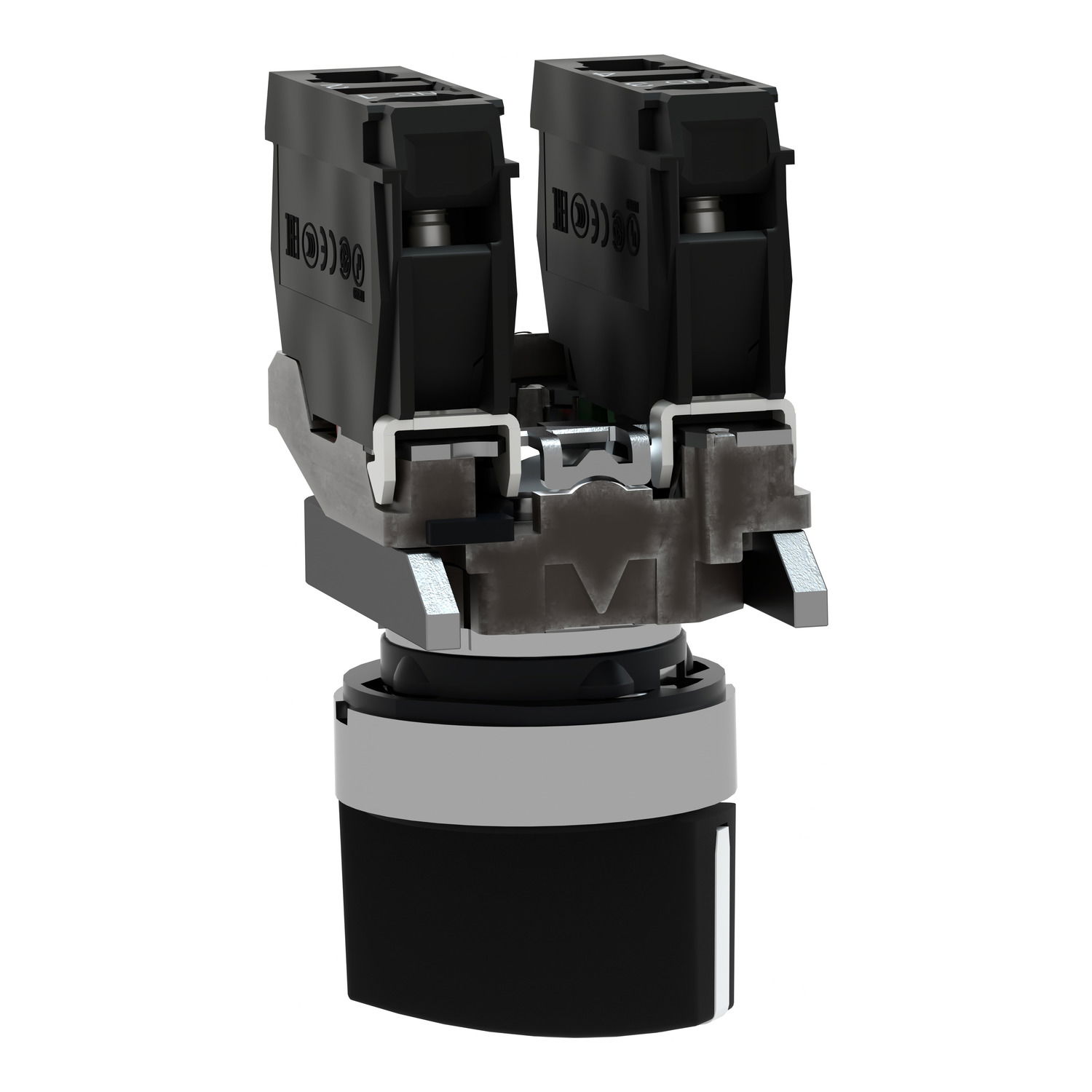

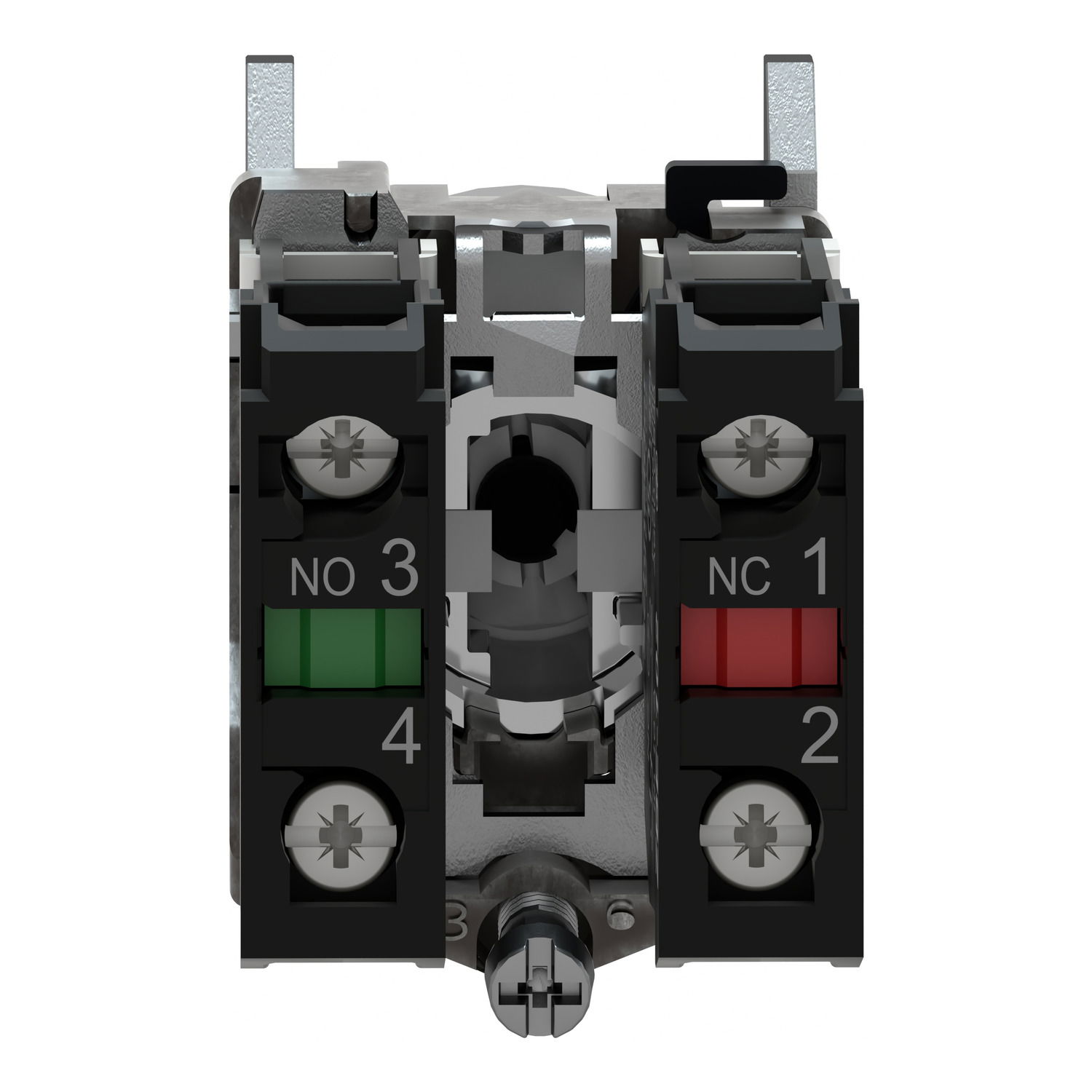

Selector switch, metal, black, Ø22, 2 positions, stay put, 1 NO+1 NC

Selector switch, metal, black, Ø22, 2 positions, stay put, 1 NO+1 NC

This Harmony XB4 modular black selector switch has 2 positions, operates with a stay-put mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Product identifiers

SKU: XB4BD25
EAN: 3389110118964
GTIN: 3389110118964
MPN: XB4BD25

Voltimum+ Loyalty Programme Loyalty points: 3

Price range: £ 15.49 - £ 25.69 Excl. VAT

Videos

Promotional video

Specifications

Power loss -
Colour button Black
Hole diameter 22.5 mm
Spring-return no
Width opening -
Height opening -
Supply voltage
With front ring yes
With light source no
Suitable for lighting no
Degree of protection (IP) IP67/IP69K
Degree of protection (NEMA) 13
Type of electric connection Screw connection
Number of contacts as normally open contact 1
