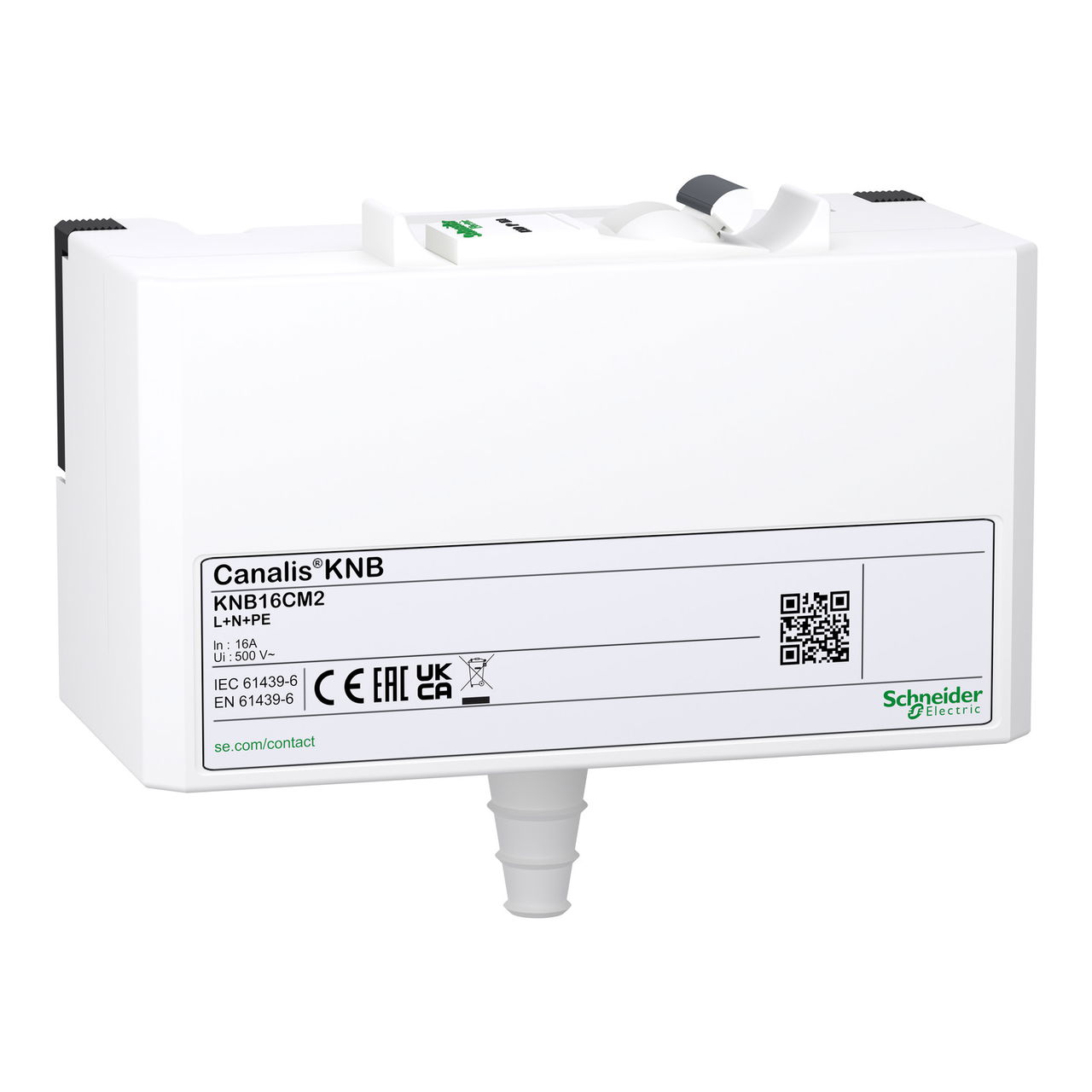

TAPOFF UNIT 16A LNPE

Link copied
SKU
EAN
GTIN
MPN

TAPOFF UNIT 16A LNPE by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including RS Components and Rexel Group. It is currently in stock at all of them. Trade price £115.72 excl. VAT. Voltimum+ members earn 13 points per unit.

This is a single phase tap off unit for Canalis KN busbar trunking with plug-in outlets. It is used for rapid connection of loads or secondary lines in compliance with installation standards IEC 60364 and regulations concerning TT, TNS and TNC earthing systems. It is equipped with a phase selection system (L1, L2 or L3 + N + PE). The rated operational current is 16A. The rated operational voltage is from 230VAC to 500VAC 50/60Hz depending on protective device. It is equipped with a single pole iC60 circuit breaker curve N. The tap-off unit polarity is L+N+PE, disconnection by drawing out. It is suitable for TT, TN-S and TN-C earthing system. The colour is white RAL 9001. Blanking plate and MCB circuit breaker are provided. It provides IP41 protection degree conforming to EN/IEC 60529. It provides IK08 mechanical impact degree conforming to EN/IEC 62262. It is compliant with IEC 61439-1 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).

Voltimum+ Loyalty Programme Loyalty points: 13

Price: £ 115.72 Excl. VAT

Specifications

Width 70 mm
Colour White
Height 172 mm
Length 79 mm
Protection Miniature circuit breaker (MCB)
RAL-number 9001
With locking yes
Branch off type Pipe in-lead
Phase selection yes
Rated voltage AC 50 Hz
Degree of protection (IP) IP55
Number of NEMA socket outlets 0
Number of conductors (without earthing) 4

Documents

Declaration of Conformity (Sustainability)

KNB16CM2 REACh Regulation

Open

Instruction sheet

KNB16CM2. - TAP-OFF UNIT 16A L+N+PE - Instruction Sheet

Open

Product data sheet

Open

Catalog

Canalis KN 40 to 160A

Open

Catalog

Canalis KN 40 to 160A

Open

Declaration of Conformity (Sustainability)

KNB16CM2 EU RoHS Directive

Open

Declaration of conformity

Canalis KNB / UK Declaration of conformity / BS EN 61439-6

Open

Environmental Disclosure

PEP - Canalis KNA 40A to 160A

Open
