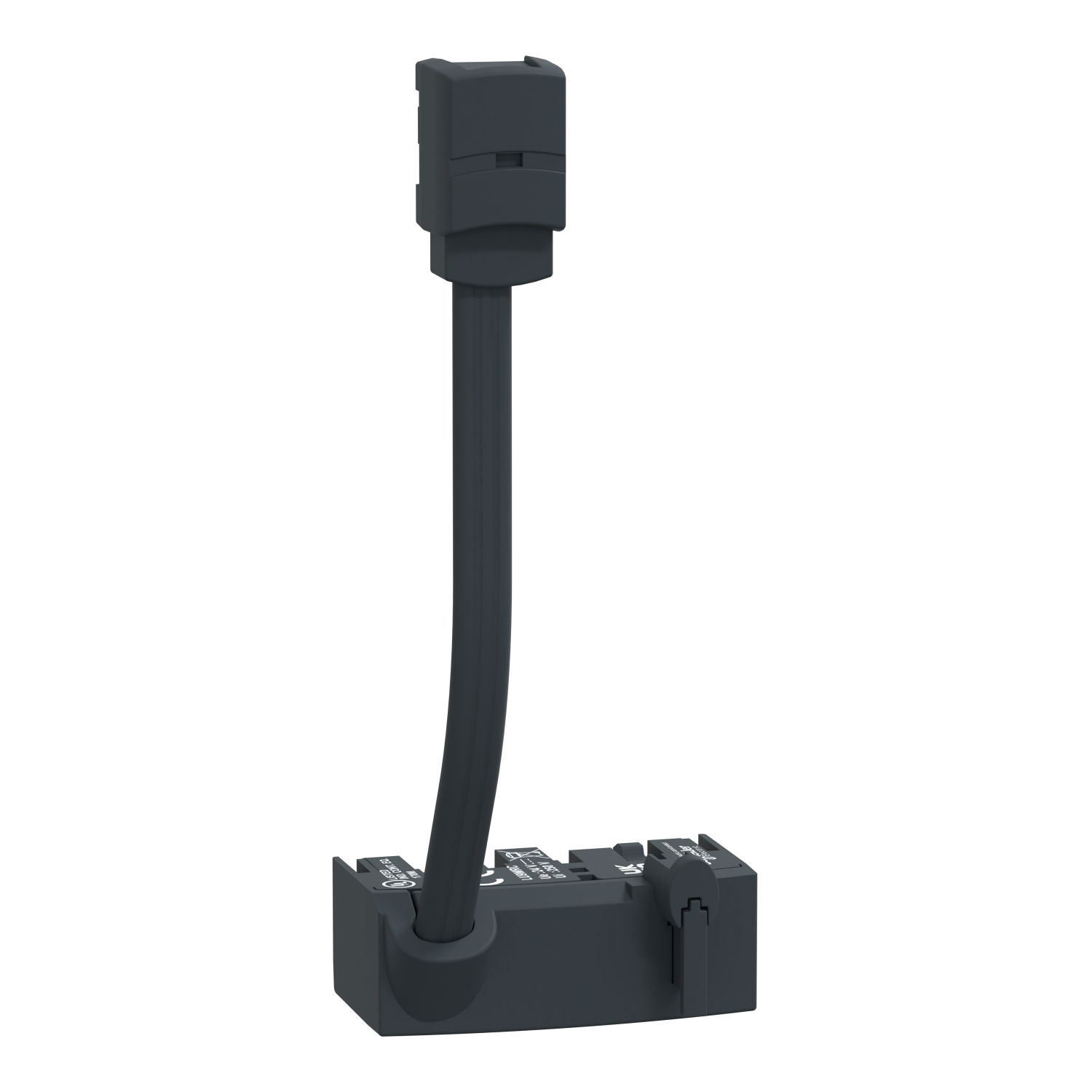

Pre-wired coil connection to communication module - for motor starter TeSys U

TeSys U control terminal block to be inserted in a reversing power base LU2B12*, LU2B32*, LU2B38* for the centralized control of the starter controller. To be used for ON/OFF control of reversing motor applications with Modbus, Ethernet, AS-Interface remote control. It provides screw clamp terminals to connect the internal auxiliary contacts 1NO+1NC, and a pre-wired control cable to be connected to a communication module LUFC00, LULC031, LULC033, ASILUFC5, ASILUFC51 (to be ordered separately). It is powered by the associated communication module. Green Premium compliant (RoHS/REACh).
