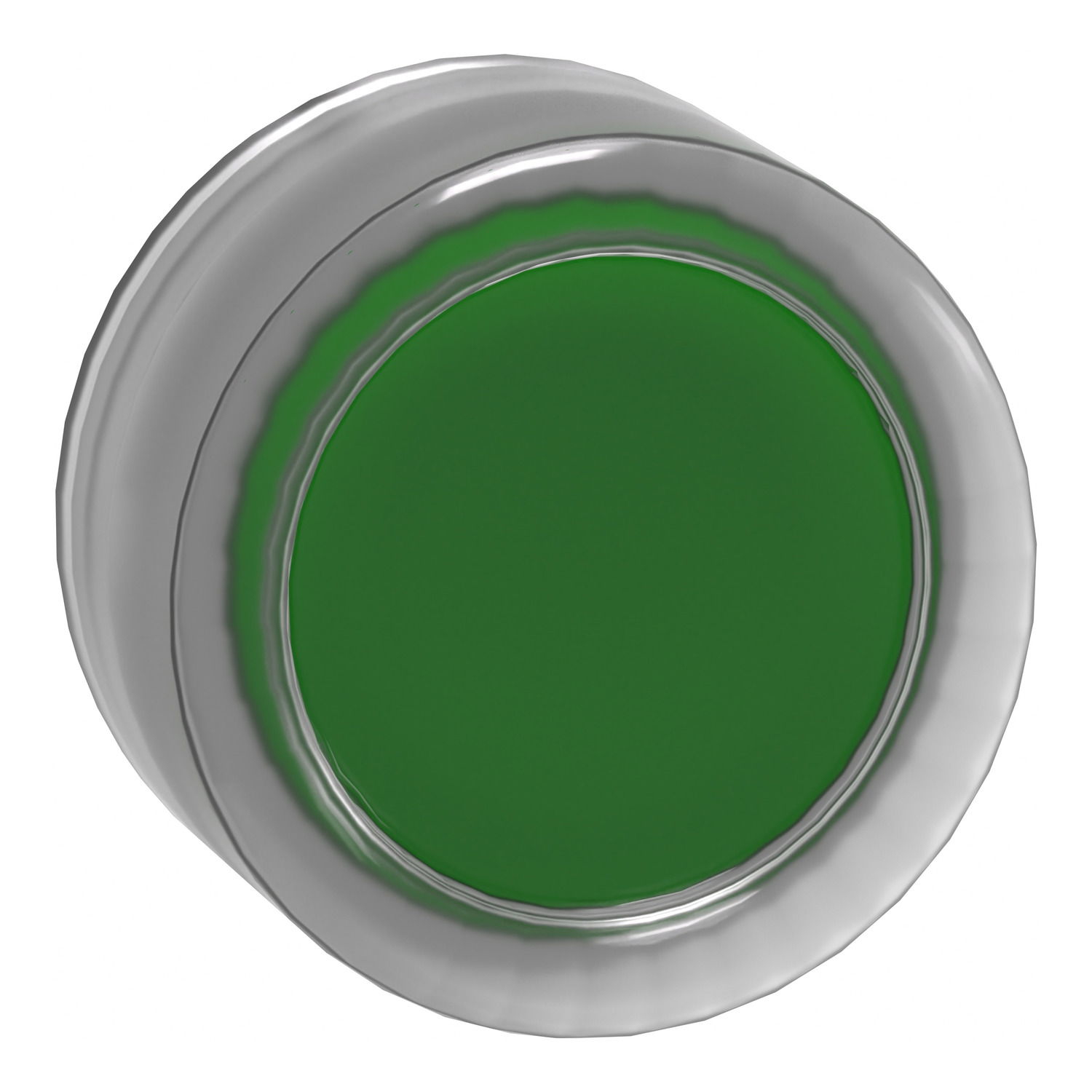

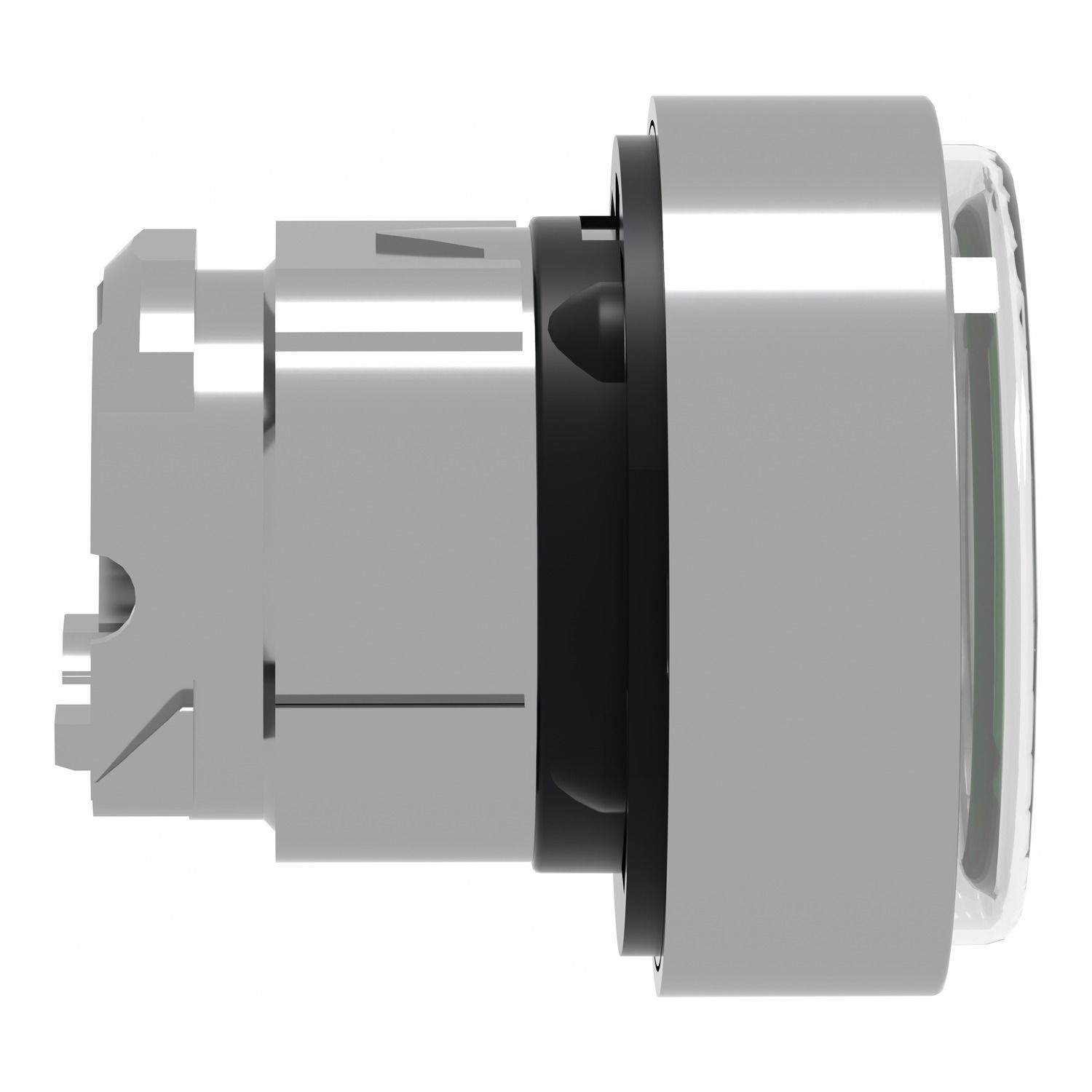

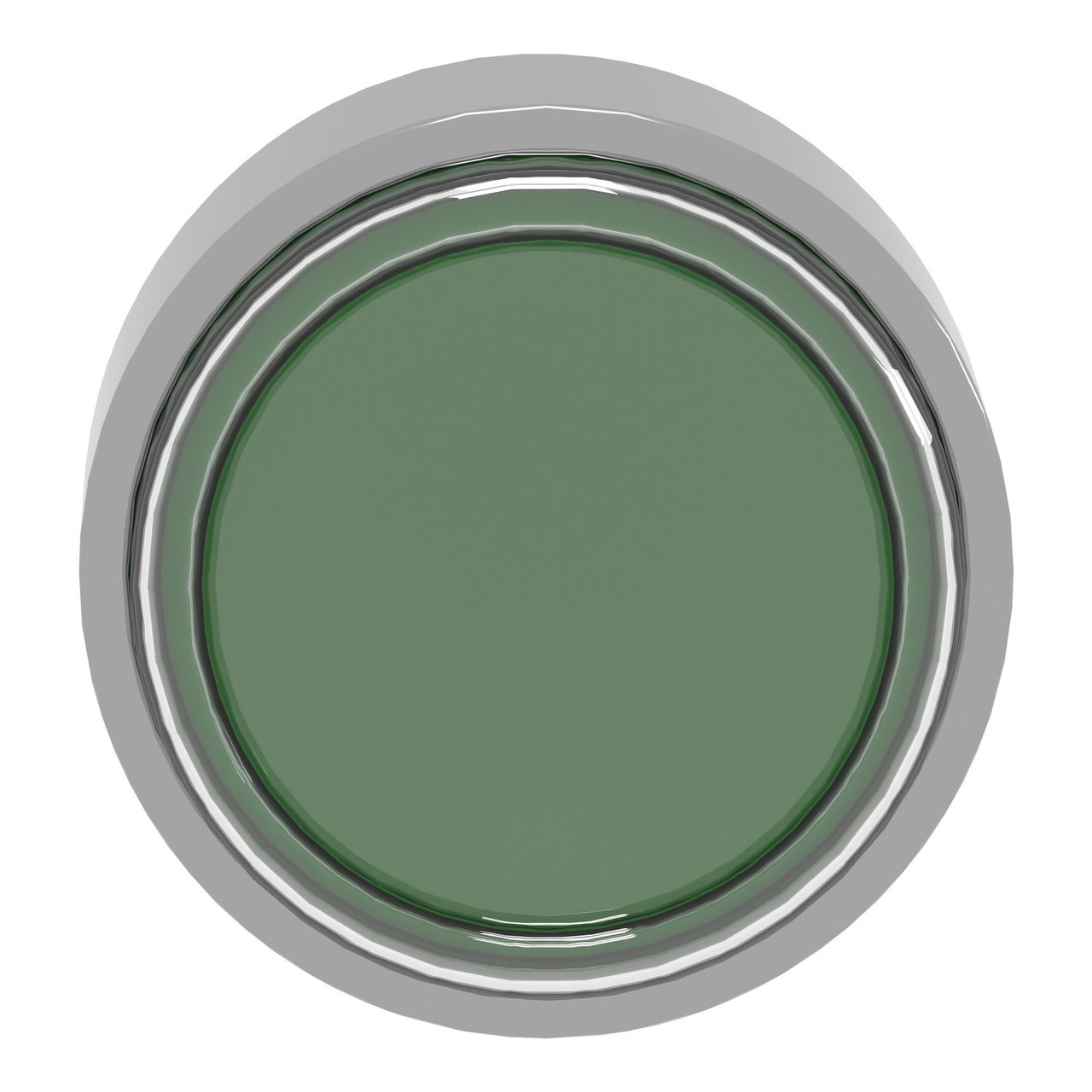

Head for non illuminated push button, Harmony XB4, green flush, 22mm, spring return, clear boot, unmarked

Link copied
SKU
EAN
GTIN
MPN

Head for non illuminated push button, Harmony XB4, green flush, 22mm, spring return, clear boot, unmarked by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £16.20 to £16.60 excl. VAT. Voltimum+ members earn 2 points per unit.

This Harmony XB4, flush green button head with clear membrane silicone boot operates with a spring return / impulse mechanism. This button head with clear membrane silicone boot provides an ergonomic interface for controlling your machine and a simple solution to prevent dirt and other contaminants. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. The clear boot prevents growth of bacteria in joints and gaps, it makes this product ideal for high hygiene environments.

Voltimum+ Loyalty Programme Loyalty points: 2

Price range: £ 16.20 - £ 16.60 Excl. VAT

Specifications

Labelled no
Colour button Green
Hole diameter 22.5 mm
Spring-return yes
Width opening -
Height opening -
Type of button Flat
With front ring yes
Material front ring Metal
With protective cover no
Number of command positions 1
Degree of protection (IP), front side IP66

Documents

Declaration of Conformity (Sustainability)

ZB4BP383 REACh Regulation

Open

Instruction sheet

XB4-XB5 - Mounting, Instruction Sheet

Open

Product data sheet

Open

Catalog

Discover the Harmony XB4 metal Control and signaling units catalog

Open

Declaration of Conformity (Sustainability)

ZB4BP383 EU RoHS Directive

Open

Declaration of conformity

XB4B, XB5A/D/E/K, Control and signaling units, XD4P, XD5P Joystick Controllers

Open

Environmental Disclosure

Harmony XB4 Non Illuminated Push Button, Product Environmental Profile

Open

Circularity Profile

Harmony XB4 Non Illuminated Push Button, End Of Life Instructions

Open
