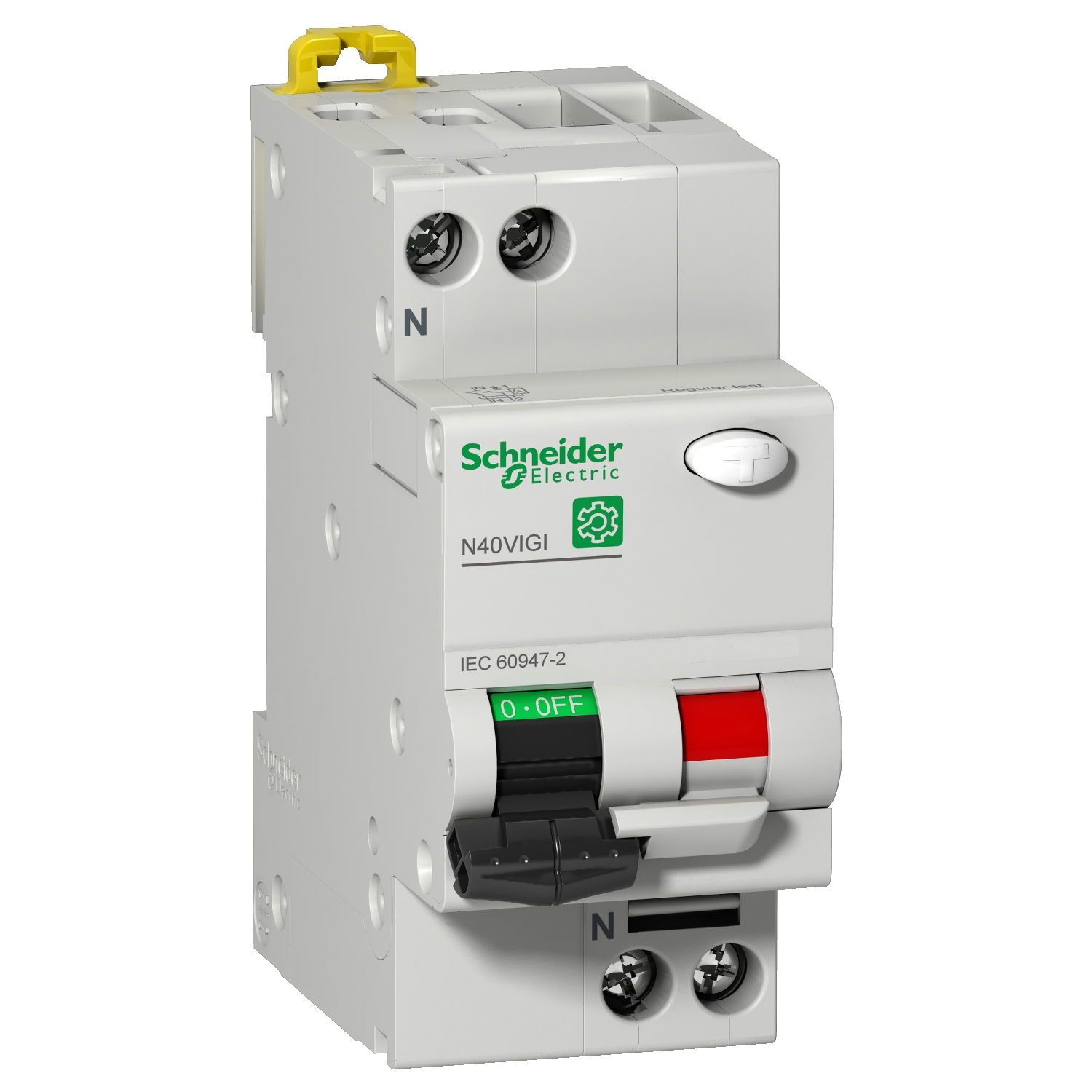

Multi9 - N40 Vigi - 1P + N - 6A - C curve - class AC - 240 V - 30 mA - 6 kA

Multi9 - N40 Vigi - 1P + N - 6A - C curve - class AC - 240 V - 30 mA - 6 kA by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including RS Components and TLA. It is currently in stock at all of them. Trade prices range from £107.96 to £218.07 excl. VAT. Voltimum+ members earn 26 points per unit.

This Multi9 N40 Vigi product is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 6A rated current, and a C tripping curve. Featuring a 30mA earth leakage sensitivity and instantaneous detection to protect from electrical hazards, the Multi9 N40 Vigi ensures top-tier safety with its type AC earth leakage protection class. The Icu rated short circuit breaking capacity is 6kA at 240VAC, conforming to EN/IEC 60947-2 standard. It protects against short circuits, cable overload, and electrical shock from direct contact. A green strip on the toggle guarantees opening of all the poles in safety conditions. This product complies with EN/IEC 60947-2 standard. It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles. The rated operational voltage is 240VAC with an operating frequency of 50Hz. The rated insulation voltage is 400VAC, and the rated impulse withstand voltage is 4kV. It can be clipped on a DIN rail, and its width is 4 pitches of 9mm. The dimensions are (W) 36mm x (H) 81mm x (D) 70mm. The product color is light grey (RAL 7035). The weight is 0.125kg. It offers reliable protection with an IP20 rating on its terminals, which is enhanced to IP40 when placed in a modular enclosure. The operating temperature is from -5°C to 60°C. The storage temperature is from -30°C to 70°C.

Product identifiers

SKU: M9D11606
EAN: 3606480883040
GTIN: 3606480883040
MPN: M9D11606

Voltimum+ Loyalty Programme Loyalty points: 26

Price range: £ 107.96 - £ 218.07 Excl. VAT

Categories

Circuit Breakers RCBOs Switchgear & Circuit Protection

ETIM group

Circuit breakers and fuses

Specifications

Frequency 50 Hz
Power loss 4.1 W
Voltage type AC
Rated current 6 A
Rated voltage 240 V
Built-in depth 44 mm
Pollution degree 3
Rated fault current 0.03 A
Over voltage category 4
Release characteristic C
Number of poles (total) 2
Degree of protection (IP) IP20
Flush-mounted installation no
Disconnection characteristic Undelayed
Width in number of modular spacings 2
Rated impulse withstand voltage Uimp 4 kV
Connectable conductor cross section solid-core
Rated short-circuit breaking capacity according to EN 61009 -
Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA

Documents

Declaration of Conformity (Sustainability)

M9D11606 REACh Regulation

Open

User guide

Routine operating checks of Residual Current Devices - User Guide

Open

Product data sheet

Open

Brochure

multistandard protection for oem applications brochure multi9

Open

Catalog

Multi9 - Catalog 13 April 2026 - Multistandard protection for OEM applications

Open

Declaration of Conformity (Sustainability)

M9D11606 EU RoHS Directive

Open

Declaration of conformity

UKCA Declaration of Conformity_Multi 9_RCBO_N40 Vigi 1PN

Open

Declaration of Conformity (Sustainability)

M9D11606 TSCA Regulation

Open
