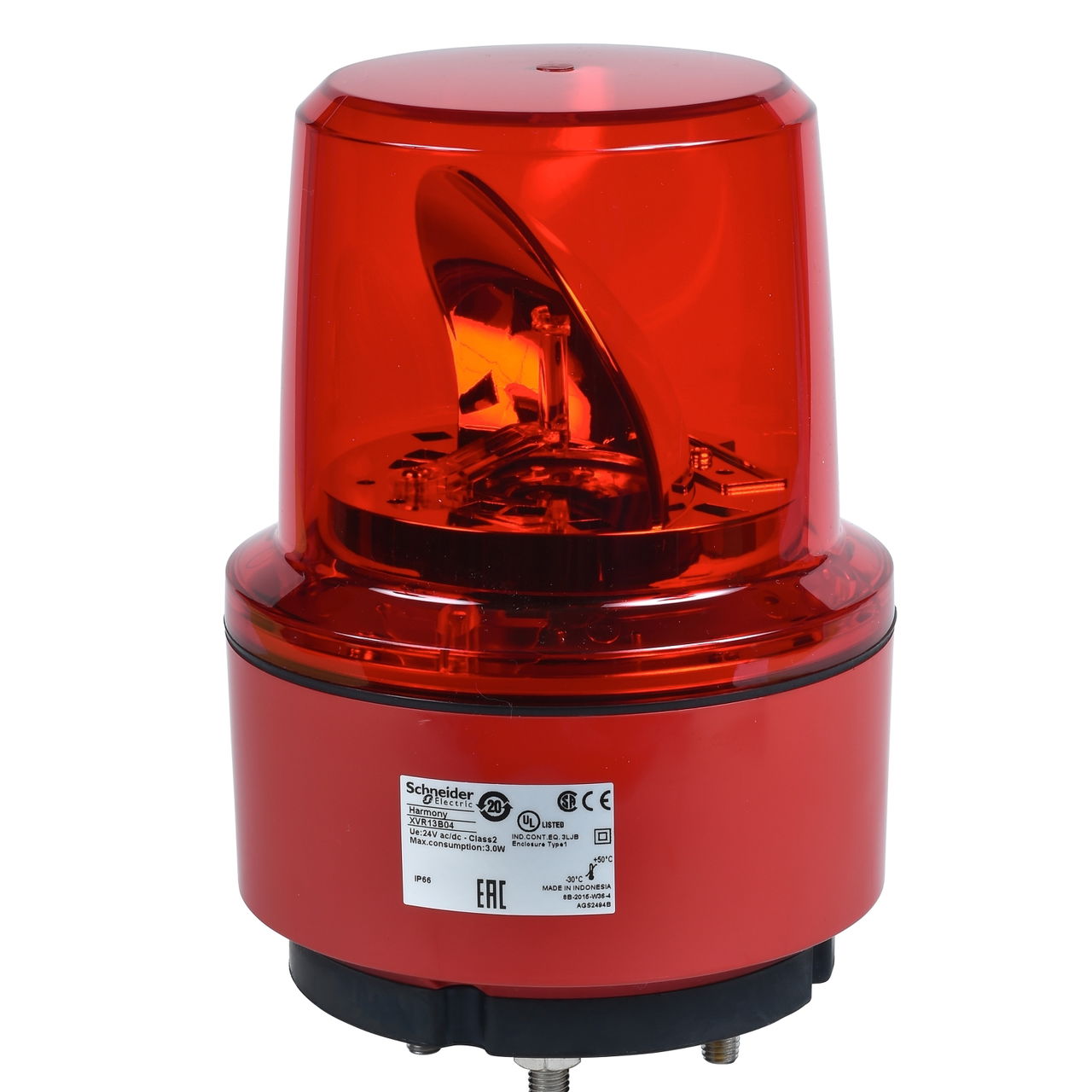

130mm Rotating Mirror Red 24VDC

Link copied
SKU
EAN
GTIN
MPN

130mm Rotating Mirror Red 24VDC by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £260.14 excl. VAT. Voltimum+ members earn 34 points per unit.

This rotating mirror is part of the range of pre-wired rotating/flashing beacons Harmony XVR. It is supplied complete, pre-cabled without a buzzer. It features a super bright red LED light source and can be supplied with 24V DC. Its super-bright LED provides good illuminating power and a long service life (reduced maintenance time). It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant, thanks to its IP66 rating. It provides a PC (polycarbonate) globe and an ABS (acrylonitrile-butadiene-styrene) body part. It weighs 800g, has a diameter of 130mm, and is 179mm high. It is designed for long-distance signaling applications, mainly in the iron and steel industry, industrial handling vehicles, or safety applications. It is UL and CSA certified and holds CE marking. It is designed to be mounted on a horizontal surface, thanks to its base, which is fitted with 3 feet (bolds and nuts provided). The Harmony XVR pre-wired rotating/flashing beacons offer multiple lighting patterns in a unique motor-less design, combining modern aesthetics and robustness.

Voltimum+ Loyalty Programme Loyalty points: 34

Price: £ 260.14 Excl. VAT

Specifications

Power 3 W
Optics Mirror
Lamp type LED
Lamp holder Other
Nominal voltage 24 V
Type of current DC
Colour of lamp hood Red
Electricity consumption 0.125 A
Degree of protection (NEMA) Other
