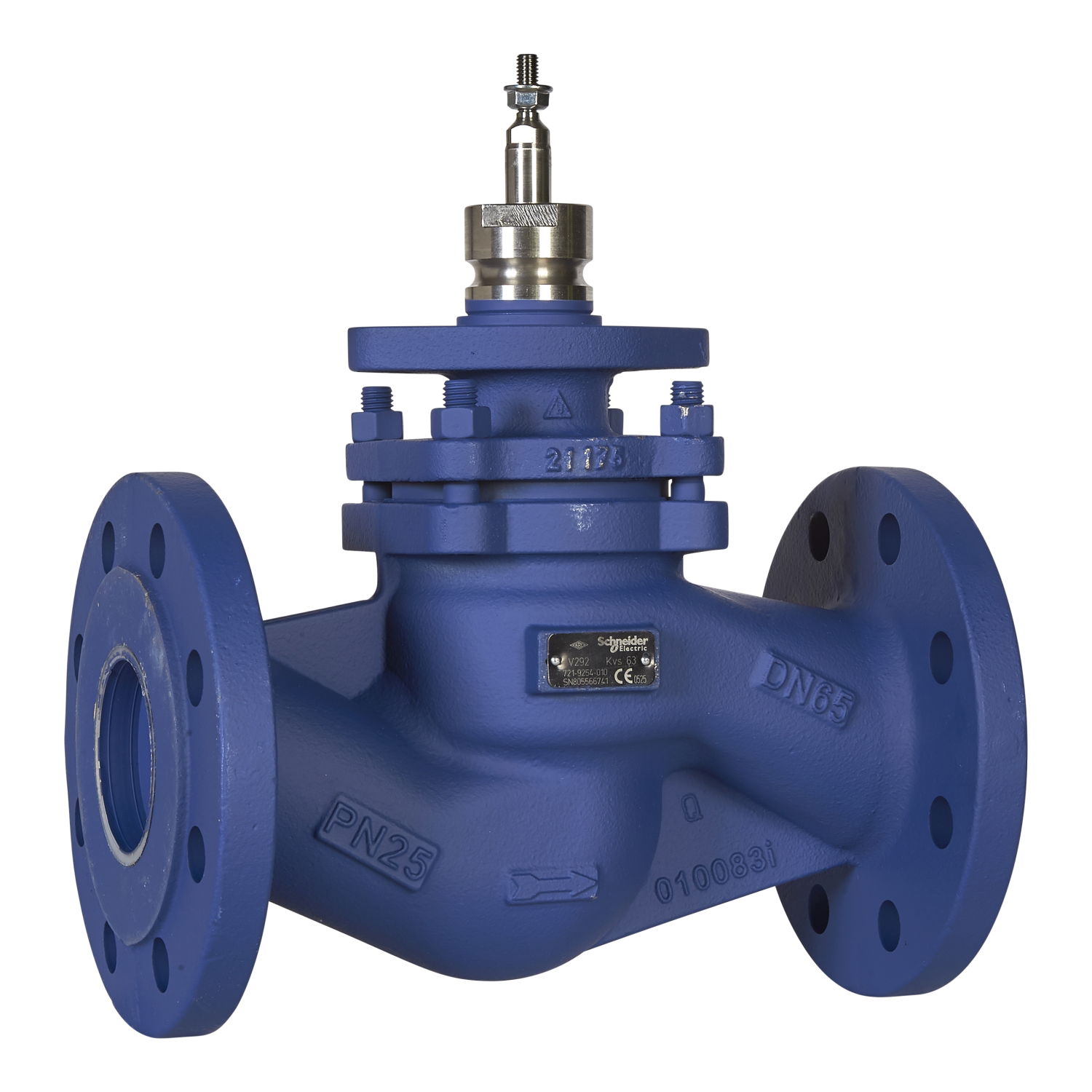

V292 Globe Valve, 2-Way, PN25, Flanged, Balanced Plug, DN80, Kvs 85, Nodular Iron Body, Stainless plug and seat

The V292 is a high pressure flanged globe valve for demanding heating and cooling applications. The valve use a stainless steel plug for high close off pressures with a low actuator force. Stainless Steel plug and seat provides a high pressure differential capability and a low leakage. The crown plug provides precise fluid control with a rangeability of 5:1 and is of a self cleaning design for reliable operation. Valve size: DN80, Flow capacity/Kvs: 85 m³/h. Constructed and flanged to a PN25 pressure class. ΔPm of maximum 14 Kpa. PTFE Seals provide a working temperature range of -1 °C to 15 °C 5 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Length: 29 mm, Height 23 mm, Width: 185 mm, Weight: 16.7 Kg. Service Kit (main gland seal): 1182.
