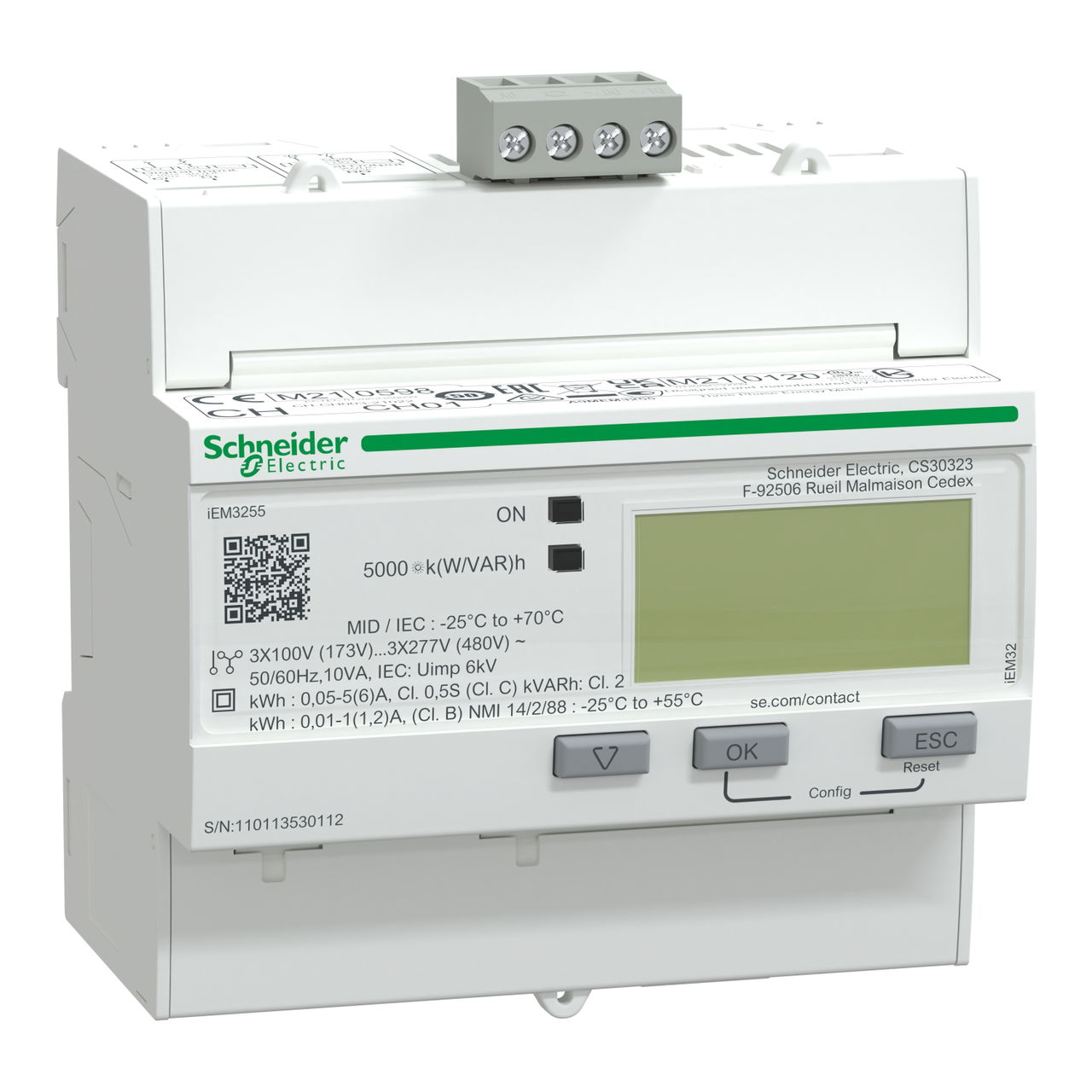

IEM3255 energy meter - CT - Modbus - 1 digital I - 1 digital O - multi-tariff - MID

Link copied
SKU
EAN
GTIN
MPN

IEM3255 energy meter - CT - Modbus - 1 digital I - 1 digital O - multi-tariff - MID by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Rexel Group and City Electrical Factors. It is currently in stock at all of them. Trade price £335.23 excl. VAT. Voltimum+ members earn 55 points per unit.

The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicators. This meter can be used in sub-billing applications and supports 4 tariff schedules. The meter provides the following accuracy classes: Active Energy: class 0.5S per IEC 62053-22, Active Energy: class C per EN 50470-3 and Active Energy: class 0.5S per IEC 61557-12. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. The rated current goes through a 1A or 5A transfomer to be measured in this meter and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is Modbus with screw terminal support. There is one programmable digital input and one programmable digital output that can be used as a pulsed output. Certifications include EAC, CE, UL and MID. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g). Compatible with power management software to take advantage of the IoT digital power installation.

Voltimum+ Loyalty Programme Loyalty points: 55

Price: £ 335.23 Excl. VAT

Specifications

Depth 69 mm
Model Measurement transformer
Width 90 mm
Height 95 mm
Approval Measuring Instruments Directive
Frequency
Pole type Three conductor/four conductor
Calibrated no
Pulse type D0
Tariff type Multi-tariff
Suitable for Purchase/supply
Accuracy class C
With lock code no
Mounting method DRA (DIN-rail adapter)
Type of interface Modbus
Max. current (Imax) 6 A
Nominal current (In) 5 A
Nominal voltage (Un) N-L
Degree of protection (NEMA) 1
Number of positions total (counter) 9
