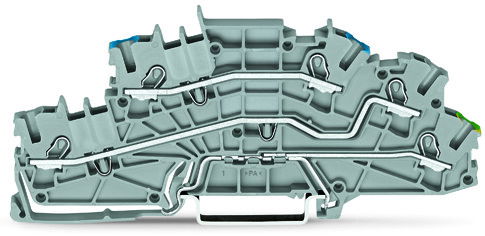

Multilevel installation terminal block with operating slots 2.5 mm² gray

Name: Multilevel installation terminal block with operating slots 2.5 mm² gray
Brand: Wago
SKU: 2003-6646
Availability: InStock

Multilevel installation terminal block; with operating slots; 2.5 mm²; N/L/PE; Push-in CAGE CLAMP®; 2,50 mm²; gray

Product identifiers

SKU: 2003-6646

EAN: 4050821322061

GTIN: 4050821322061

MPN: 2003-6646

Price range: £ 4.30 - £ 4.91 Excl. VAT

Terminal blocks

Specifications

Depth	45.2
Width	5.2
Height	110
PE-function	yes
Basic colour	Grey
Rated voltage	250
Mounting method	DIN rail (top hat rail) 35 mm
Rated current In	20
N function possible	yes
Number of potentials	3
Operating temperature	-35 - 85
Closing plate required	yes
With N-disconnect slide	no
Material insulation body	Thermoplastic
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Connectable conductor cross section solid-core	0.75 - 4
Connectable conductor cross section multi-wired	0.25 - 2.5
Inflammability class of insulation material according to UL94	V0
Connectable conductor cross section fine-strand with cable end sleeve	0.75 - 2.5
Connectable conductor cross section fine-strand without cable end sleeve	0.25 - 4
