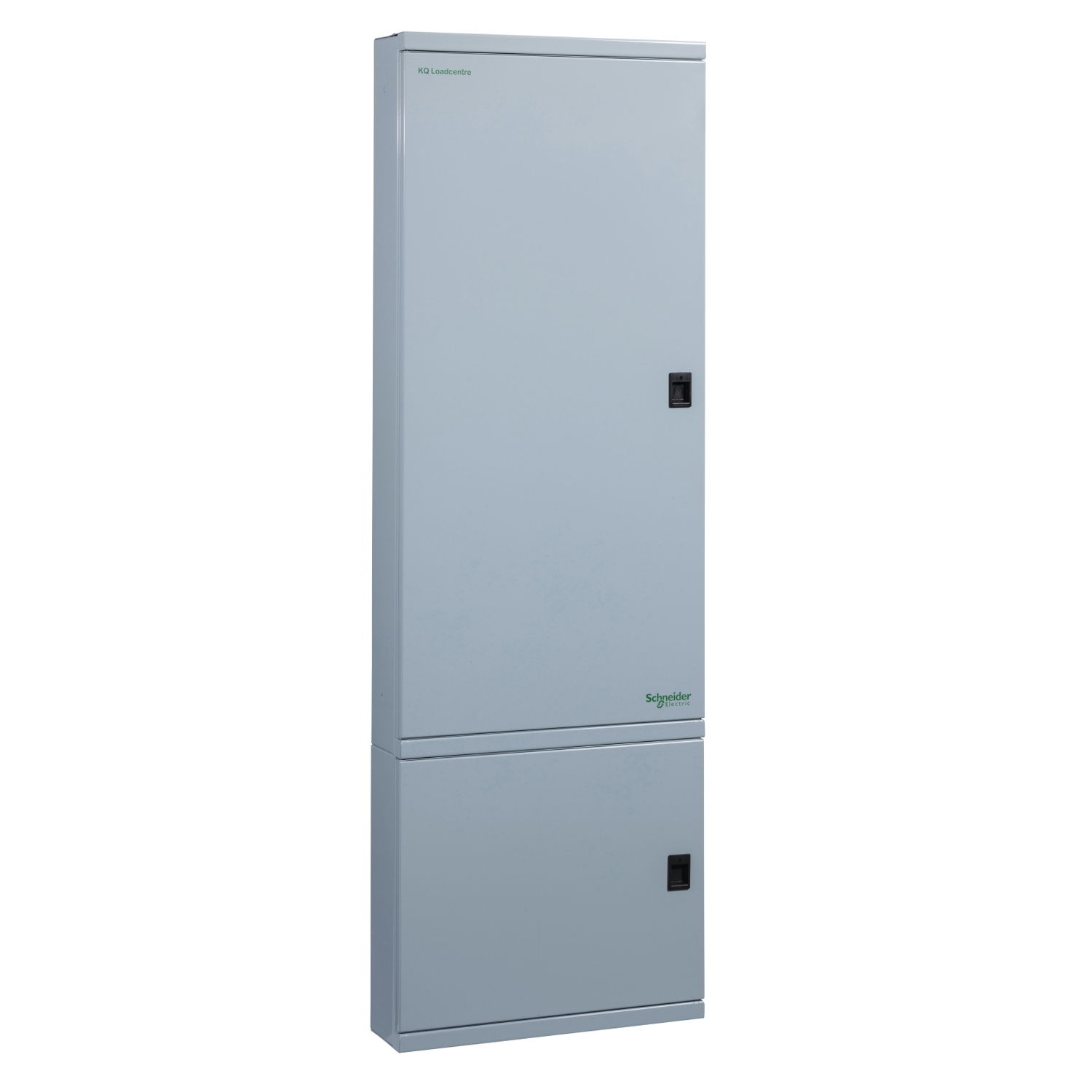

Loadcentre KQ - type B split metered distribution board - 125A - 16 + 4 TP ways

Link copied
SKU
EAN
GTIN
MPN

3x points on the Schneider Electric KQ range

Loadcentre KQ - type B split metered distribution board - 125A - 16 + 4 TP ways by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Rexel Group, and currently in stock. Voltimum+ members earn 167 points per unit.

This Acti9 Loadcentre KQ II B product is a surface mounted split metered distribution board. Modular solution which is flexible Metering and integral control options It is suitable for standard, commercial and industrial applications. The cables can enter via knock-outs at top, bottom and side of the enclosure. The provided equipements are door, front cover, pan assembly, earth terminal block, multi-function meters, switch disconnector and shielded neutral bar. It contains an miniature circuit breaker (MCB) and residual current circuit breaker with overcurrent protection (RCBO). The Ue rated operational voltage is from 400VAC to 415VAC. The dimensions are (W) 470mm x (H) 1290mm x (D) 139mm. According to BS EN 60529 standard, the IP degree of protection is IP2x B internal and IP3x external.

Voltimum+ Loyalty Programme Loyalty points: 501

Price: £ 3,025.00 Excl. VAT

Specifications

Depth 139 mm
Width 470 mm
Colour Grey
Height 1290 mm
DIN-rail yes
With lock yes
RAL-number 7035
Cover model Closed
Inner depth -
UV resistant no
Built-in width -
Built-in height -
Type of closure Other
Type of covering Door
Signal passing door no
Neutral terminal block yes
Earthing terminal block yes
Width in number of modular spacings 25
