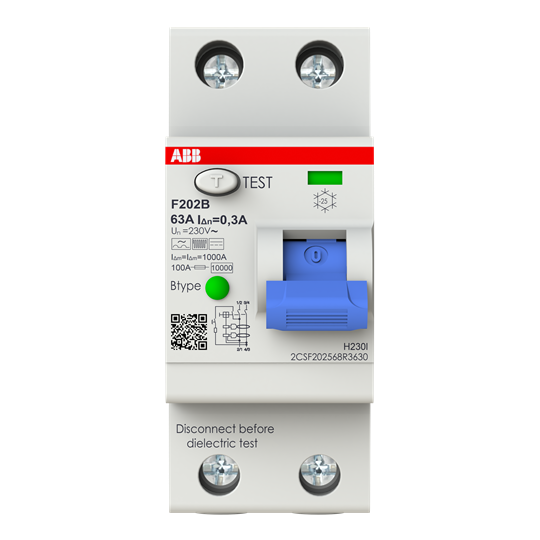

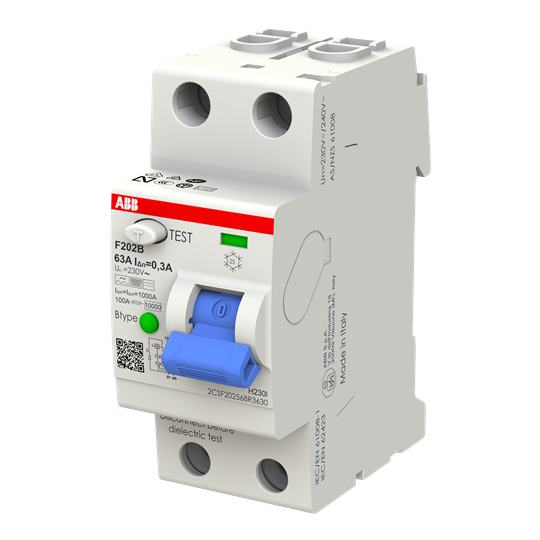

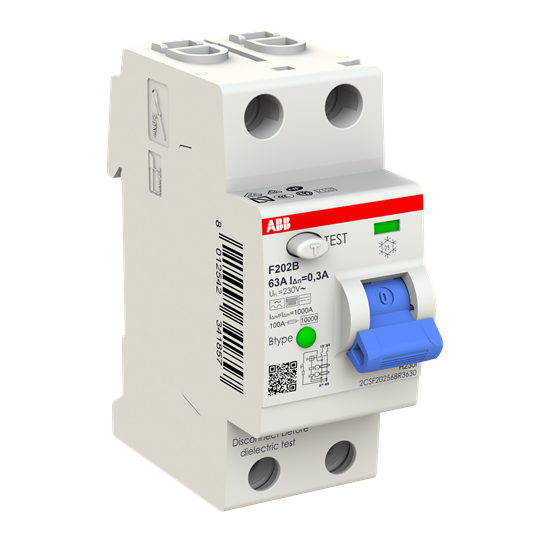

Residual Current Circuit Breaker F200 - 2P - 300 mA - 63 A - Type B

Residual Current Circuit Breaker F200 - 2P - 300 mA - 63 A - Type B

The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product is particularly suitable for the protection against smooth d.c. earth fault currents.

Product identifiers

SKU: 2CSF202568R3630
EAN: 8012542341857
GTIN: 8012542341857
MPN: F202 B-63/0.3

Voltimum+ Loyalty Programme Loyalty points: 436

Price: £ 3,592.00 Excl. VAT

Specifications

Frequency Other
Power loss 8.58
Voltage type -
Rated current 63
Rated voltage -
Built-in depth 69
Explosion-proof no
Mounting method DIN rail
Pollution degree 2
Leakage current type B
Selective protection no
With interlocking device no
Rated insulation voltage Ui -
Additional equipment possible yes
Ambient temperature during operating
Short-circuit breaking capacity (Icw) -
Connectable conductor cross section multi-wired
