Mini Kaedra - for modular device - 1 openings - 3 modules

Link copied
SKU
EAN
GTIN
MPN

Mini Kaedra - for modular device - 1 openings - 3 modules by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Farnell, RS Components and Rexel Group. It is currently in stock at all of them. Trade price £91.97 excl. VAT. Voltimum+ members earn 26 points per unit.

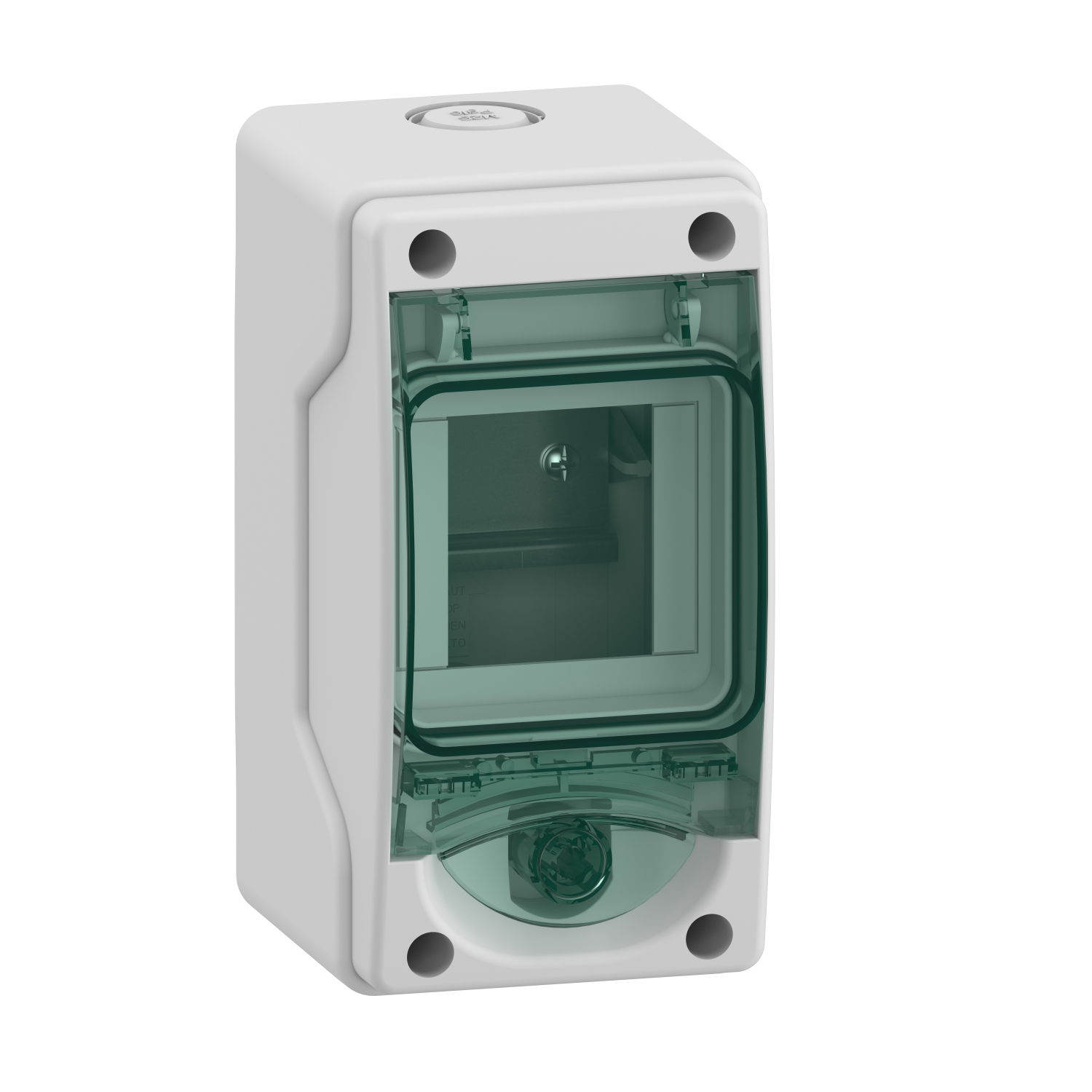

This Kaedra weatherproof enclosure is a surface mounted mini enclosure for modular device. It is composed of 1 row of 3 modules of 18mm. It can accomodate all types of modular switchgear. This enclosure is dedicated to indoor and outdoor waterproof installation. The IP degree of protection is IP65. It is provided with a transparent green door. The colour of the enclosure is light grey (RAL 7035). It is intended for installation in residential, small buildings and industry. The cables can enter by the top or the bottom of the enclosure via 1 pre-cutout. It is equipped with a back plate and a front cover with notch. It is provided with DIN rail. There are no terminal block and no terminal block support. A marking kit are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The dissipated power is 0. The In rated current is up to 63A. This product complies with IEC 61439-3 standard. The dimensions are (W) 80mm x (H) 150mm x (D) 98mm. The material is a self-extinguishing polymer material. Its resistance to flames and to abnormal heat is 650°C as per IEC 60695-2-1. It is ultraviolet resistant. The IK degree of protection is IK09. The operating temperature is -25°C to 60°C.

Voltimum+ Loyalty Programme Loyalty points: 26

Price: £ 91.97 Excl. VAT

Specifications

Depth 98 mm
Width 80 mm
Colour Grey
Height 150 mm
DIN-rail yes
With lock yes
RAL-number 7035
Cover model Closed
Inner depth 56 mm
UV resistant yes
Built-in width -
Built-in height -
Type of closure Other
Type of covering Door
Signal passing door yes
Neutral terminal block no
Earthing terminal block no
Width in number of modular spacings 3
