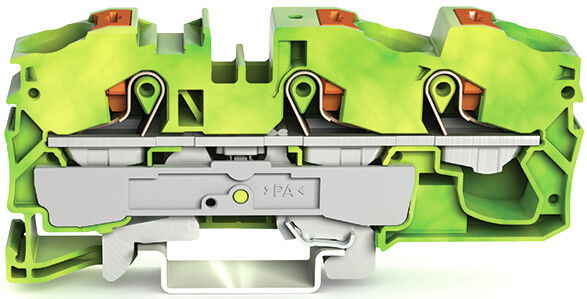

3-conductor ground terminal block with push-button 16 mm² green-yellow
Wago

3-conductor ground terminal block with push-button 16 mm² green-yellow

3-conductor ground terminal block; with push-button; 16 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 16,00 mm²; green-yellow

Product identifiers

SKU: 2216-1307
EAN: 4055143732802
GTIN: 4055143732802
MPN: 2216-1307

V+ Loyalty points:

13

Price: £ 6.72 Excl. VAT

Categories

Terminals, Connectors & Interconnects Terminal Blocks

Specifications

Depth 37.1
Width 12
Colour Green/yellow
Height 91.8
EFNA0008 V0
Mounting method DIN rail (top hat rail) 35 mm
Number of levels 1
Operating temperature 105 - 105
Closing plate required yes
Type of electrical connection 1 Spring clamp connection
Number of clamp positions per level 3
Connectable conductor cross section multi-wired 0.5 - 16
Connectable conductor cross section fine-strand without cable end sleeve 0.5 - 25
