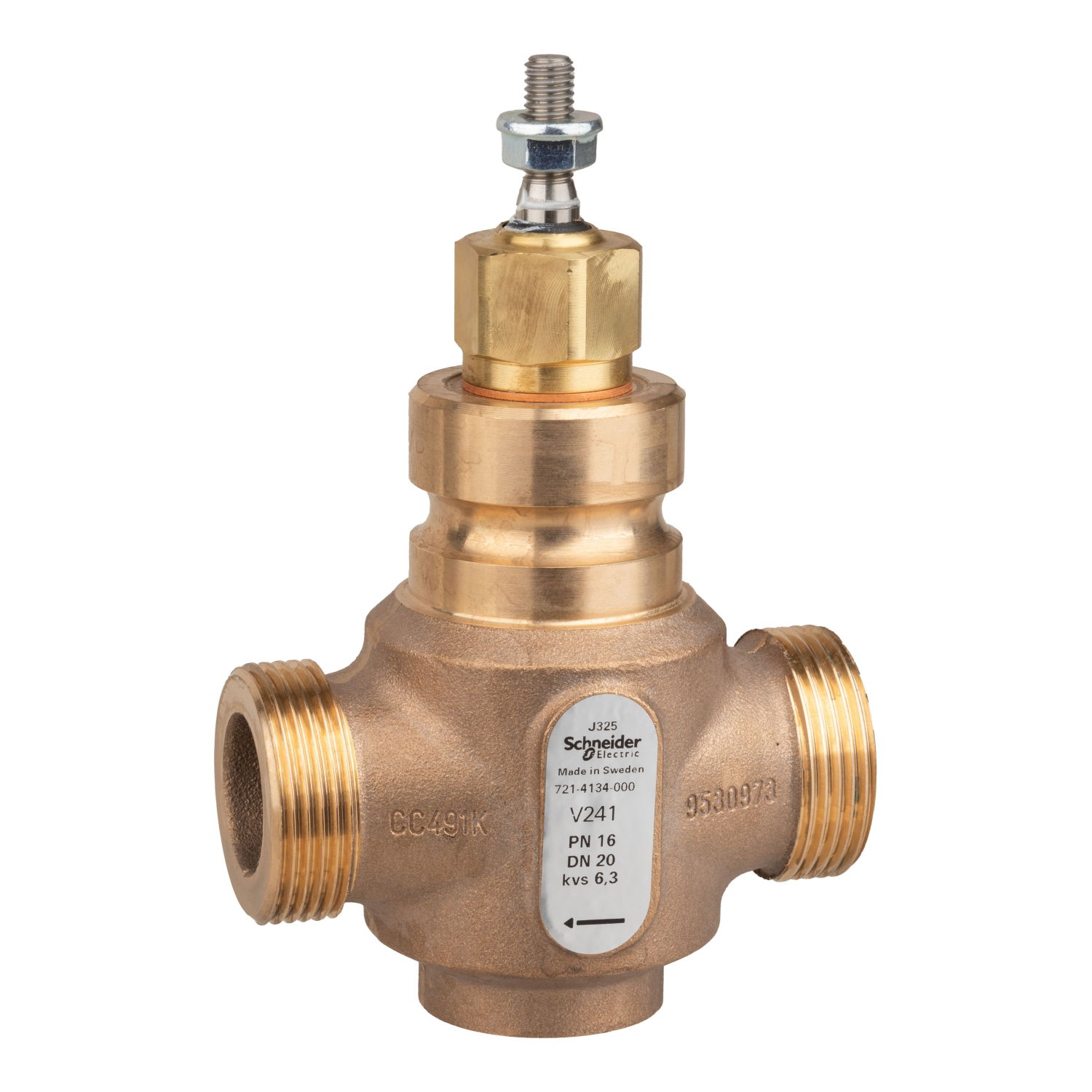

VB: 20 mm, 2W, Globe, G Ext, UC, SS, 6.3 kvs, Glycol 25-50% and Water, Venta, No Steam

Link copied
SKU
EAN
GTIN
MPN
The V241 is an externally threaded 2-way bronze globe valve with stainless steel trim designed for demanding heating and cooling applications. The valve uses a crown plug for precise fluid control with a very high rangeability. Polished Stainless Steel seats ensure a high differential pressure and low leakage. The crown plug provides precise fluid control with a rangeability of 5:1 and is of a self cleaning design for reliable operation. Valve size: DN20, G External, Flow capacity, Kvs: 6.3 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 6 Kpa. EPDM seals provide a working temperature range of -2 °C to + 12 °C, the soft seat seal ensures a tight close off with no leakage. 2 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). G1-1/4 External (Male) Connection.

Voltimum+ Loyalty Programme Loyalty points: 45

Price: £ 272.00 Excl. VAT

Specifications

Sealing -
EFDE0010 -
EFNL0001 -
EFNL0002 -
EFSE0002 -
Freeflow -
Operation -
Zeta value -
Connection 1 Other
Contour code -
Spindle angle -
Type of bonnet -
Housing material Bronze
Nominal diameter -
Angle of the valve -
Suitable for gases -
Surface protection Untreated
Spring opening (NO) -
Suitable for liquids -
Length of connection 2 -
With backflow safeguard -
Flange compression class PN 16
Housing material quality -
Stainless steel seat ring -
With coupling connection 2 -
Working length connection 2 -
Material primary spindle seal -
Spindle and/or hand wheel rising -
Outer pipe diameter all connections -
Length of handle/diameter of hand wheel -
Spindle thread not in contact with the medium -

Documents

Declaration of Conformity (Sustainability)

7214134000 REACh Regulation

Open

Product data sheet

Open

Catalog

2026 EMEA-APAC Valves & Actuators Product Catalog

Open

Declaration of Conformity (Sustainability)

7214134000 EU RoHS Directive

Open
