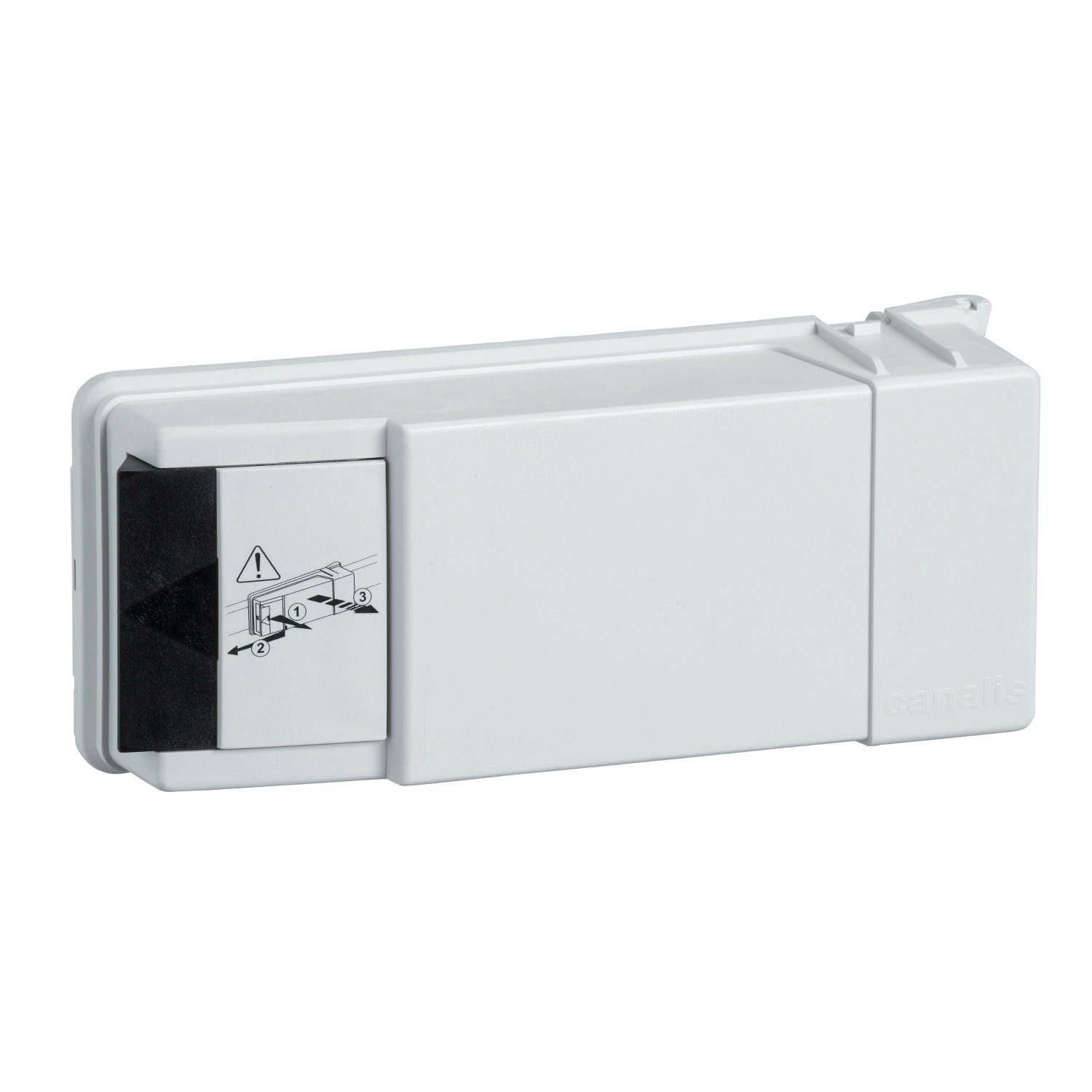

Canalis - tap-off unit - 16A - 3L+N+PE - without protection

Link copied
SKU
EAN
GTIN
MPN

Canalis - tap-off unit - 16A - 3L+N+PE - without protection by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including RS Components and Rexel Group. It is currently in stock at all of them. Trade price £64.62 excl. VAT. Voltimum+ members earn 8 points per unit.

This is a tap-off unit for direct connection on Canalis KBA, KBB and KDP busbar trunkings. Canalis KBA, KBB and KDP are designed for lighting and power socket distribution. The rated operational current is 16A at 35 ℃. The operational voltage is from 230VAC 50/60Hz to 240VAC 50/60Hz. Polarity is 3L+PE, with mobile studs. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. Canalis products are compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).

Voltimum+ Loyalty Programme Loyalty points: 8

Price: £ 64.62 Excl. VAT

Specifications

Width 38 mm
Colour White
Height 68 mm
Length 205 mm
Protection None
RAL-number 9001
With locking yes
Branch off type Pipe in-lead
Phase selection yes
Rated voltage AC 50 Hz
Degree of protection (IP) IP55
Number of NEMA socket outlets 0
Number of conductors (without earthing) 4
