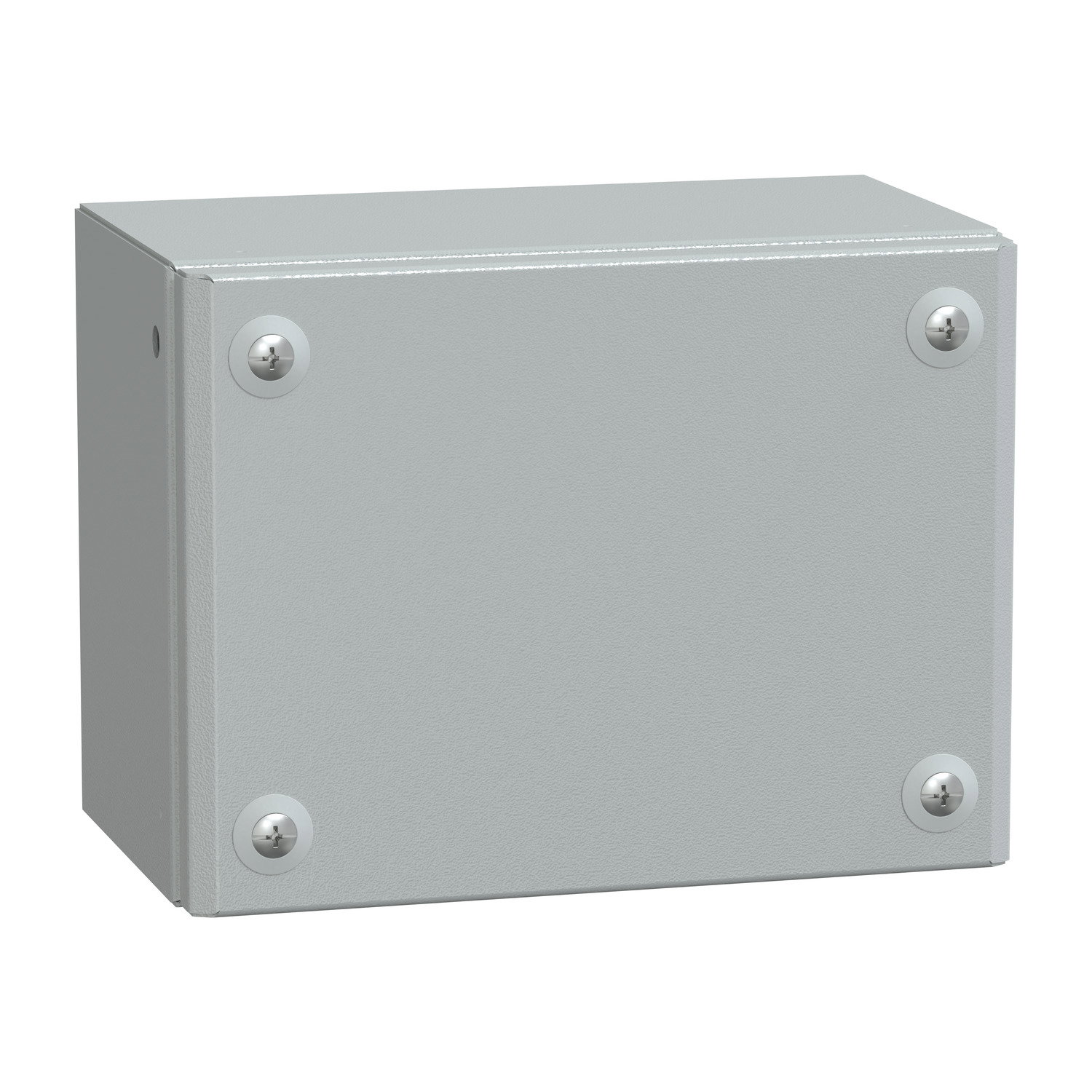

Metal industrial box plain door H150xW200xD120 IP66 IK10 RAL 7035

Name: Metal industrial box plain door H150xW200xD120 IP66 IK10 RAL 7035
Brand: Schneider Electric
SKU: NSYSBM152012
Availability: InStock

Industrial box for PanelSeT SBM. Multi purpose. 150 x 200 x 120 mm. Flat face box. Wall mounted on enclosure. Single piece body folded and welded. Cover fixing with half turn metal srew. Cover by 4 captive screw PZ2 outside sealed area. Made sheet of steel with polyester powder finish. Protection IP 66, IK10.

Product identifiers

SKU: NSYSBM152012

EAN: 3606480520112

GTIN: 3606480520112

MPN: NSYSBM152012

Loyalty points:
20

Price range: £ 41.07 - £ 51.85 Excl. VAT

ETIM Group

Control cabinet systems

Videos

How to video

Specifications

Depth	120 mm
Width	200 mm
Colour	Grey
Height	150 mm
Material	Steel
Couplable	no
With door	yes
RAL-number	7035
With cover	no
EMC-version	no
Corner model	no
Freestanding	no
Pitched roof	no
Pre-stamping	no
Pole fastening	yes
With rear door	no
Impact strength	IK10
Number of doors	1
Number of locks	0
Material quality	Other
With glazed door	no
Surface finishing	Powder coating
Transparent cover	no
With mounting plate	no
Intermediate mounting	no
With ventilation door	no
Degree of protection (IP)	IP66
Floor standing wall model	no
Number of connector holes	0
Suitable for wall built-in	yes
Suitable for wall mounting	yes
Degree of protection (NEMA)	4X
Suitable for outdoor set-up	yes
Suitable for metrical mounting	yes
Mounting plate depth-adjustable	no
Max. permissible load of the door(s) according to IEC 62208	-
Max. permissible load of the enclosure according to IEC 62208	50 N
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890	-
Max. permissible load of the mounting plate according to IEC 62208	200 N
