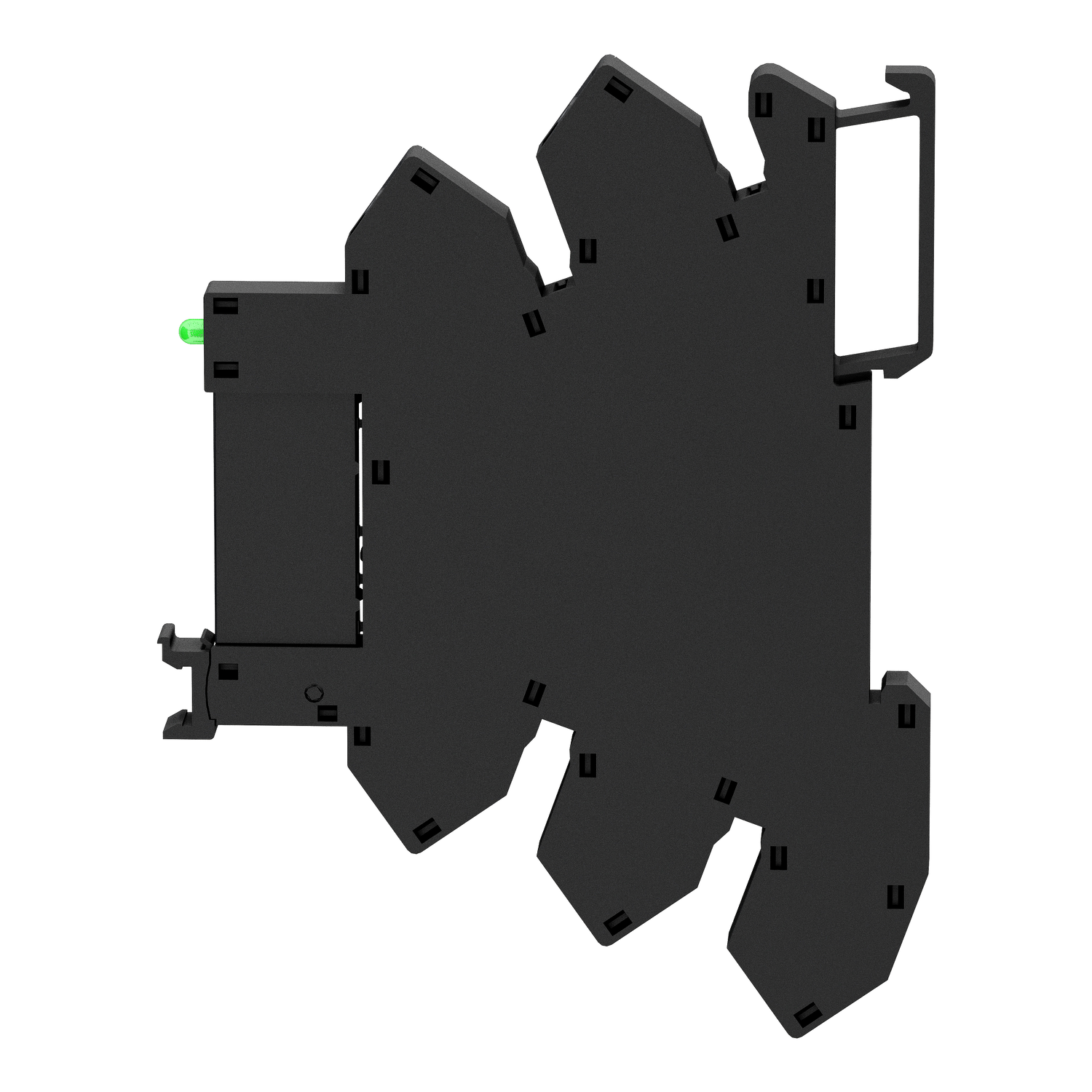

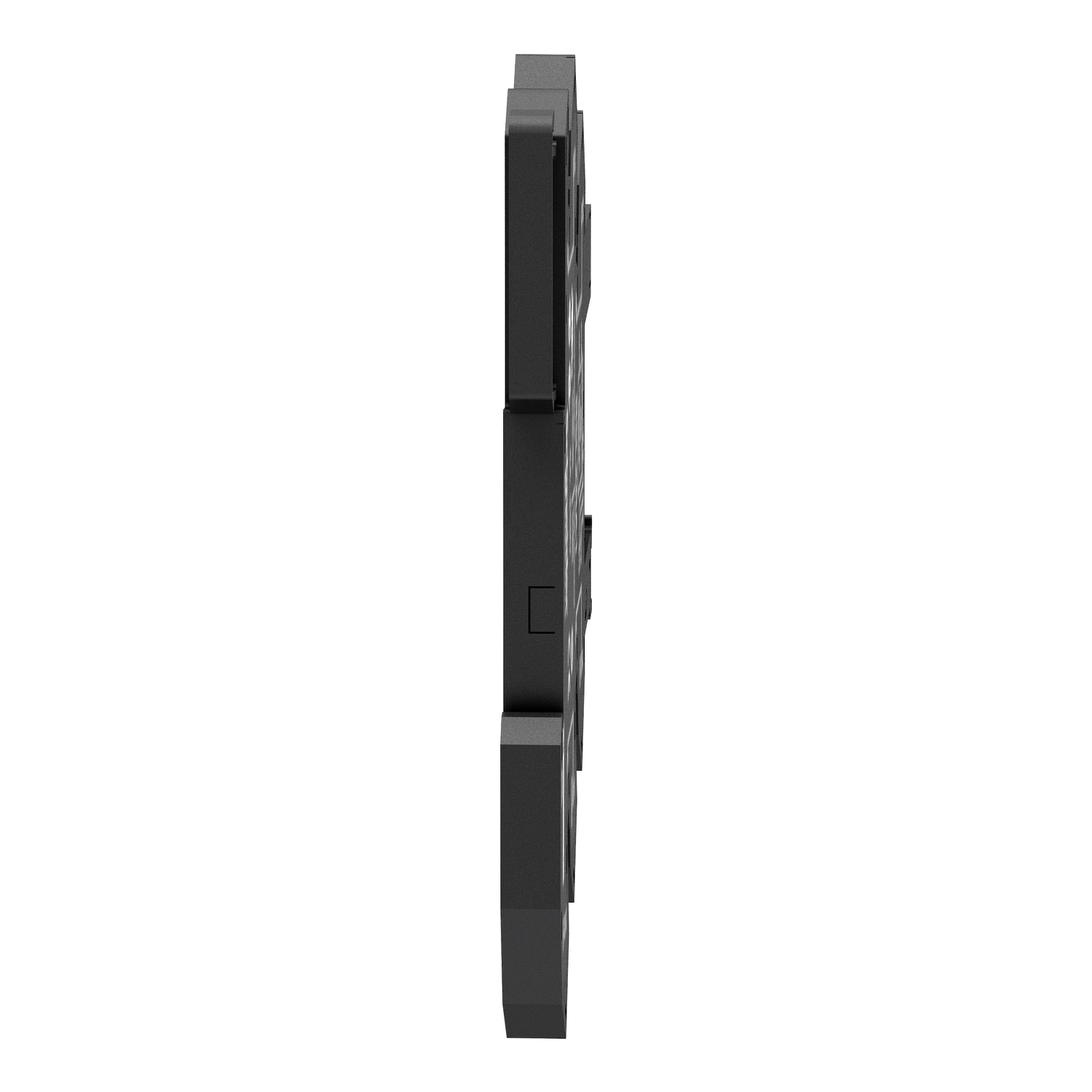

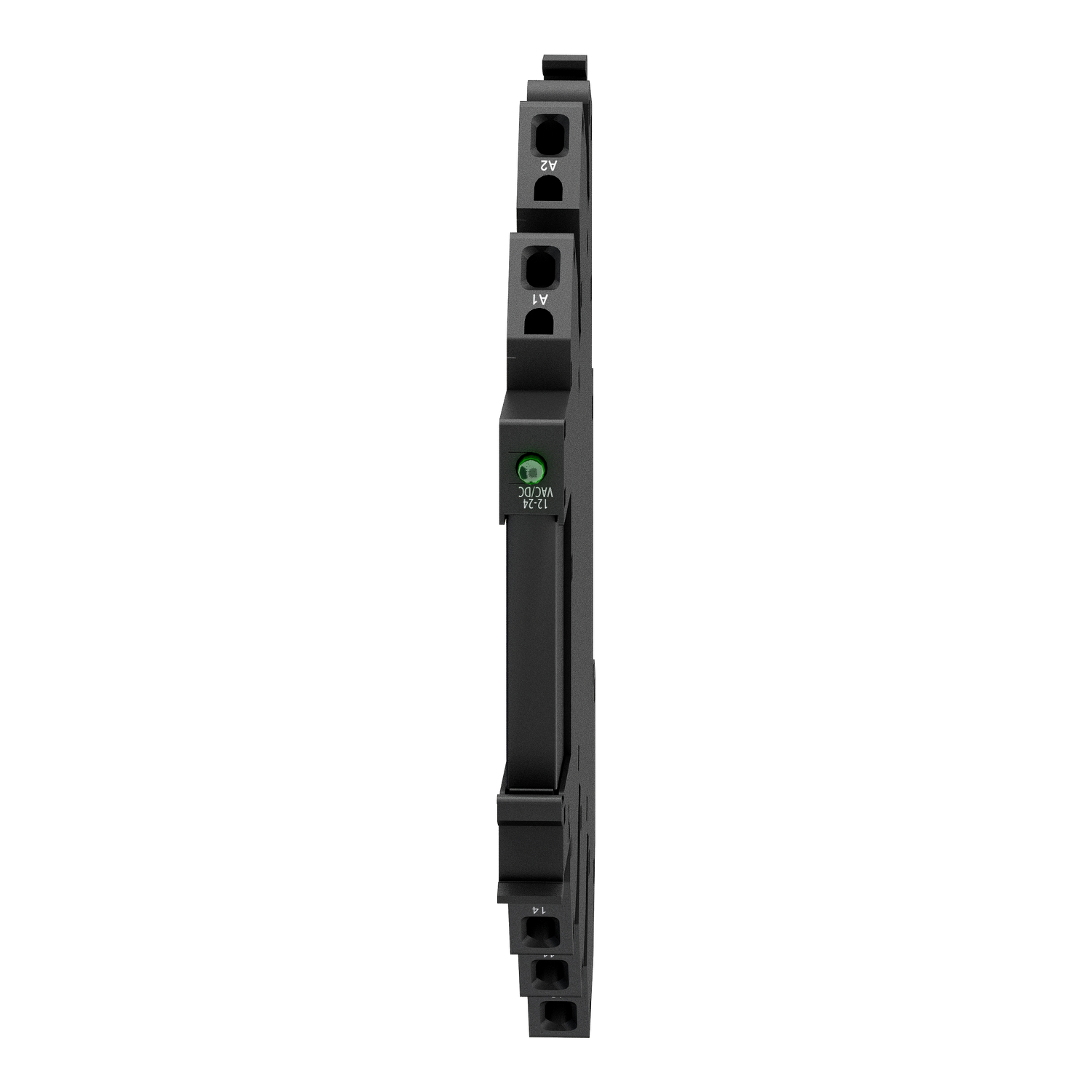

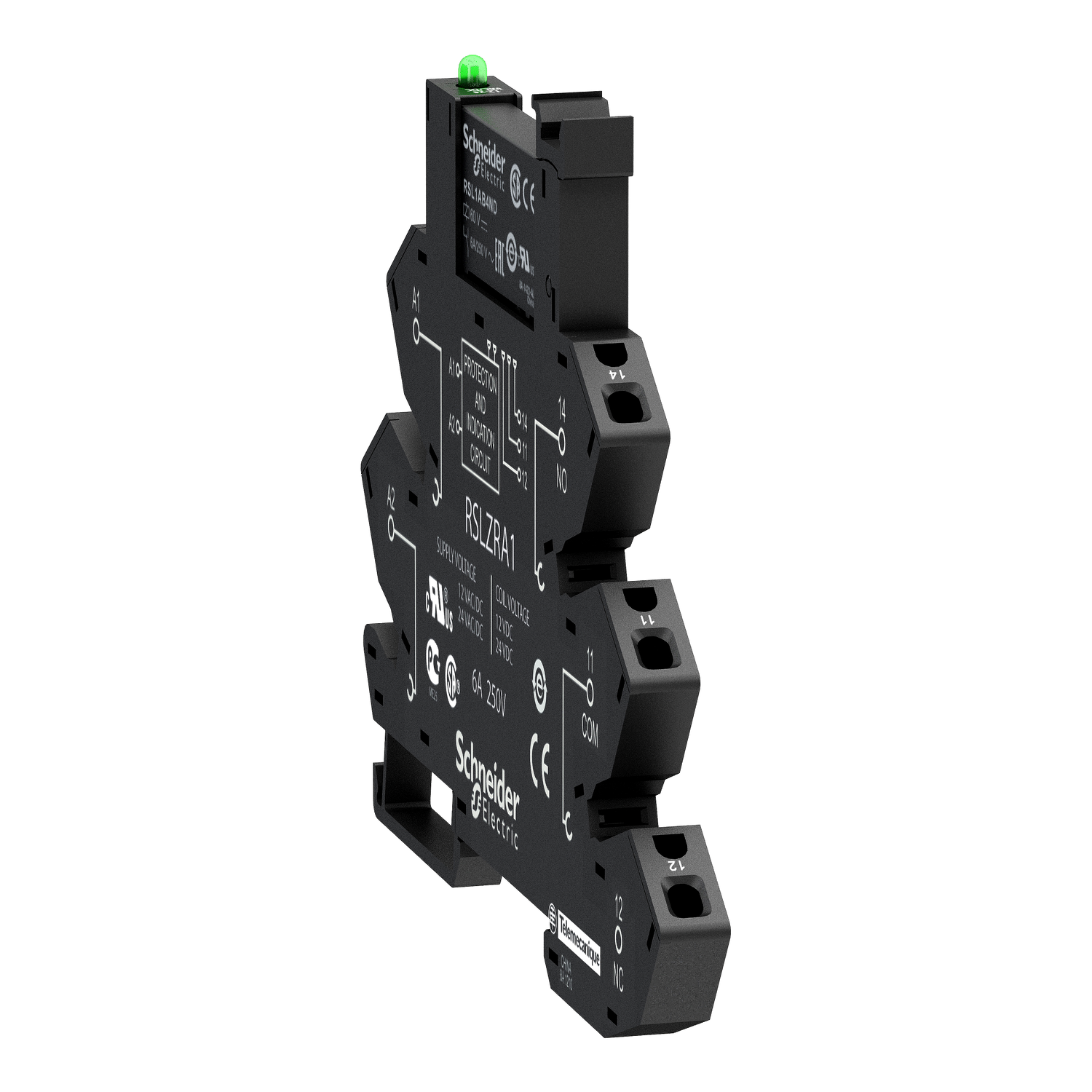

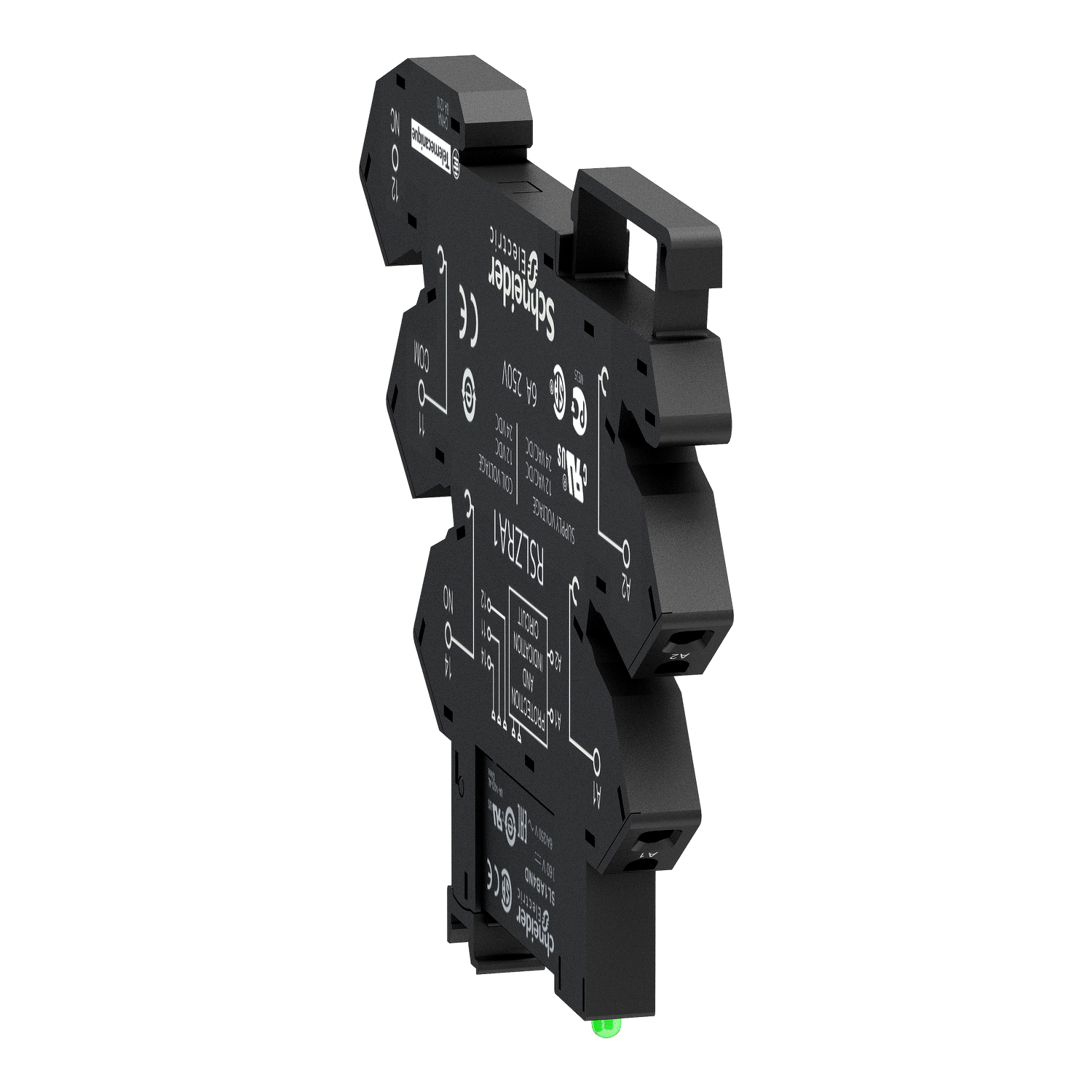

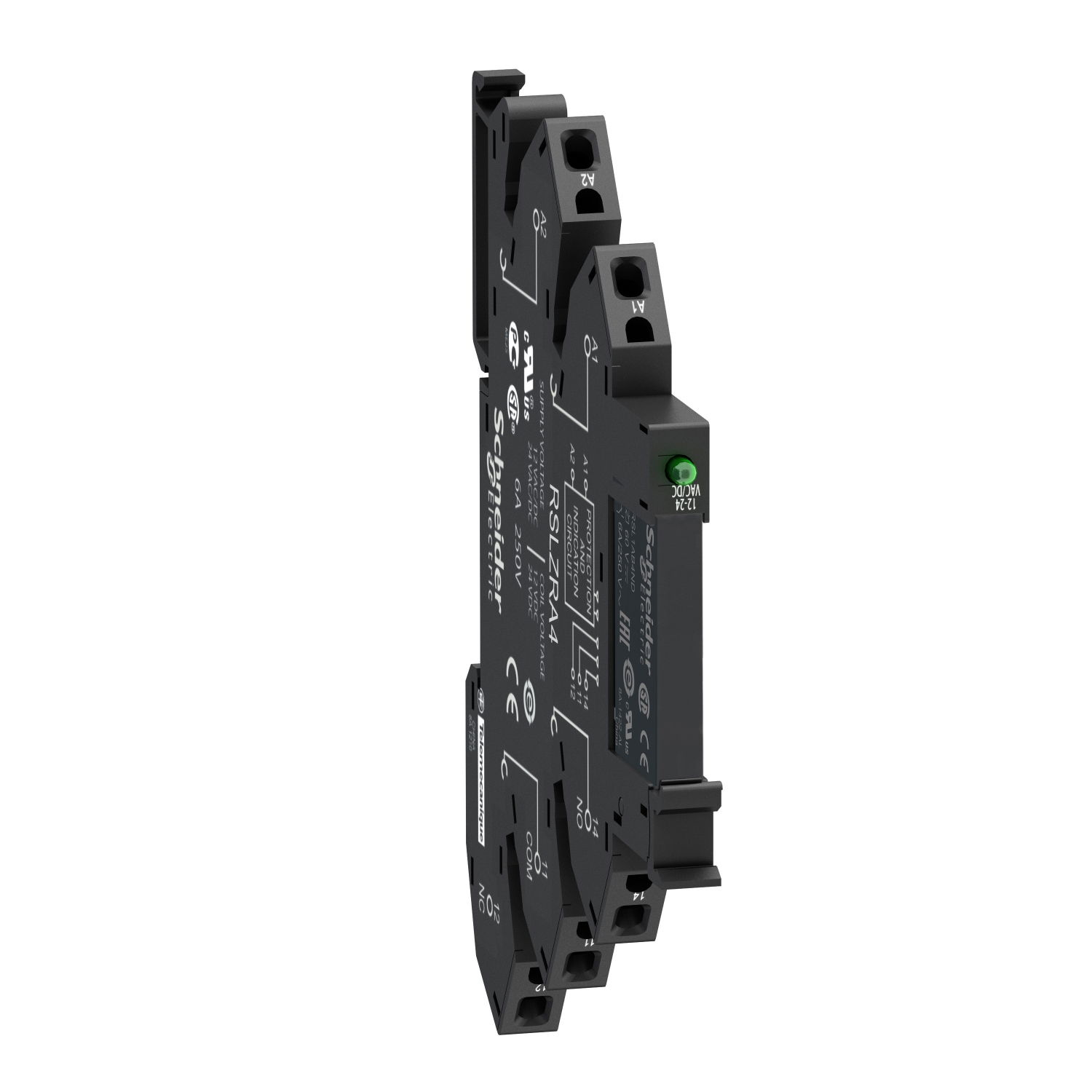

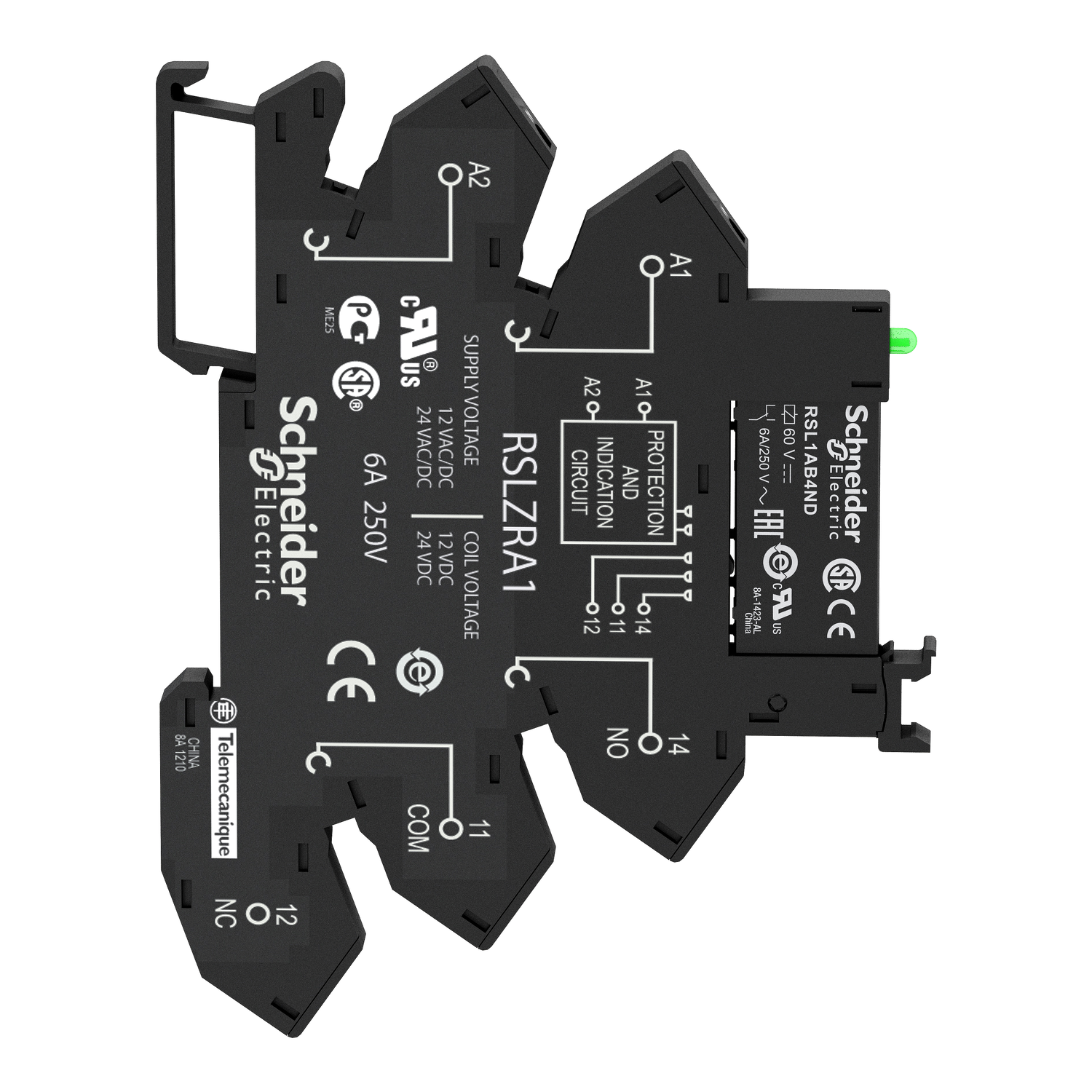

Interface plug-in relay, 6 A, 1 CO, with LED, 24 V DC

Link copied
SKU
EAN
GTIN
MPN

Interface plug-in relay, 6 A, 1 CO, with LED, 24 V DC by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, RS Components and 3 more. It is currently in stock at all of them. Trade prices range from £14.56 to £23.36 excl. VAT. Voltimum+ members earn 3 points per unit.

This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A. It has large choice of number of contacts for high rated current use. It also offers LED indicator and protection circuit. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere. It is compatible with high breaking capacity or low-level current application requirements. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0 0

Voltimum+ Loyalty Programme Loyalty points: 3

Price range: £ 14.56 - £ 23.36 Excl. VAT

Specifications

Depth 101 mm
Width 6.2 mm
Height 78.6 mm
Nominal current 6 A
Material contact Other
Drive, polarization Polarity free
With LED indication yes
Complete with socket yes
Max. starting current -
With detachable clamps yes
Drive, switching attitude Mono stable
Operating voltage AC 50 Hz
Voltage type for actuating DC
Type of electric connection Spring clamp connection
Rated control supply voltage DC
Rated control supply voltage AC 50 Hz
Number of contacts as change-over contact 1
Number of contacts as normally closed contact 0
