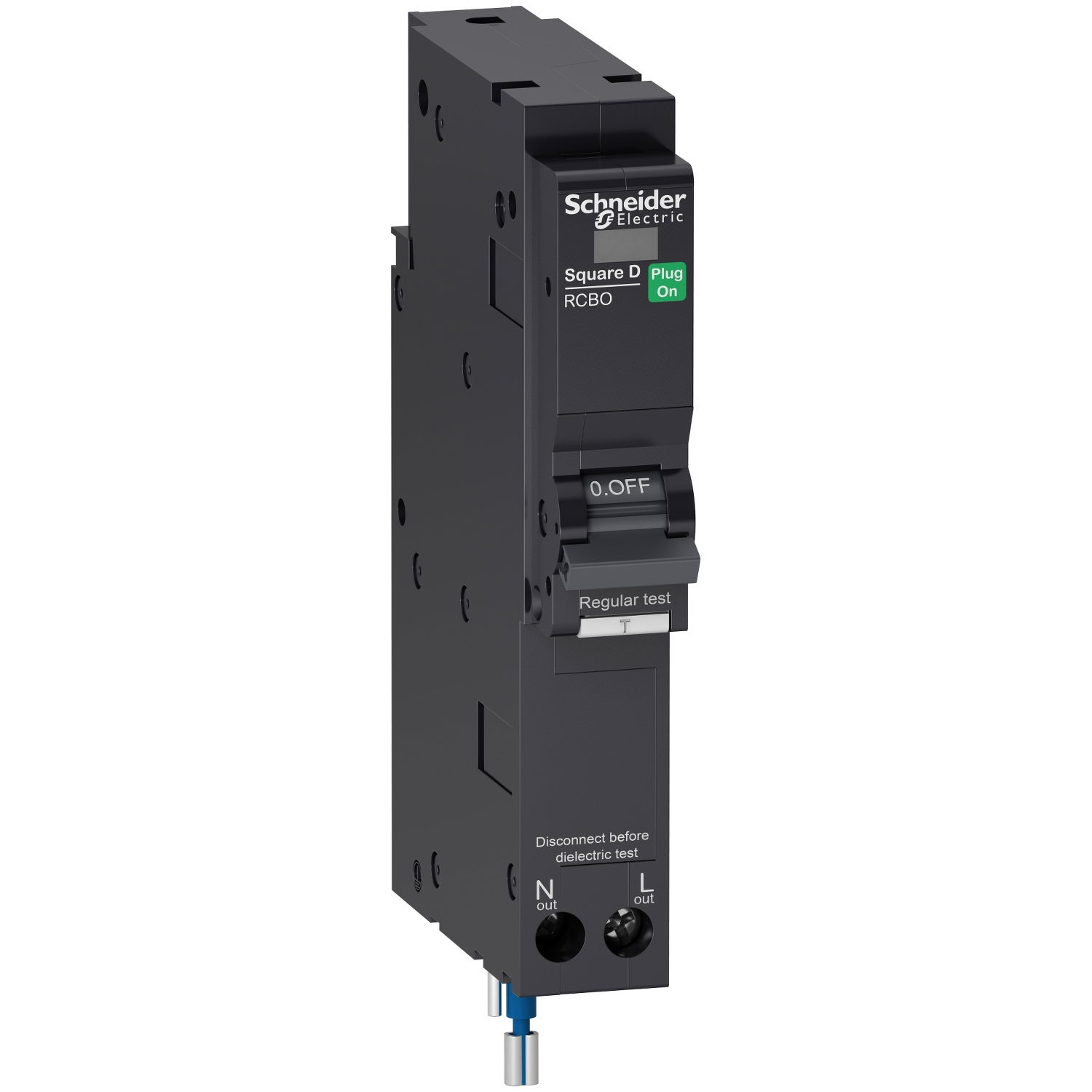

QOvs - earth leakage circuit breaker - 1P + Ns - C curve - 20A - 30mA

Link copied
SKU
EAN
GTIN
MPN

QOvs - earth leakage circuit breaker - 1P + Ns - C curve - 20A - 30mA by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including RS Components, Rexel Group and Phase Electrical. It is currently in stock at all of them. Trade prices range from £336.58 to £384.61 excl. VAT. Voltimum+ members earn 43 points per unit.

This QOvs is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+Ns circuit breaker with 1 protected pole, 20A In rated current and C tripping curve. The earth leakage protection class is AC type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 10000A according IEC 61009-2-2 standard. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. It has a plug on system for fast and easy installation, no conneciton errors and more safety. It also has an operating test button on the front panel. This product is compliant with IEC 61009-2-2 and IEC 61009-1 standards. It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 230VAC or 240VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50/60Hz. The product color is black (RAL9005). The dimensions are (W) 19mm x (H) 110mm x (D) 85mm. The weight is 186g. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -15°C to 60°C. The storage temperature is from -40°C to 85°C.

Voltimum+ Loyalty Programme Loyalty points: 43

Price range: £ 336.58 - £ 384.61 Excl. VAT

Specifications

Frequency 50/60 Hz
Power loss -
Voltage type AC
Rated current 20 A
Rated voltage 240 V
Built-in depth 59 mm
Pollution degree 3
Rated fault current 0.03 A
Over voltage category 3
Release characteristic C
Number of poles (total) 2
Degree of protection (IP) IP20
Flush-mounted installation no
Disconnection characteristic Undelayed
Width in number of modular spacings 1
Rated impulse withstand voltage Uimp 4 kV
Connectable conductor cross section solid-core
Rated short-circuit breaking capacity according to EN 61009 -
Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA
