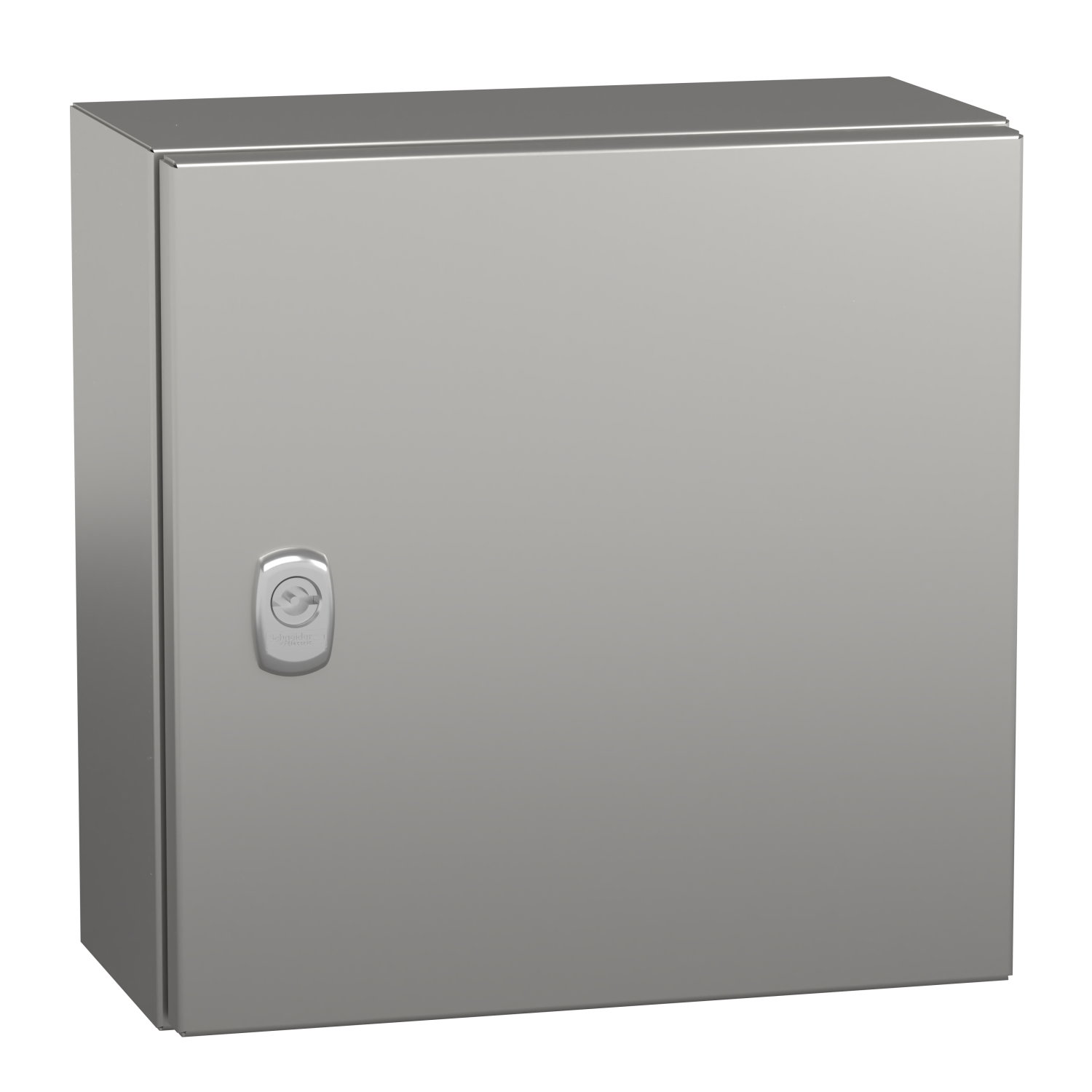

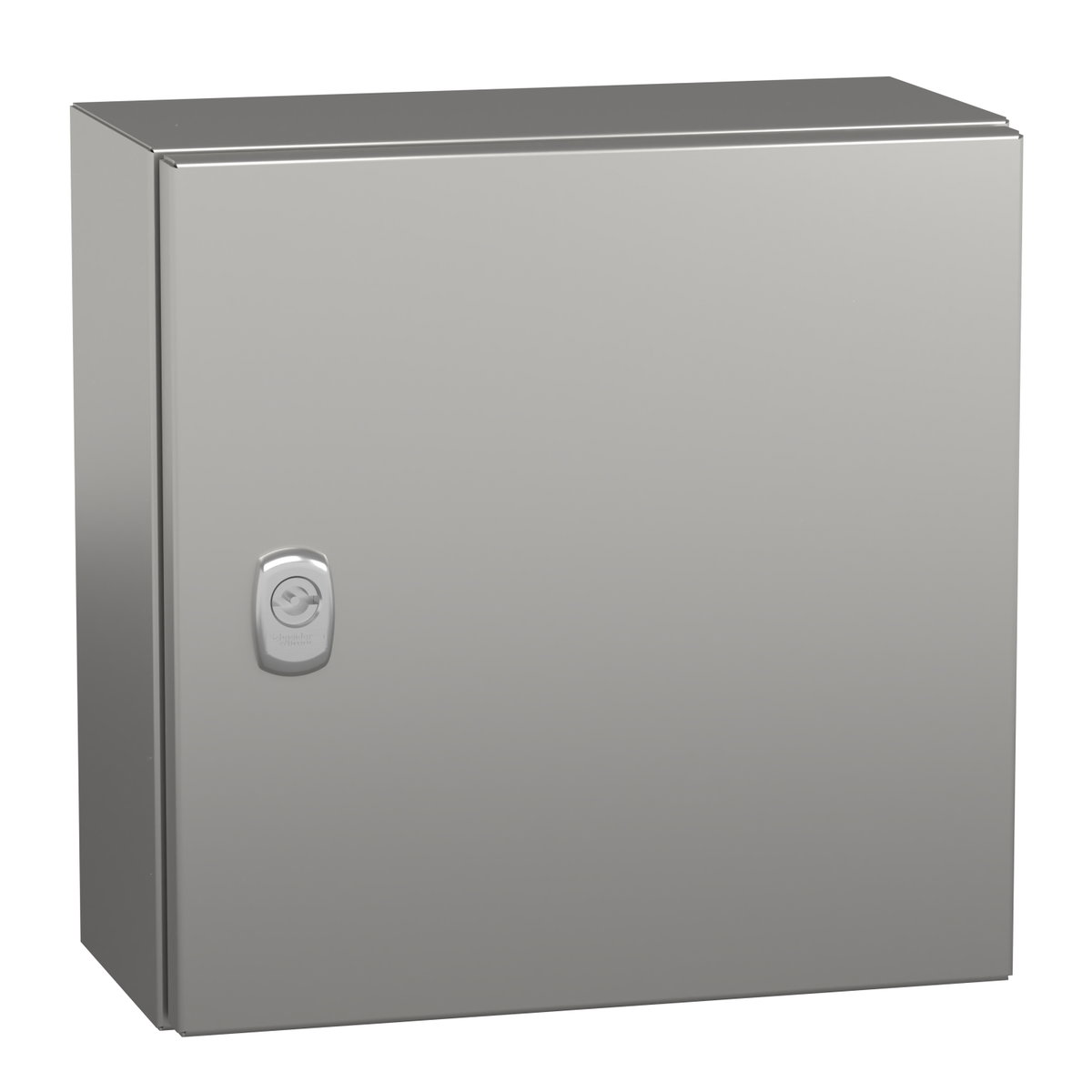

"PanelSet S3X stainless 304L, Scotch Brite® finish, H300xW300xD150 mm."
"PanelSet S3X is a wall-mounting stainless steel 304L enclosure designed for multi-purpose applications and resistance to corrosion" "It is designed for use in harsh environments, it can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529)" "This enclosure has a nominal height, width and depth of 300mm, 300mm and 150mm respectively" "The enclosure is made with Scotch-Brite® brushed surface finish" "The enclosure consists of a body, a plain door and one lock" "The door can be opened up to 120°, allowing easy access to the equipment inside" "It is possible to change the opening side of the door (reversible)" "The door has a 3mm double-bar lock insert" "The door can be removed for maintenance purposes" "The net weight of the enclosure is 4,062kg"
Product identifiers
SKU: NSYS3X3315
EAN: 3606480155079
GTIN: 3606480155079
MPN: NSYS3X3315
Loyalty points: 103
Price range: £ 229.16 - £ 257.17 Excl. VAT
Categories
Features
|
Depth
|
150 mm
|
|
Width
|
300 mm
|
|
Colour
|
Stainless steel
|
|
Height
|
300 mm
|
|
Material
|
Stainless steel
|
|
Couplable
|
FALSE
|
|
With door
|
TRUE
|
|
RAL-number
|
7035
|
|
With cover
|
FALSE
|
|
EMC-version
|
FALSE
|
|
Corner model
|
FALSE
|
|
Freestanding
|
FALSE
|
|
Pitched roof
|
FALSE
|
|
Pre-stamping
|
FALSE
|
|
Pole fastening
|
FALSE
|
|
With rear door
|
FALSE
|
|
Impact strength
|
IK10
|
|
Number of doors
|
1
|
|
Number of locks
|
1
|
|
Material quality
|
Stainless steel 304 (V2A)
|
|
With glazed door
|
FALSE
|
|
Surface finishing
|
Other
|
|
Transparent cover
|
FALSE
|
|
With mounting plate
|
FALSE
|
|
Intermediate mounting
|
FALSE
|
|
With ventilation door
|
FALSE
|
|
Degree of protection (IP)
|
IP55
|
|
Floor standing wall model
|
FALSE
|
|
Number of connector holes
|
0
|
|
Suitable for wall built-in
|
FALSE
|
|
Suitable for wall mounting
|
TRUE
|
|
Degree of protection (NEMA)
|
12
|
|
Suitable for outdoor set-up
|
FALSE
|
|
Suitable for metrical mounting
|
TRUE
|
|
Mounting plate depth-adjustable
|
FALSE
|
|
Max. permissible load of the door(s) according to IEC 62208
|
50 N
|
|
Max. permissible load of the enclosure according to IEC 62208
|
50 N
|
|
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
|
-
|
|
Max. permissible load of the mounting plate according to IEC 62208
|
250 N
|
