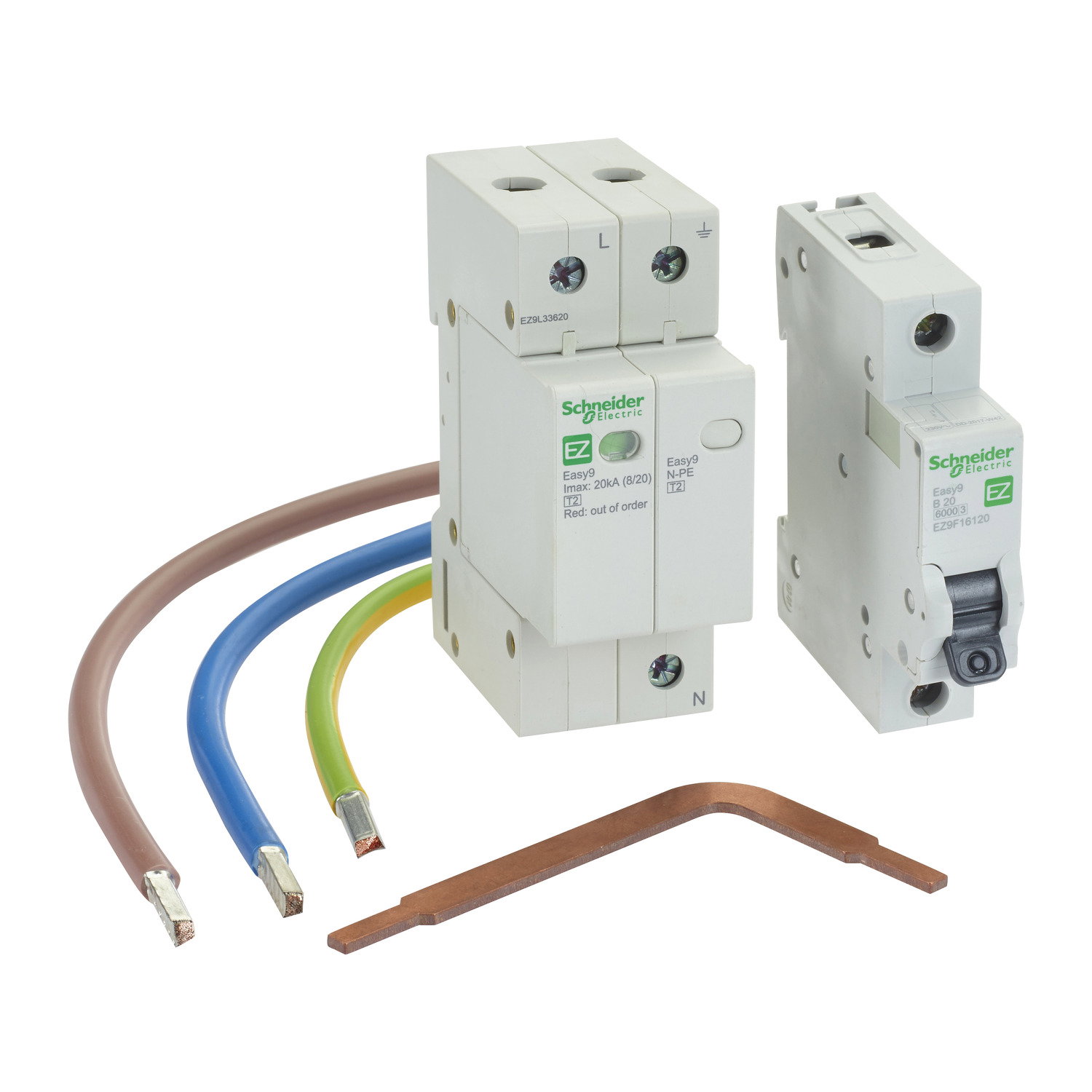

EZ9 Surge Arrest KIT T2 1P-N 20kA
Protects the circuit from switching surges. Surge arrester kit with pole configuration of 1P+N, without remote signalling. Complete with 20A MCB, cables and extended neutral link. Clip on mounting mode on a DIN rail support
Product identifiers
SKU: EZ9L33620KIT
EAN: 5018934012278
GTIN: 5018934012278
MPN: EZ9L33620KIT
Loyalty points: 244
Price range: £ 69.95 - £ 89.99 Excl. VAT
Categories
Features
|
Category type 2
|
TRUE
|
|
Max. PV-voltage
|
-
|
|
Mounting method
|
DIN rail (top hat rail) 35 mm
|
|
Construction size
|
2 modular spacing
|
|
Nominal voltage AC
|
230 V
|
|
Nominal voltage DC
|
-
|
|
Leakage-current free
|
FALSE
|
|
Integrated backup fuse
|
FALSE
|
|
System configuration DC
|
FALSE
|
|
System configuration IT
|
FALSE
|
|
System configuration TN
|
FALSE
|
|
System configuration TT
|
TRUE
|
|
Signalling at the device
|
Optical
|
|
Voltage protection level
|
1.3 kV
|
|
Degree of protection (IP)
|
IP20
|
|
System configuration TN-C
|
FALSE
|
|
System configuration TN-S
|
TRUE
|
|
Max. continuous voltage AC
|
275 V
|
|
Max. continuous voltage DC
|
-
|
|
System configuration other
|
FALSE
|
|
System configuration TN-C-S
|
FALSE
|
|
Voltage protection level L-N
|
1.3 kV
|
|
Voltage protection level N-PE
|
1.3 kV
|
|
With remote signalling contact
|
FALSE
|
|
Integrated short-circuit protection
|
FALSE
|
|
Max. discharge surge current (8/20)
|
20 kA
|
|
Nominal discharge surge current (8/20)
|
10 kA
|
|
Number of conductors (without earthing)
|
1
|
|
Short-circuit breaking capacity (Isccr)
|
-
|
|
Max. conductor cross section flexible (fine-strand)
|
35 mm²
|
|
Max. conductor cross section solid (solid, stranded)
|
35 mm²
|
|
Integrated short-circuit protection selective to fuse gG
|
-
|
|
Max. overcurrent protection device, series connection (fuse)
|
-
|
|
Max. overcurrent protection device, parallel connection (fuse)
|
-
|
