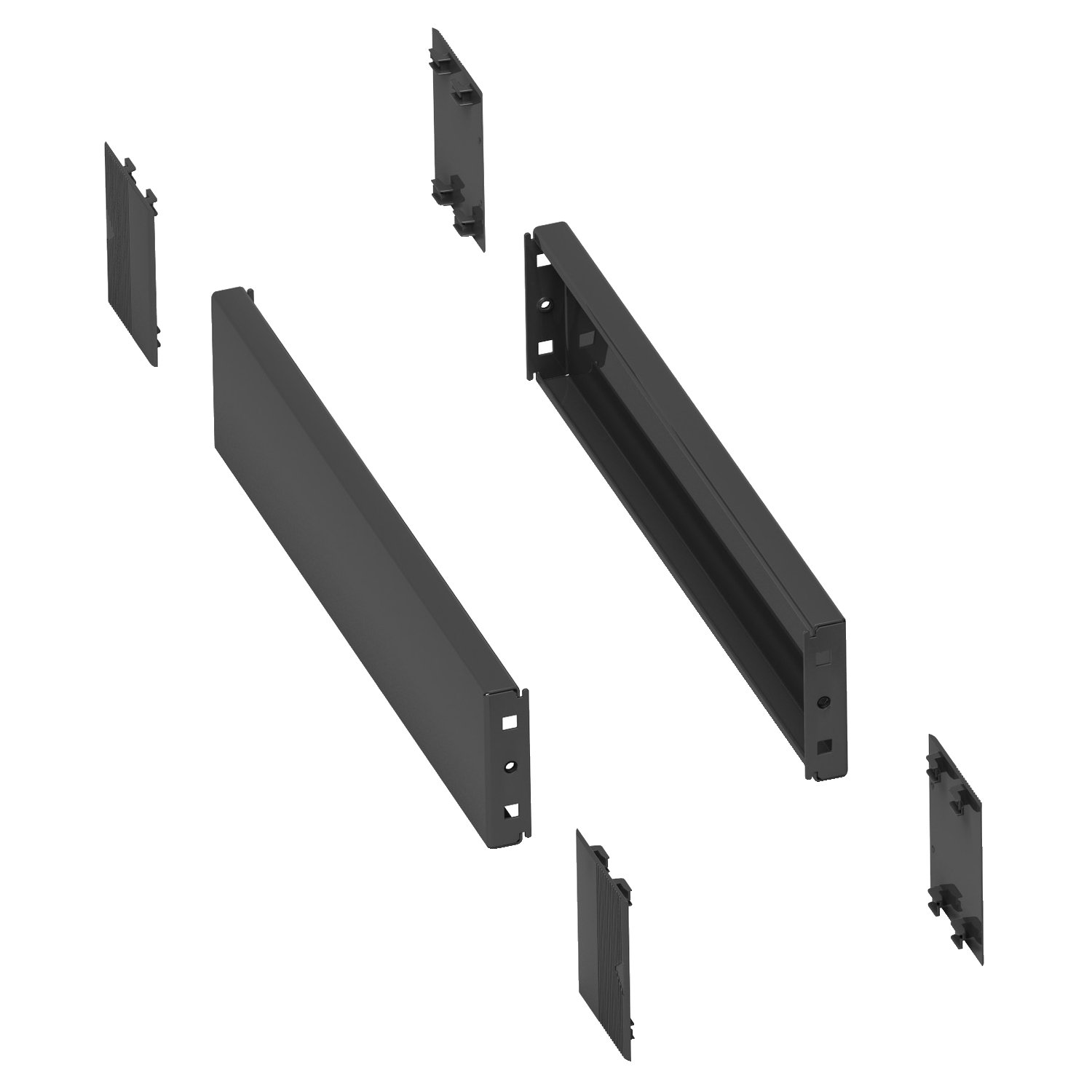

2 side panels for plinth. 400x100mm. Folded sheet steel. RAL 7022. IP 30. IK 10.

Link copied
SKU
EAN
GTIN
MPN

2 side panels for plinth. 400x100mm. Folded sheet steel. RAL 7022. IP 30. IK 10. by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Rexel Group and 1 more. It is currently in stock at 3 of them. Trade prices range from £13.15 to £13.97 excl. VAT. Voltimum+ members earn 2 points per unit.

Plinth side panel to be used with PanelSeT SD, PanelSeT S3D and PanelSeT CRN enclosures The plinth side panel is to be used in multi-purpose applications The nominal width is 400mm The height is 100mm The depth is 400mm The kit is made of fixing elements, 4 corner covers and 2 side panels The product is made of grey Material : Steel (RAL 7022) Anti-corrosion protection is ensured by an epoxy-polyester powder coating Ingress protection rating is IP30 (complete plinth) Mechanical protection rating is IK10 (resistance to external mechanical impacts)

Voltimum+ Loyalty Programme Loyalty points: 2

Price range: £ 13.15 - £ 13.97 Excl. VAT

Specifications

Depth 400 mm
Model Base side set
Width 400 mm
Colour Grey
Height 100 mm
Material Steel
Impact strength -
Max. load capacity -
Suitable for cable patch no
Suitable for aeration/de-aeration no
Suitable for enclosure building width -
