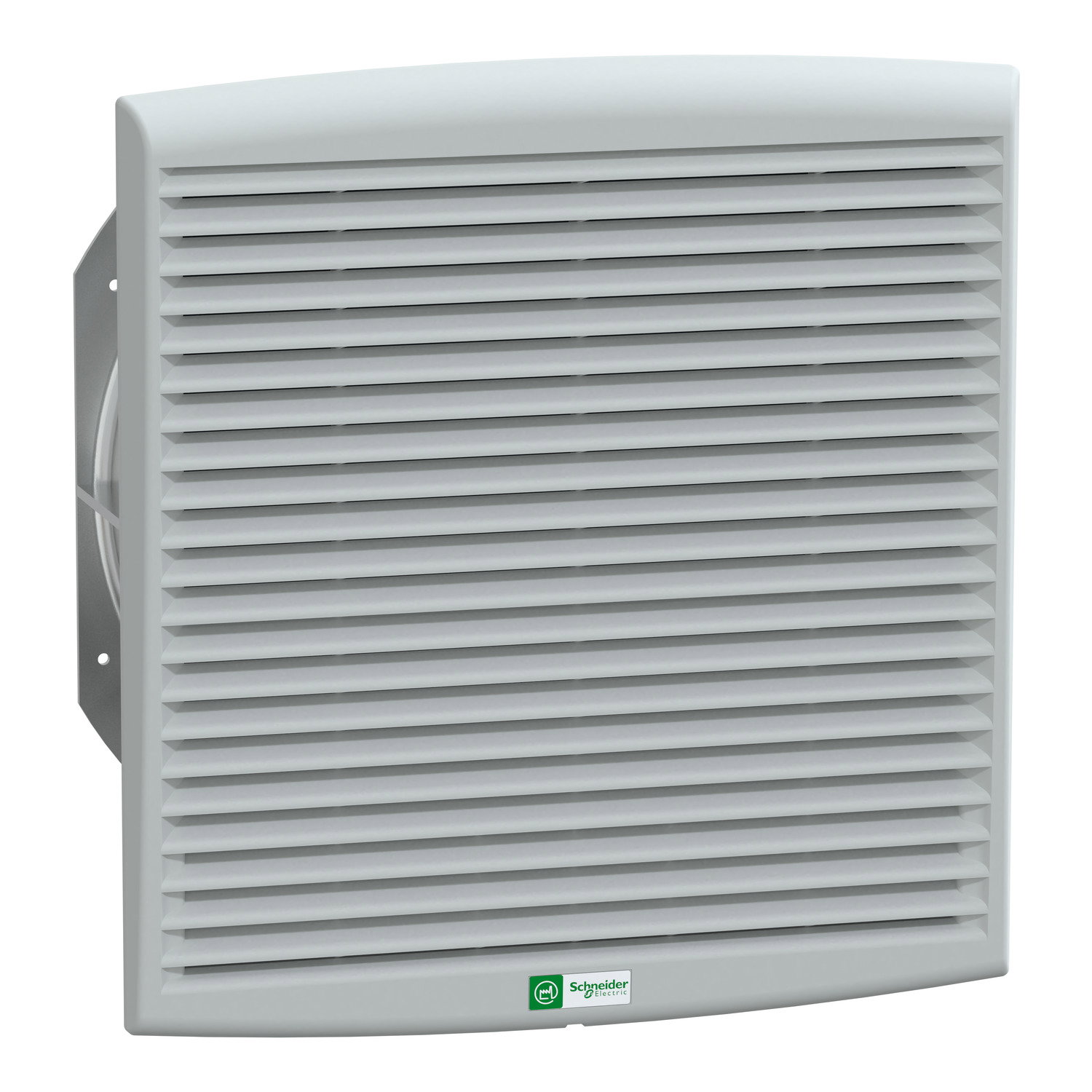

ClimaSys forced vent. IP54, 850m3/h, 230V, with outlet grille and filter G2

ClimaSys forced vent. IP54, 850m3/h, 230V, with outlet grille and filter G2 by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 5 of them. Trade prices range from £158.31 to £227.98 excl. VAT. Voltimum+ members earn 28 points per unit.

This product is a ventilation fan that is designed to provide reliable and efficient cooling It is made of injected thermoplastic (ASA PC) and is available in grey (RAL 7035) color The fan has a ball bearing type and a maximum pressure of 170 Pa It has a power range of 150 W 50 Hz and 195 W 60 Hz, and a free flow rate of 838 m3/h at 50 Hz and 803 m3/h at 60 Hz It can be used in ambient air temperatures ranging from -15 to 60°C It has a terminal block and comes with a filter, an outlet grille, and two protective grilles on the front and rear surfaces It has an IP54 degree of protection and a noise level of 75-76 dB The cut-out dimensions of the fan are 291 x 291 mm This fan also comes with an anti-insect filter included Protection IP54.

Product identifiers

SKU: NSYCVF850M230PF
EAN: 3606480151347
GTIN: 3606480151347
MPN: NSYCVF850M230PF

Voltimum+ Loyalty Programme Loyalty points: 28

Price range: £ 158.31 - £ 227.98 Excl. VAT

Categories

Enclosures & Panels Weatherproof Enclosures

ETIM group

Control cabinet systems

Specifications

Depth 162 mm
Width 316 mm
Colour Grey
Height 336 mm
RAL-number 7035
EMC-version no
Rated power 150 W
With filter yes
Air circulator yes
Number of fans 1
Roof ventilator no
With protective cover yes
Degree of protection (IP) IP54
Operating voltage AC 60 Hz
Degree of protection (NEMA) 13
Suitable for 19 inch rack mounting no
