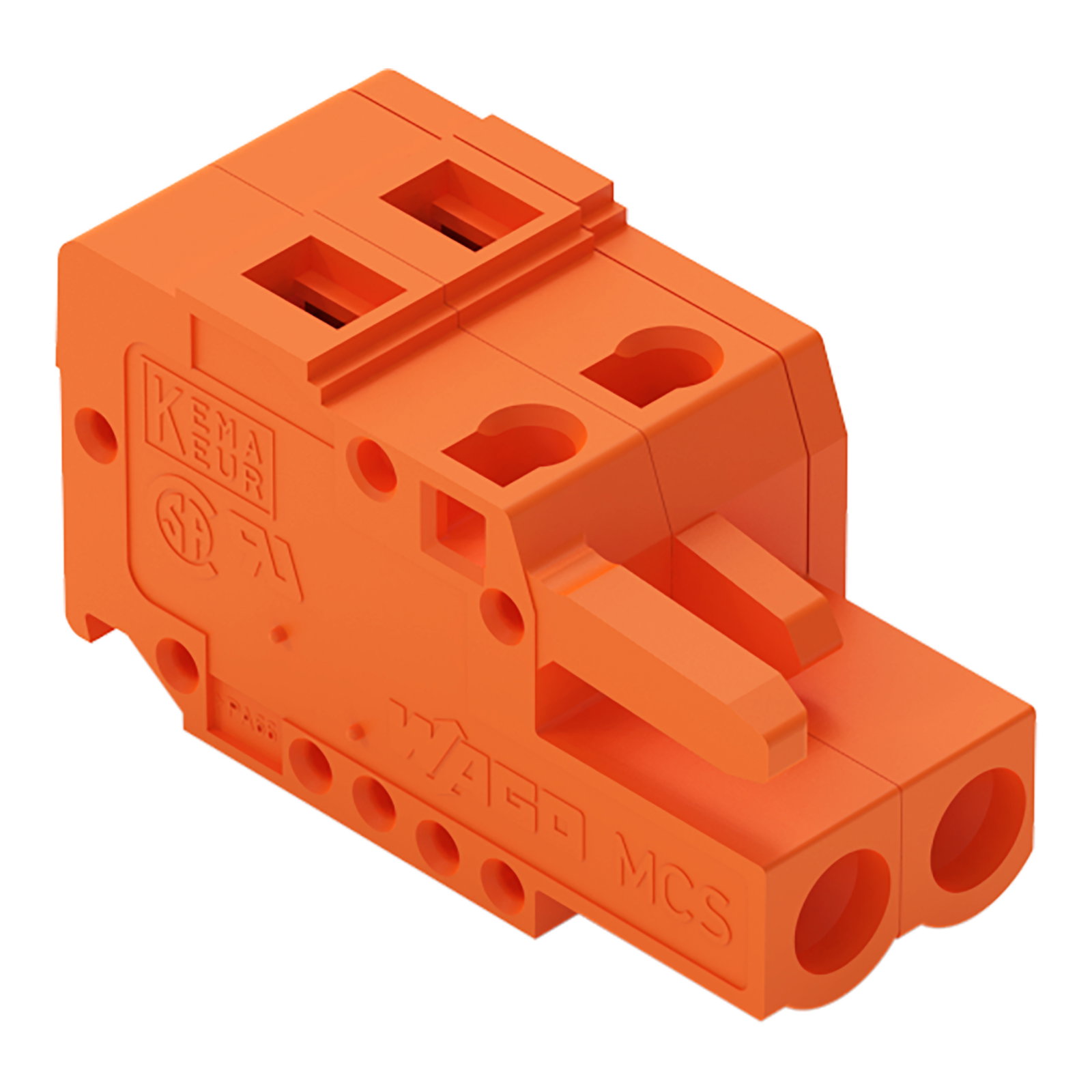

1-conductor female connector CAGE CLAMP® 2.5 mm² orange
1-conductor female connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5.08 mm; 2-pole; orange
Product identifiers
SKU: 231-302/026-000
EAN: 4044918344661
GTIN: 4044918344661
MPN: 231-302/026-000
Loyalty points:
3
Price range: £ 1.27 - £ 1.66 Excl. VAT
Categories
Features
|
EFNA0008
|
V0
|
|
Contact type
|
Bus
|
|
Rated voltage
|
320
|
|
Housing colour
|
Orange
|
|
Coating housing
|
Uncoated
|
|
Number of poles
|
2
|
|
Housing material
|
Plastic
|
|
Material contact
|
Other copper alloys
|
|
Pollution degree
|
2
|
|
Rated current In
|
16
|
|
Type of connection
|
Printed circuit board to cable
|
|
Rated surge voltage
|
4
|
|
Operating temperature
|
-60 - 85
|
|
Over voltage category
|
III
|
|
Connectable cable type
|
Tubular cable
|
|
Material insulation body
|
Thermoplastic
|
|
Modular spacing contacts
|
5.08
|
|
With protective conductor
|
no
|
|
Material of contact surface
|
Tin
|
|
Modular spacing connections
|
5.08
|
|
Type of electric connection
|
Spring clamp connection
|
|
RAL-number (similar) housing
|
-
|
|
Number of plug-in contact rows
|
1
|
|
Angle contact/conductor connection
|
180° (horizontal)
|
|
Degree of protection (IP), mounted
|
IP20
|
|
Connectable conductor cross section solid-core
|
0.08 - 2.5
|
|
Connectable conductor cross section multi-wired
|
0.08 - 2.5
|
|
Connectable conductor cross section fine-strand with cable end sleeve
|
0.25 - 21.5
|
|
Connectable conductor cross section fine-strand without cable end sleeve
|
0.08 - 2.5
|
