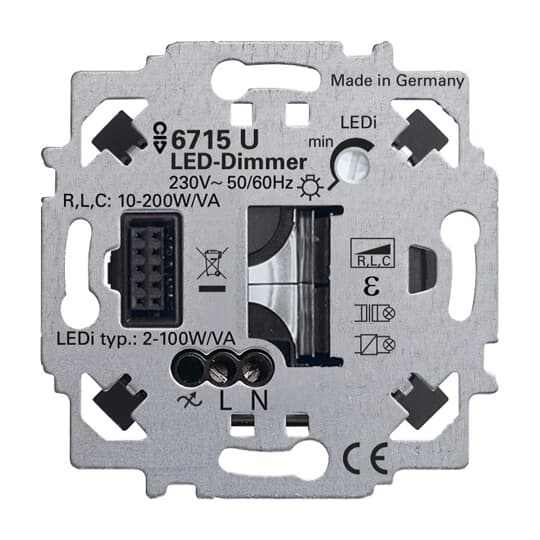

Dimmer insert Touch control button 230 V 2...100 V·A

Touch dimmer. For wireless switching and dimming of electrical loads. 3 wire connection (neutral conductor required). Optimised for dimming of retrofit LED lamps (LEDi). For incandescent lamps, 230V tungsten halogen lamps and low-voltage halogen lamps with conventional transformers or electronic transformers and dimmable halogen energy-saving lamps. Mix operaton of LEDi with conventional loads possible. With adjustable minimum brightness. The minimum brightness for the leading edge control can be adjusted using the potentiometer. The potentiometer at the left limit stop corresponds with the trailing edge control mode. Low-noise level by MOSFET transistors. Short-circuit-proof and overload-protected (electronic fuse). With light-level memory and minimum brightness memory. Without control cover. For ZigBee Light Link control element 6735-xxx, 6736-xxx and 6737-xxx. Nominal power: 2 - 100 W/VA (retrofit LED loads). Nominal power: 10 - 200 W/VA (non-LED loads).
