MPC 18 POINTS 8UI 4 DO

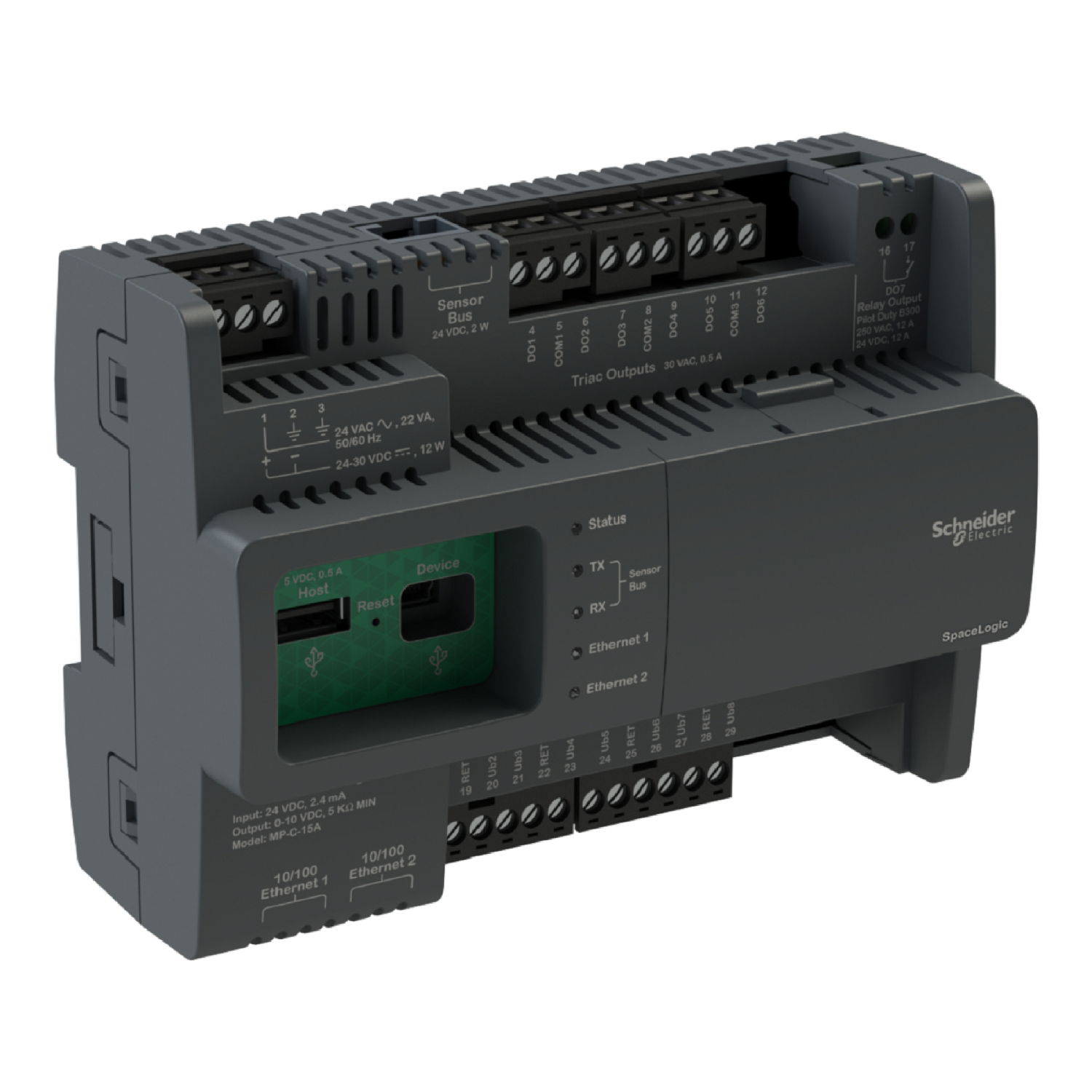

SpaceLogic MP-C Controller is a multi-purpose, fully programmable, IP based field controller ideal for plant room HVAC control. The MP-C models offer a flexible mix of I/O point types that suit a wide range of HVAC applications. It can be used as a standalone BACnet/IP controller or as part of an EcoStruxure BMS with a SpaceLogic AS-P or AS-B server or an Enterprise Server. The MP-C models support an optional display that provides insight and control of the inputs and outputs. The MP-C-18A has 10 Universal I/O Type Ub, 4 DO Triacs, 3 Form A Relays and 1 HP Relay I/O point. It supports the SpaceLogic IP-IO Expansion Modules for extended I/O point count. Its dimensions are 110 mm (4.3 in.) in height, 153 mm (6.0 in.) in width and 64 mm (2.5 in.) in depth. It is a UL 916 (Open Class Energy Management Equipment) listed product for the United States and Canada - UL file E80146. The device can be mounted in a DIN rail or other flat surface inside a cabinet. Available spare parts are terminal blocks (SXWMPCCON10001), DIN-RAIL-CLIP/end clip (SXWDINEND10001), eCommission Bluetooth Adapter (SXWBTAECXX10001).
