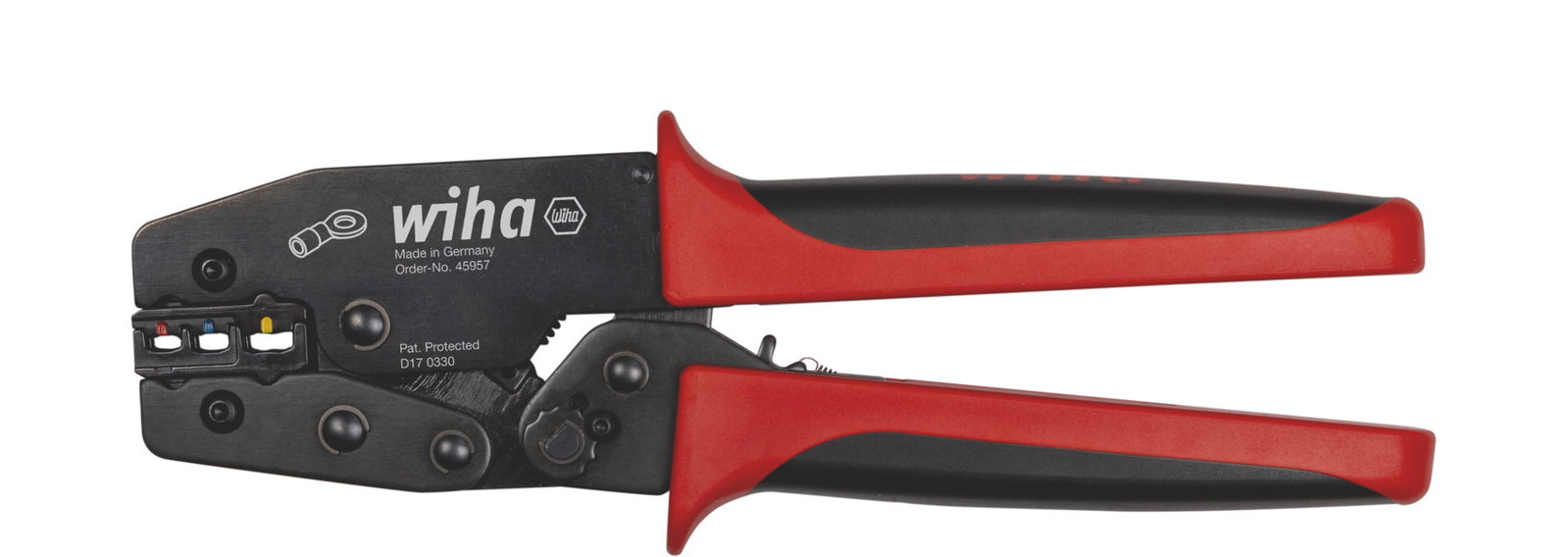

Wiha Crimping tools for insulated cable eyes and contacts 0,5 - 6,0 mm² 220 mm (45957)

Product dimensions: 220 x 80 x 25 mm (LxWxD)

Application: For processing red, blue and yellow insulated cable lugs, pin terminals, male blade connectors, female blade connectors, circular pins, butt connectors and parallel connectors.

For processing insulated cable lugs and contacts from 0.5 - 6.0 mm²

High quality crimping thanks to automatically adjusted pressure force

Cancel manually by emergency unlocking

Conventional use of crimping pliers poses a risk that cable lugs will snag in the pliers or be crimped incorrectly. The crimping pliers with oval crimping (O-Crimp) from Wiha can eliminate unnecessary waste of cable and wire-end sleeves. They have a crimping range from 0.5 to 6 mm², which covers a large part of all possible applications. Thanks to the color coding of the crimping ranges, the red area can be used for crimping connectors insulated in red from 0.5 to 1.0 mm², the blue area for connectors insulated in blue from 1.5 to 2.5 mm² and the yellow area for connectors insulated in yellow from 4 to 6 mm².

Crimping according to DIN 46231, DIN 46237, DIN 46245 part 1-3.
