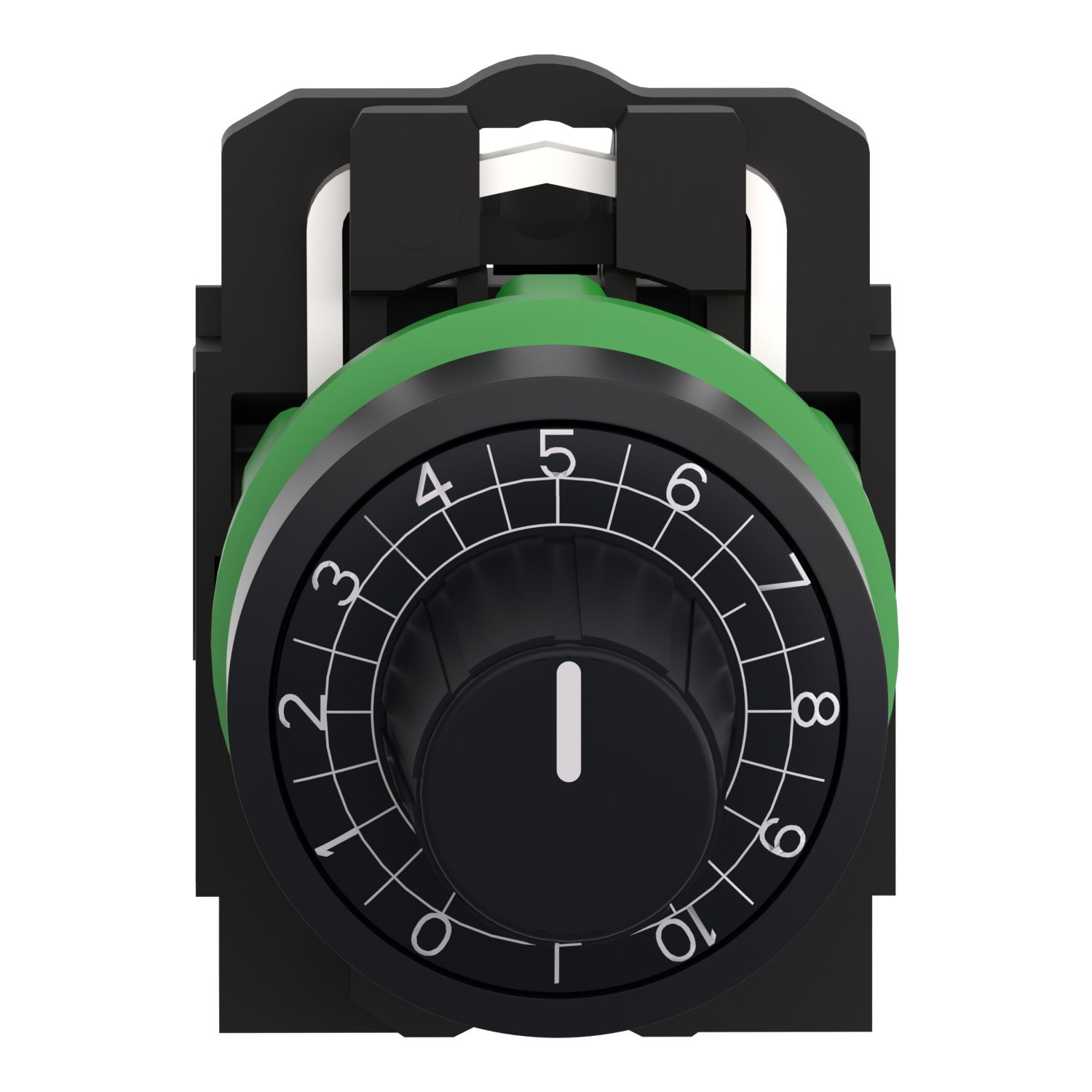

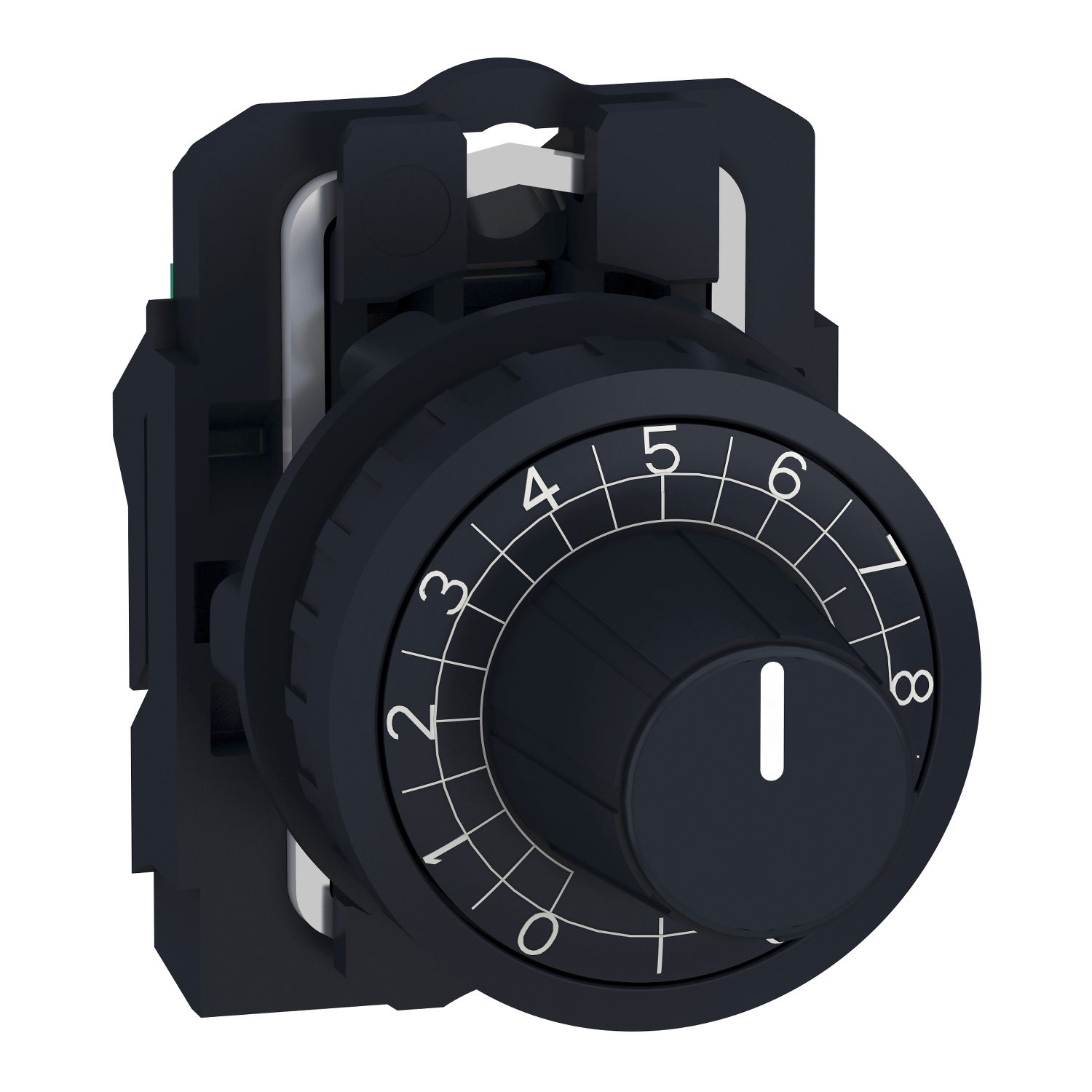

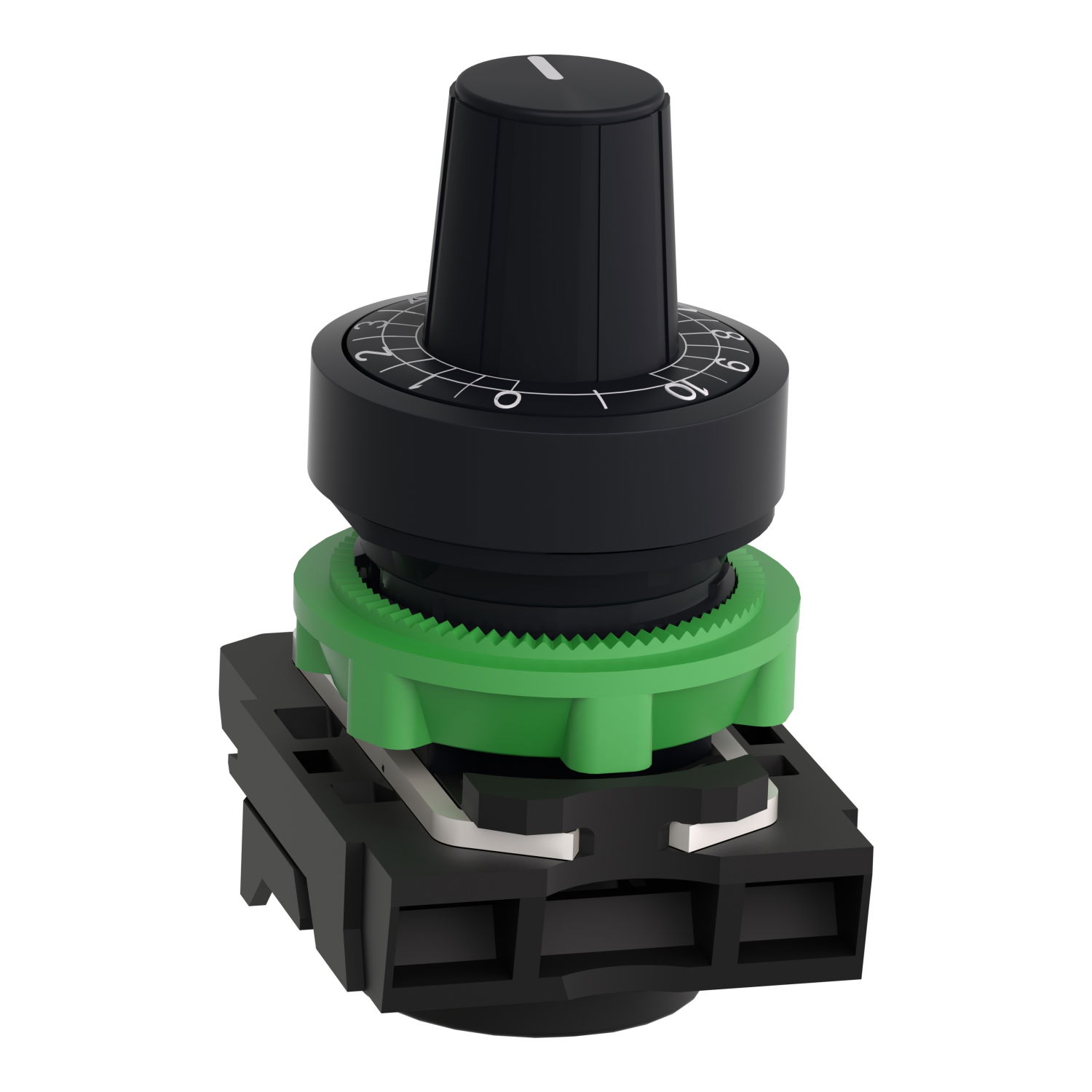

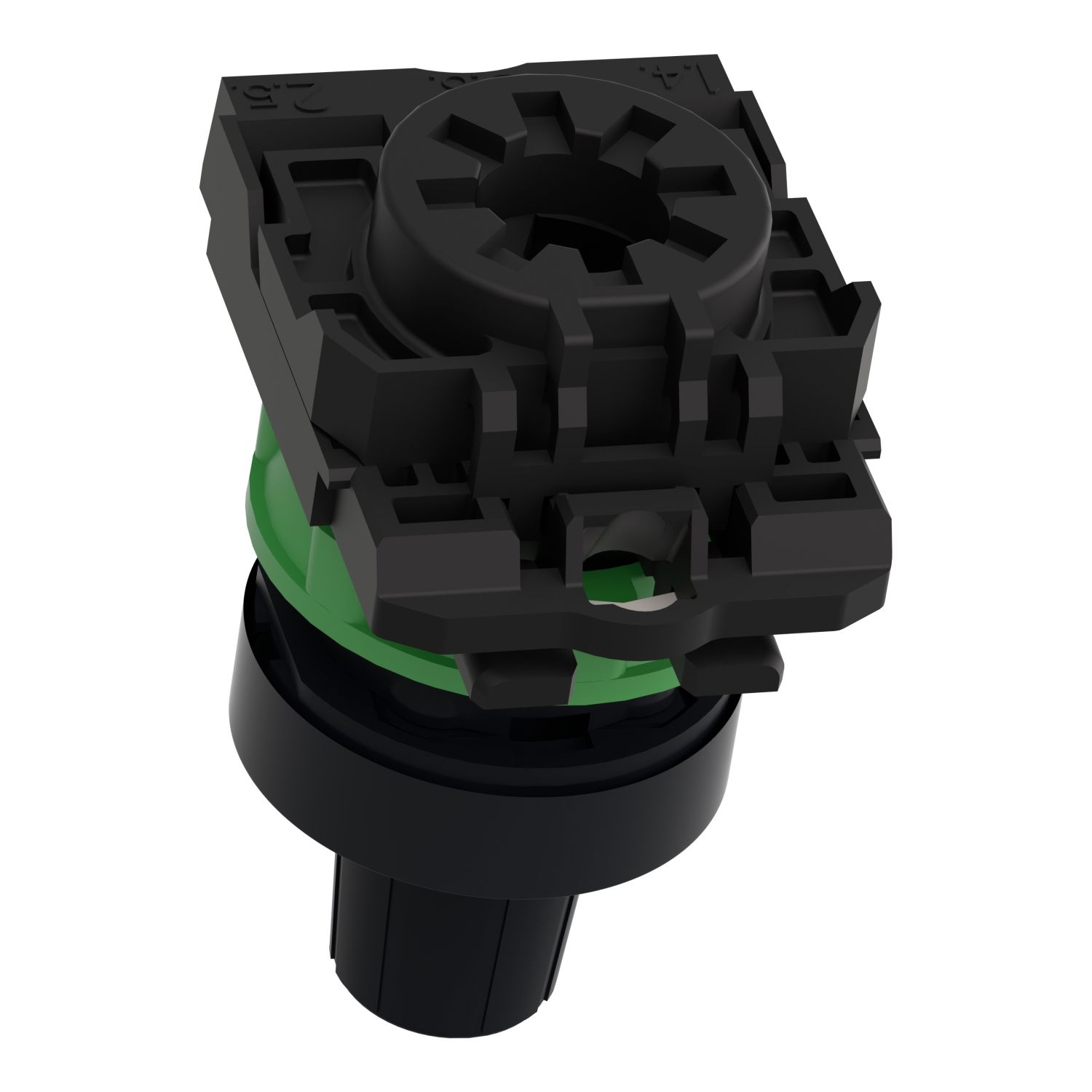

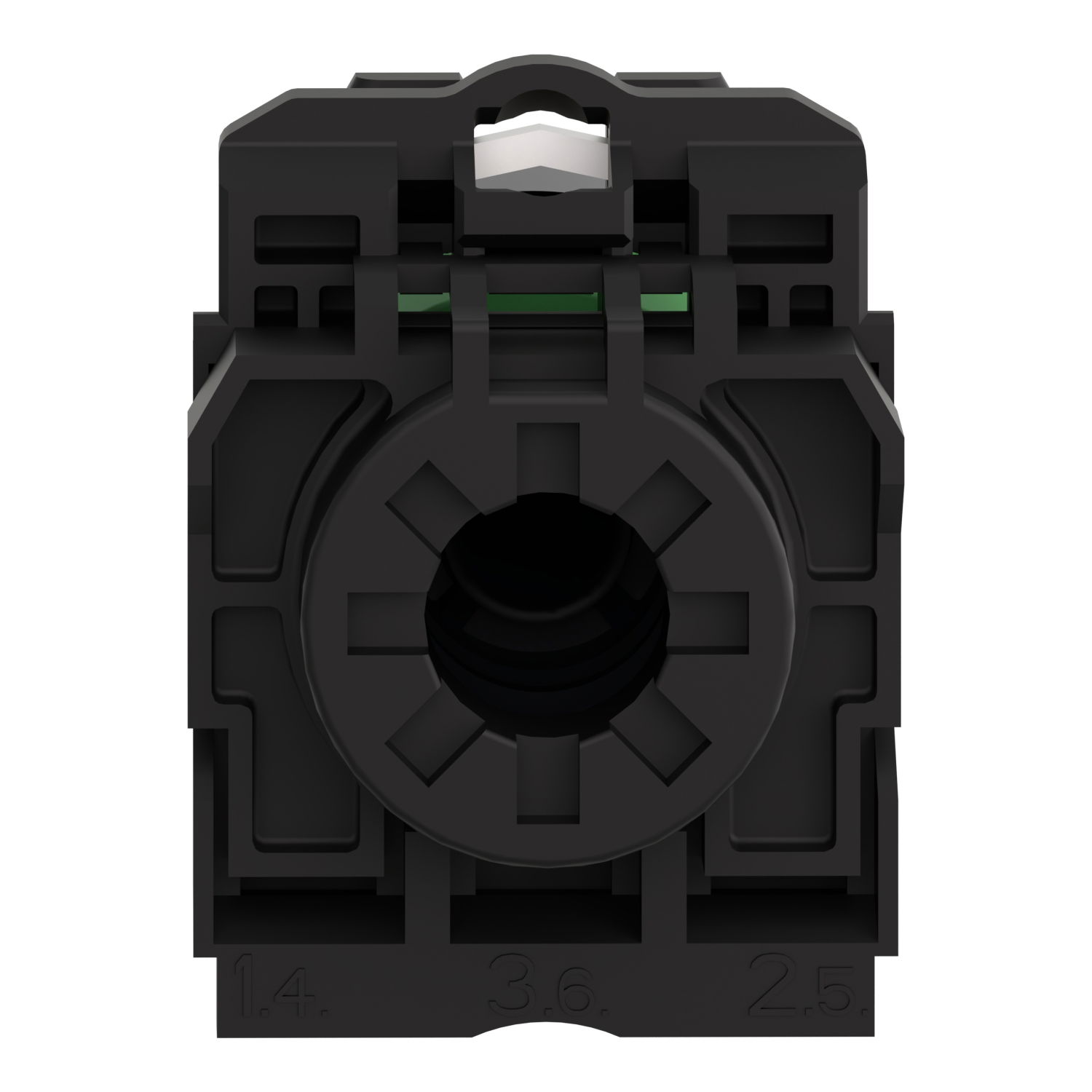

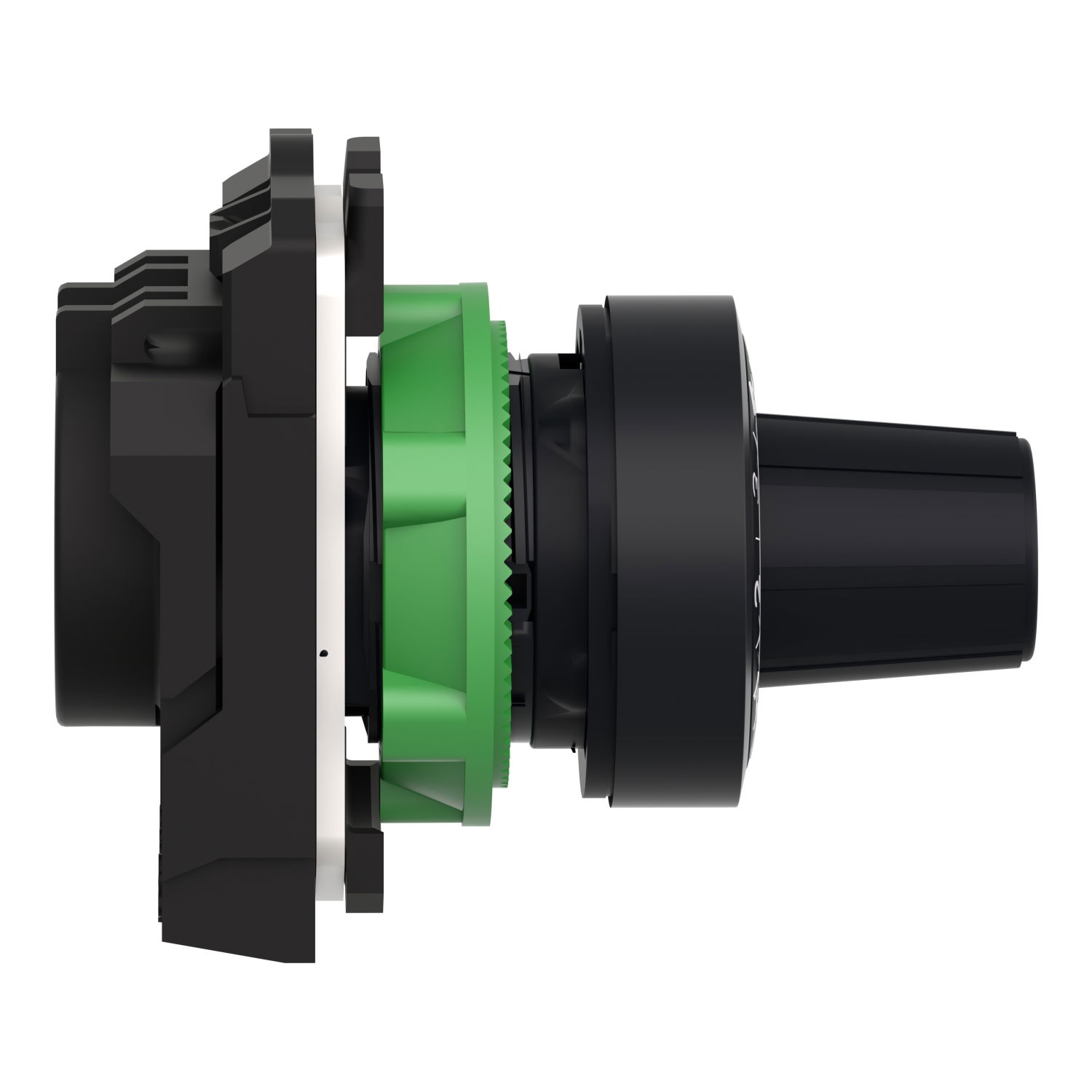

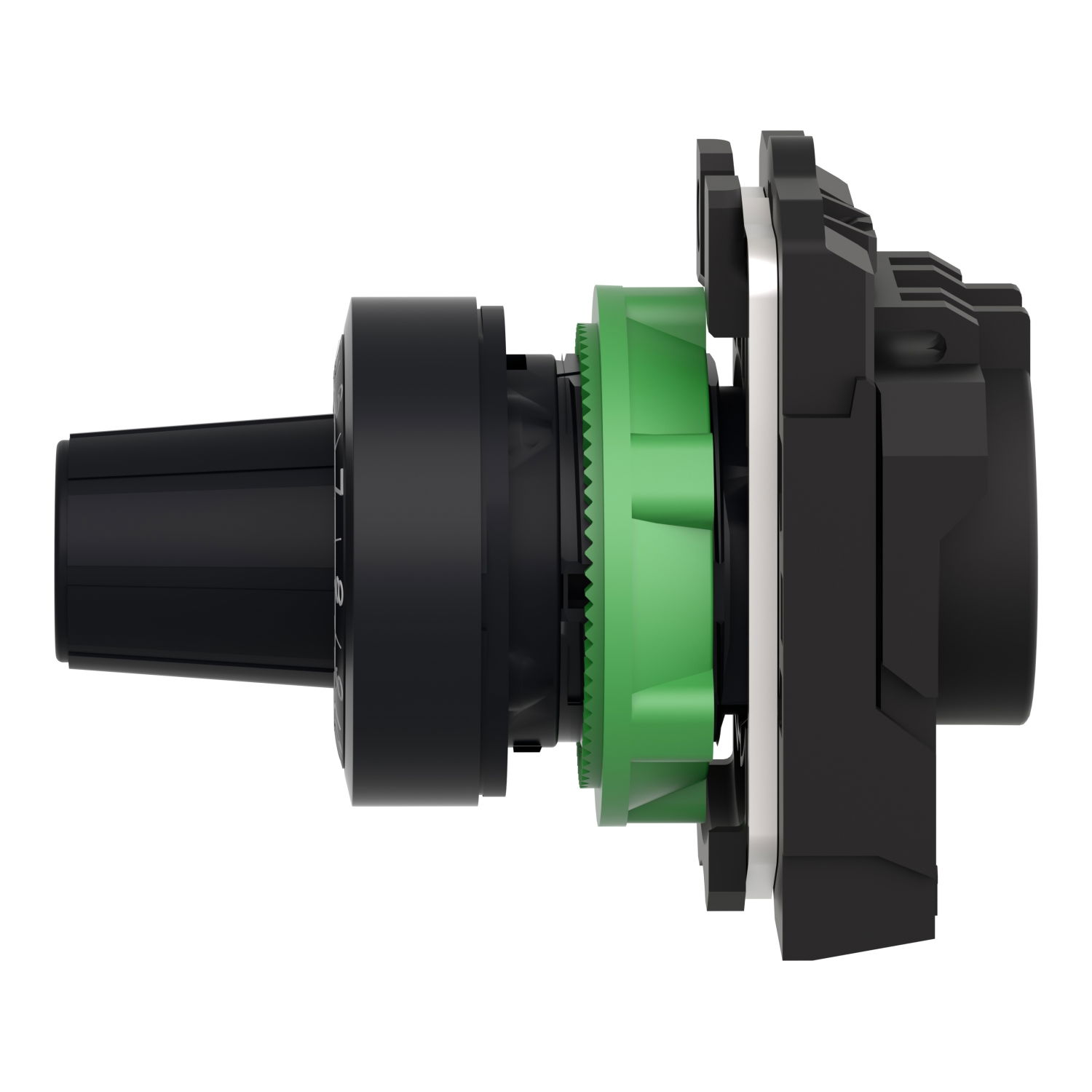

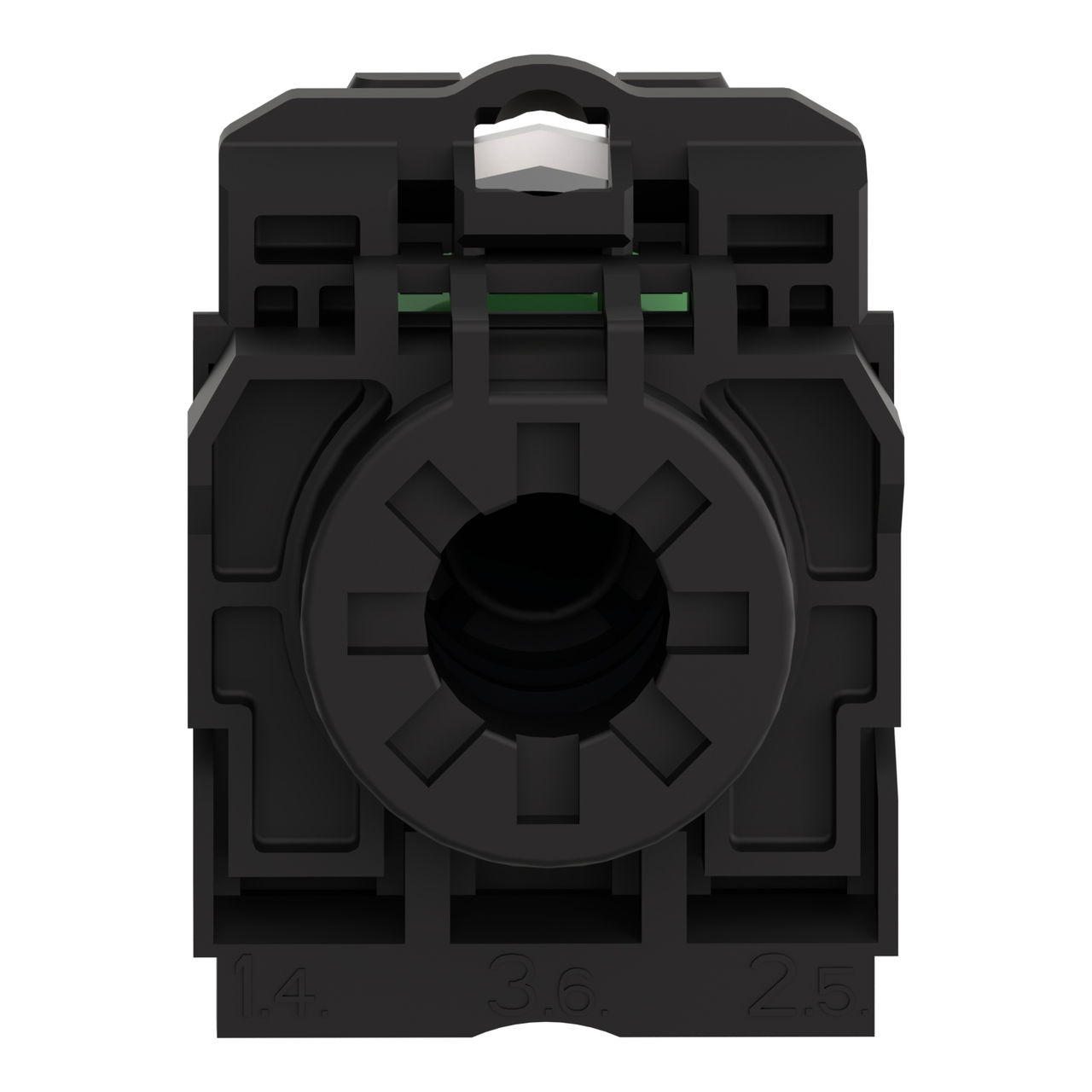

Head Ø22 + mounting base for potentiometer

Link copied
SKU
EAN
GTIN
MPN

Head Ø22 + mounting base for potentiometer by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 1 more. It is currently in stock at 2 of them. Trade prices range from £46.33 to £73.11 excl. VAT. Voltimum+ members earn 10 points per unit.

This Harmony XB5,head and mounting base is used for potentiometer application. This head and mounting base for potentiometer provides an ergonomic external interface for controlling your machines thanks to its knurled knob head. It is ideal for controlling key parameters of automation components like drives and inverters and is easily installed and replaced on compatible potentiometers. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It has a metal bezel, this makes it ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Voltimum+ Loyalty Programme Loyalty points: 10

Price range: £ 46.33 - £ 73.11 Excl. VAT

Specifications

Hole diameter 22.5 mm
Spring-return no
Width opening -
Height opening -
With front ring yes
Colour front ring Black
Material front ring Plastic
Suitable for lighting no
Construction type lens Round
Colour indicator light cap -
Degree of protection (NEMA) 13
Degree of protection (IP), front side IP66

Documents

Declaration of Conformity (Sustainability)

ZB5AD922 REACh Regulation

Open

Instruction sheet

XB4-XB5 - Mounting, Instruction Sheet

Open

Product data sheet

Open

Catalog

Discover the Harmony XB5 plastic Control and signaling units catalog

Open

Declaration of Conformity (Sustainability)

ZB5AD922 EU RoHS Directive

Open

Declaration of conformity

XB4B, XB5A/D/E/K, Control and signaling units, XD4P, XD5P Joystick Controllers

Open

Environmental Disclosure

XB5 Plastic Selector Switch, Product Environmental Profile, IA

Open

Circularity Profile

XB5 Plastic Selector Switch, EOLI, IA

Open
