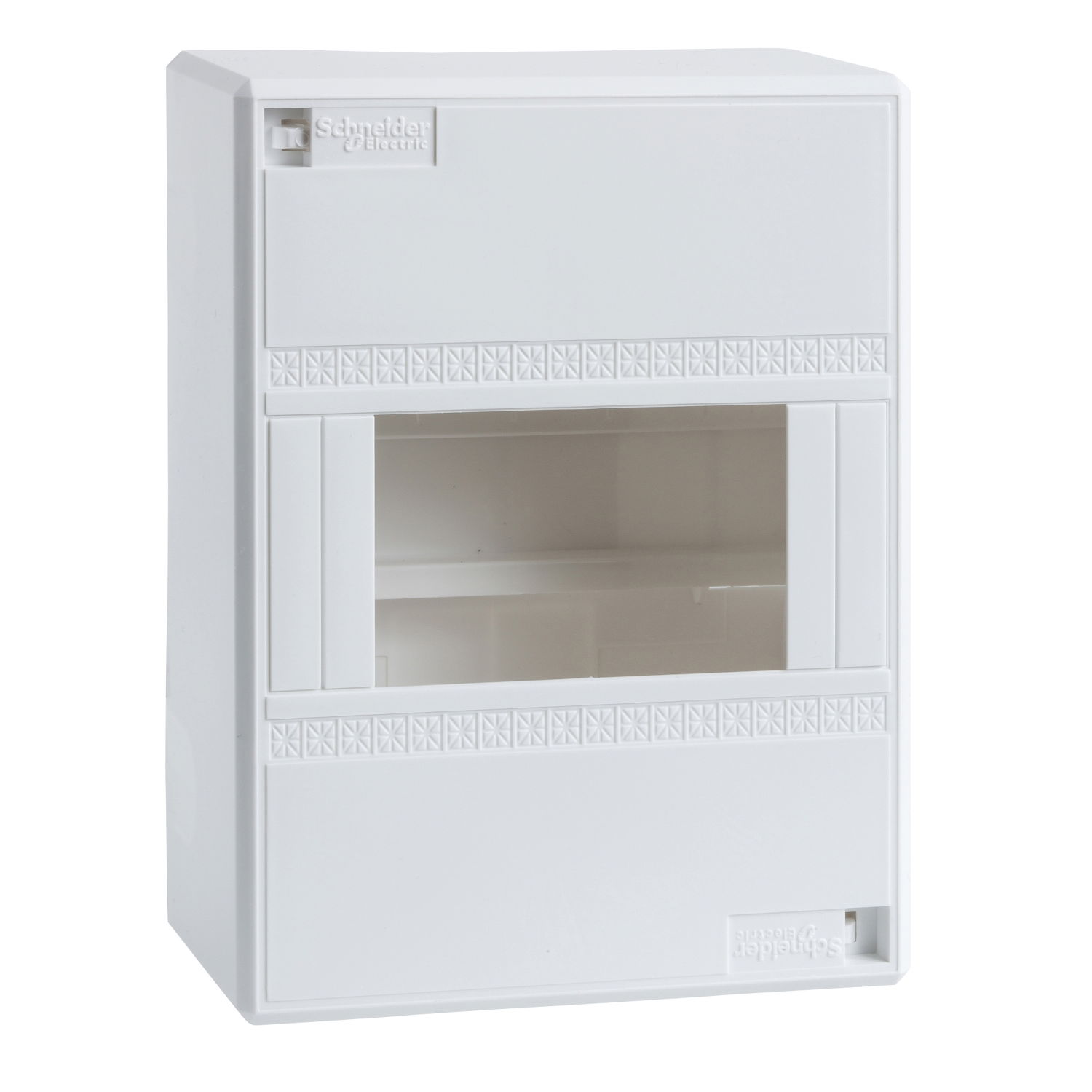

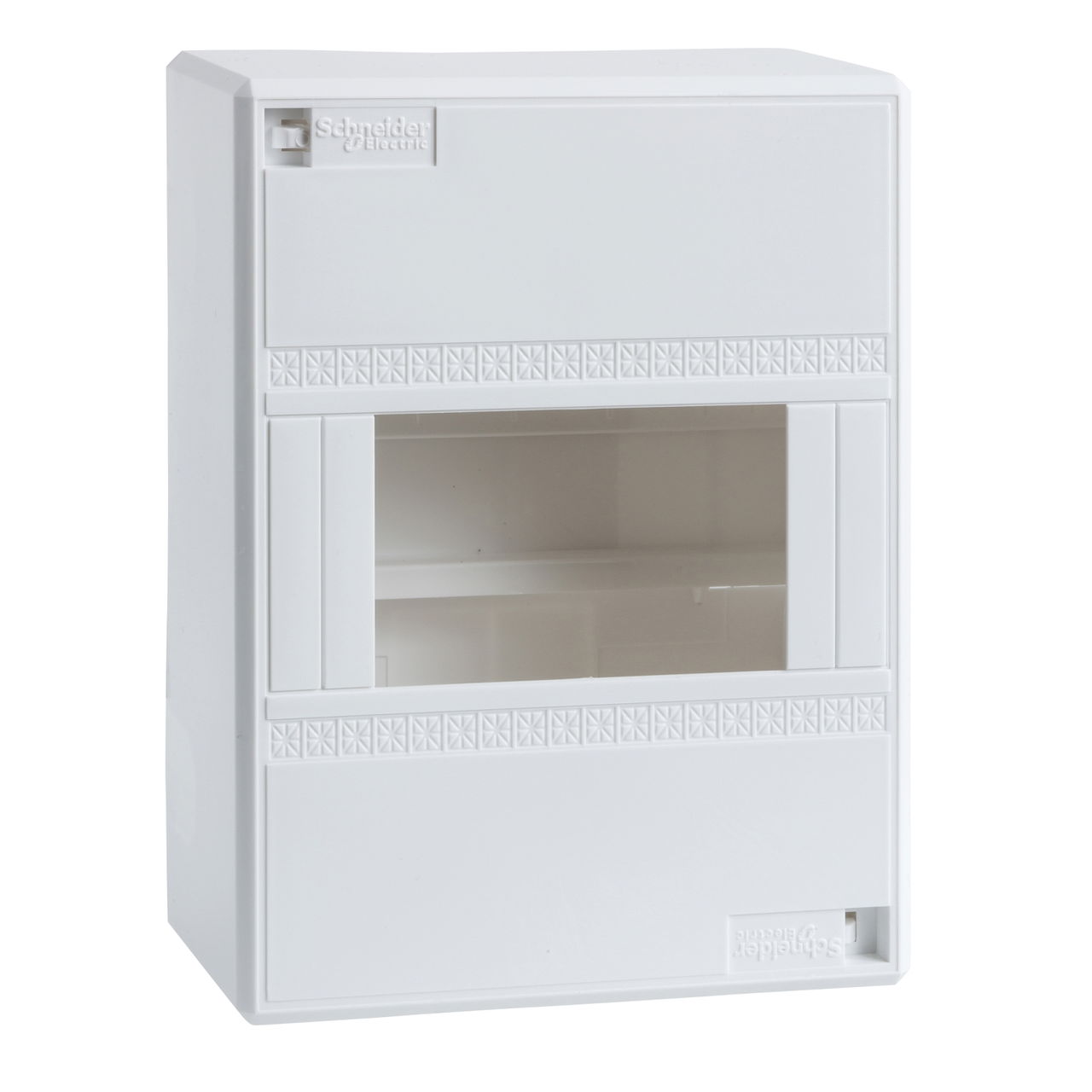

Mini Opale surface enclosure - IP 30 - 1 x 6 modules - without door

Link copied
SKU
EAN
GTIN
MPN

Mini Opale surface enclosure - IP 30 - 1 x 6 modules - without door by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £32.59 excl. VAT. Voltimum+ members earn 4 points per unit.

This Mini Opale product is a surface distribution enclosure. The door is not provided with the enclosure. It is composed of 1 row of 6 modules of 18mm. The IP degree of protection is IP30.

Voltimum+ Loyalty Programme Loyalty points: 4

Price: £ 32.59 Excl. VAT

Specifications

Depth 65 mm
Width 119 mm
Colour White
Height 160 mm
DIN-rail yes
With lock no
RAL-number 9003
Cover model With notch
Inner depth 52 mm
UV resistant no
Built-in width -
Built-in height -
Type of closure Other
Type of covering Cover
Signal passing door no
Neutral terminal block no
Earthing terminal block no
Width in number of modular spacings 6

Documents

Declaration of Conformity (Sustainability)

13396 REACh Regulation

Open

Product data sheet

Open

Declaration of Conformity (Sustainability)

13396 EU RoHS Directive

Open

Declaration of Conformity (Sustainability)

13396 Ship Recycling Directive

Open

Declaration of Conformity (Sustainability)

13396 POP Directive

Open

Declaration of Conformity (Sustainability)

13396 OECD PFAS Regulation

Open

Environmental Disclosure

Resi9 - Enclosure 3x13 Modules - Product Environmental Profile

Open

Circularity Profile

Resi9 - Enclosure 3x13 Modules - Product End of Life Instructions

Open
