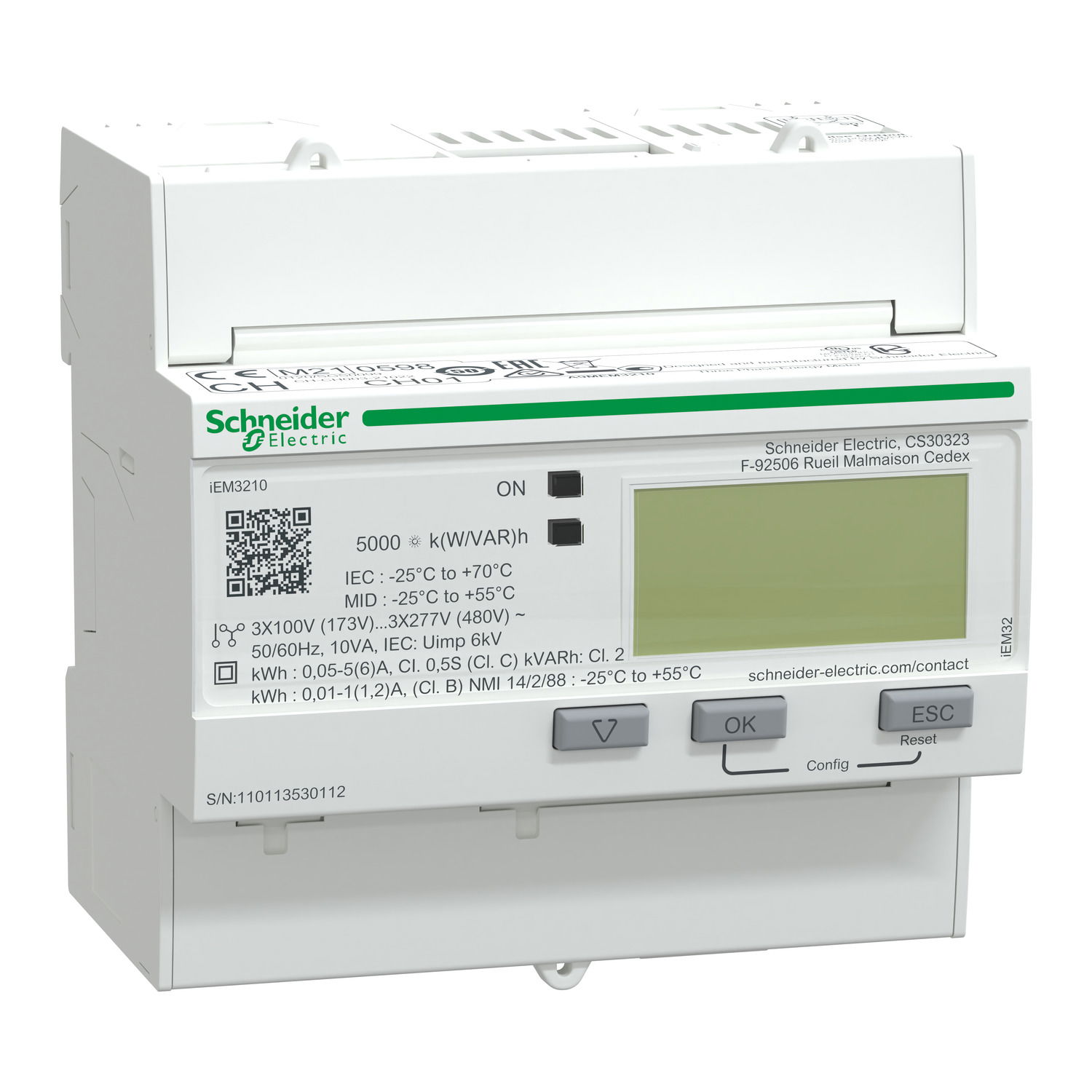

IEM3210 energy meter - CT - 1 pulse O - MID

Link copied
SKU
EAN
GTIN
MPN

IEM3210 energy meter - CT - 1 pulse O - MID by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, RS Components, Rexel Group and 1 more. It is currently in stock at all of them. Trade prices range from £309.44 to £431.08 excl. VAT. Voltimum+ members earn 51 points per unit.

The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking and communication indicators. This meter can be used in sub-billing and partial metering applications. The meter provides the following accuracy classes: Active Energy: class 1 per IEC 62053-21, Active Energy: class B per EN 50470-3 and Active Energy: class 1 per IEC 61557-12. The meter will measure Active and Reactive Power, Active and Reactive Energy. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC. The rated current goes through a 1A or 5A transfomer to be measured in this meter and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations. Communication protocol is Modbus with screw terminal support. There is one digital pulsed output for energy reading. Certifications include EAC, CE, UL and MID. Product dimensions are as follows: width 3.54 in (90 mm), depth 2.72in (69 mm), height 3.74 in (95 mm) and product weight 9.17 oz (260 g).

Voltimum+ Loyalty Programme Loyalty points: 51

Price range: £ 309.44 - £ 431.08 Excl. VAT

Specifications

Depth 69 mm
Model Measurement transformer
Width 90 mm
Height 95 mm
Approval Measuring Instruments Directive
Frequency
Pole type Three conductor/four conductor
Calibrated no
Pulse type S0
Tariff type One-tariff
Suitable for Purchase
Accuracy class C
With lock code no
Mounting method DRA (DIN-rail adapter)
Type of interface None
Max. current (Imax) 6 A
Nominal current (In) 5 A
Nominal voltage (Un) N-L
Degree of protection (NEMA) 1
Number of positions total (counter) 9

Documents

Declaration of Conformity (Sustainability)

A9MEM3210 REACh Regulation

Open

User guide

iEM3100 / iEM3200 / iEM3300 series- User Manual

Open

Instruction sheet

iEM3210 / iEM3215 / iEM3235 / iEM3255 / iEM3265 / iEM3275 - Instruction sheet

Open

Product data sheet

Open

Catalog

Acti9 Isobar P Active Safety System

Open

Declaration of Conformity (Sustainability)

A9MEM3210 EU RoHS Directive

Open

Declaration of conformity

iEM32xx_IEC / EN 61557-12_DoC

Open

Environmental Disclosure

Acti 9 iEM31/32XX energy meter, Environmental Disclosure, Product Environmental Profile

Open
