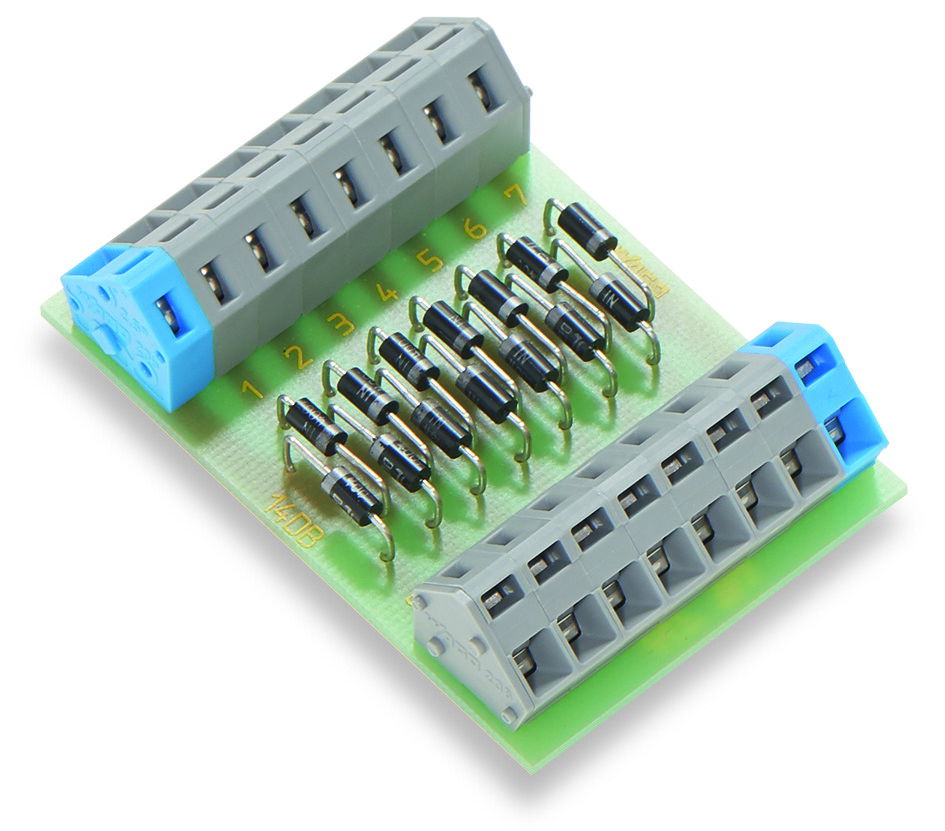

Component module with diode with 14 pcs Diode 1N4007

Name: Component module with diode with 14 pcs Diode 1N4007
Brand: Wago
SKU: 289-111
Availability: OutOfStock

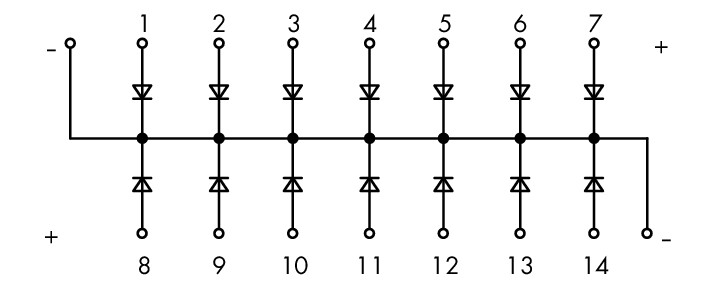

Component module with diode; with 14 pcs; Diode 1N4007; with common cathode; 2,50 mm²

Product identifiers

SKU: 289-111

EAN: 4045454192761

GTIN: 4045454192761

MPN: 289-111

Price: £ 30.22 Excl. VAT

Terminal blocks

Specifications

Depth	32
Width	42.5
Colour	Other
Height	65.5
EFNA0008	V0
Rated voltage	250
Mounting method	Other
Number of levels	1
Rated current In	1
Type of component	Diode
Operating temperature	-25 - 40
Closing plate required	yes
Material insulation body	Thermoplastic
Internally connected stages	no
Explosion-tested version 'Ex e'	no
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of clamp positions per level	14
Connectable conductor cross section solid-core	0.08 - 2.5
Connectable conductor cross section multi-wired	0.08 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 1.5
Connectable conductor cross section fine-strand without cable end sleeve	0.08 - 2.5
