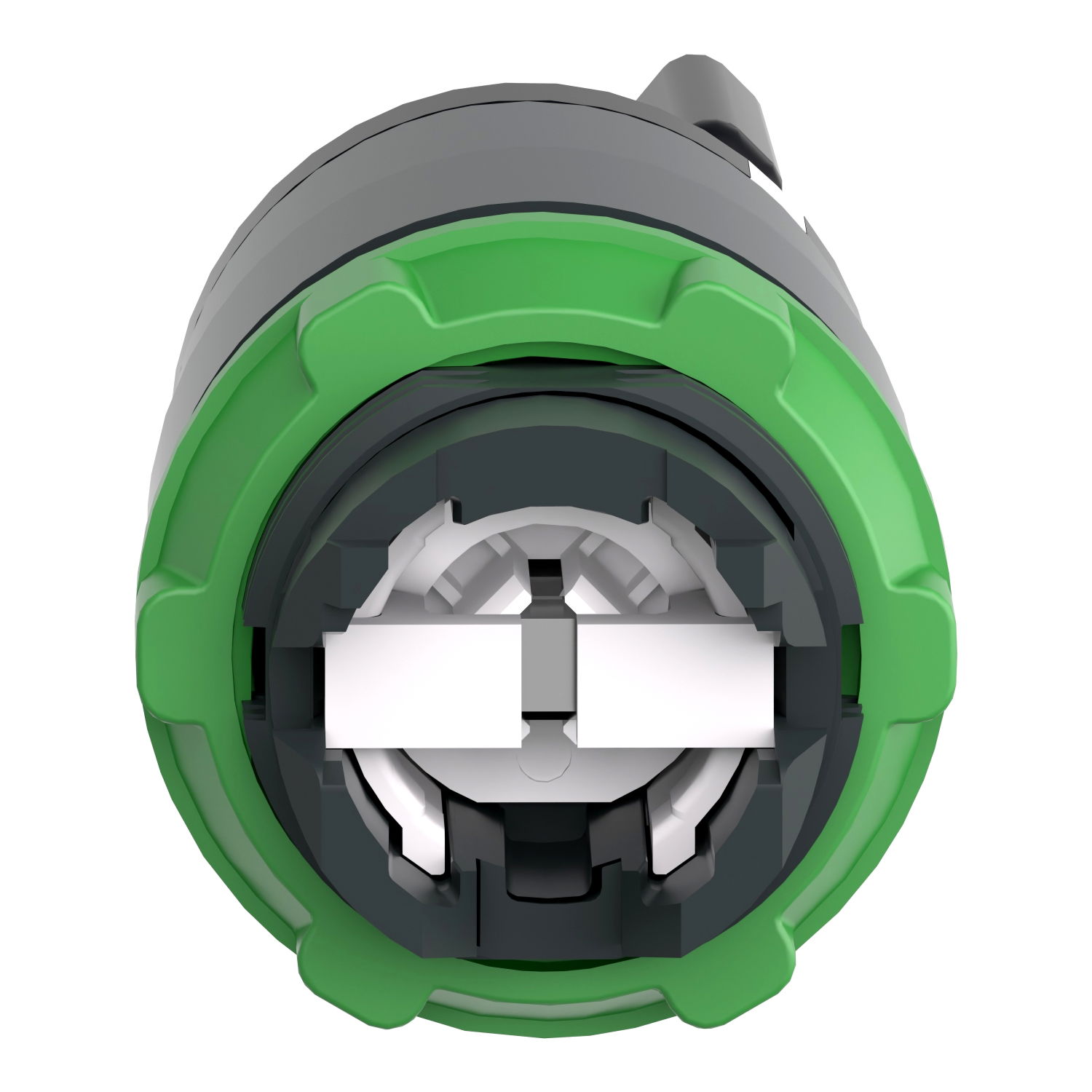

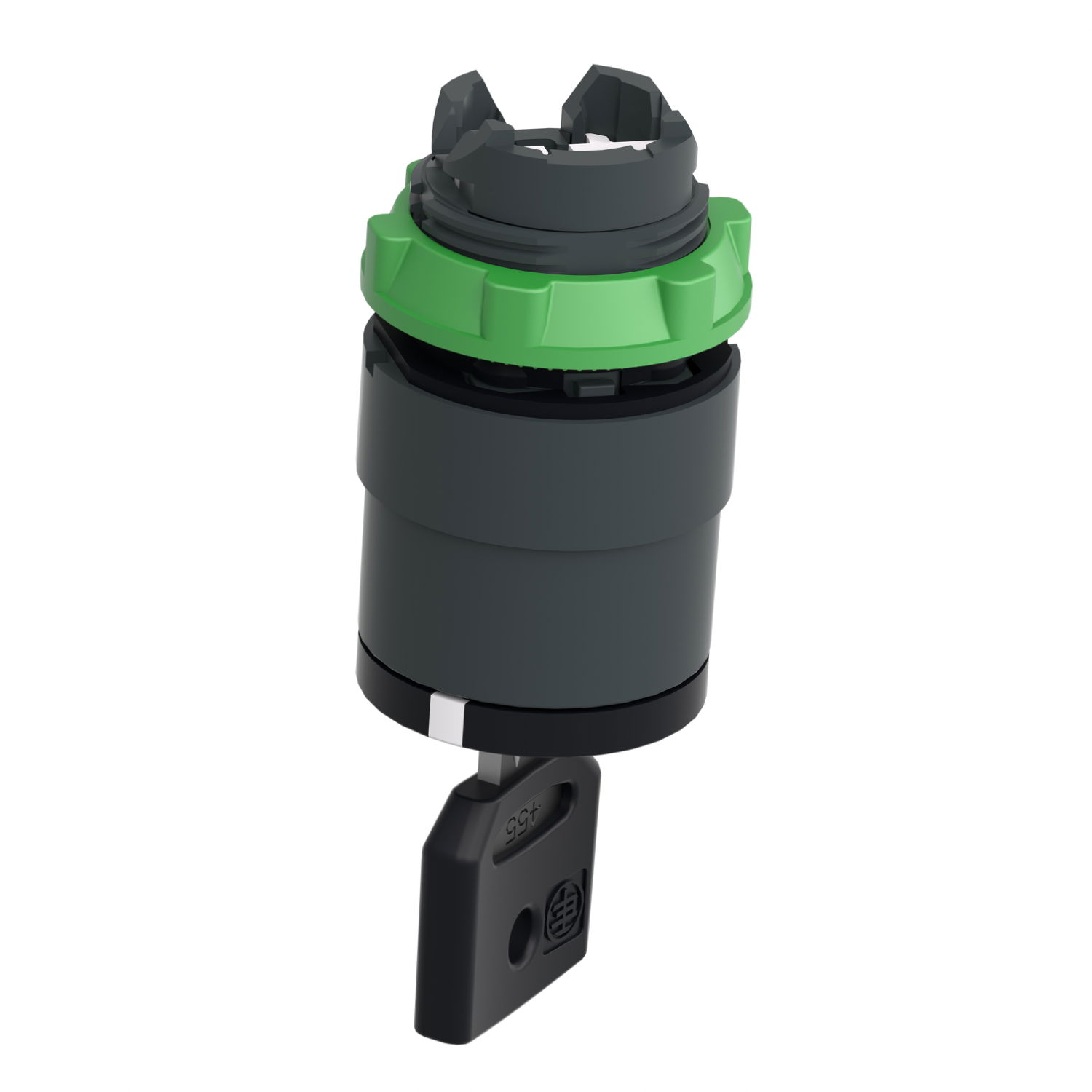

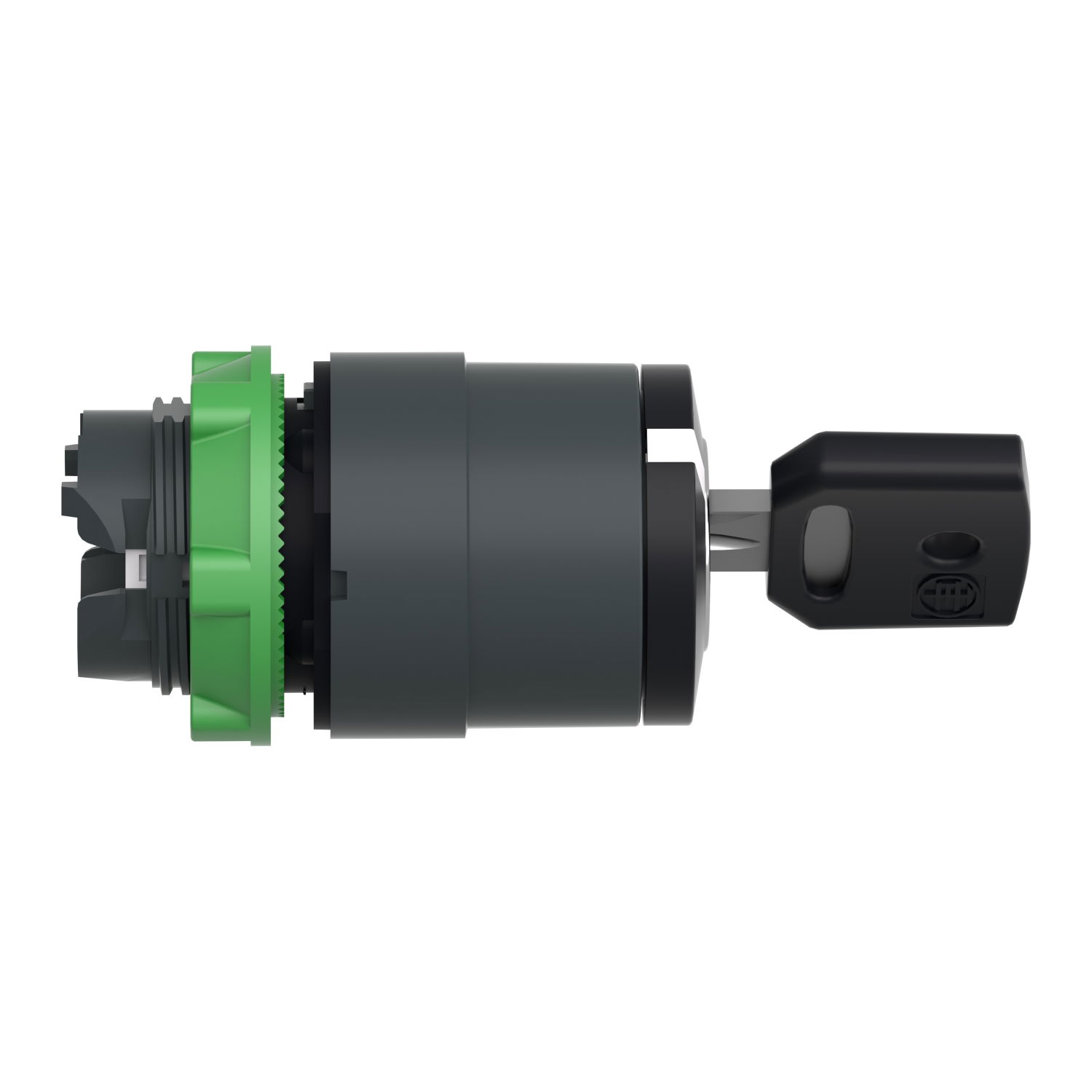

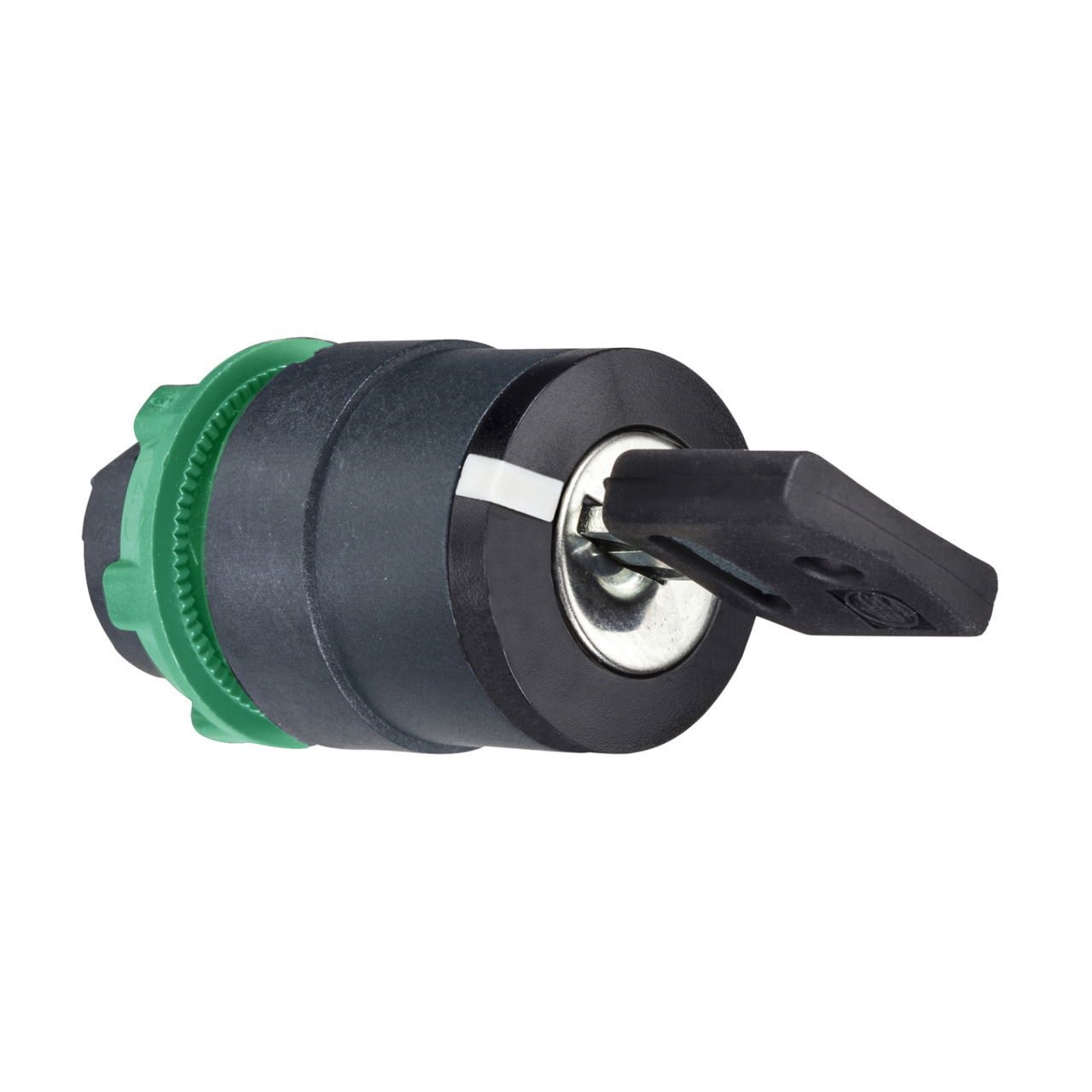

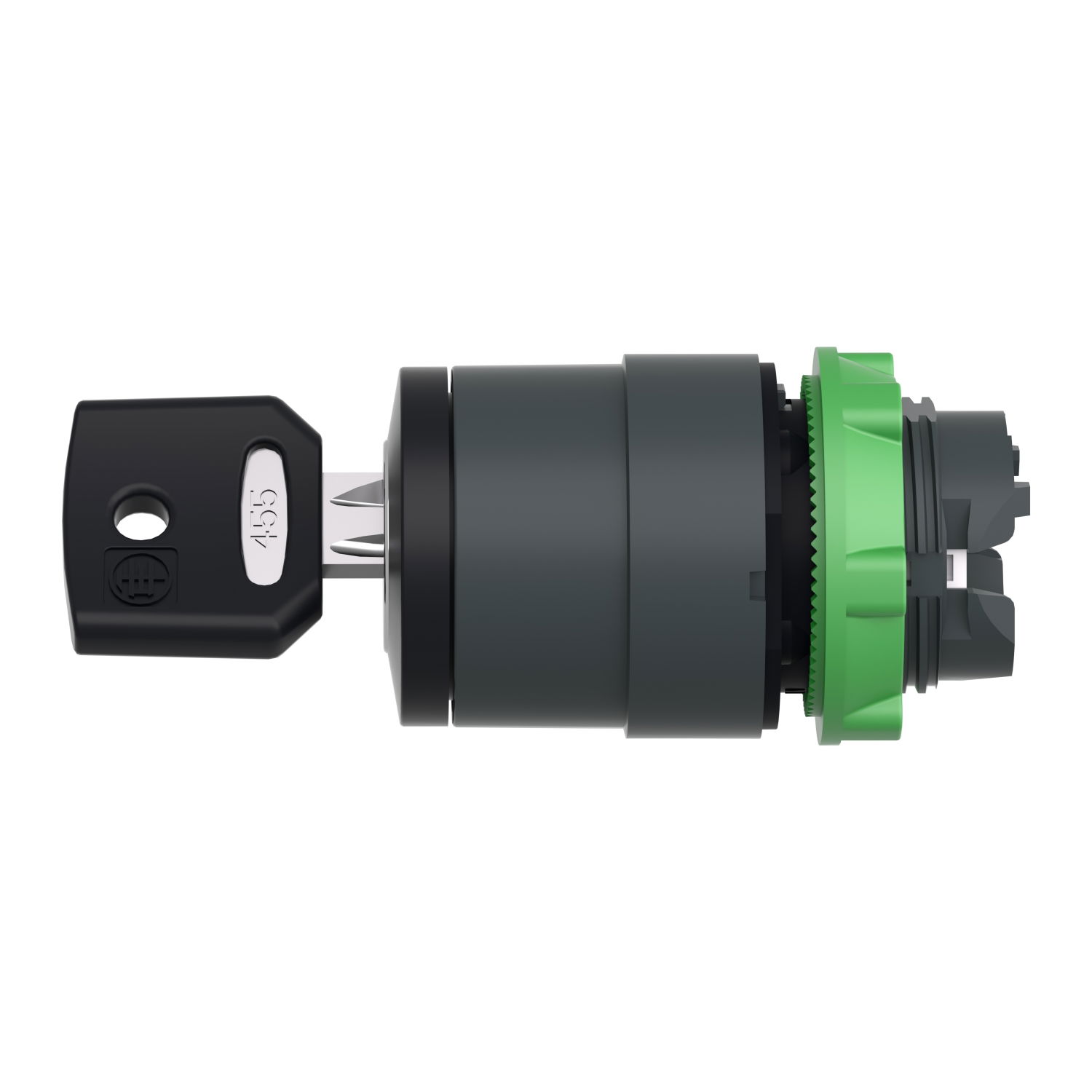

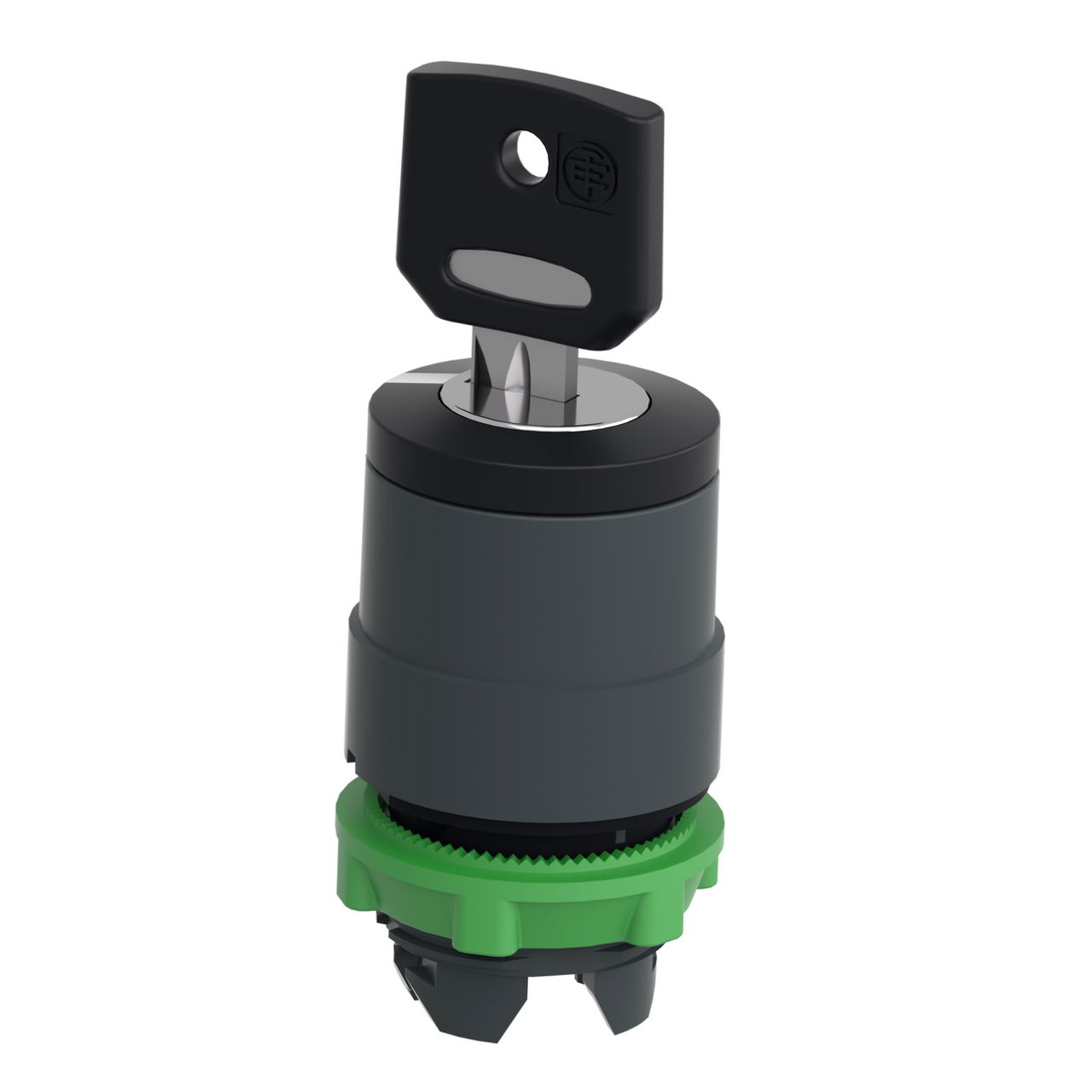

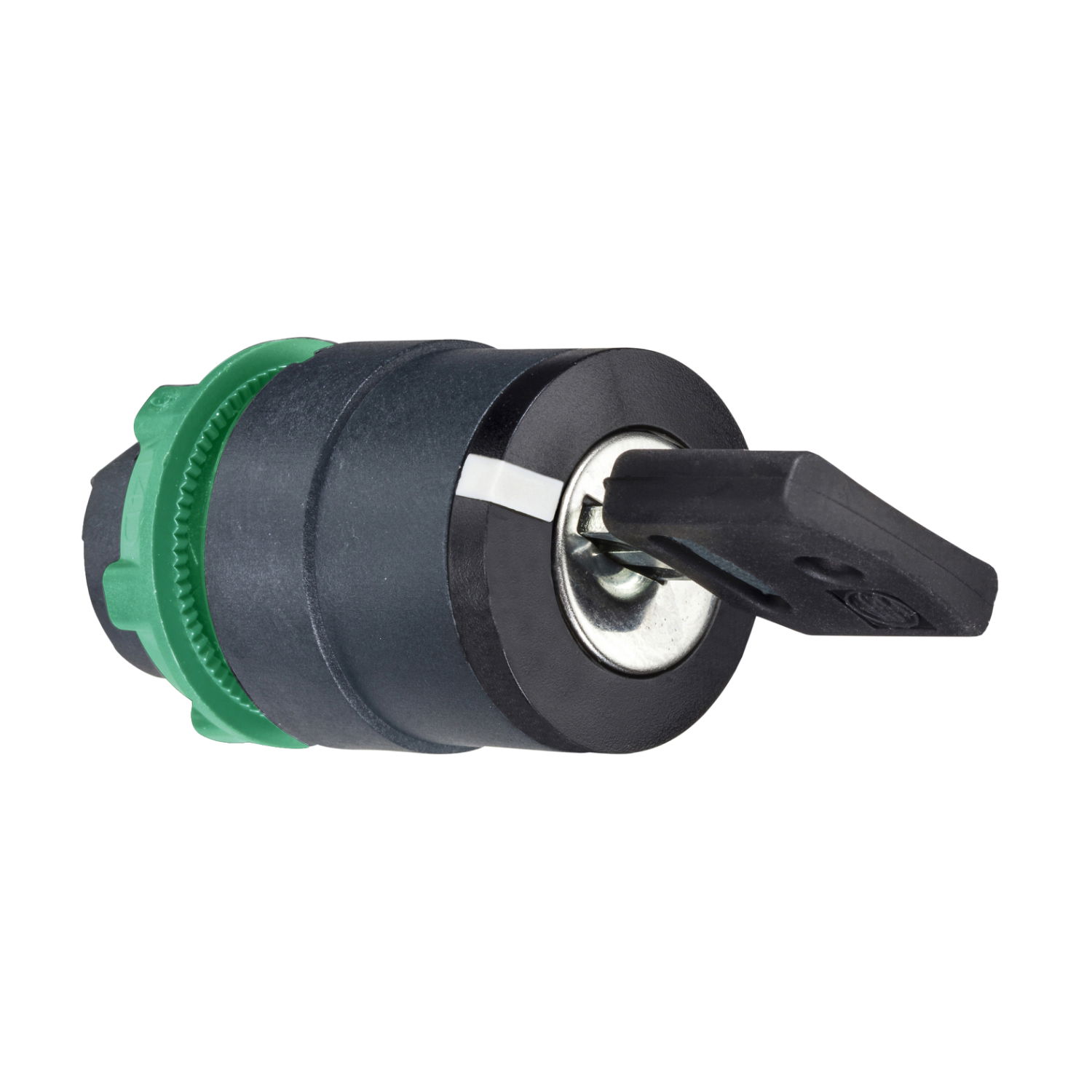

Selector switch head Ø22 2-position stay put Ronis 455

Selector switch head Ø22 2-position stay put Ronis 455

This Harmony XB5, head with key (key no.455) for key selector switch has 2 positions, operates with stay-put mechanism with key withdrawal on left and right position. This head with key provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units to provide a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Product identifiers

SKU: ZB5AG4
EAN: 3389110905823
GTIN: 3389110905823
MPN: ZB5AG4

V+ Loyalty points:

12

Price range: £ 19.08 - £ 30.11 Excl. VAT

Videos

Promotional video

Specifications

Hole diameter 22.5 mm
Spring-return no
Width opening -
Height opening -
With front ring yes
Colour front ring Black
Material front ring Plastic
Suitable for lighting no
Construction type lens Round
Colour indicator light cap -
Degree of protection (NEMA) 13
Degree of protection (IP), front side IP66
